PCB antenna 1.5Ghz Inmarsat Nooelec 1550Mhz Nooelec Satellite & QO-100 NOOELEC-ANT-100817-PCB-958 View larger
Previous Next

Nooelec

NOOELEC-ANT-100817-PCB-958

New product

Canada

PCB antenna 1.5Ghz Inmarsat Nooelec 1550Mhz

rating No review at the moment

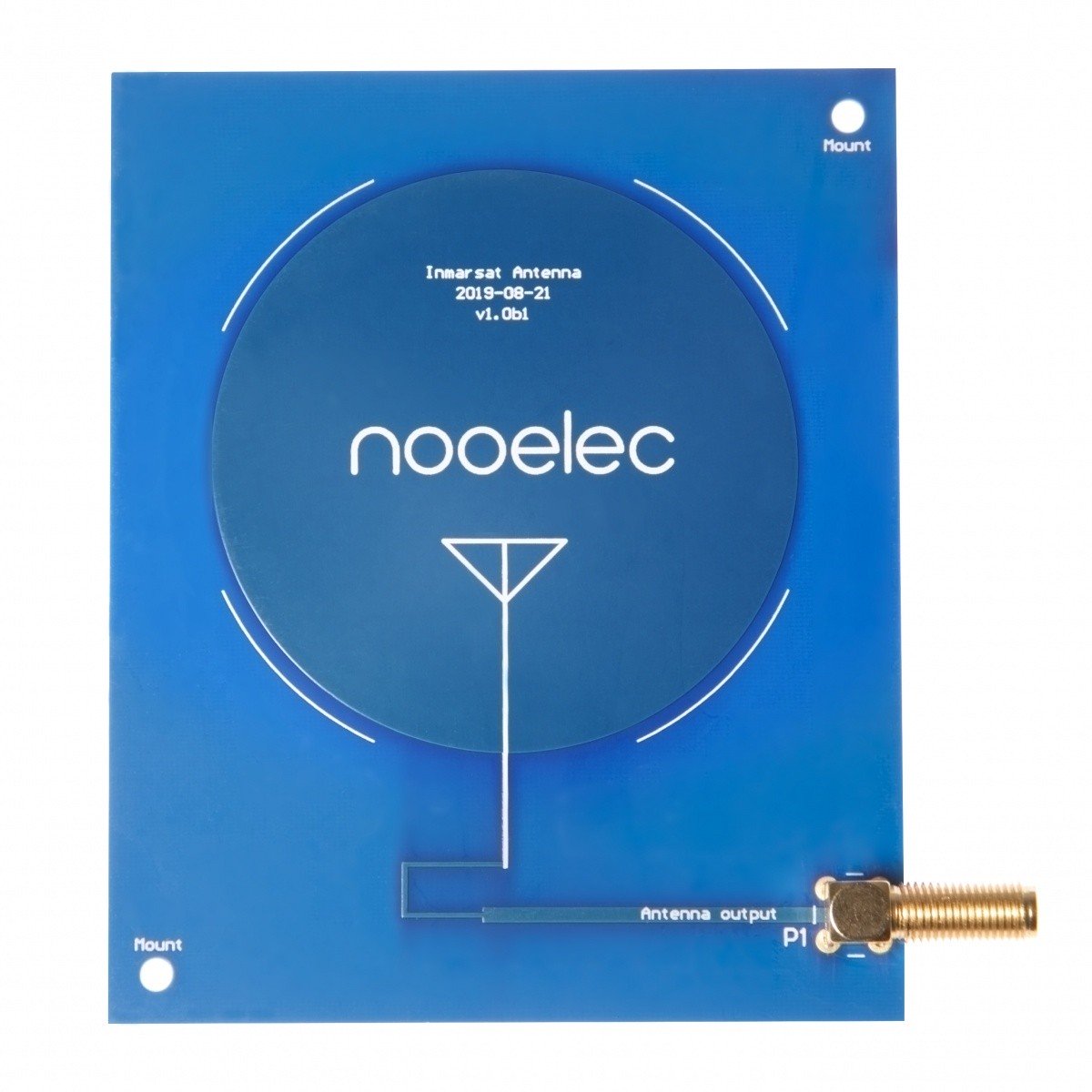

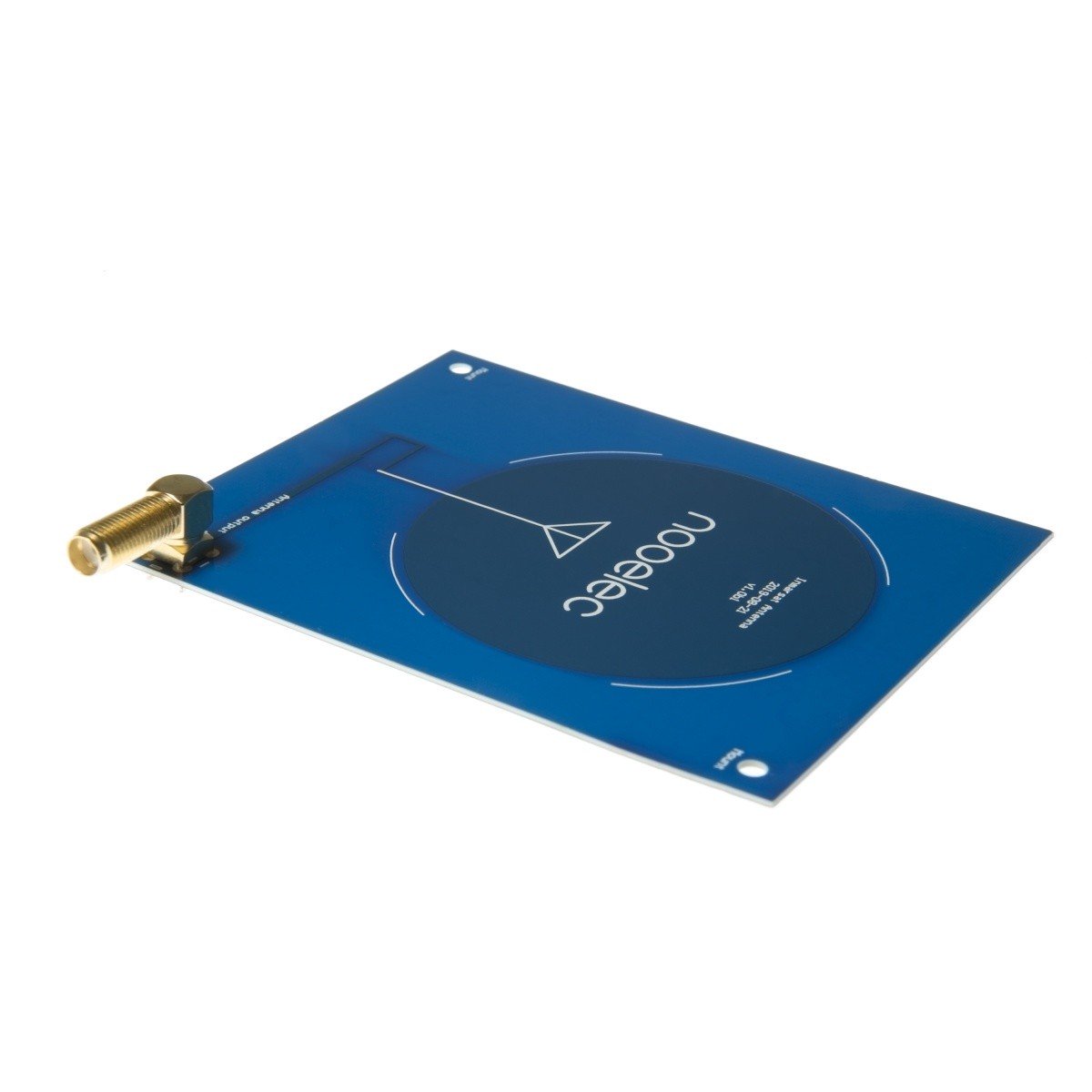

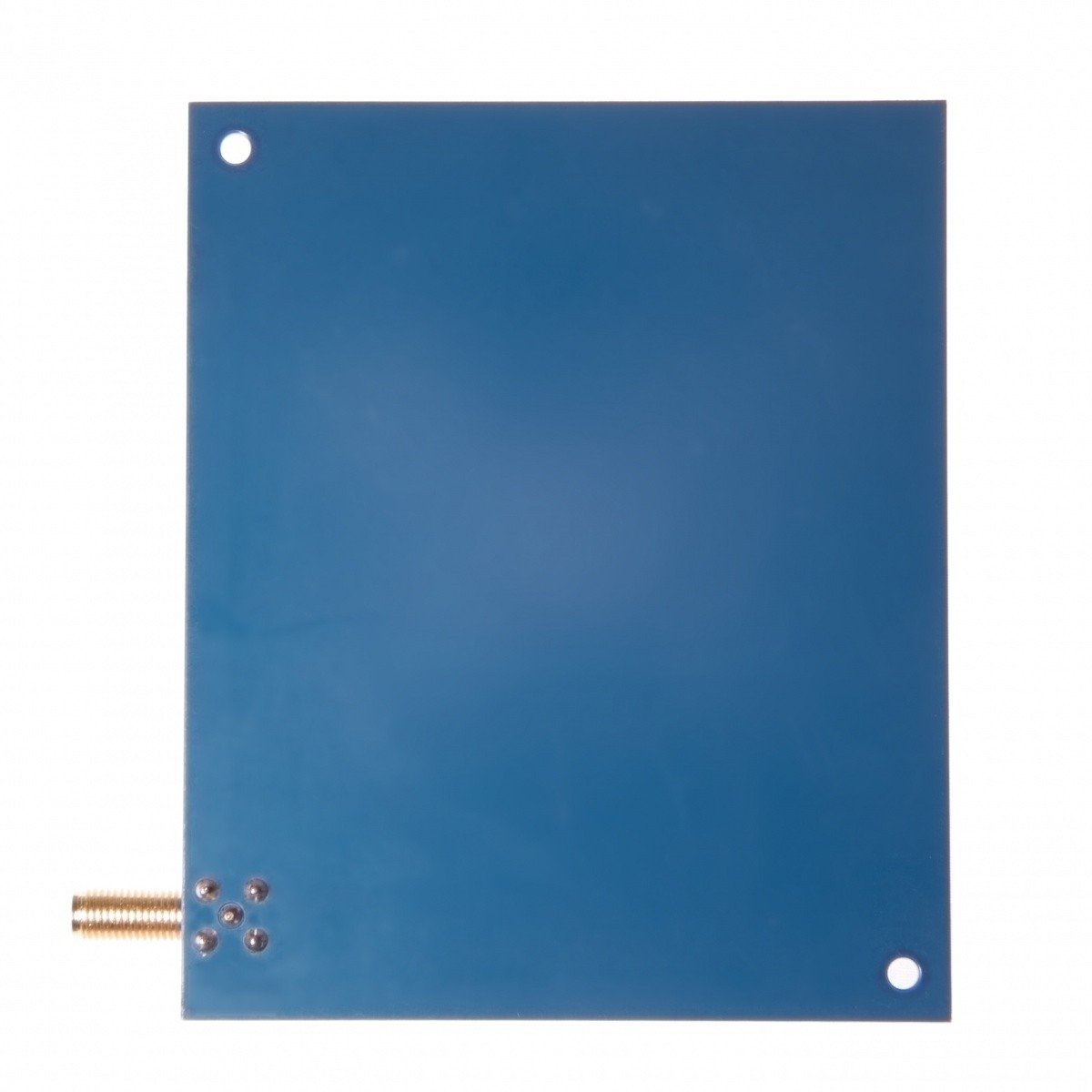

Nooelec PCB Patch antenna for Inmarsat L-band application (Inmarsat AERO / STD-C) and satellites on 1550 Mhz. The antenna is delivered with female SMA connector soldered on the PCB.

The antenna works equally well for right circular polarization (RHCP) and linear signals, over the entire frequency range of Inmarsat.

Center frequency: 1550 MHz
Bandwidth: 66Mhz
Type: Patch
Gain: 3.5dBi
Impedance: 50 ohms
Dimensions: 95mm x 79mm
Weight: 20 grams

38,64 € tax excl.

In stock

   1 Item

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

Datasheet PCB Inmarsat

673.16k
