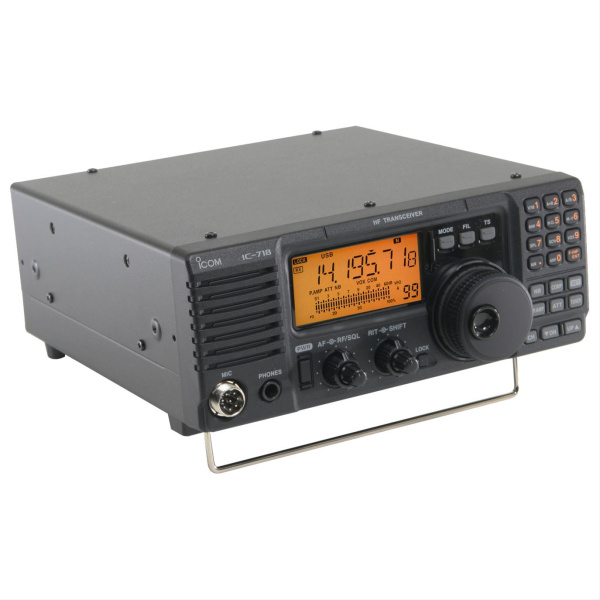

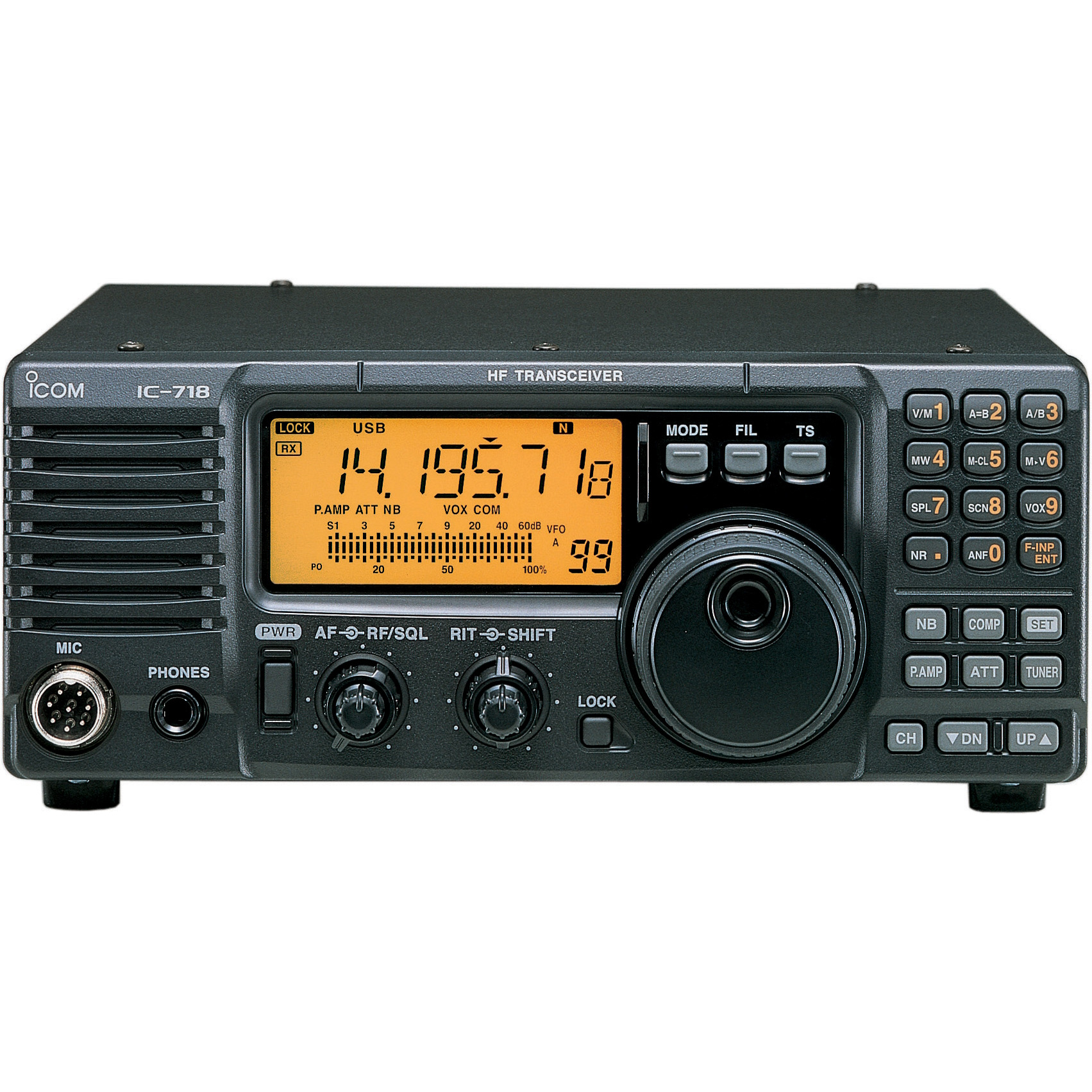

Icom IC-718 HF transceiver 100W HF amateur radio bands 1.8-30 MHz

rating No review at the moment

TheIcom IC-718 (new version 2024) is a reliable and affordable HF transceiver, perfect for both novice and experienced radio amateurs. It covers all HF bands from 1.8 to 29.7 MHz, with 100W of power, and offers a simple interface for intuitive use.

  • Transmit power up to 100W in SSB/CW/RTTY, 35W in AM

  • General reception from 30 kHz to 29.999 MHz

  • Modes: USB, LSB, CW, RTTY (FSK), AM

  • Front speaker for clear listening

  • Built-in functions : VOX, microphone compressor, IF Shift filter

  • Backlit LCD display with digital S-meter

  • 101 programmable memories, built-in scanner

  • Compatible with ICOM AH-730 automatic tuners, MAT TUNER mAT-180H and mAT-K100 (optional)

Supplied with: HM-36 microphone, power cable, French manual.

More details

969,00 € tax excl.

Out of stock, available within 1 to 2 months

Availability date: 2025-06-20

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

Manuel ICOM IC-718 (EN)

3.8M

Manuel ICOM IC-718 (FR)

6.7M

Data sheet

  • Frequency ranges :

    • Transmit (TX): 1.8 to 29.7 MHz (HF amateur bands)

    • Receive (RX): 30 kHz to 29.999 MHz (general reception)

  • Modulation modes : USB, LSB, CW, RTTY (FSK), AM

  • Transmit power :

    • SSB/CW/RTTY: 2 to 100W

    • AM: 1 to 35W

  • Power supply : 13.8V DC ±15%, max. power consumption 20A

  • Frequency stability : ±200 Hz after 1 min warm-up

  • Sensitivity (typical) :

    • SSB/CW/RTTY: 0.16 µV (1.8 to 29.999 MHz)

    • AM: 13 µV (0.5 to 1.799 MHz), 2 µV (1.8 to 29.999 MHz)

  • Selectivity :

    • SSB/CW/RTTY: 2.1 kHz (-6 dB), 4.5 kHz (-60 dB)

    • AM: 6.0 kHz (-6 dB), 20 kHz (-40 dB)

  • Image rejection :

    70 dB

  • Built-in loudspeaker : 2W at 8 ohms

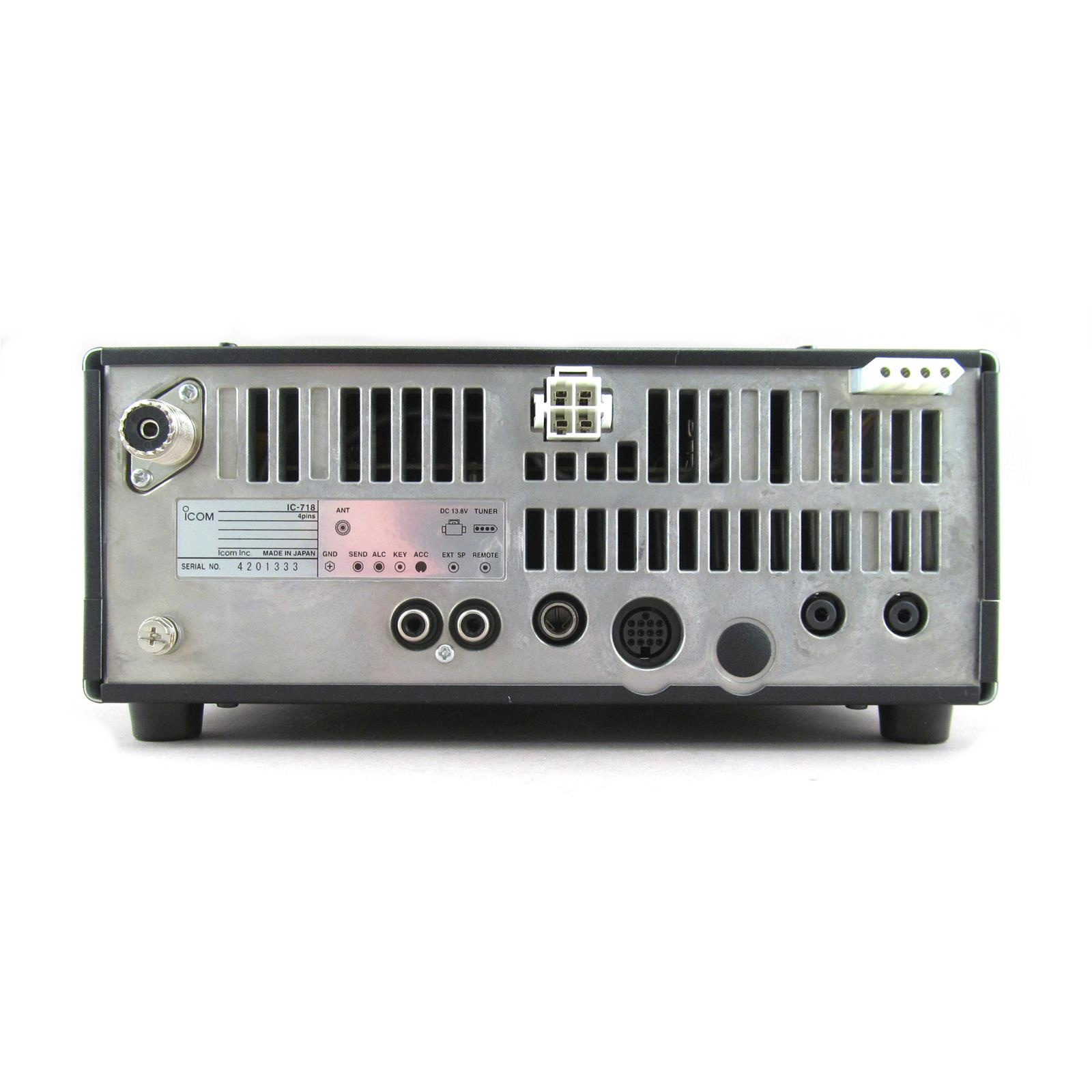

  • Connections:

    • 8-pin microphone socket (600 Ω)

    • External speaker output (3.5 mm, 8 Ω)

    • SO-239 antenna connector (50 Ω)

  • Dimensions : 240 × 95 × 239 mm

  • Weight : 3.9 kg

  • Additional functions :

    • VOX (voice-activated transmission)

    • Microphone compressor

    • IF Shift filter for interference reduction

    • RF attenuator and preamplifier

    • 101 memory channels (99 regular, 2 scan)

    • Built-in electronic key for CW (6 to 60 words/min)

    • Digital S/RF display for power and VSWR

FAQ

Which power supply should I choose for the IC-718?

This set consumes a maximum of 21A at full power at 100W. We recommend a power supply with a minimum of 25A amps, such as the model Nissei NS1230Dor the NS30D for example.

Which aerials should I use with the IC718?

The ideal choice of antenna depends on a number of factors, starting with the type of use (portable, mobile or fixed): The space available, the mounting/installation options and the frequency bands mainly used.

It goes without saying that there is no such thing as a 'magic' antenna, capable of doing everything under any circumstances! You often have to make a choice about the bands covered in transmission, favouring the bands that you prefer and that you plan to tamper with, or accept slightly average performance everywhere.

Here is a selection of recommended antennas for different types of use with the IC-718:

1.Dipole and wire antennas

Dipoles are often the first choice for radio amateurs, as they are simple to build and offer good performance on several bands.

For relatively unobtrusive installation, but provided space is available, wire antennas are a good choice.

- Multiband dipole Diamond BB6WS Well-adjusted to cover several HF bands without the need for an external tuner.
- Inverted V dipole G5RV : A popular wire antenna that covers several HF bands with relatively simple tuning, requires the use of the tuner
- T2FD wideband HF 2-30 Mhz wire antenna DIAMOND WD-330J

2. Vertical antennas

Vertical antennas are recommended for their ease of mounting on a mast and their ability to operate on several bands.

- Diamond CP6SR : Multi-band vertical antenna recognised for the main HF bands (10 to 80 metres).
- Diamond BB7V A wideband vertical antenna that does not require radials and covers many bands without complex adjustments.

3.Directional antennas

If you have the space and want to maximise your DX performance, a directional antenna is ideal.

- Yagi 3 elements: Offers significant gain on HF bands such as 20, 15 and 10 metres, perfect for long-distance contacts.
- Hexbeam: A compact antenna with similar performance to a Yagi, but with fewer installation constraints.

4. Mobile antennas

For mobile use, antennas specially designed for this configuration are required.

- Diamond HV7CX Multi-band antenna for mobile use on several bands without changing settings
- Diamond SD-330 A multi-band mobile antenna with an integrated tuner, designed for rugged performance on the move.

5.Portable antennas

For operators who want to operate in the field (portable), a lightweight, easy-to-carry antenna is essential.

- MC-750 A modular portable antenna that allows the configuration to be adjusted according to band requirements and conditions.
- Chelegance JPC-7 Portable dipole antenna 8 bands HF 40m to 6m : A versatile portable antenna system, ideal for POTA (Parks On The Air) and SOTA (Summits On The Air).
