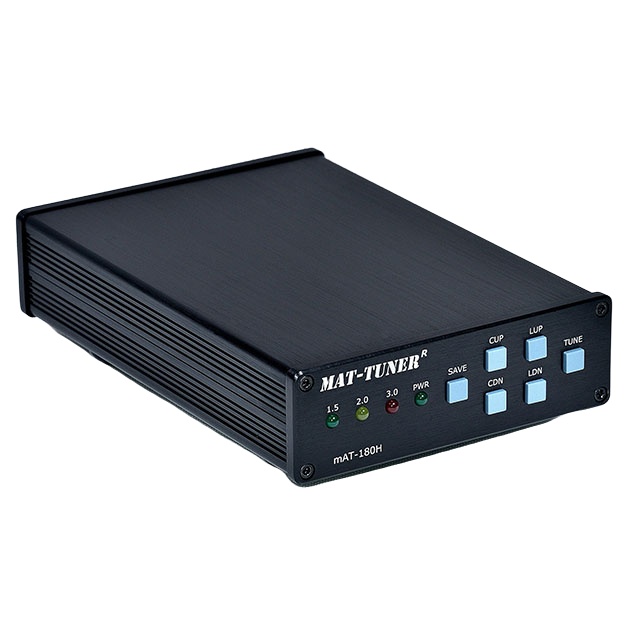

mAT-180H automatic HF tuner for ICOM and KENWOOD transceivers View larger
Previous Next

MAT-TUNER

MTUNER-MAT-180H-1610

New product

China

Automatic HF tuner mAT-180H MAT-TUNER for ICOM and KENWOOD transceivers

rating Read the 10 reviews
Average rating: 5/5 Number of reviews: 10

The mAT-180H is an automatic antenna tuner operating in the 1.8MHz to 54MHz range, at power levels up to 120 watts.

It allows tuning of dipoles, verticals, Yagis, or virtually any coax-fed antenna.

It is designed for modern ICOM and KENWOOD HF transceivers depending on the control cable added: the mAT-CI for ICOM (supplied) and mAT-CK for KENWOOD (not supplied).

Compatible ICOM units: IC-706, 703, 718, 7000, 7100, 7200, 7300, 7410, 746, 756, 7600, AH-3 and AH-4

Compatible KENWOOD units: TRC-80, TK-80, TS-2000, 50, 450, 480SAT (except HX version), 570, 590, 850, 870, 990 and any unit supporting KENWOOD AT-300 tuners. KENWOOD TS-430, TS-440 are too old to use this tuner.

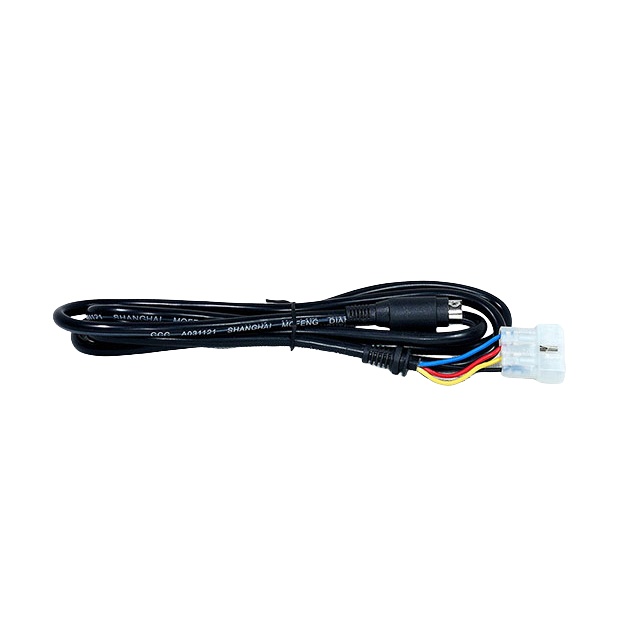

Delivered with: 1 mAT-180H tuner and a mAT-CI control cable for Icom

More details

189,00 € tax excl.

In stock

   3 Items

Estimate directly shipping costs by clicking on "Add to cart", then enter your country and zip code on the cart page.

Download

User's manual mAT-180H (FR)

In french 389.01k

Manuel d'utilisation mAT-180H EN

478.31k

Data sheet

  • 0.1 to 120 watts of peak SSB and CW power, 30 watts in PSK and digital modes, and 100 watts on 6 meters.
  • 16,000 memories for instantaneous frequency and band changes.
  • Tuning times: 0.1 to 5 seconds full tuning, 0.1 seconds memory tuning.
  • Coverage from 1.6 to 54.0 MHz. Built-in frequency sensor.
  • Tunes loads from 5 to 1500 ohms.
  • For dipoles, verticals, whips, wire or any other coaxial fed antenna.
  • Weight: 0.8Kg.

The mAT-180H has 16,000 frequency memories. When tuning to or near a previously tuned frequency, the mAT-180H uses "Memory Tune" to recall the previous tuning settings in a fraction of a second.

If no stored settings are available, the tuner performs a full tuning cycle, storing the settings for memory recall on subsequent tuning cycles on that frequency. In this way, the mAT-180H "learns" as it is used, adapting to bands and frequencies. You can also start a tuning cycle manually if necessary.

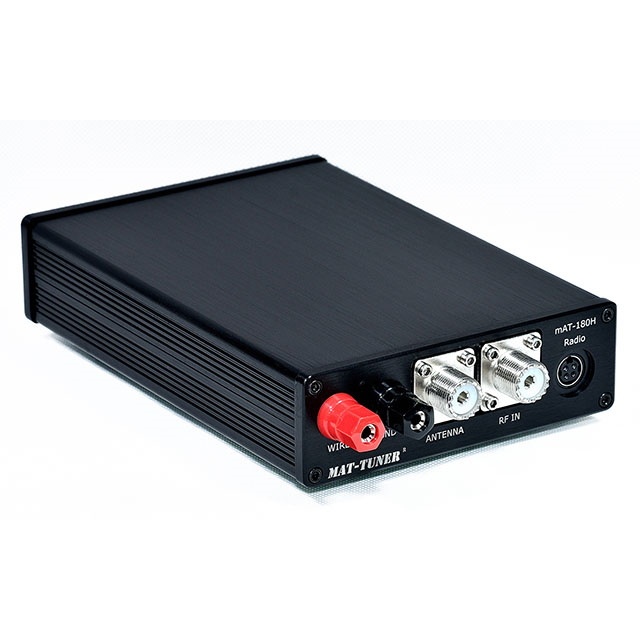

To facilitate the use of wire antennas, in addition to having two standard SO-239 RF jacks, the rear panel of the mAT-180H has two terminals, one red and one black. The red terminal connects the wire antenna, the black terminal connects the earth wire.

The mAT-180H connects to the transceiver via its tuner jack to control the tuning cycle, the tune button on the transceiver controls the tuner. The tuner jack also provides power to the tuner, so no external power is required.

Important note: When operating in FT8/FT4 digital mode, or in AM or RTTY carrier mode, maximum power must be reduced by at least half (30-40W max recommended), and when tuning, transmitter power must be kept to a minimum (5-10W), otherwise the tuner will burn out and the warranty will not cover excessive power.

  • Customers also bought

  • We also recommend

    • Xiegu XPA125B Amplifier 0-30Mhz 100W + Tuner Xiegu HF accessories XIEGU-XPA125B-545
      695,00 €

      Reference: XIEGU-XPA125B-545

      Xiegu XPA125B Amplifier 0-30Mhz 100W + Tuner

      The Xiegu XPA125-B (new version) is a 100-125W amplifier for frequencies from 0.5 to 30Mhz and 50 to 54Mhz, with an integrated antenna tuner (1.8 to 30Mhz). It is equipped with protections:

      695,00 €
    • transceiver ICOM IC-705 SDR HF VHF UHF D-STAR
      1 549,00 €

      Reference: ICOM-IC705-1109

      QRP transceiver ICOM IC-705 portable HF VHF UHF & D-STAR

      Icom IC-705 SDR QRP mobile transceiver station for HF, 50, 144 and 430MHz amateur radio band, with 5W on battery and 10W on external power supply (13.8V), reception from 30Khz to 200Mhz and from 400

      1 549,00 €
    • QRP transceiver ICOM IC-7300
      1 285,00 €

      Reference: ICOM-IC7300-1110

      ICOM IC-7300 100W SDR HF + 50 Mhz & 70Mhz

      HF amateur radio base ICOM IC-7300 for HF bands from 1.8 to 30MHz, 6m from 50-52MHz, with 100 watts, integrated automatic antenna coupler, 4.3 "color LCD touch screen, keyboard, all analogue modes

      1 285,00 €
    • Signalink-6PM pack for ICOM YAESU and Kenwood 6-pin mini-din radio
      189,00 €

      Reference: SIGNALINK-PACK-SLUSB6PM-1484

      Signalink SLUSB-6PM pack for ICOM YAESU Kenwood 6-pin mini-din DATA socket

      The Signalink SLUSB-6PM V2 interface pack is compatible with virtually all ICOM, Kenwood and Yaesu radios equipped with a 6-pin mini-DIN data port (DATA socket) such as: IC-706MKIIG, IC-9100, IC

      189,00 €

Reviews

Click here to leave a review

rating 5
hf tuner
Automatic HF tuner mAT-180H MAT-TUNER for ICOM and KENWOOD transceivers it works great
rating 5
Bon job
Pratique et rapide à installer
rating 5
QRO
A part qu\'il faille ne pas bancher à la fois un coax et un twin lead, cet appareil accorde fort bien un dipôle de 2x12.5 mètres par le twin-lead 450 ohms (HF mais pas 80m) pour mon IC-7100.
rating 5
good small atu
it is a small atu, works as expected.. price/quality very good
rating 5
Tuner
Parfait pour Icom MK II G simple d\'utilisation
rating 5
tuner mat-180h
très bon produit, je l\'utilise avec un icom 7200 pas de problème d accord, il va très très vite et facile d \' utilisation .. je recommande le produit
rating 5
mon avis sur le mAT-180H

utilisé avec un IC-7300, accorde parfaitement mes antennes, à savoir un "long" fil d'environ 18m, une antenne CB raccourcie pour le 29 MHz et une verticale Comet CHA-250BWII
le bouton TUNE sur le mAT-180H n'a pas d'effet sur l'IC-7300, il faut appuyer sur "TUNER" de l'Icom
l'accord prends au maximum 2 secondes... et presque instantané si l'on a déjà mémorisé la fréquence ("SAVE")
très content de ce tuner
F1FCO, Pierre à Nîmes

rating 5
Fonctionne bien

Sans problème, corrige le tuner intégré et peux utiliser le 80 mètres sans problème désormais

rating 5
Super
Parfait merci
rating 5
Très bon produit
Rien a dire - produit OK
