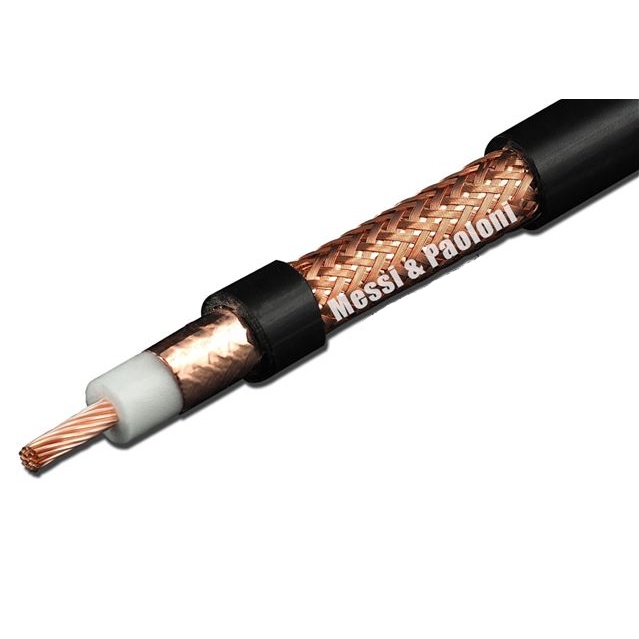

EXTRAFLEX BURRY waterproof coaxial cable 10.3 mm 50 Ohm very low loss View larger

Messi & Paoloni

New product

Italy

EXTRAFLEX BURRY waterproof coaxial cable 10.3 mm 50 Ohm very low loss

rating No review at the moment

EXTRAFLEX Burry 10 coaxial cable from Messi & Paoloni, fully waterproof for outdoor use and UV resistant , very low loss, flexible, for frequency use from 0 to 13000 MHz (13 GHz) and high transmission powers in HF, VHF and UHF.

The only coax that can be used simultaneously for outdoor, direct burial, tight bends and rotor antennas.

The EXTRAFLEX Burry 10 combines great flexibility, thanks to the 19 wires of the conductor and a resistant and tear-proof sheath.

A layer of oil applied helps prevent oxidation and makes it waterproof.

Available in different lengths: 30m, 50m, 100m and 200m (choose below).

Impedance at 200Mhz: 50 Ohm
Cable outer diameter: 10.3mm
Minimum bending radius: 40mm
Operating temperature: -40°C to + 60°C
Capacitance: 78 pF/m ± 2
Velocity: 87%
Class: A++
Inner conductor resistance: 3.6 Ohm/Km
Outer conductor resistance: 12 Ohm/Km
Voltage test (spark test): 8 kV
Maximum peak power: 13000 WATTS
CE and Rohs standards

Net weight over 100m: 10.8 Kg (108g/m)

10.3mm connector compatible with PL259 (UHF-Male) or N-Male, available as an option, below.

More details

129,00 € tax incl.

107,50 €

tax excl.

In stock

   3 Items

  • 30m
  • 50m
  • 100m
  • 200m

Order it before 10:00 of aujourd'hui and receive it between on Friday 7th October and Monday 10th October with DHL Express 12

Order it before 10:00 of aujourd'hui and receive it between on Friday 7th October and Monday 10th October with DHL Express 12

Order it before 10:00 of aujourd'hui and receive it between on Friday 7th October and Monday 10th October with DHL Express 12

To know the shipping costs and available carriers, add this material to the cart and indicate your country & zip code on the cart page.

Download

Data sheet

Main differences between HYPERFLEX and AIRBONE type cables:

The coaxial HYPERFLEX is more flexible with a PVC sheath with copper conductor, while the coaxial AIRBONE has a more rigid sheath in PE, it is lighter, thanks to the conductor in aluminum covered with copper.

Attenuation at 20°C in dB for 100m

1.8MHz 0.8
3.5MHz 1dB
7MHz 1.1dB
10MHz 1.3dB
14MHz 1.5dB
21MHz 1.8dB
28MHz 2.0dB
50MHz 2.7dB
100MHz 3.9dB
144MHz 4.7dB
200MHz 5.6dB
400MHz 8.3dB
430MHz 8.6dB
800MHz 11.9dB
868MHz 12.98dB
1000MHz 13.4dB
1296MHz 15.4dB
2400MHz 21.8dB
3000MHz 24.6dB
4000MHz 29.1dB
5000MHz 33.1dB
6000MHz 36.9dB
7000MHz 40.7dB
8000MHz 44.2dB
9,000MHz 47.5dB
10,000MHz 50.7dB

Maximum power at 40°C depending on the frequency

3.5MHz 9927W
7MHz 5990W
10MHz 5186W
14MHz 4483W
21MHz 3777W
28MHz 3357W
50MHz 2518W
100MHz 1759W
144MHz 1460W
200MHz 1226W
400MHz 837W
430MHz 808W
800MHz 581W
1000MHz 516W
1296MHz 449W
2400MHz 319W
3000MHz 282W
4000MHz 239W
5000MHz 210W
6000MHz 188W
7000MHz 171W
8000MHz 157W
10.000 MHz 137 W
