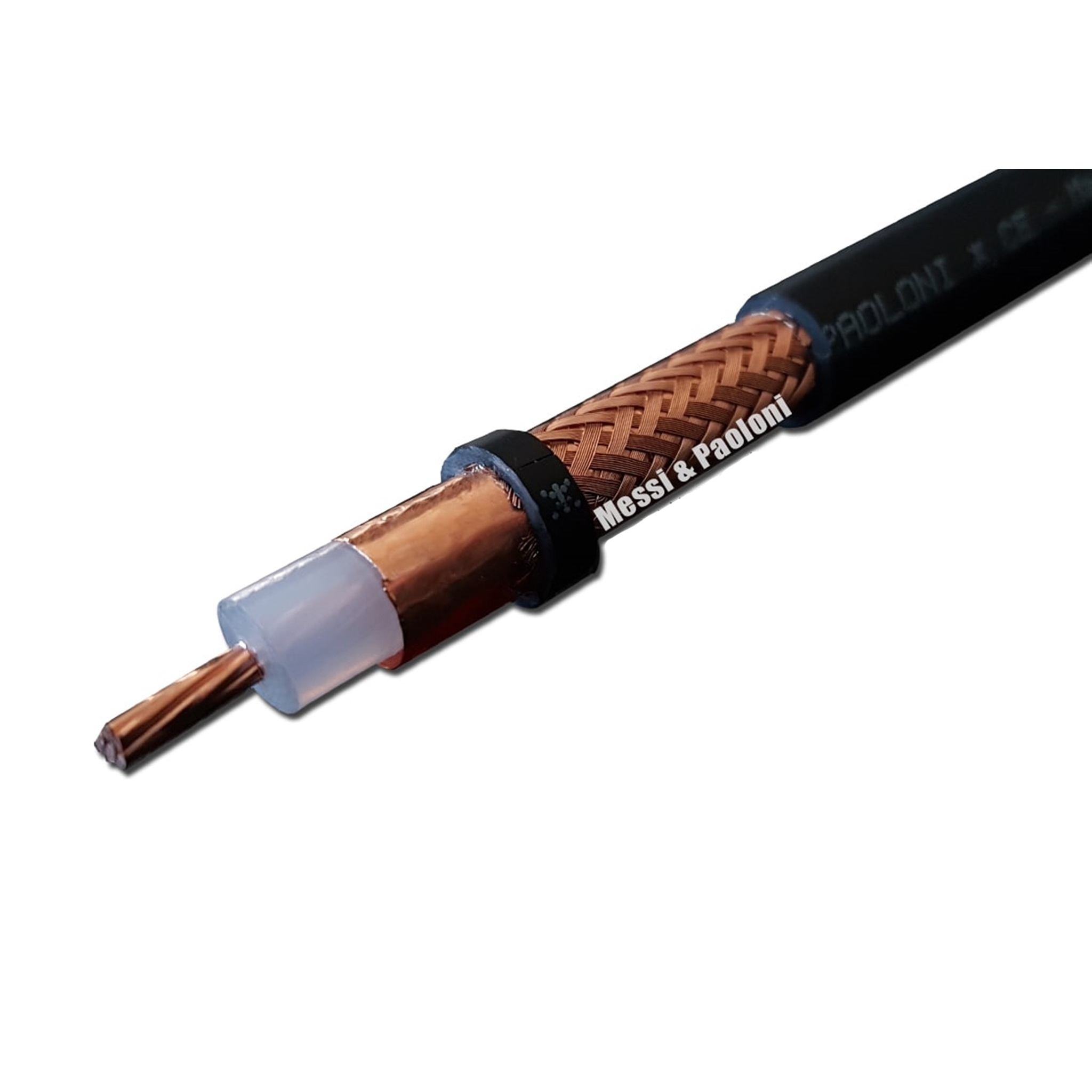

Coaxial cable RG-213 PLUS M&P 10.3mm en bobine View larger
Messi & Paoloni

New product

Italy

Coaxial cable RG-213 PLUS M&P 10.3mm en bobine

Coaxial cable RG-213 PLUS Messi & Paoloni, RG213U MIL C17 with a diameter of 10.3 mm, for use in frequencies from 0 to 8000 Mhz (HF, VHF, UHF and SHF) or for the construction of wire antenna, dipole , bazooka, etc.

Available in different sizes: 30m, 50m, 100m and 200m (to choose below).

Impedance at 200Mhz: 50 Ohm
Minimum bending radius: 60 mm
Operating temperature: -45°C to +70°C
Capacitance: 101 pF / m ± 2
Velocity: 66%
Class: A++
Internal conductor resistance: 5.8 Ohm/Km
Resistance of outer conductor: 11 Ohm/Km
Voltage test (spark test): 8 kV
Maximum peak power: 16,000 W
CE and Rohs standards.

Net weight over 100m: 12 Kg

PL259 (UHF-Male) and N-Male compatible connector, available as an option, below.

Price per meter from: 1.795 € TTC (1.496 € HT) for 200m.

More details

59,00 € tax incl.

Out of stock, available within 10-15 days

  • 30m
  • 50m
  • 100m
  • 200m

Download

Data sheet

Attenuation at 20°C in dB/100m

1,8 MHz 0,8dB
3,5 MHz 1,1dB
7 MHz 1,5dB
10 MHz 1,7dB
14 MHz 2,0dB
21 MHz 2,3dB
28 MHz 2,6dB
50 MHz 3,5dB
100 MHz 5,0dB
144 MHz 6,2dB
200 MHz 7,4dB
400 MHz 10,9dB
430 MHz 11,4dB
800 MHz 16,3dB
1000 MHz 18,6dB
1296 MHz 21,8dB
2400 MHz 32,1dB
3000 MHz 36,9dB
4000 MHz 44,4dB
5000 MHz 51,4dB
6000 MHz 58,2dB
7000 MHz 64,8dB
8000 MHz 70,8dB

Maximum power at 40°C depending on frequency

1,8 MHz 8372 W
3,5 MHz 6260 W
7 MHz 4768 W
10 MHz 4114 W
14 MHz 3600 W
21 MHz 3037 W
28 MHz 2667 W
50 MHz 2033 W
100 MHz 1414 W
144 MHz 1152 W
200 MHz 962 W
400 MHz 655 W
430 MHz 628 W
800 MHz 439 W
1000 MHz 386 W
1296 MHz 328 W
2400 MHz 224 W
3000 MHz 195 W
4000 MHz 162 W
5000 MHz 139 W
6000 MHz 123 W
7000 MHz 111 W
8000 MHz 101 W
