> Radio Antennas>ISM 433-868 Mhz>ThinkNode M1 LoRa Meshtastic nRF52840 868 MHz Transmitter with 1.54' EPD Display and Elecrow GPS

Viewed products

New

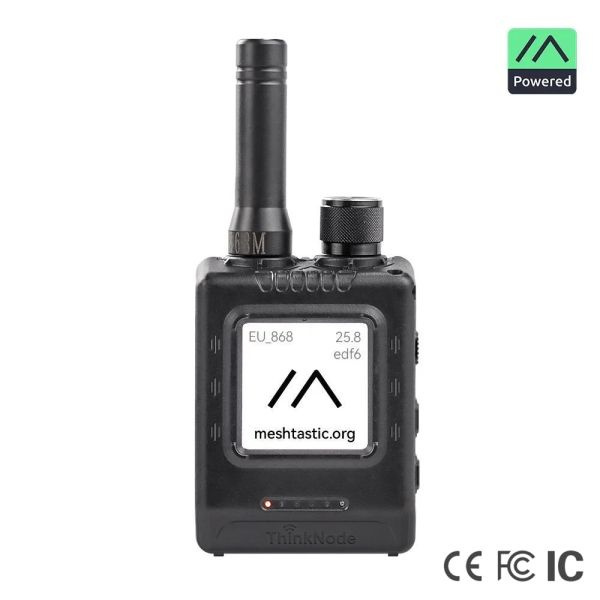

ThinkNode M1 LoRa Meshtastic nRF52840 868 MHz Transmitter with 1.54' EPD Display and Elecrow GPS View larger
ThinkNode M1 LoRa Meshtastic nRF52840 868 MHz Transmitter with 1.54' EPD Display and Elecrow GPS
Elecrow

ELECROW-THINKNODEM1-3179

New product

China

ThinkNode M1 LoRa Meshtastic nRF52840 868 MHz Transmitter with 1.54' EPD Display and Elecrow GPS

rating No review at the moment

The ThinkNode M1 is a high-performance LoRa communication terminal designed for the decentralized Meshtastic network. Equipped with an nRF52840 processor and an E-Ink display, it allows users to exchange messages and GPS locations without relying on cellular or Wi-Fi networks.

  • Low-power Nordic nRF52840 processor with Bluetooth 5.0 connectivity.
  • 1.54-inch EPD display for perfect readability even in direct sunlight.
  • Powerful SX1262 LoRa chip (+22 dBm) optimized for the 868 MHz band (Europe).
  • Built-in multi-constellation GPS module (GPS, GLONASS, BeiDou, QZSS).
  • 1200mAh lithium battery providing over 48 hours of battery life.
  • Rugged ABS housing with a rotary knob and mounting clips for field use.

Includes: 1 ThinkNode M1 device, 1 USB-A to USB-C cable, 1 LoRa Rubber Stick antenna (RP-SMA), 1 belt clip, 1 user manual.

More details

62,70 € tax excl.

Out of stock, available within 1 month

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

Elecrow's ThinkNode M1 is an essential standalone communication tool for adventurers, emergency responders, and enthusiasts of decentralized technology. Using the Meshtastic protocol, it transforms every device into a node in a mesh network capable of transmitting text messages and geolocation data over long distances without requiring any infrastructure.

Key Features

  • Exceptional battery life: Thanks to its nRF52840 processor and EPD display, it consumes very little power, enabling extended use.
  • E-Ink display: The 1.54-inch screen offers unique visual comfort and consumes energy only when data is refreshed.
  • Precise geolocation: Features a full-featured GPS module that enables real-time location sharing on a map via the Meshtastic app.
  • Field-Ready Design: Features a rotary power switch and dedicated buttons for navigation and SOS mode.
  • Firmware versatility: Comes with Meshtastic pre-installed, but remains compatible with MeshCore firmware for specific needs.

Technical Specifications

  • Processor: Nordic nRF52840 (Cortex-M4 64 MHz, 256 KB RAM).
  • Storage: 3 MB Flash (2 MB dedicated external).
  • LoRa module: Semtech SX1262, output power up to +22 dBm.
  • Frequency band: 868 MHz (European version).
  • Display: 1.54-inch Electronic Paper Display (EPD), 200x200-pixel resolution.
  • Connectivity: Bluetooth LE (for smartphone configuration), USB Type-C (charging and data).
  • GPS: Integrated module supporting GPS, GLONASS, BeiDou, and QZSS.
  • Physical interface: Rotary button (ON/OFF), page button, SOS button, physical GPS switch.
  • Battery: Built-in 1200 mAh lithium battery.
  • Power consumption: ~85 mA peak, ~5.6 μA in deep sleep mode.
  • Dimensions: 82 x 51.6 x 26.3 mm (excluding antenna).
  • Weight: 81 g with case.

Compatibility

  • Network: Fully compatible with all Meshtastic nodes (Heltec, T-Beam, etc.) on the same frequency.
  • Applications: Official Meshtastic app (iOS and Android) via Bluetooth.
  • Connectivity Antenna: RP-SMA connector (allows the use of higher-performance external antennas).
  • Power: Charges via any 5V/1A USB port.

FAQ

What is the actual range of this device?

The range depends on the environment and the antenna used. With a clear line of sight (peak-to-peak), it can exceed 20–30 km. In urban areas, expect a range of between 500 m and 2 km.

Is the device ready to use?

Yes, the Meshtastic firmware is pre-installed. Simply screw on the antenna, turn on the device, and pair it with your smartphone via Bluetooth.

Can I replace the included antenna?

Absolutely. The ThinkNode M1 uses a standard RP-SMA connector, so you can connect a high-gain antenna or a fixed antenna mounted on your roof.

Does the screen display received messages?

Yes, the E-Ink screen lets you read the latest messages, see nearby stations, and check your current GPS location without taking out your phone.

Is it weatherproof?

The ABS casing is sturdy and sealed, but it is not IP67-certified. We recommend protecting it from direct rain or using it in a protective case in extreme conditions.

Why choose the ThinkNode M1?

  • Hardware reliability: Designed by Elecrow with high-quality components (Nordic, Semtech).
  • Ease of use: The physical switch for GPS and the rotary knob make it more intuitive to use than single-button models.
  • Open ecosystem: Hardware fully open to modifications and compatible with Meshtastic community updates.
  • Compact design: Ultra-lightweight and compact, it fits easily in a pocket or clips onto a backpack.
