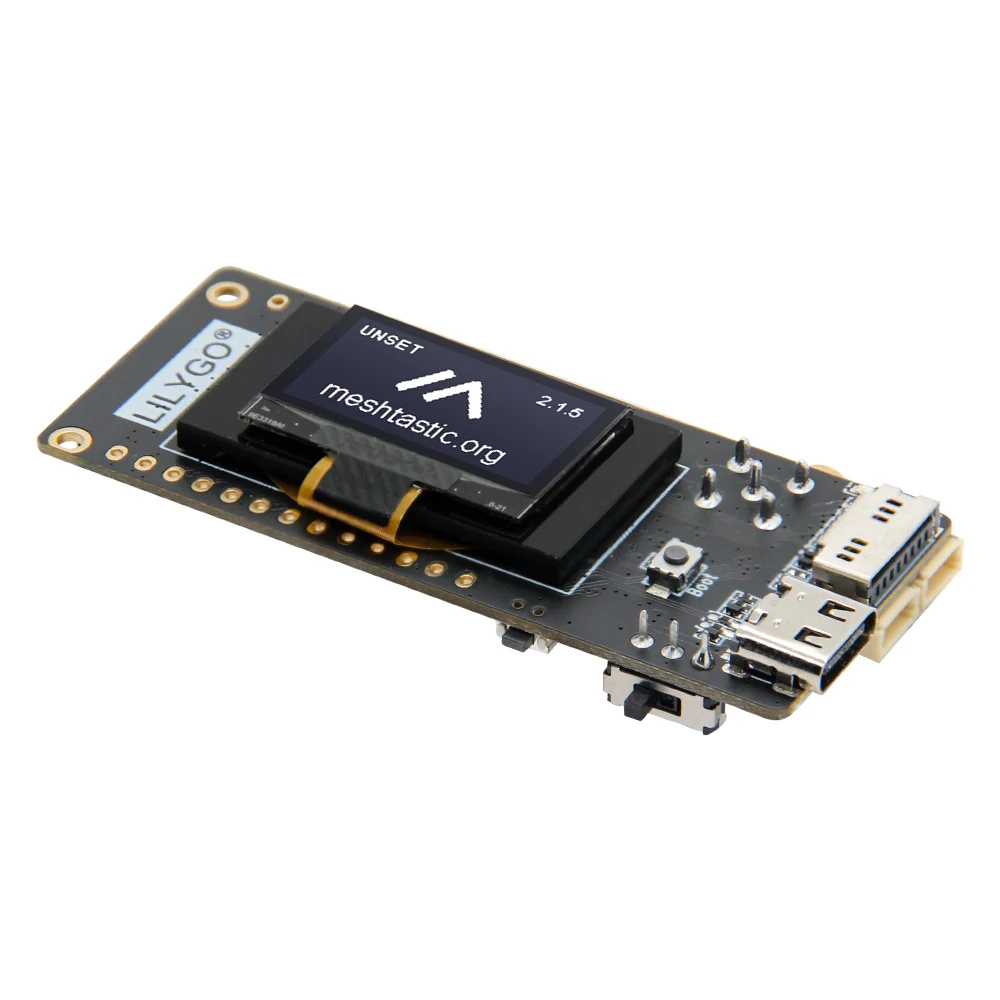

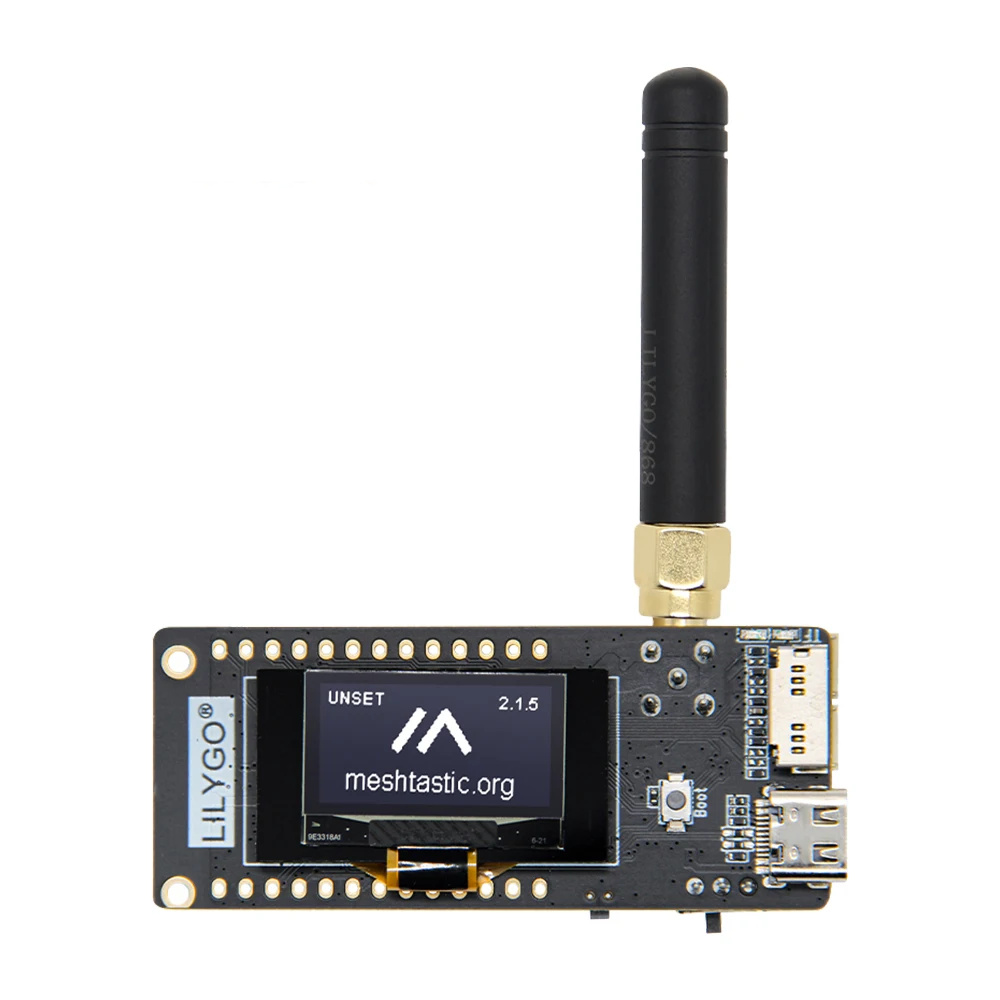

TTGO T3S3 V1.2 ESP32-S3 LoRa SX1262 868MHz Meshtastic Development Module

View larger

Display all pictures

Manufacturer: TTGO by LilyGO

Reference: TTGO-T3S3-SX1262-868-3042

Condition: New product

Country of origin: China

Safety Information +

TTGO T3S3 V1.2 ESP32-S3 LoRa SX1262 868MHz Meshtastic Development Module

No review at the moment

ESP32-S3 development module with integrated LoRa SX1262 868MHz chip for long-range communications. Ideal for IoT projects and mesh networks.

Dual-core ESP32-S3 processor
LoRa SX1262 868MHz module
Range of up to several kilometres
Arduino IDE and PlatformIO compatible
Meshtastic firmware pre-installed
Low power consumption

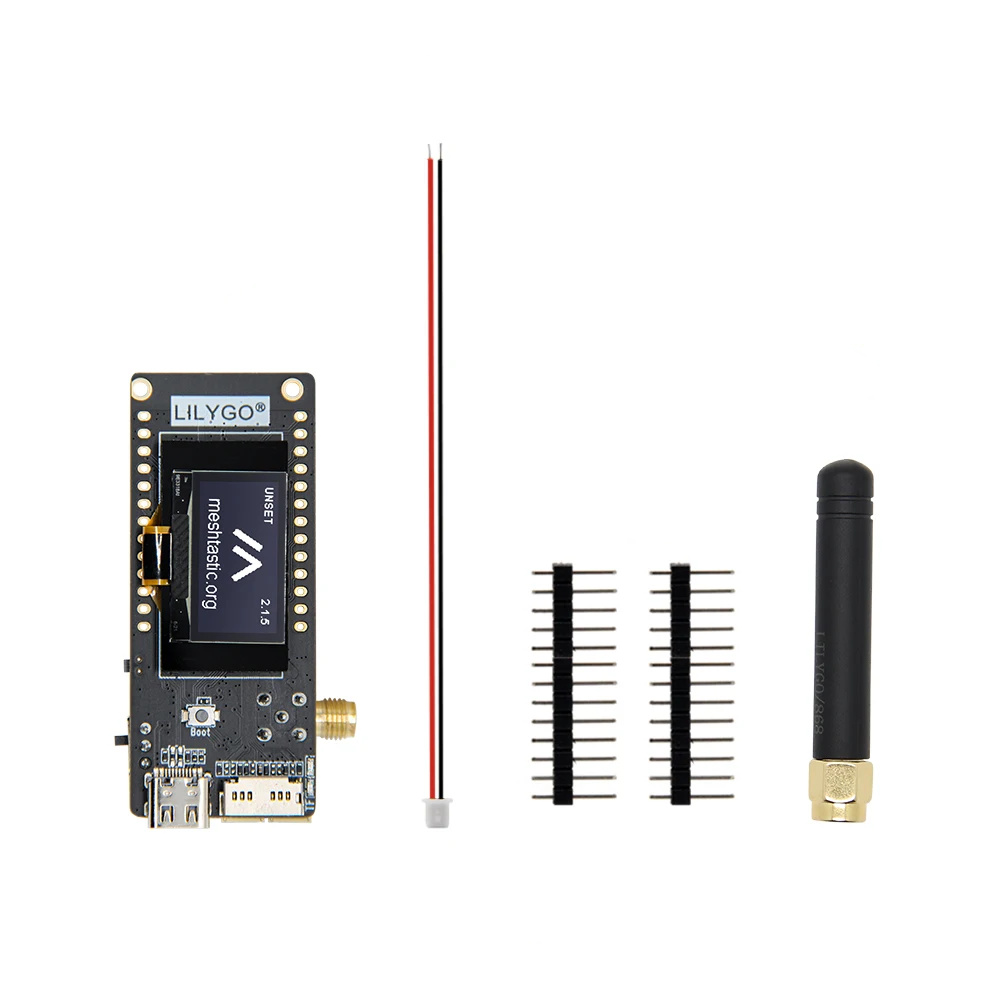

Supplied with: 1 TTGO T3S3 V1.2, 1 USB-C cable, 1 868MHz antenna.

More details

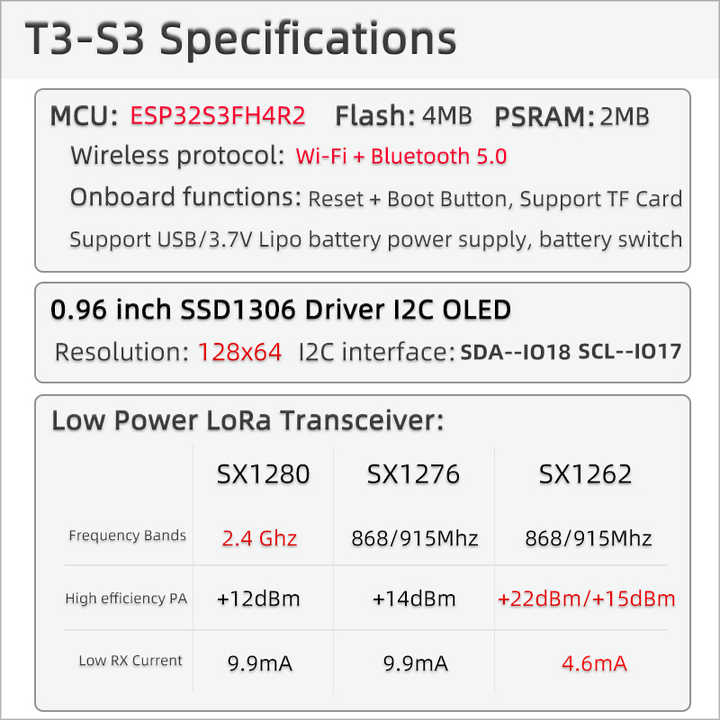

Data sheet

Processor: ESP32-S3 dual-core Xtensa LX7 up to 240MHz
Memory: 512KB SRAM, 384KB ROM
Flash: 8MB PSRAM
LoRa module: SX1262 868MHz
Transmit power: Up to +22dBm
Sensitivity: -148dBm
Connectivity: WiFi 802.11 b/g/n, Bluetooth 5.0
Interface: USB-C, GPIO, SPI, I2C, UART
Power supply: 3.3V-5V via USB-C
Dimensions: 48 x 25 x 8 mm

Features

Long-range LoRa communication (up to 15km direct line)
Meshtastic firmware pre-installed for mesh networks
Compatible with other firmware (Arduino, MicroPython)
Optimised energy management
Integrated antenna and U.FL connector
Integrated status LED

FAQ

Q: What is the maximum range?
A: In a direct line and in good conditions, the range can be up to 15km. In urban areas, allow 1-3km depending on obstacles.

Q: Is the Meshtastic firmware already installed?
A: Yes, the Meshtastic firmware is pre-installed and ready to use.

Q: Can I use other firmware?
A: Yes, the module is compatible with Arduino IDE, PlatformIO and MicroPython.

Q: Is the antenna included?
A: Yes, a small 868MHz antenna is supplied with the module.
