SenseCAP Solar Node P1-Pro LoRa MeshCore Solar Repeater Node nRF52840 SX1262 GPS Seeed Studio
No review at the momentThe SenseCAP Solar Node P1-Pro from Seeed Studio is a self-contained, solar-powered node pre-flashed with MeshCore firmware. Designed to create or extend decentralised, off-grid LoRa mesh networks, it features an ultra-low-power XIAO nRF52840 microcontroller, a Wio-SX1262 LoRa chip and a high-precision L76K GPS module.
- Pre-flashed with ready-to-use MeshCore repeater firmware
- Self-powered via an integrated solar panel and intelligent power management
- nRF52840 architecture for ultra-low power consumption
- High-sensitivity, long-range SX1262 LoRa transceiver
- Precise positioning thanks to the integrated L76K GPS module
- Waterproof housing designed for permanent outdoor installation

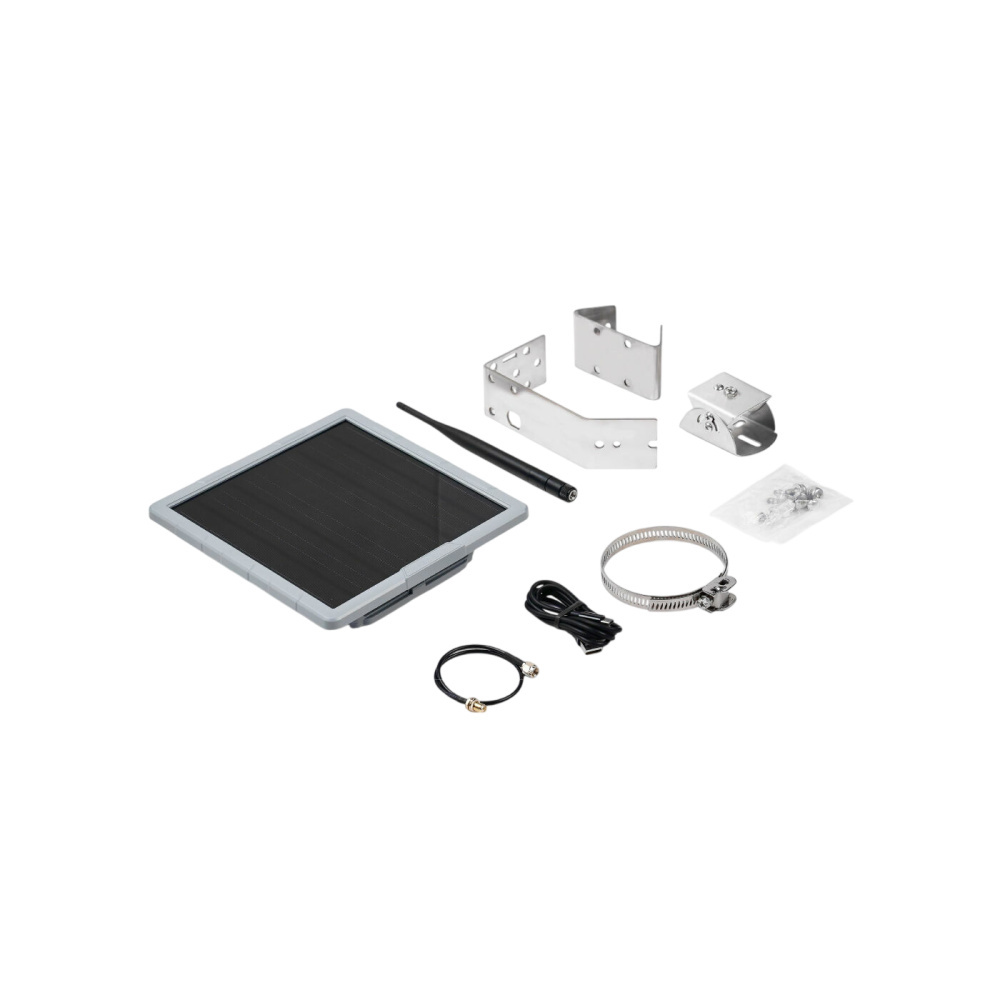

Supplied with: 1x SenseCAP Solar Node P1-Pro, 1x external LoRa antenna, 1x pole/wall mounting kit, 1x quick start guide.
Download
Data sheet
The SenseCAP Solar Node P1-Pro is a standalone LoRa repeater and node designed for the rapid deployment of off-grid MeshCore mesh networks. Designed for amateur radio operators, IoT enthusiasts and professionals seeking a resilient, decentralised communications infrastructure, it guarantees complete autonomy thanks to its integrated solar power supply and ultra-low-power nRF52 architecture.
Key features
- Total energy autonomy: Integrated solar panel combined with advanced nRF52 power management for uninterrupted 24/7 outdoor operation.
- MeshCore out-of-the-box: Supplied pre-flashed with MeshCore firmware, enabling immediate integration into the mesh ecosystem without complex configuration.
- Maximum LoRa range: Equipped with the modern Semtech SX1262 chipset, offering excellent link performance and superior RF sensitivity.
- Integrated geolocation: Built-in L76K GNSS module for precise position tracking and time synchronisation across the network.

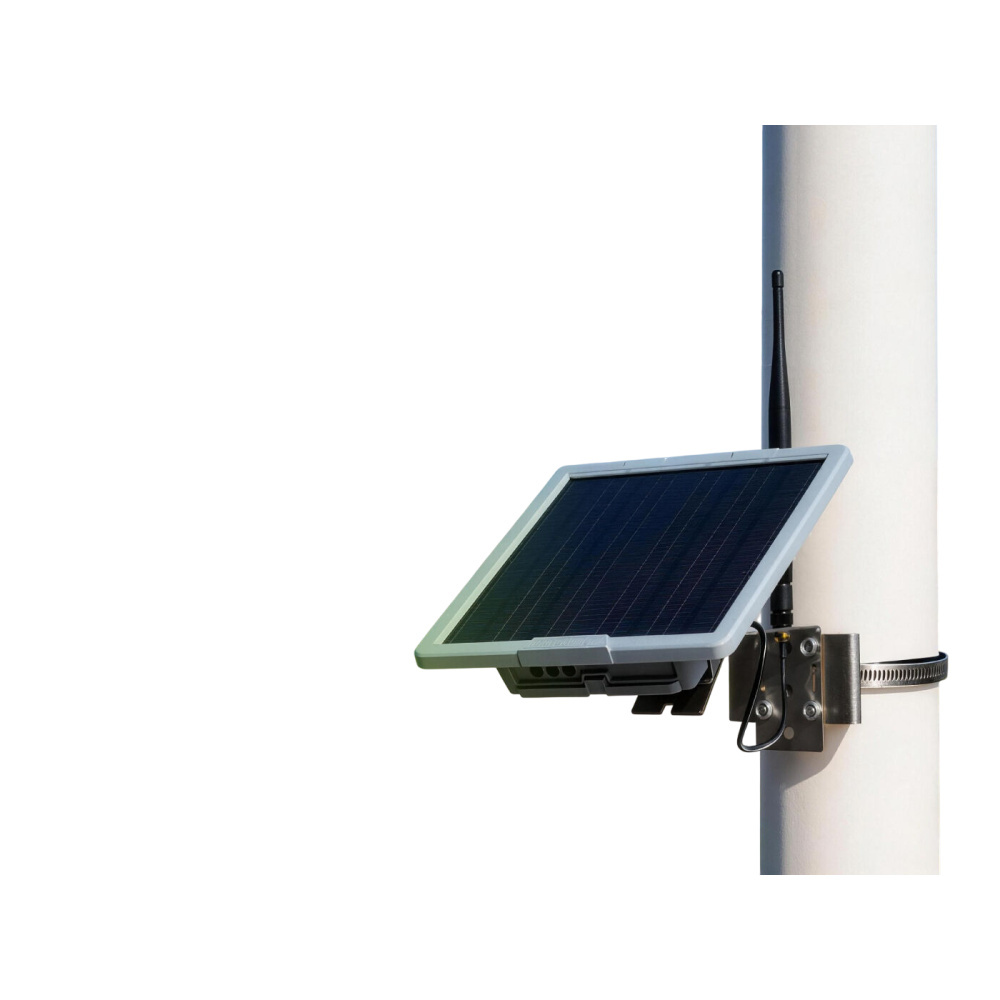

- Robust outdoor design: Sealed, weatherproof housing suitable for deployment on rooftops, masts or in remote locations.
Technical specifications
- Microcontroller: Seeed XIAO nRF52840 Plus (32-bit ARM Cortex-M4F @ 64 MHz, Bluetooth 5.0)
- LoRa module: Wio-SX1262 (Semtech SX1262)
- GPS module: Quectel L76K (high sensitivity)
- Pre-installed firmware: MeshCore Repeater Firmware
- Power supply: Integrated solar panel with charging circuit for LiPo/LiFePO4 battery
- Power management: Ultra-low power consumption in standby mode (nRF52 Deep Sleep)

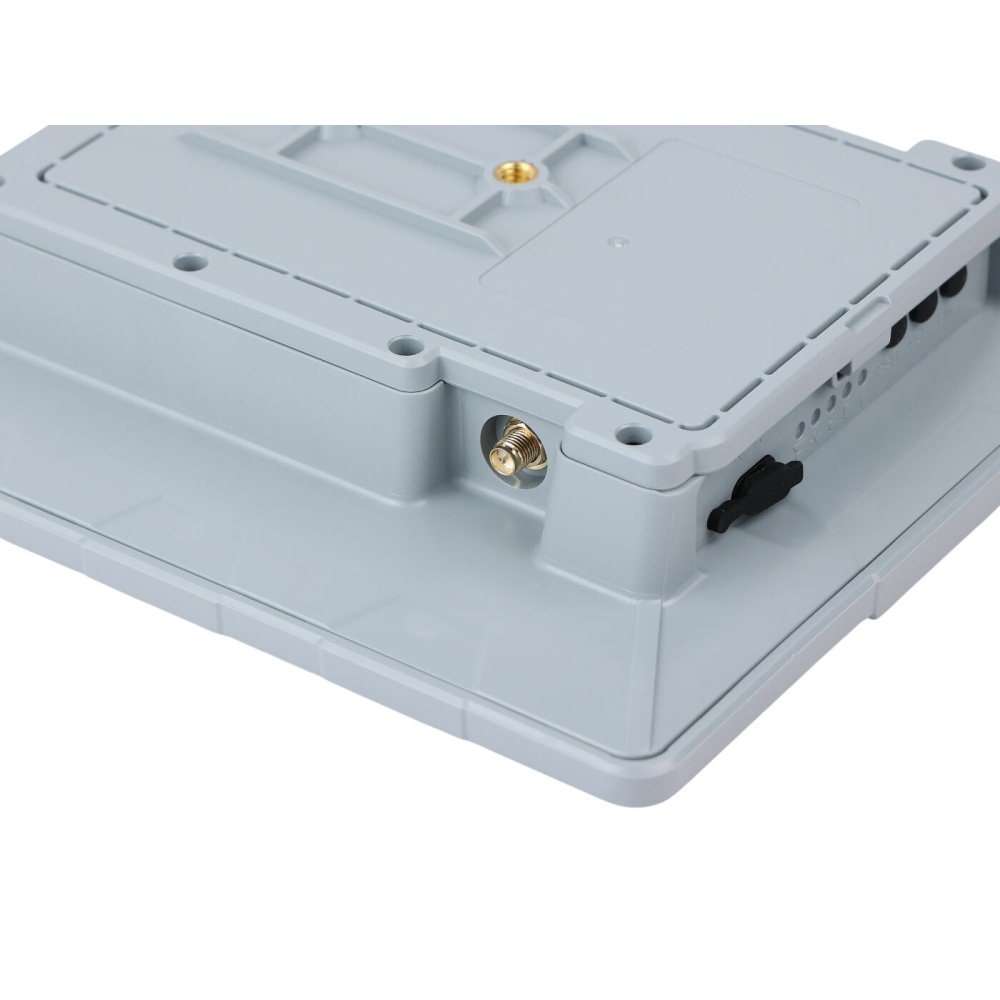

- RF connectivity: Optimised external antenna connector
- Housing: UV-resistant and waterproof outer casing
Compatibility
- MeshCore ecosystem: Compatible with all MeshCore nodes, routers and mobile apps.
- LoRa mesh networks: Interoperable with decentralised, off-grid communication networks.
- Mobile devices: Direct connection and configuration via Bluetooth Low Energy (BLE) from a smartphone or tablet.
FAQ
Does the SenseCAP Solar Node P1-Pro require an external power source?
No, thanks to its integrated solar panel and internal battery with ultra-low-power standby management, it operates 100% autonomously once exposed to daylight.
Is it ready to use straight out of the box?
Yes, the device comes pre-loaded with the MeshCore repeater firmware. Simply attach the antenna, switch on the module and configure it via the dedicated mobile app using Bluetooth.
Can it be installed outdoors all year round?
Absolutely. Its waterproof casing is specifically designed to withstand the elements, rain and UV rays, whether mounted on a mast or on a roof.
What is the radio range of this solar node?
Thanks to the high-performance Semtech SX1262 receiver and the external antenna, the range can reach several kilometres in urban areas and several tens of kilometres in line of sight (LOS).
Can the firmware be updated or modified?
Yes, the open architecture based on the XIAO nRF52840 microcontroller allows software updates via USB or OTA, depending on the features provided by the MeshCore or Meshtastic communities.
