SenseCAP Solar Node P1 LoRa Meshtastic 868 MHz Solar Repeater Node by Seeed Studio
No review at the momentThe SenseCAP Solar Node P1 from Seeed Studio is a self-contained, solar-powered node or repeater designed for the Meshtastic or Meshcore LoRa mesh network (EU868 version). It allows you to easily maintain and extend your decentralised, off-grid communications without relying on a mobile network or the internet.
- Self-powered via an integrated solar panel with intelligent charge management
- Optimised design for outdoor use as a fixed relay/repeater or local node
- Natively compatible with the pre-installed open-source Meshtastic protocol
- Robust, weatherproof housing suitable for harsh weather conditions
- Compartment for 18650 rechargeable batteries (not supplied)
- An ideal, cost-effective solution for large-scale mesh network deployment

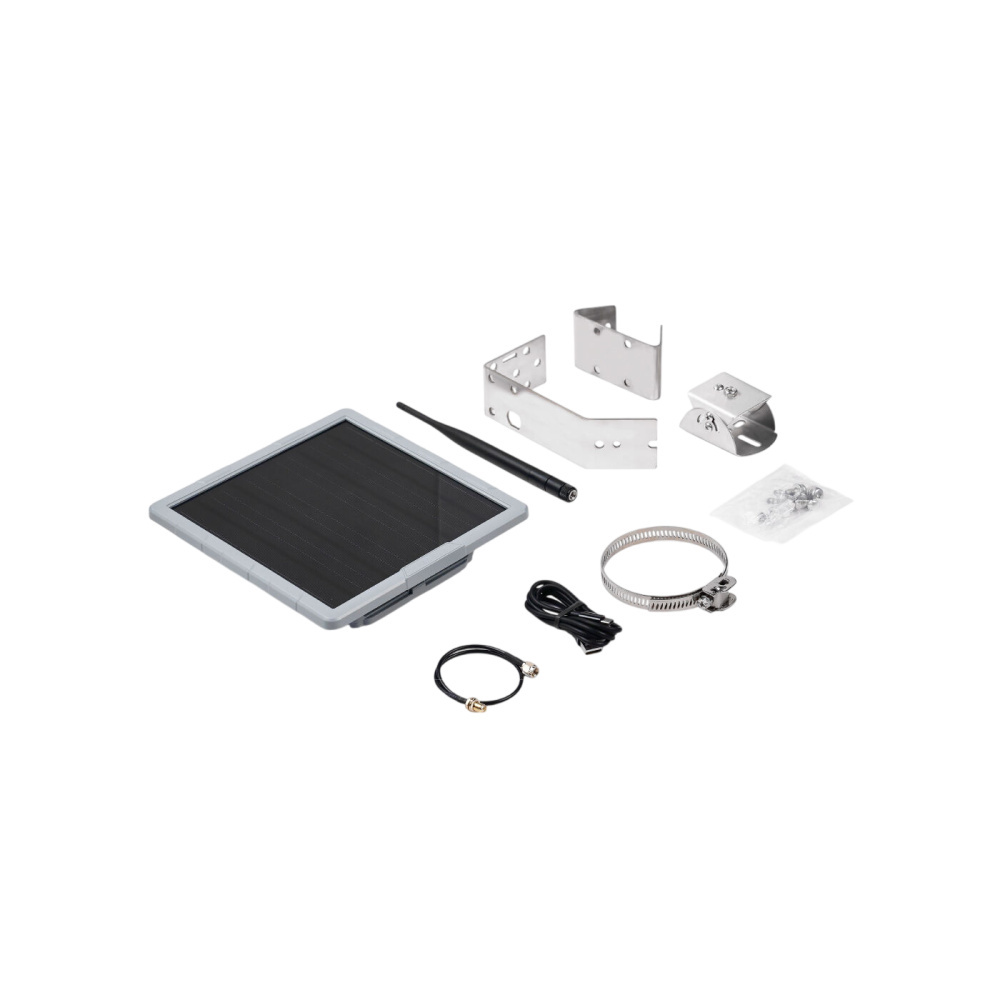

Supplied with: 1x SenseCAP Solar Node P1 enclosure with integrated solar panel, 1x 868 MHz LoRa antenna, 1x mounting kit for pole and wall, 1x quick start guide.
Download
Data sheet
- Complete energy self-sufficiency: Integrated solar panel combined with ultra-low-power energy management for 24/7 operation.
- Meshtastic-ready: Pre-flashed and optimised out of the box for instant integration into a LoRa mesh network without the need for infrastructure.
- Compact all-in-one design: Incorporates the solar panel, IP-rated waterproof casing and control electronics without complex wiring.
- Unbeatable value for money: A streamlined version without an internal GPS module to reduce costs and energy consumption on fixed relays.
- Easy installation: Supplied with all the necessary accessories for quick mounting on a mast, post or building façade.
Technical specifications
- Manufacturer: Seeed Studio
- Model: SenseCAP Solar Node P1 (Ref. 114993643)
- LoRa frequency: 868 MHz (European ISM band / CE)
- Supported protocol: Meshtastic (pre-installed / configurable firmware)
- Connectivity: LoRa, Bluetooth LE (for configuration via smartphone app)
- Power supply: Integrated solar panel + internal charging circuit

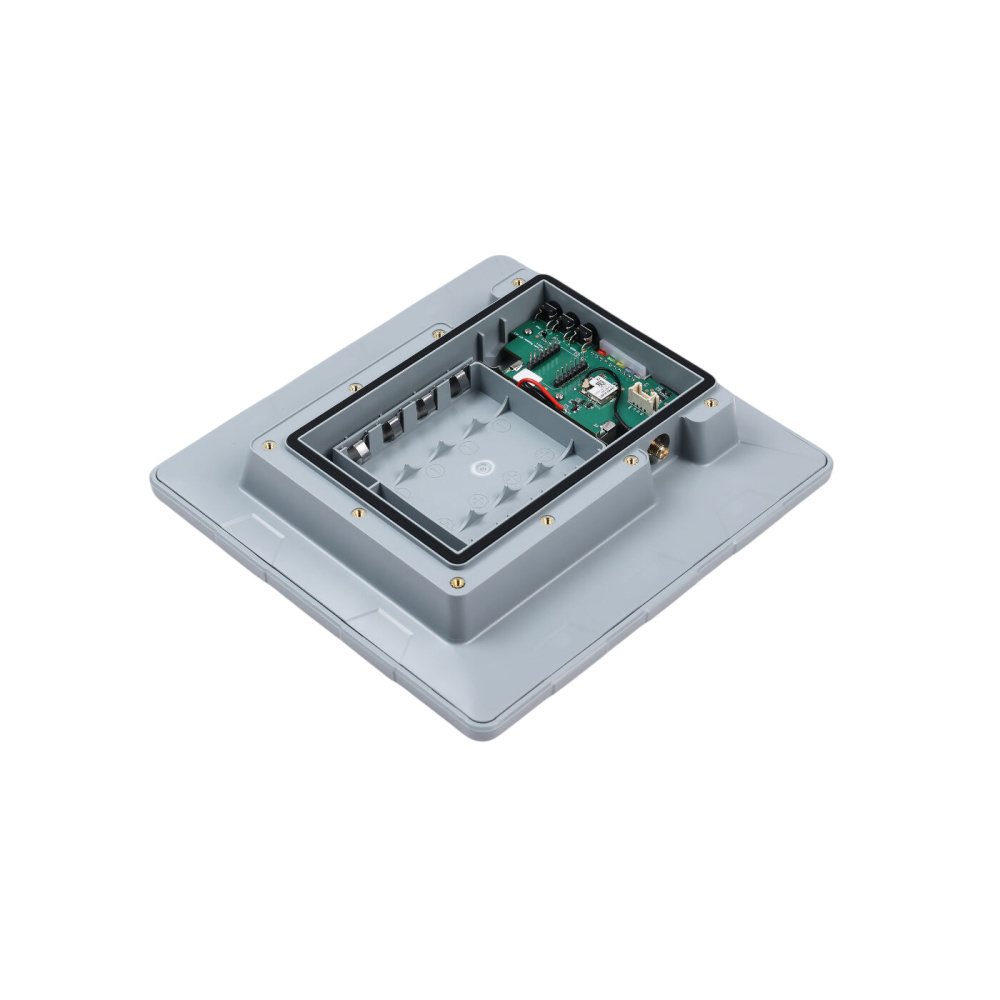

- Compatible battery type: Slot for 4 x 18650 Li-ion batteries (not included)
- Housing: UV-resistant, waterproof material for outdoor use

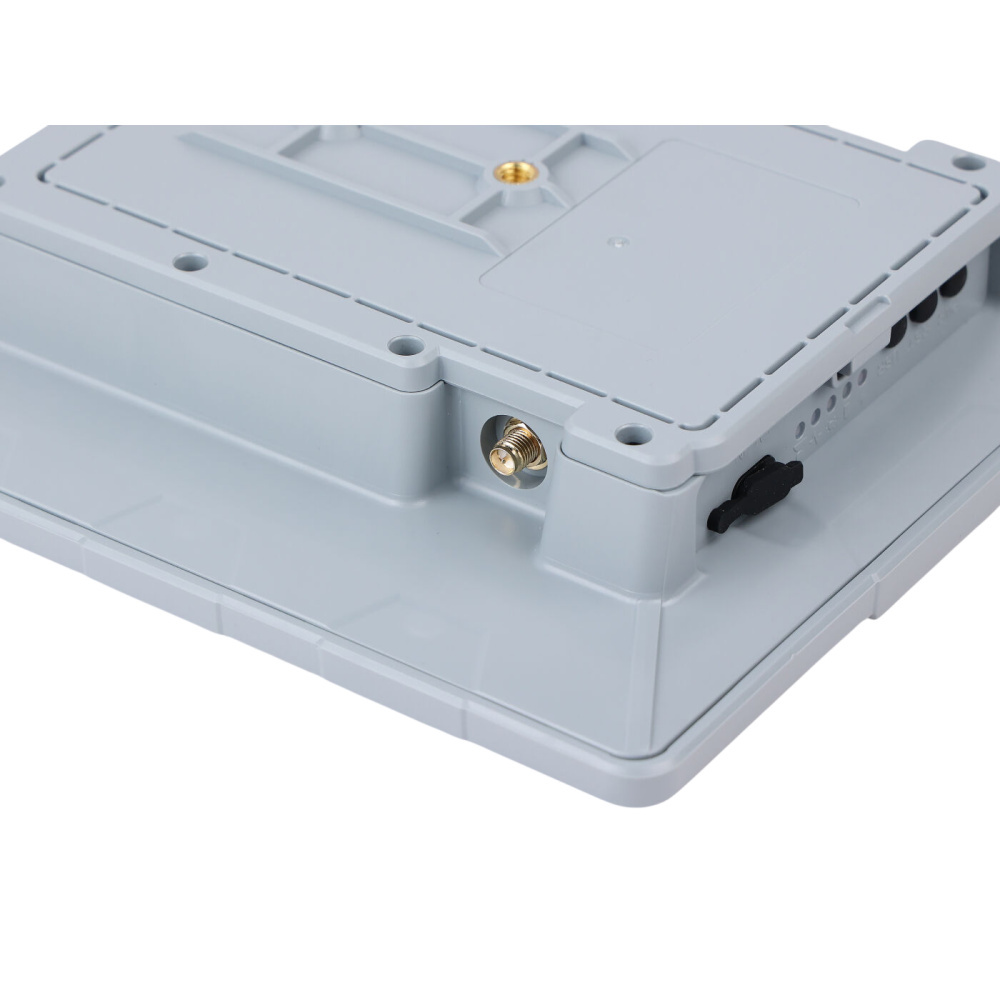

- Antenna: Optimised 868 MHz external LoRa antenna supplied (waterproof SMA connector)
- Dimensions: Suitable for discreet outdoor installation
Compatibility
- Applications: Meshtastic or Meshcore mobile app (iOS and Android), Meshtastic or Meshcore Web Flasher, HTTP/Bluetooth web client.
- Networks: Compatible with all Meshtastic LoRa nodes and routers operating at 868 MHz (Heltec, T-Beam, Station G2, etc.).
- Accessories and power supply: Compatible with standard 18650 rechargeable batteries (flat-top or unprotected top recommended, depending on polarity).

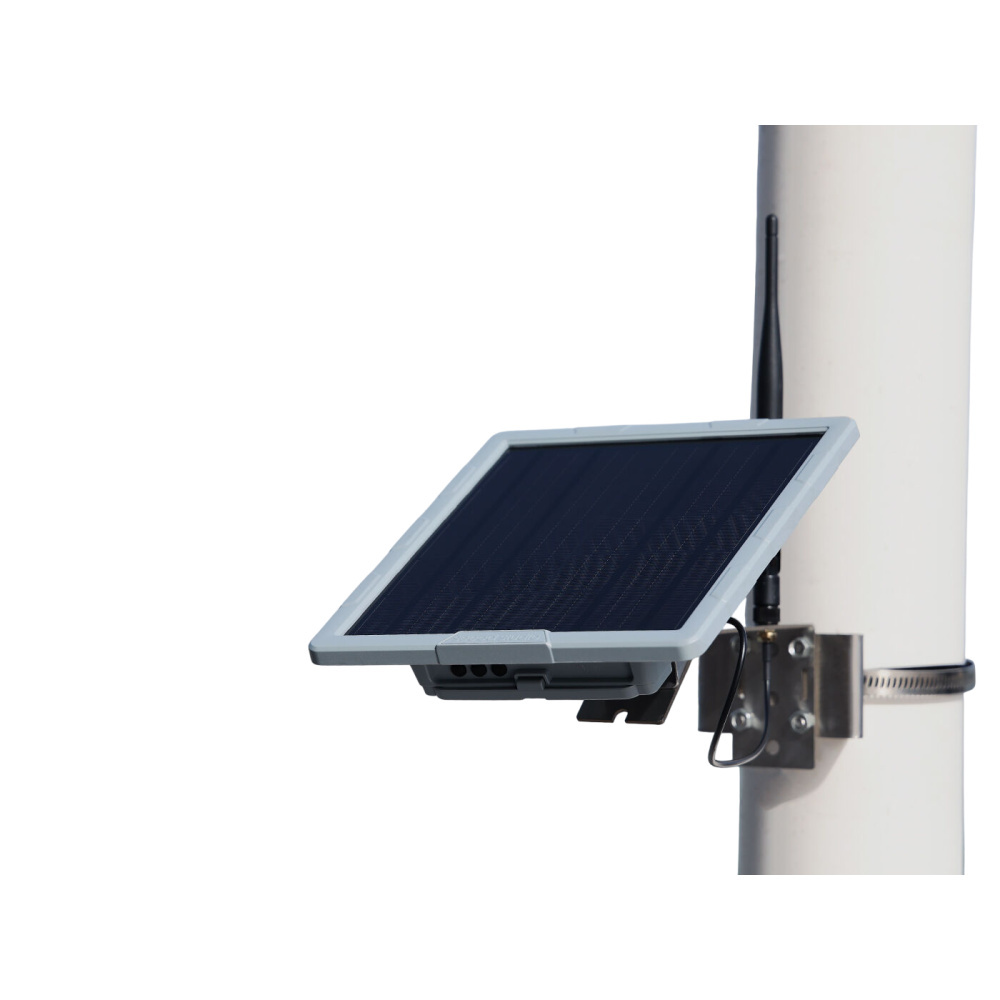

- Mounting: Compatible with standard-diameter tubular masts and universal wall brackets.
FAQ
What is the difference between the SenseCAP Solar Node P1 and the P1-Pro version?
The standard P1 model is a budget version: it does not feature an internal GPS chip and is sold without 18650 batteries, making it a perfect and more affordable choice for fixed repeaters whose geographical location is known and fixed.
What batteries should be used to power it?
The unit requires rechargeable 18650 Li-ion batteries to store solar energy and ensure operation at night or in cloudy conditions.
How do you carry out the initial setup?
Set-up is carried out simply via Bluetooth using the official Meshtastic mobile app on your Android smartphone or iPhone.
Can the device operate in continuous rain?
Yes, the unit and the antenna connectors are specifically designed to withstand outdoor weather conditions (rain, wind, direct sunlight).
Can the original antenna be replaced with a higher-gain antenna?
You can connect a high-gain 868 MHz directional or omnidirectional external antenna using the female RP-SMA connector.
