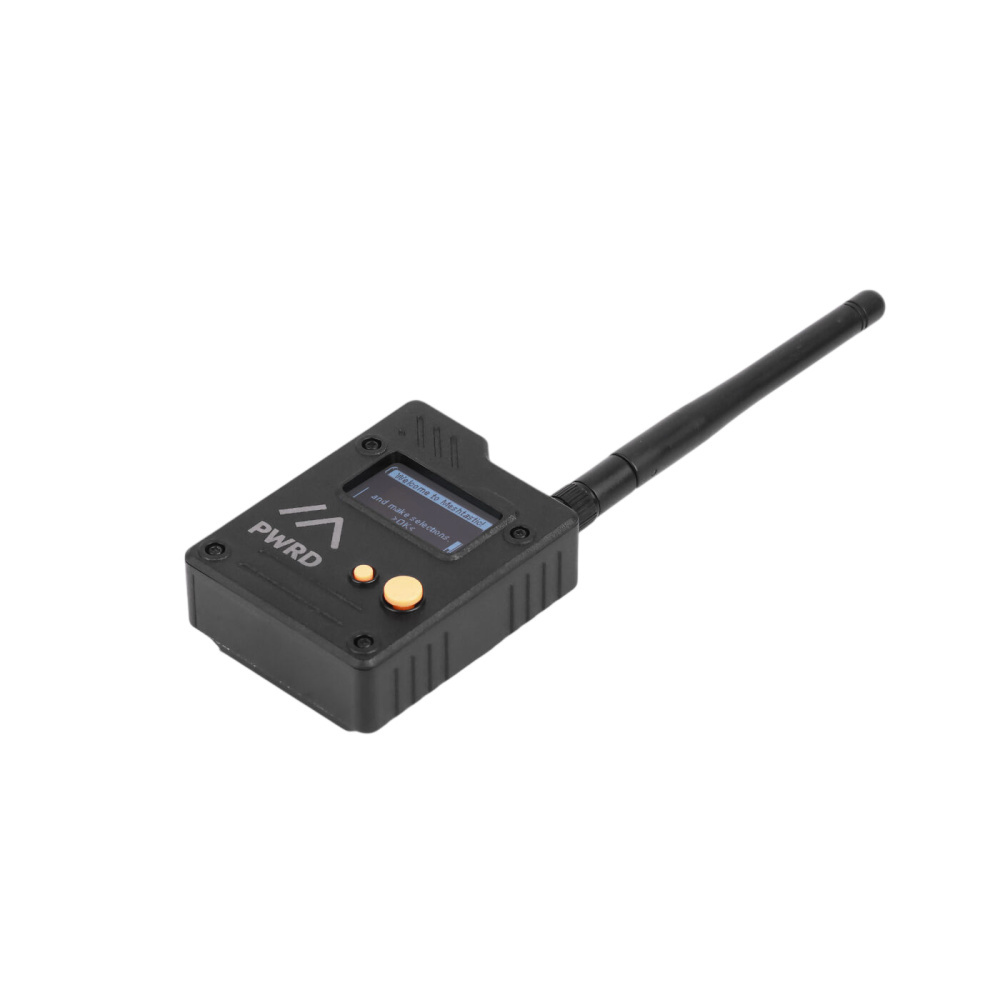

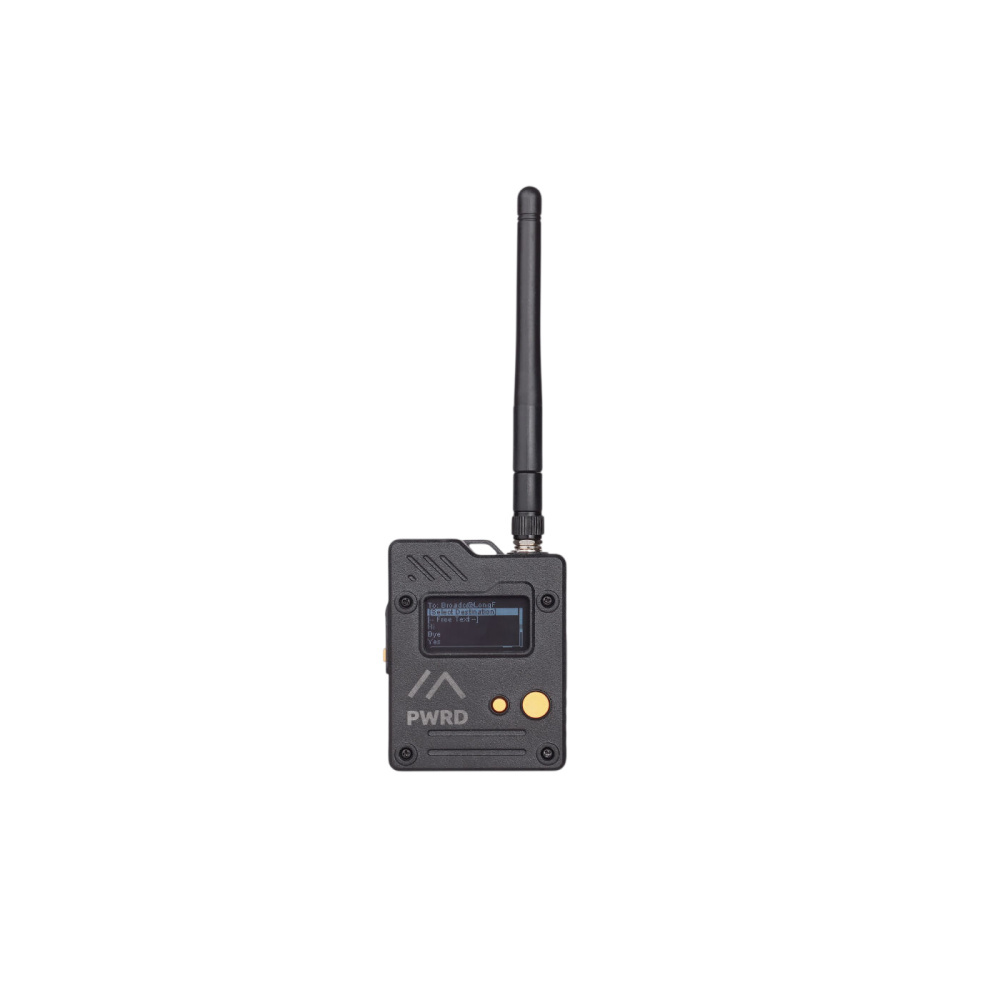

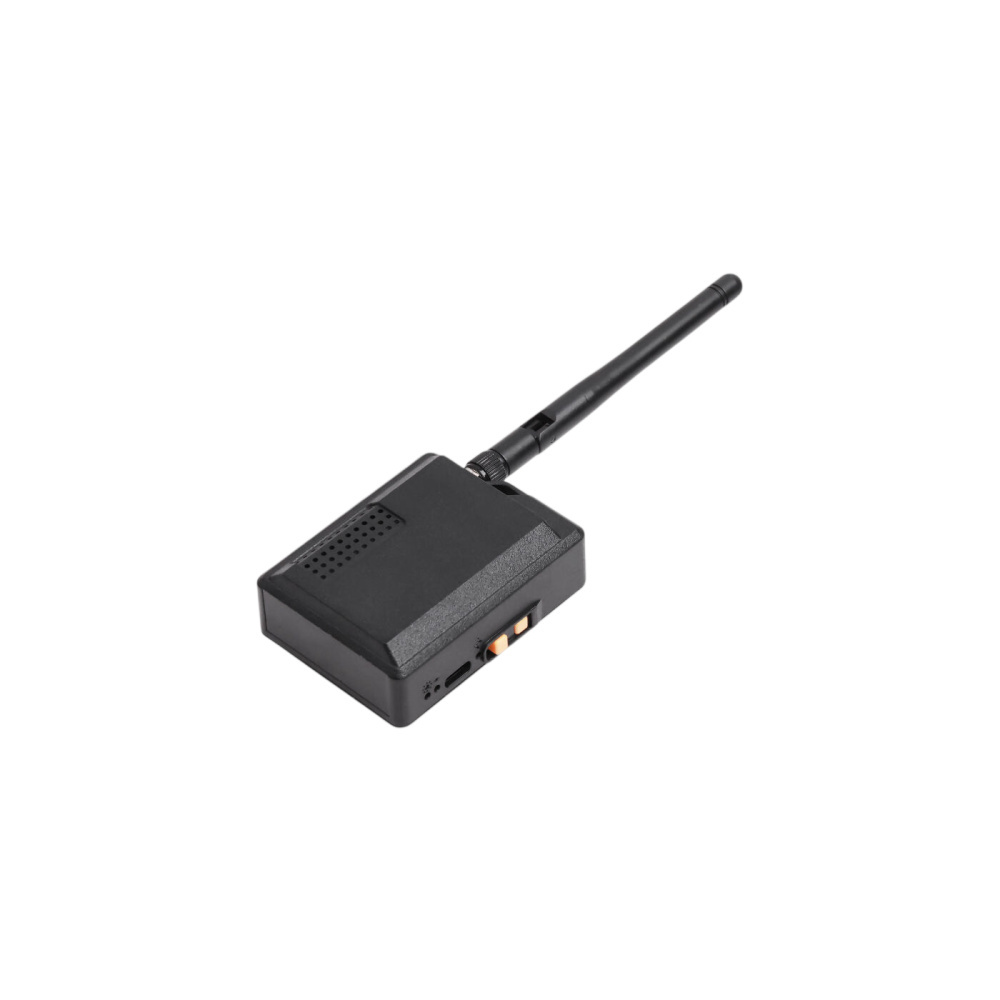

Wio Tracker L1 Pro Meshtastic LoRa 868 MHz nRF52840 GPS OLED Seeed Studio Node View larger
Wio Tracker L1 Pro Meshtastic LoRa 868 MHz nRF52840 GPS OLED Seeed Studio Node
Previous
  • Wio Tracker L1 Pro Meshtastic LoRa 868 MHz nRF52840 GPS OLED Seeed Studio Node
  • Wio Tracker L1 Pro Meshtastic LoRa 868 MHz nRF52840 GPS OLED Seeed Studio Node
  • Wio Tracker L1 Pro Meshtastic LoRa 868 MHz nRF52840 GPS OLED Seeed Studio Node
  • Wio Tracker L1 Pro Meshtastic LoRa 868 MHz nRF52840 GPS OLED Seeed Studio Node
  • Wio Tracker L1 Pro Meshtastic LoRa 868 MHz nRF52840 GPS OLED Seeed Studio Node
Next

Seeed Studio

SEEED-WIO-TRACKER-L1PRO-3202

New product

China

Safety Information +

Wio Tracker L1 Pro Meshtastic LoRa 868 MHz nRF52840 GPS OLED Seeed Studio Node

rating No review at the moment

The Wio Tracker L1 Pro from Seeed Studio is a fully-fledged standalone device designed for decentralised Meshtastic mesh networks. It combines a Nordic nRF52840 ultra-low-power processor, an 868 MHz LoRa transceiver and a high-precision GPS module within a robust, ready-to-use enclosure.

  • Low-power architecture based on the Nordic nRF52840 SoC (Bluetooth 5.0)

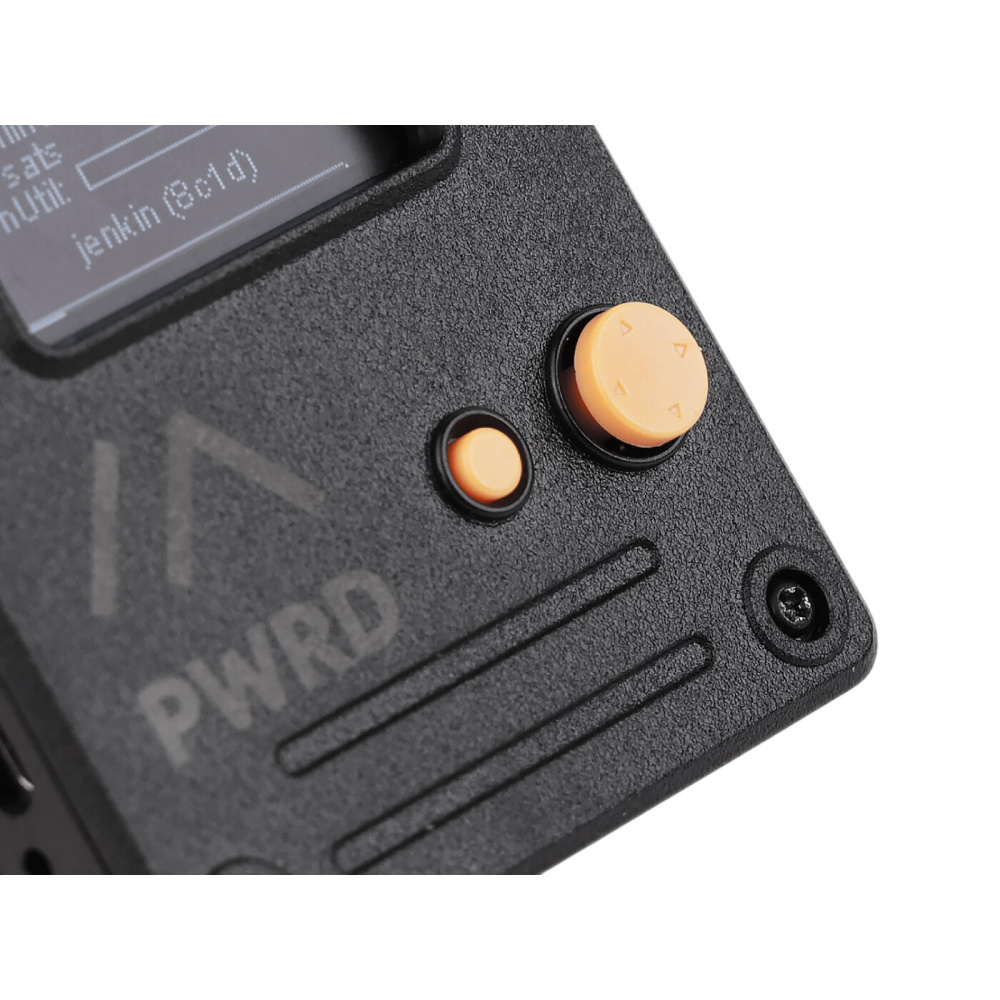

  • Integrated OLED screen for direct display of messages, network status and GPS coordinates
  • High-sensitivity L76K GNSS module for off-network position tracking
  • Ready to use with protective casing and built-in rechargeable battery
  • Full native compatibility with the pre-installed Meshtastic open-source ecosystem, also compatible with Meshcore

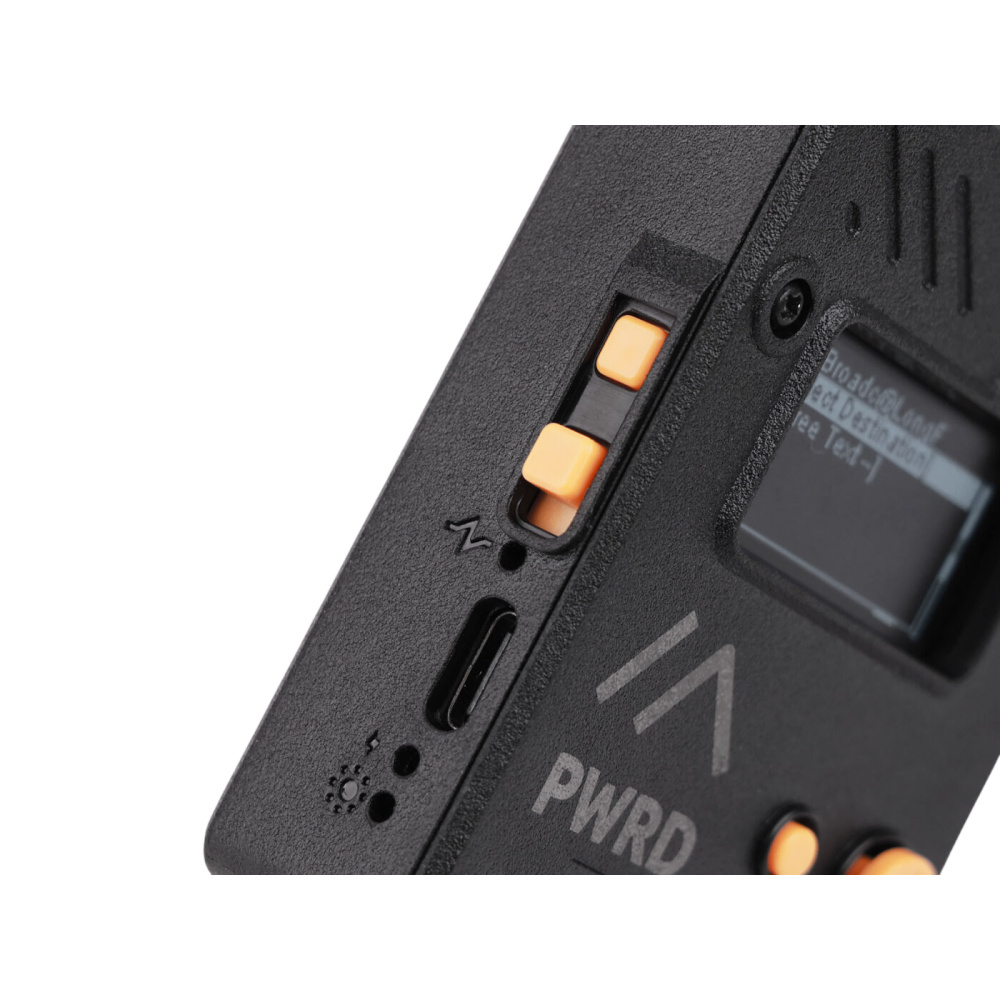

  • Modern USB-C charging port and external antenna connector

Included: 1x Wio Tracker L1 Pro case with built-in battery, 1x LoRa antenna, 1x GPS antenna, 1x USB-C cable.

More details

55,52 € tax excl.

Out of stock, available in 1 month’s time

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

User manual Wio Tracker L1 (EN)

User guide for Wio Tracker L1 Pro. 5.43M

Data sheet

  • Ready-to-use solution: No assembly or soldering required; the display, controller, GPS and battery are integrated directly into the housing.
  • nRF52840 energy efficiency: Benefits from the Nordic microcontroller’s ultra-low-power energy management for extended battery life in the field.
  • GNSS positioning accuracy: Integrated Quectel L76K module providing fast and stable geolocation within the mesh network.
  • Informative OLED display: View active nodes, incoming messages, alerts and GPS coordinates without taking out your smartphone.
  • Bluetooth 5.0 connectivity: Seamless and instant pairing with the Meshtastic mobile apps (iOS and Android).
  • Frequency versatility: Wideband LoRa radio compatible with European (868 MHz) and international (915 MHz) frequencies.

Technical specifications

  • Manufacturer: Seeed Studio
  • Model: Wio Tracker L1 Pro (SKU: 114993649)
  • Main processor: Nordic nRF52840 ARM Cortex-M4F at 64 MHz
  • Wireless connectivity: LoRa 862–930 MHz (covering 868 MHz EU and 915 MHz US) + Bluetooth 5.0 LE
  • GNSS module: High-sensitivity Quectel L76K (GPS, GLONASS, BeiDou, QZSS)
  • Display: Integrated monochrome OLED screen
  • Power supply: Integrated rechargeable LiPo/Li-ion battery
  • Charging/data interface: USB Type-C port
  • RF connectivity: Dedicated external LoRa and GPS antenna connectors
  • Supported firmware: Pre-flashed Meshtastic / compatible with Meshcore, Arduino & CircuitPython

Compatibility

  • Software ecosystem: Meshtastic or Meshcore mobile app (Android / iOS), Meshtastic Meshcore web client, desktop client (Python/CLI).
  • Mesh networks: All Meshtastic nodes and routers operating on the 868 MHz bands (Europe)
  • Operating systems for configuration: Windows, macOS, Linux (via WebUSB browser or USB-C serial port).
  • Accessories: 868 MHz LoRa antennas with SMA or IPEX connectors, depending on the interface configuration.

FAQ

Does the Wio Tracker L1 Pro require a SIM card or a subscription?

No, the device operates entirely on unlicensed LoRa frequencies without any subscription, SIM card or internet connection. Data is transmitted directly from node to node via the Meshtastic mesh protocol.

Can it be used straight away without taking it apart?

Yes, the L1 Pro version is a factory-assembled, finished unit complete with its protective casing, OLED screen and battery, ready to be paired via Bluetooth straight out of the box.

What is the typical outdoor radio range?

In line of sight (LoS), the range can extend from several kilometres to several tens of kilometres, depending on the terrain and the antenna used. In dense urban areas, the range per unit is generally 1 to 3 km, which can be extended via the mesh network.

How do I update the firmware?

Updates are easily carried out via the USB-C port connected to a computer using the official Meshtastic or Meshcore web-based flasher (Chrome/Edge).

What is the average battery life?

Thanks to the Nordic nRF52840 chip, renowned for its very low power consumption in standby mode, the device offers a battery life that can last for several days of use, depending on the interval at which GPS beacons are transmitted.
