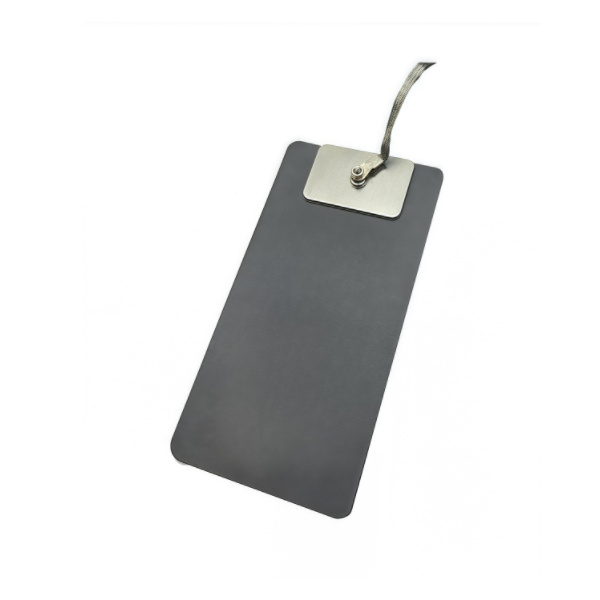

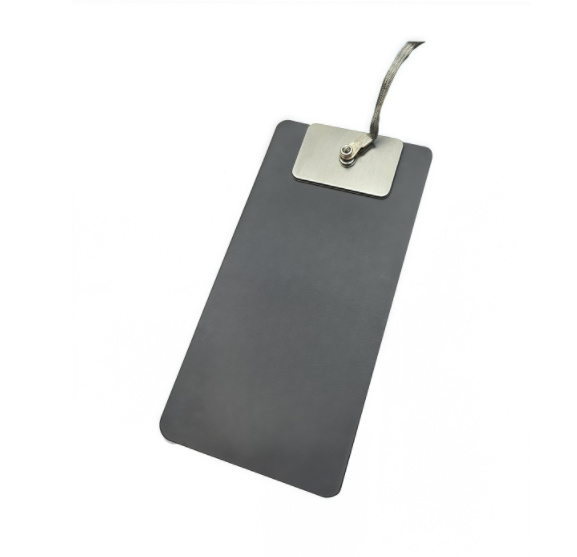

CNtoU MAT-50 Magnetic ground plane for HF/VHF/UHF antennas
No review at the momentThe CNtoU MAT-50 is a magnetic ground plane mat designed to improve the earthing of vehicle-mounted antennas, particularly HF antennas with magnetic bases.
By fixing to the roof or any metal part of the vehicle, it ensures better earth conductivity, reduces VSWR (standing wave ratio) and improves reception and transmission quality in the HF, VHF and UHF bands.
- Optimises the earthing of mobile antennas, improving overall performance
- Reduces SWR and enhances transmit/receive signal stability
- Easy magnetic fixing to bodywork, roof or any metal surface
- Broadband compatibility: HF, VHF and UHF
- Resistant to extreme conditions: operates from -20°C to +90°C
- Compact and lightweight (200 × 100 mm, 60 g) - ideal for mobile stations
Supplied with: ready-to-use CNtoU MAT-50 magnetic mat.
Data sheet
- Model : CNtoU MAT-50
- Reference : CH0030022-P1
- Type : magnetic mass mat for mobile antenna
- Compatible frequencies : HF / VHF / UHF
- Temperature range : -20 °C to +90 °C
- Dimensions : 200 × 100 mm (± 1 mm)
- Thickness : 2 mm
- Weight: 60 g
Main function :
- Serves as a magnetic ground plane for vehicle-mounted antennas
- Reduces standing waves (SWR)
- Improves reception and resistance to interference
Installation :

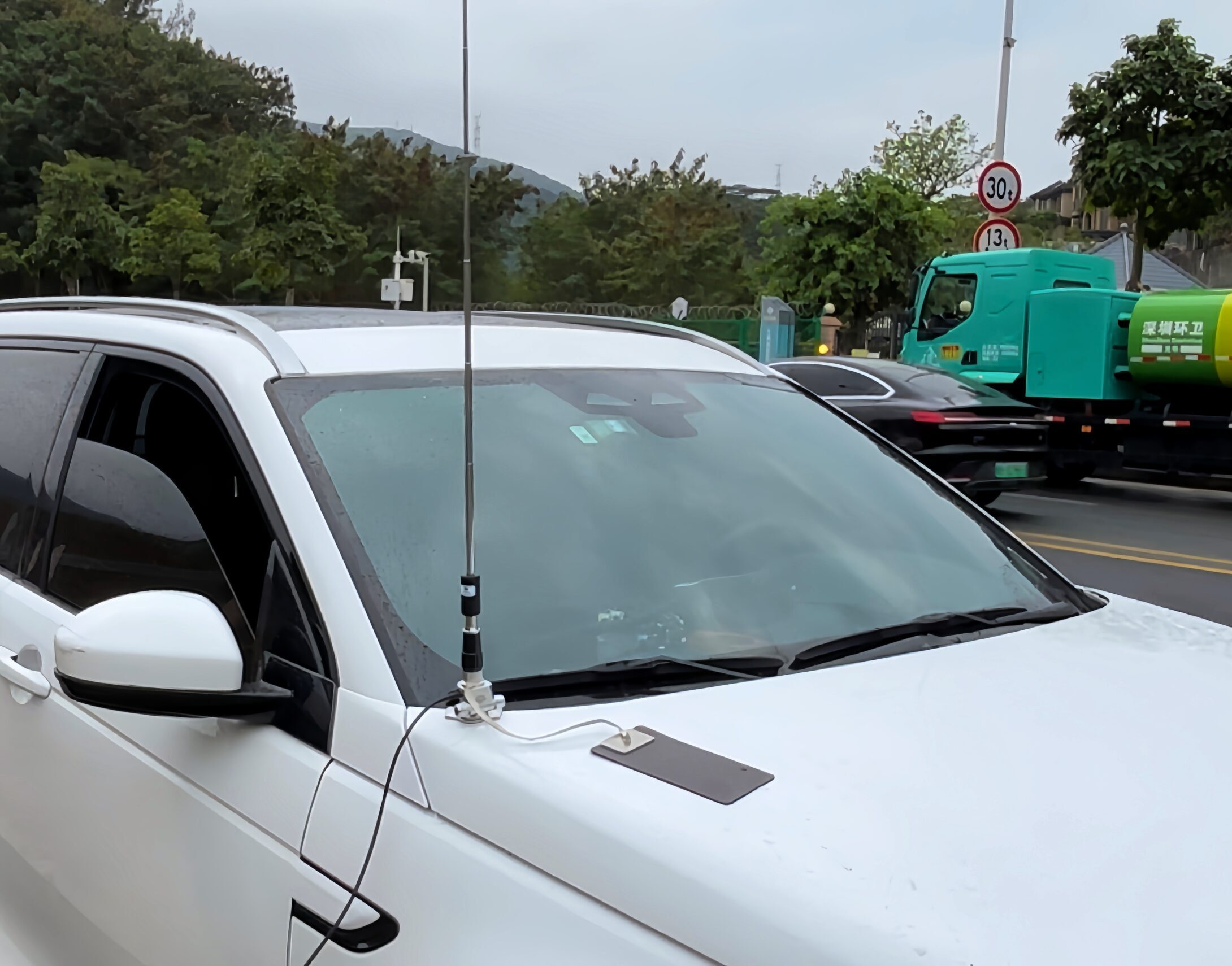

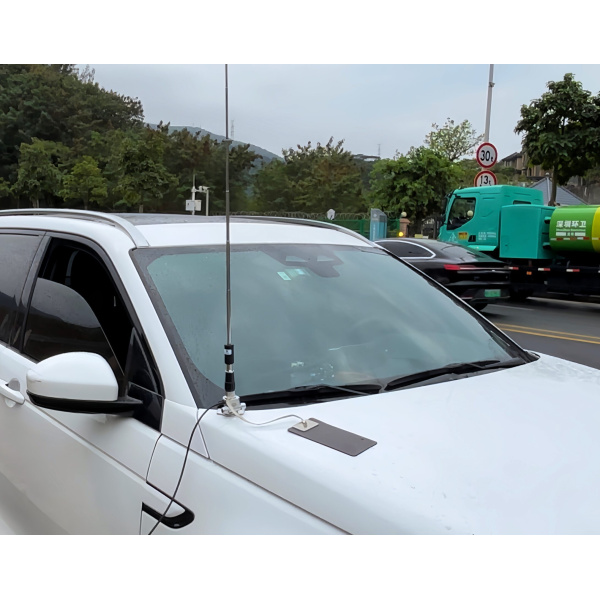

- Attach directly to a flat metal surface (roof, boot, door)
- No tools required, immediate magnetic adhesion
- Compatible with most HF/VHF/UHF mobile antennas
- Maintenance: wipe the surface regularly to maintain conductivity and prevent oxidation
