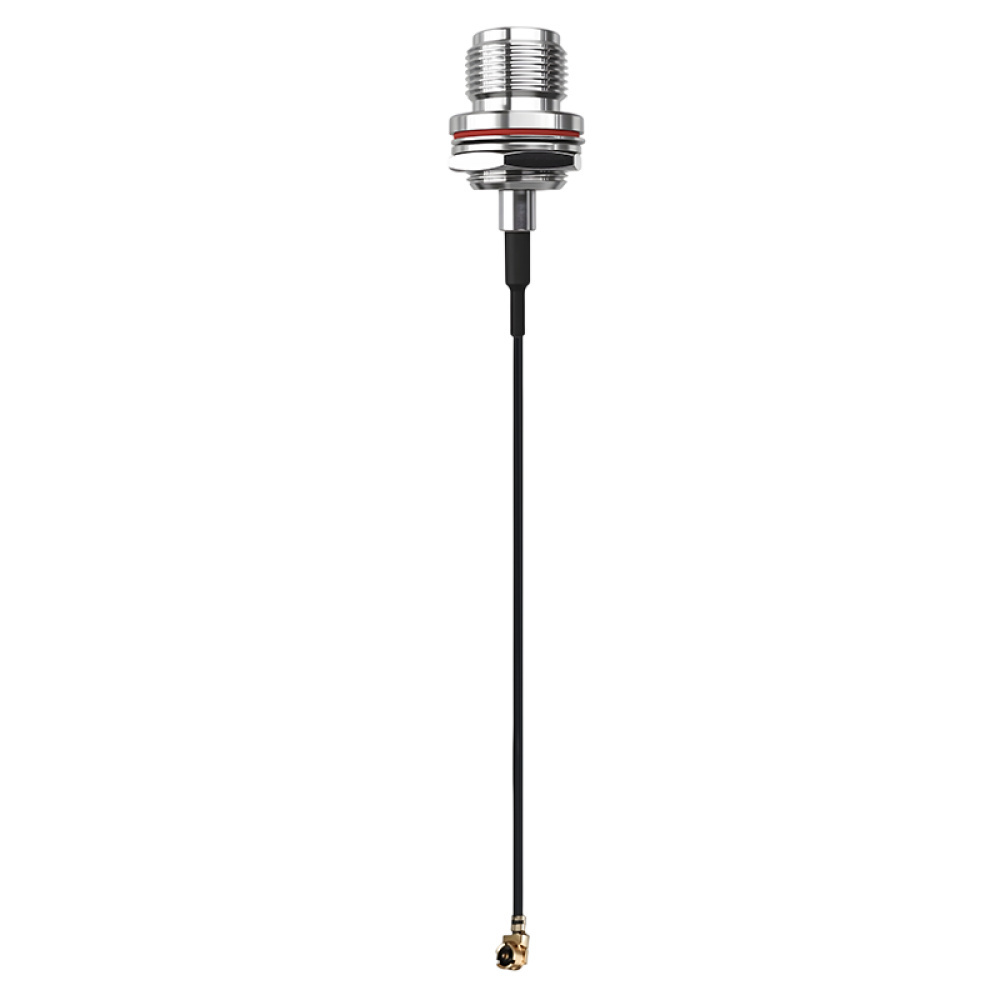

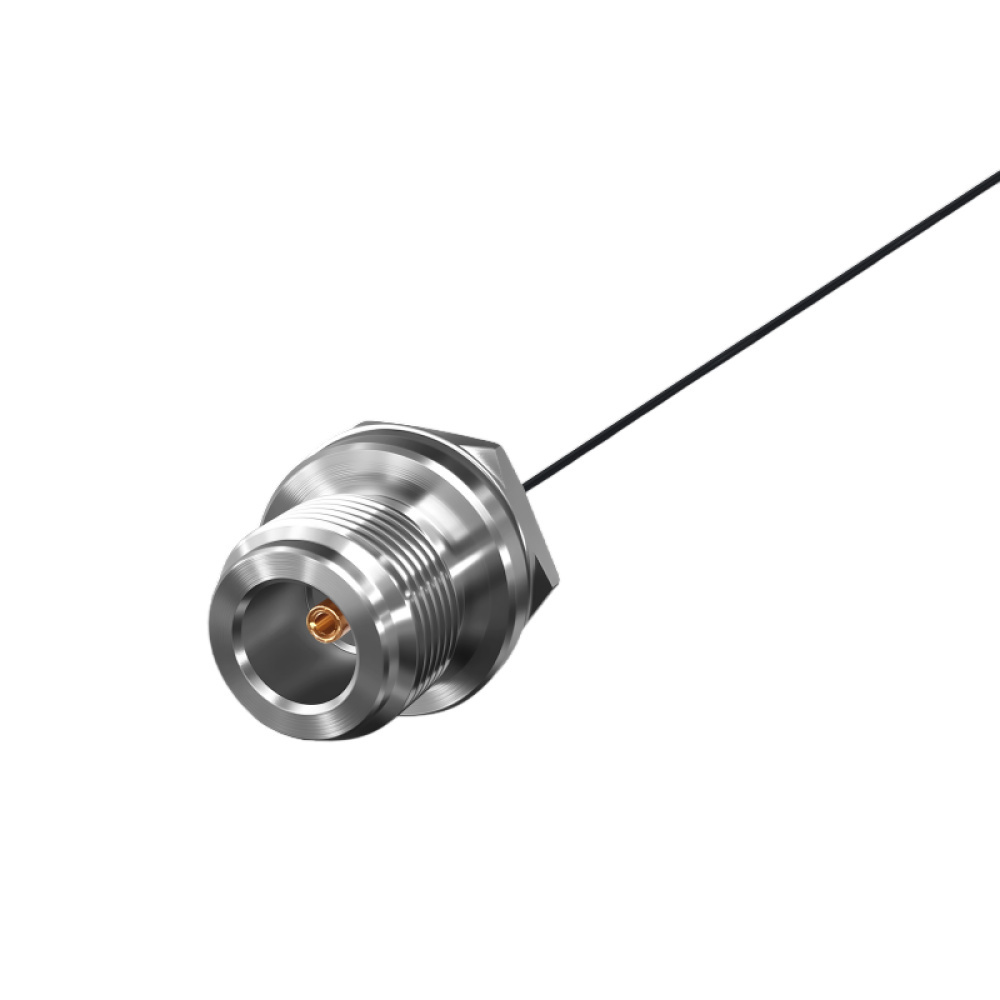

Heltec IPEX U.FL to N-female pigtail cable, 10 cm, for the Meshtastic Meshcore LoRa module View larger
Heltec IPEX U.FL to N-female pigtail cable, 10 cm, for the Meshtastic Meshcore LoRa module
  • Heltec IPEX U.FL to N-female pigtail cable, 10 cm, for the Meshtastic Meshcore LoRa module
  • Heltec IPEX U.FL to N-female pigtail cable, 10 cm, for the Meshtastic Meshcore LoRa module

Heltec

HELTEC-IPEX-TYPEN-F-1M-3212

New product

China

Safety Information +

Heltec IPEX U.FL to N-female pigtail cable, 10 cm, for the Meshtastic Meshcore LoRa module

rating No review at the moment

This 10 cm coaxial adapter cable (pigtail) allows you to easily connect a miniature IPEX micro-RF (U.FL Ver.1) connector on your LoRa board or gateway to a robust N-type female connector for front-panel or waterproof chassis mounting. It is particularly suitable for outdoor enclosures such as the MeshSolar and for Meshcore/Meshtastic/LoRaWAN nodes.

  • Connectors: IPEX (U.FL Ver.1) male to N female (flush-mounted / chassis)
  • Cable length: 10 cm (0.1 m), ideal for compact integration
  • Silver-plated copper inner conductor for minimal RF losses
  • Shielding by copper-clad plastic foil (90±5% coverage)
  • High-performance FEP sheath and insulation
  • Perfect for Heltec modules, ESP32 LoRa boards and waterproof enclosures

Supplied with: 1x IPEX U.FL to N-female adapter cable, 0.1 m.

More details

7,20 € tax excl.

Out of stock, available within 1 month

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

  • Suitable for LoRa and Meshtastic nodes: Designed for compact enclosures and standalone solutions such as Heltec MeshSolar.
  • Low insertion loss: Silver-plated copper core ensuring optimal transmission of high-frequency signals.
  • High-performance RF shielding: 90±5% coverage with copper foil to minimise internal and external interference.
  • Industrial-grade FEP insulation: FEP material that is resistant to temperature fluctuations and long-lasting.
  • Easy integration into enclosures: Female N-type connector with nut/chassis fastening for a perfectly watertight feed-through.

Technical specifications

  • Product type: RF adapter pigtail cable
  • Connector A: IPEX / U.FL (Version 1)
  • Connector B: N female (chassis-mounted)
  • Cable length: 10 cm (0.1 m)
  • Internal conductor material: Silver-plated copper wire
  • Internal conductor structure: 7 / 0.083 mm (Nominal diameter: 0.249 ± 0.02 mm)
  • Insulation: FEP (Nominal outer diameter: 0.735 ± 0.02 mm)
  • Outer conductor (shielding): Copper-clad plastic foil (Diameter: 0.759 ± 0.02 mm)
  • Shield coverage: 90 ± 5 per cent
  • Outer sheath: FEP (Nominal diameter: 1.15 ± 0.05 mm)

Compatibility

  • LoRa & IoT modules: Heltec MeshSolar, Mesh Node T114, WiFi LoRa 32, Wireless Stick, and any board fitted with a U.FL/IPEX Ver.1 socket.
  • Antennas: All external antennas with a male N connector (LoRa 868 MHz, 915 MHz, 433 MHz, Wi-Fi 2.4 GHz).
  • Standards: LoRaWAN, Meshtastic, Meshcore, Wi-Fi, Bluetooth, Zigbee.
