Discone antenna SIRIO SD 2000 N/U, wide-bande...

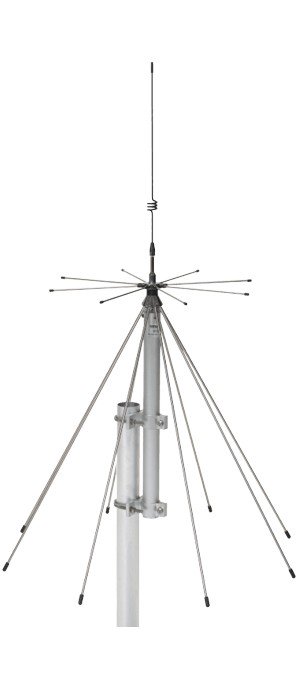

Discone antenna SIRIO SD 2000 N/U, wide-bande in reception from 100 to 2000 Mhz and the radio amateur bands in emission on 144Mhz, 430Mhz and 1200Mhz with N female connector or UHF femelle connector and a size of 90cm.
- Reception from 100 to 2000 MHz
- Emissions on 130-160, 215-440, 610-685, 870-960, 1070-1500, 1620-1800, 1860-2000 MHz
Delivered with: 1 antenna SIRIO SD-2000 N/U.
Receive from 100 to 2000 MHz: 2m-HAM, 70cm-HAM, VHF Airband, VHF Marine Band, ORBCOMM M2M, AIS-162MHz, TETRA-350, TETRA, GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, ISM/SIGFOX/LoRa 915MHz
Radian circumference: 550mm
Gain: 0dB (2dBi)
Impedance: 50 ohms

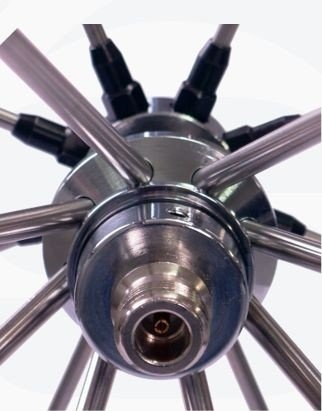

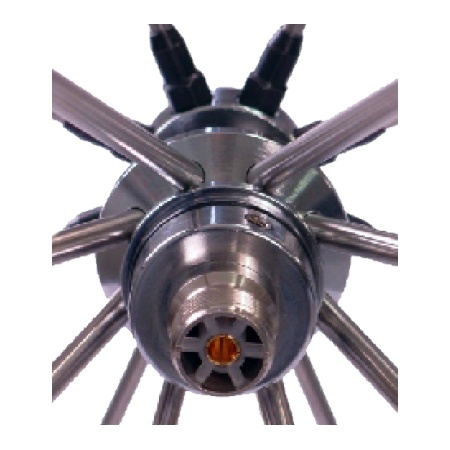

Connector: N Female (SD-2000N) or UHF Female (SD-2000U)
Maximum power: 200W (VHF), 300W (UHF)
Adjustable in transmission (TX): 130-160, 215-440, 610-685, 870-960, 1070-1500, 1620-1800, 1860-2000 MHz
SWR: Less than 2
Diameter of accepted mat: 25mm to 54mm
Wind resistance: 150 Km/h
