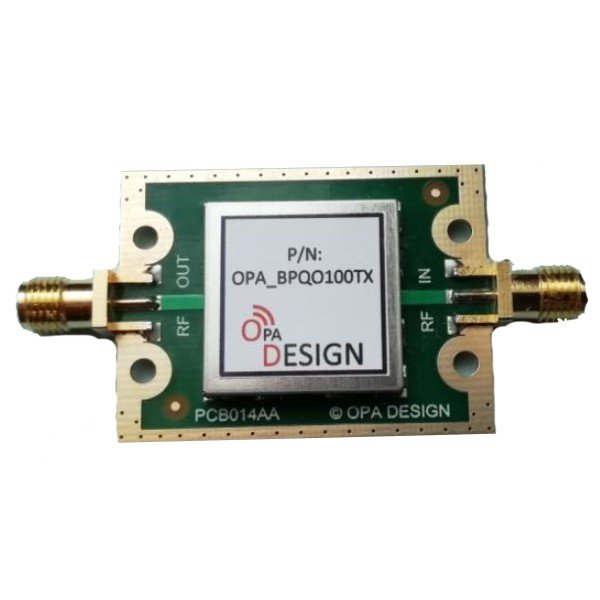

2.4 Ghz SAW Bandpass filter for QO100

Read the review

Average rating: 5/5 Number of reviews: 1

This bandpass filter for the 2.4 Ghz (13cm) allows to reject the local oscillator and harmonics frequencies of the Up-Converter for QO-100 to get a clean signal on the satellite, with a max. input power of +20dBm (100mW).

Delivered with: 1 2400Mhz OPA Design bandpass SAW filter.

More details

Download

Datasheet SAW 2.4Ghz QO-100

Data sheet SAW filter 2.4 Ghz for QO-100 by OPA DESIGN 319.53k

Data sheet

Specifications 2.4 Ghz SAW bandpass filter QO100

Central frequency: 2441 Mhz (2.4 Ghz)
Out of band attenuation: -30 / 35dB
Maximum input power: + 20dBm - 100mW
Bandwidth: 85Mhz
Insertion loss: 2.4dB
Dimensions: 40 x 30 mm
Amateur radio design: F1OPA

3D printing compatible case by bubux on : https://www.thingiverse.com/thing:5235270

The guarantee does not cover the errors of assembly or use as well as the minimum and maximum powers not respected.
