Foldable CB antenna PNI LED850FC 85cm 26-28 MHz 300W luminous PL plug View larger

PNI France

PNI-LED850FC-2674

New product

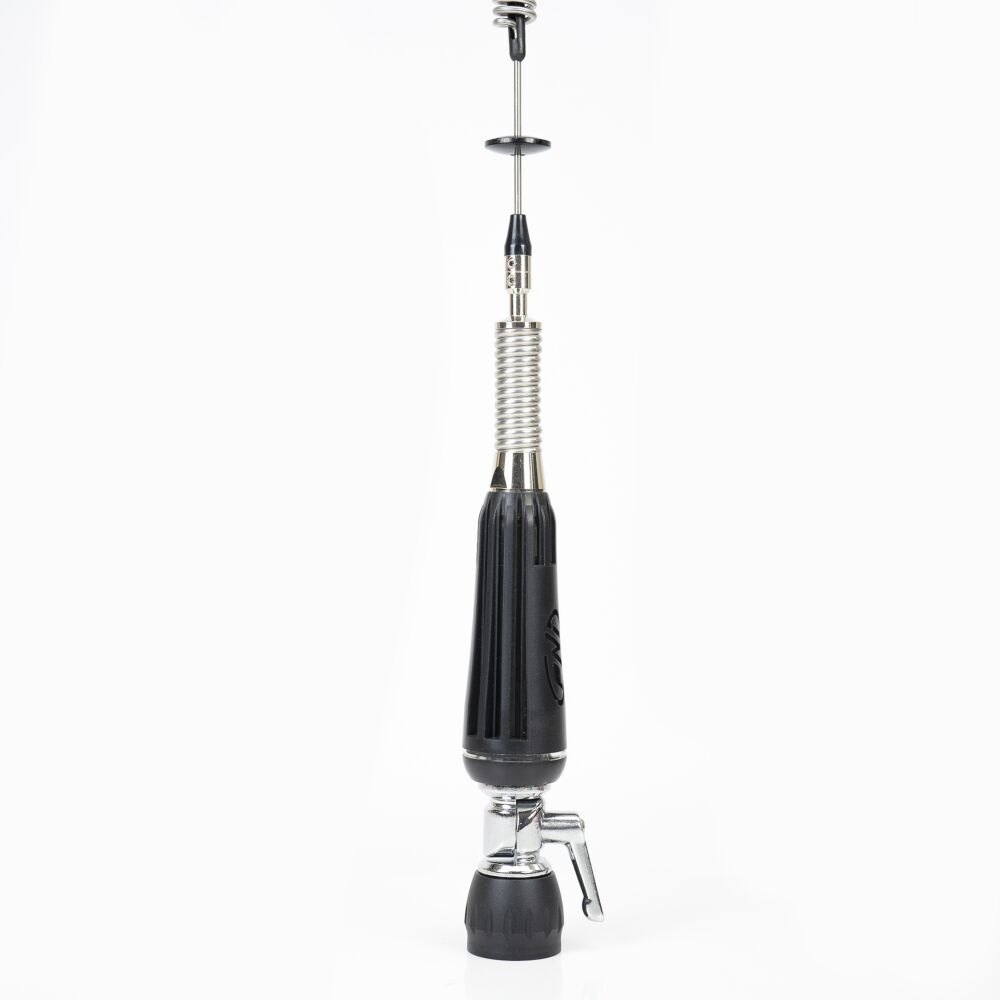

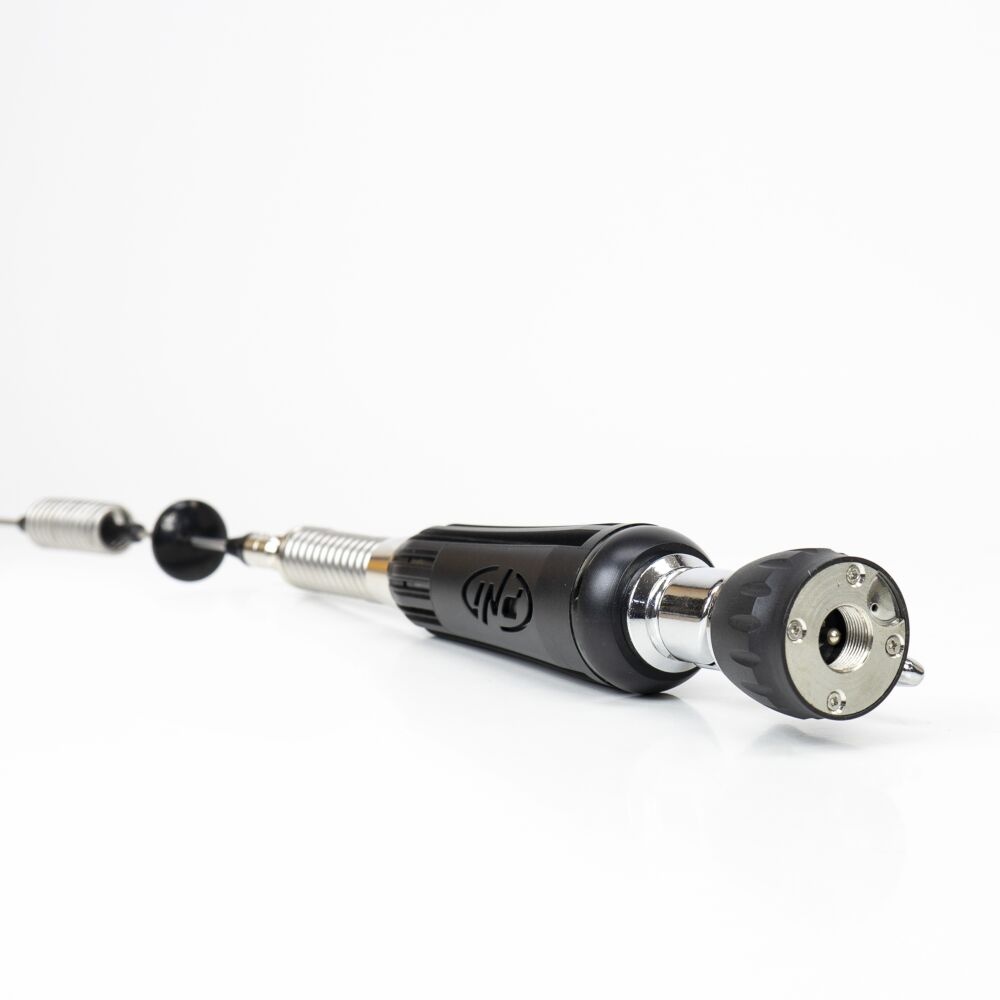

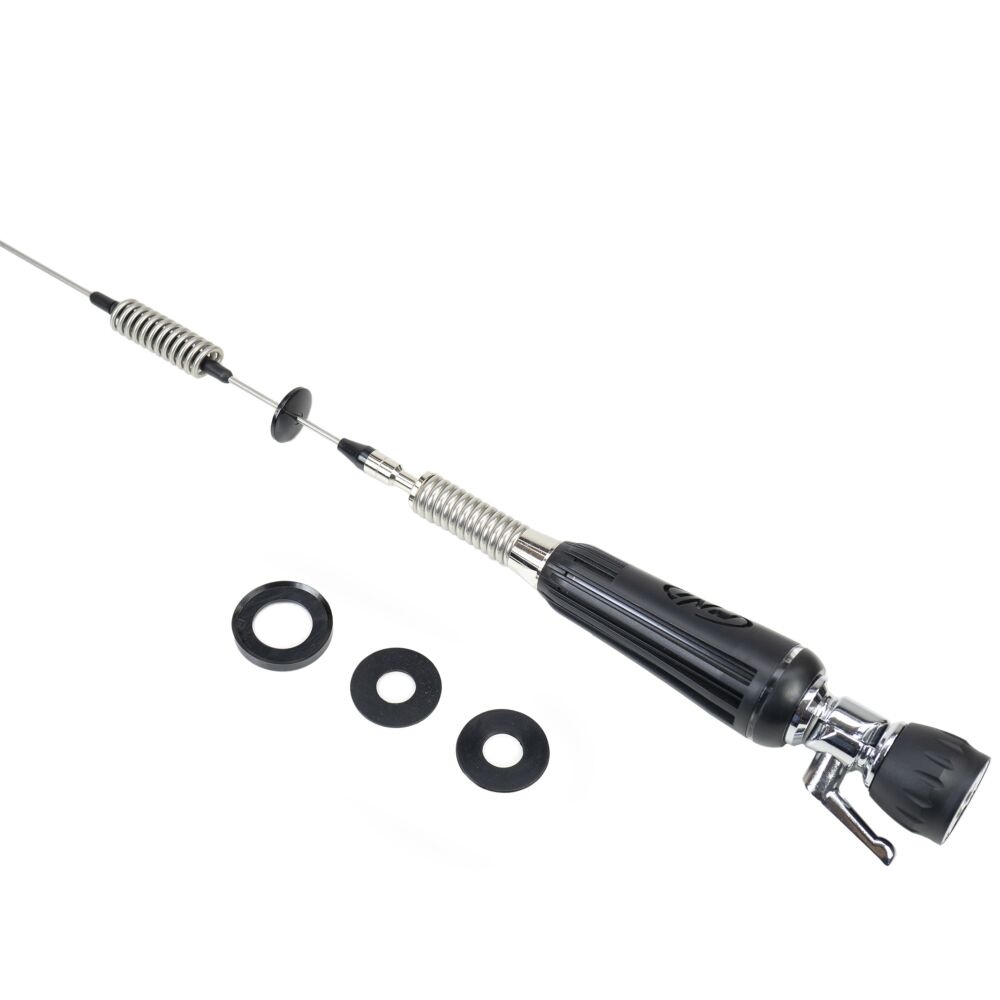

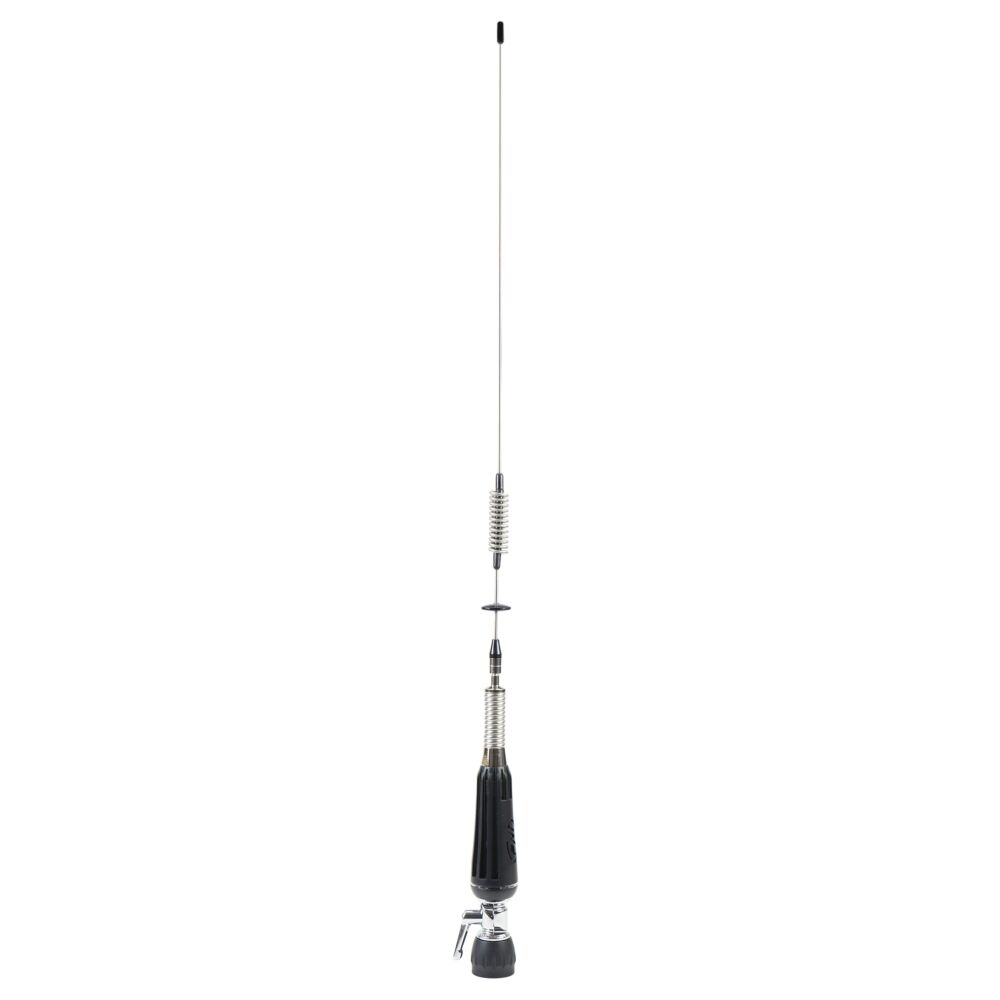

LED tiltable CB antenna 26-28MHz LED850FC 85cm 300W with PL259 plug

rating No review at the moment

The 85-centimetre CB PNI LED 850 antenna makes it easy to transmit and receive in the CB 26-28Mhz band up to a distance of 10 km or more (in ideal, obstacle-free conditions).

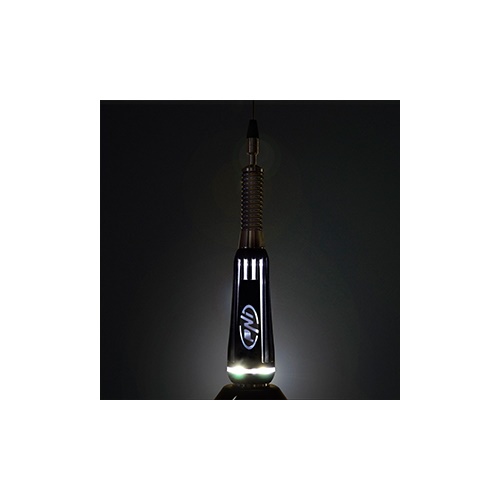

The antenna coil is fitted with LEDs that emit light when crossed by radio frequency. The coil lights up automatically when the radio is transmitting.

Can be mounted on a S0239 magnetic base, or on a PNI L21 car mount (optional).

Supplied with: 1 PNI LED850FC antenna

More details

24,49 € tax excl.

In stock

   4 Items

Download

Data sheet

  • Operating frequency: 26-28 MHz
  • Number of channels: 80
  • Maximum power applied: 40 W continuously / 300 W for a short period
  • Minimum SWR at the centre of the band: less than 1.2:1
  • Length: 850 mm
  • Impedance: 50 ohms
  • Material: Stainless steel
  • Connector type: PL-259 (UHF male)
  • Hole diameter: 16 mm
  • Size: 40x40x850mm
  • Polarisation: vertical
  • Working distance: 10km
  • Magnetic base: not included
  • Operating temperature : -26 ~ +55°C

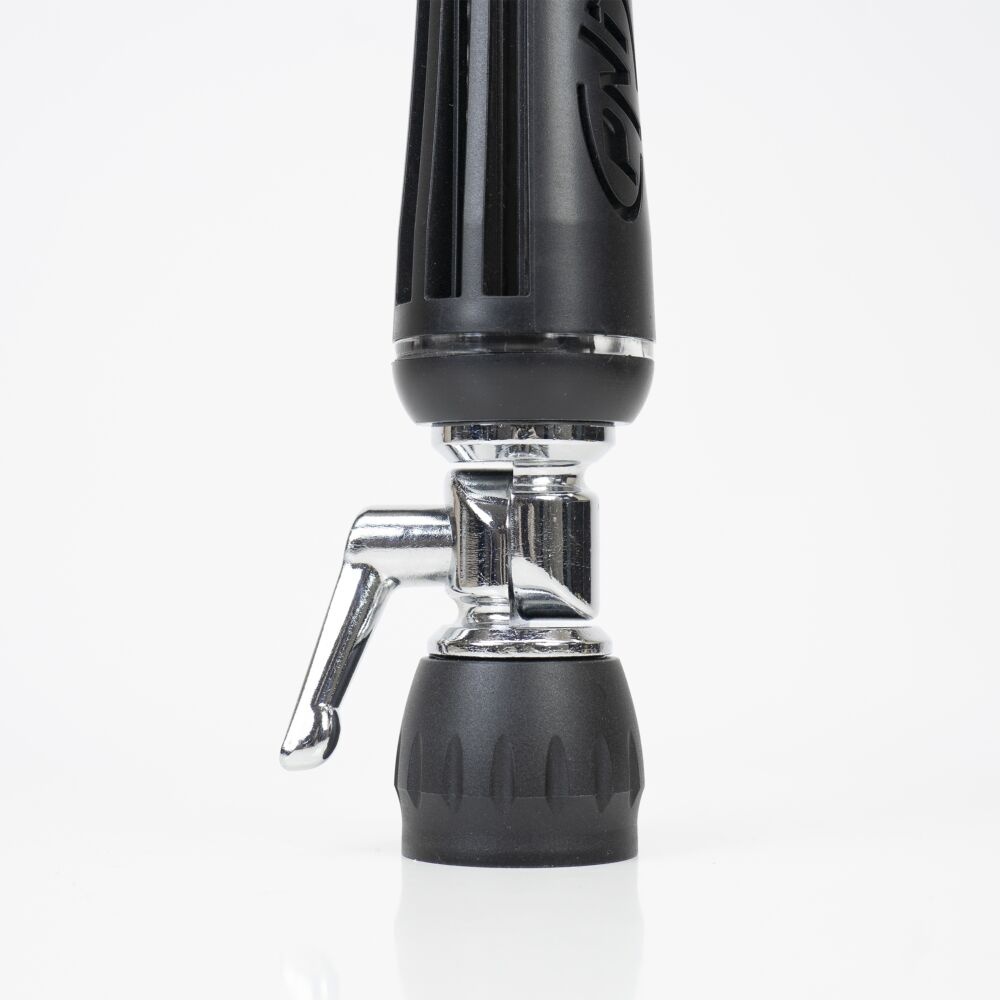

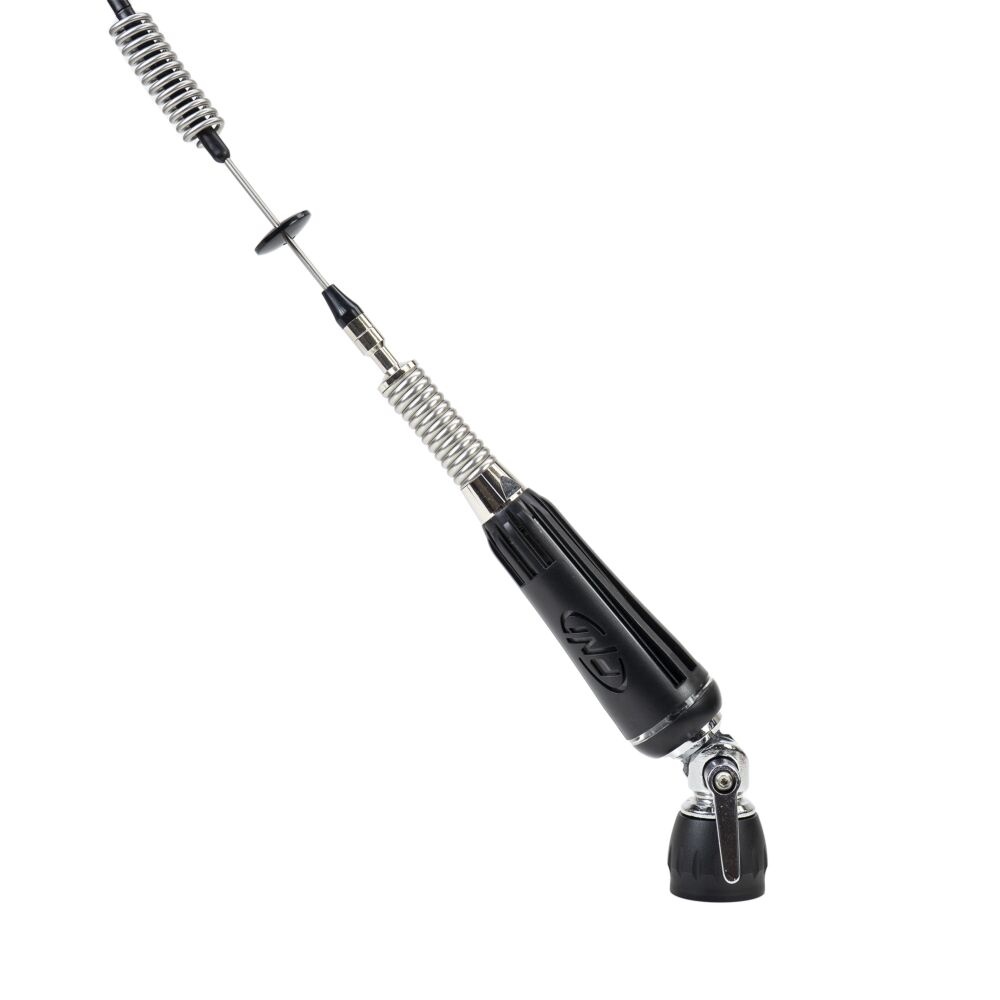

  • Tilting: Up to 90 degrees

The antenna ensures superior communication performance and maximises visibility.

The antenna coil is fitted with LEDs that emit light when crossed by radio frequency. The coil lights up automatically when the radio is transmitting, indicating that the equipment is working properly.

Test the SWR in an open area using a reflectometer. In some cases, it may be necessary to raise or shorten the wire to obtain an optimum SWR value.
