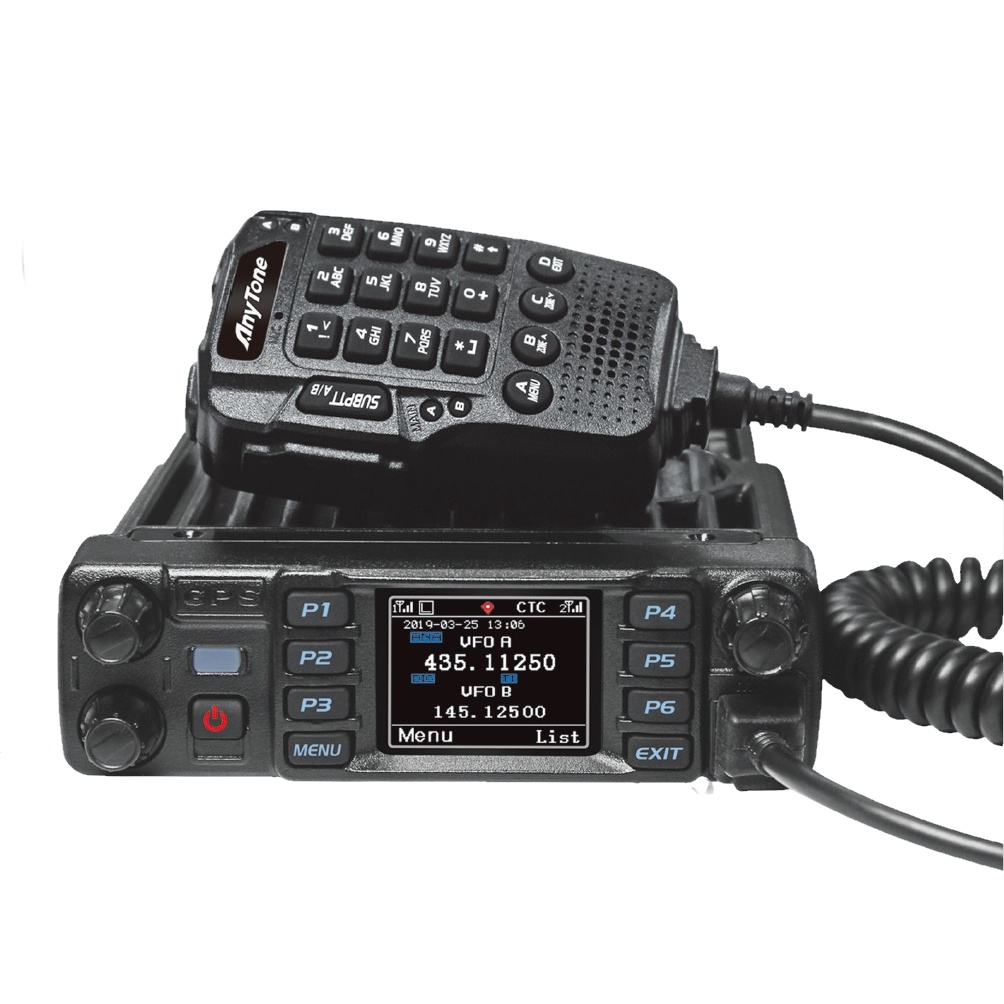

Radio Mobile Anytone AT-D578UV PLUS V2 GPS APRS DMR FM VHF-UHF Bluetooth

The new version of Anytone AT-D578UV PLUS V2 mobile radio features VFO mode, APRS in FM and DMR, with GPS and Bluetooth. The V2 now offers APRS RX as well as the VHF AM aviation band from 118 to 136 Mhz (RX only).

It covers VHF 144-146 Mhz (2m) and UHF 430-440 Mhz (70cm) amateur radio bands in FM analog and DMR digital mode, Tier I & II, Motorbro and Hytera, TDMA (2 TimeSlot) compatible.

Comes complete with: 1 ANYTONE AT-D578-UVII PLUS V2 dual band VHF-UHF with GPS antenna and Bluetooth PTT button included, English manual. 2 years warranty and free programming cable.

This set is sold unprogrammed, without frequency and without codeplug. Programming is to be done by the user. Passion Radio does not provide any more the support for the programming in DMR amateur radio due to the splitting of the DMR amateur radio networks and with different configurations.

More details

Download

Instruction FW Update AT578 (FR)

In french. 796.9k

Instructions FW Update 578 (EN)

Instructions in english to update the firmware and make a MCU RESET of the Anytone AT578UV. 172.54k

Brochure AT-578UV V2 Plus

2.04M

Manual AT578UV2 (FR)

In french. 1.47M

CPS Software 1.14 D578 V1 & V2

CPS 1.14 programming software from June 2021 for Anytone AT-D578 all versions (V1 and V2). 5.56M

Manual AT578UV2 (EN)

Manual and user guide for anytone AT-578UV V2 PLUS, in english. 1.45M

Firmware D578 V2 v2.01

Firmware v2.01 of June 2021 for the AT-D578 V2 version only. This firmware is not compatible with the 578 V1. 592.16k

CPS Software AT-D578UV2 FW 2.02

CPS 2.02 programming software for Anytone AT D578UVII (V2) with V2.02 firmware (November 2021). 13.03M

Data sheet

2 Timeslot, TDMA, compatible MOTOTRBO Tier I & II
Power: 50W VHF and 45W UHF
TX frequency (amateur radio band): 144-146 MHz and 430-440 MHz
Auto-detection digital or analog mode
4000 channels, 10000 Talkgroup and 150000 Contacts
VFO button function to change frequencies
GPS and APRS RX function in FM & DMR
TFT color LCD display, dual display, dual standby
Bandwidth: 12.5 K / 25 K (analog); 12.5K (DMR)
No frequency: 5Khz, 6.25Khz
Coding and decoding CTCSS / DCS
DTMF / 2TONE / 5TONE
Up to 5 different DMR IDs
Icon indicator or voice prompt when connecting with a relay
Roaming / roaming function (selection of an accessible relay in a predefined list)
Bluetooth with PTT button
Encryption function
SMS function via the keyboard
Registration function
GPS function
ANI function, PTT ID, VOX
GPS antenna connector: SMA female (GPS antenna included)
Emergency alarm (with GPS data transmission)
Antenna connector: UHF Female (SO-239) - Antenna cable compatible to take in UHF Male (PL-259)
Emergency alarm (with GPS data transmission)
CE and FCC certified
2 years warranty by Passion Radio

How-To activate VFO mode and additional menus

To activate VFO mode as well as additional menus, here is how to proceed:

Go to the "Optional Settings" menu, then in the "Work Mode" menu then in the "choose working mode" drop-down menu, select the "amateur mode" mode, so that the modifications are taken into account, rewrite the codeplug on the radio.

mode VFO at-578uv anytone

Anytone programming and firmware update software

Find the latest versions of the programming and firmware update software for the Anytone AT-578 in the "Download" section below.

BE AWARE: The firmware for the V1 is not compatible with the V2 version, the CPS software is compatible with both versions.

Reminder: The use of the mobile DMR Anytone AT-D578-UVII PLUS V2 is subject to license and compliance by the user with the frequencies and legislation in force in his country.

This set is sold unprogrammed, nor in frequencies and without codeplug. The programming is to be done by the user.
