TYT TH-UV88 Walkie-Talkie Dual-band FM VHF-UHF 5W View larger

TYT

TYT-TH-UV88-HAM-1056

New product

China

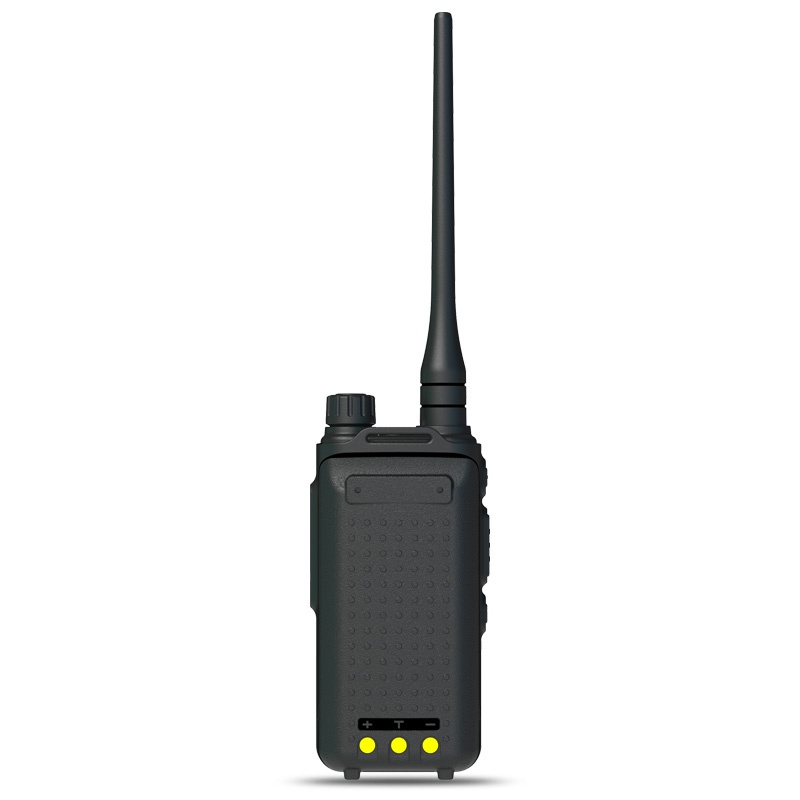

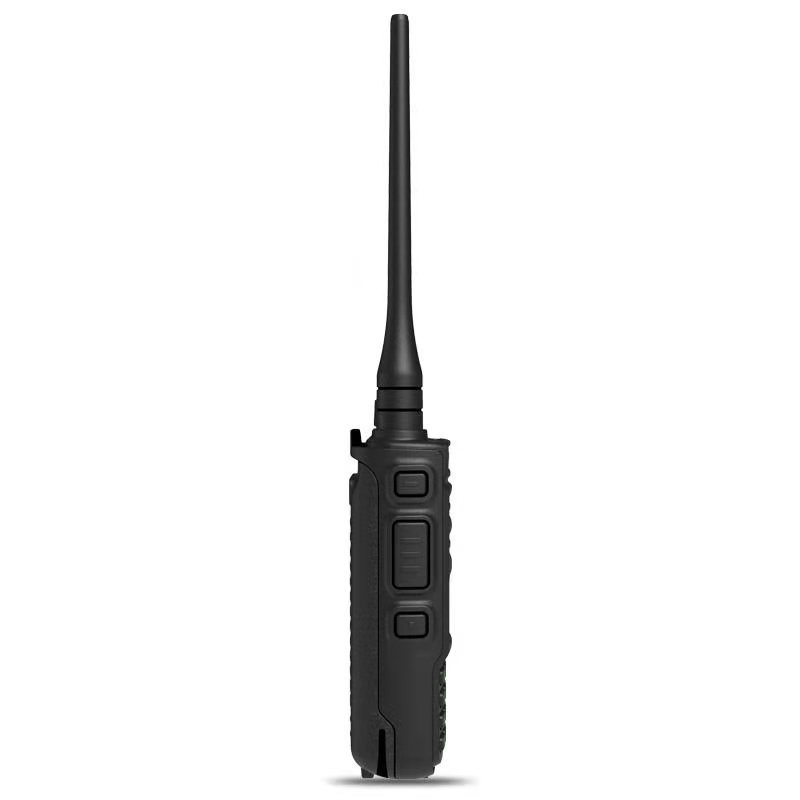

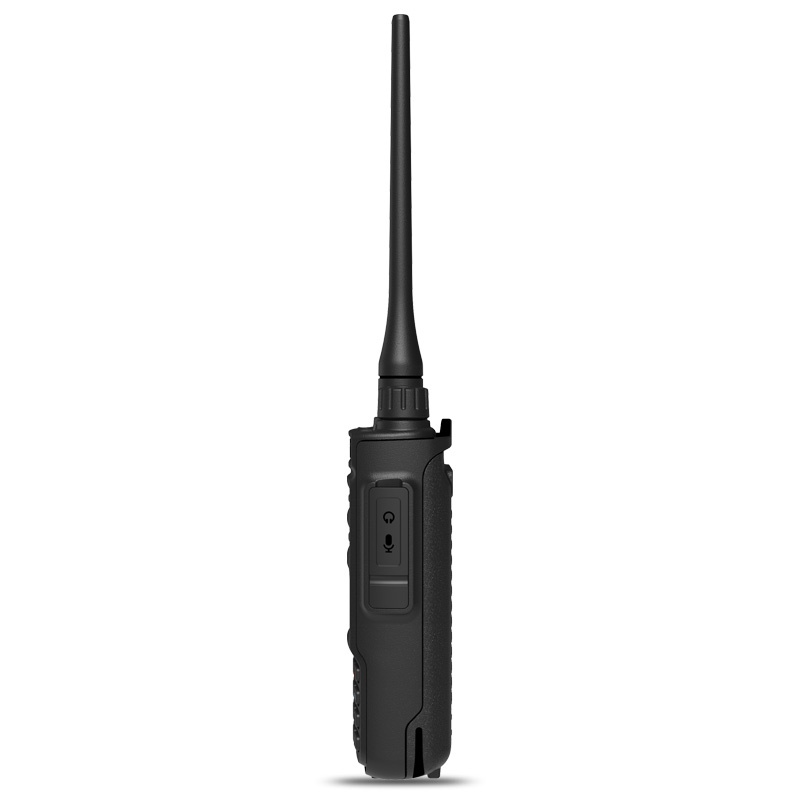

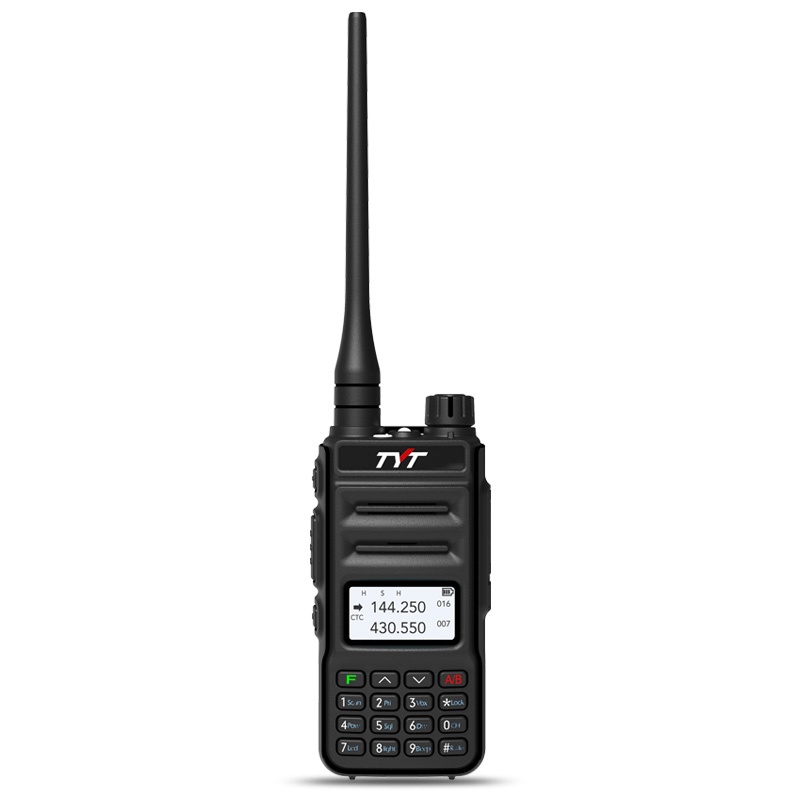

TYT TH-UV88 Walkie-Talkie Dual-band FM VHF-UHF 5W

The TYT TH-UV88 is a rugged, cost-effective VHF 144-146Mhz and UHF 430-440 Mhz dual-band walkie talkie for everyday use and for those who need the same functionality and versatility of the popular Baofeng UV-5R but are looking for a walkie talkie with a stylish look. more professional, greater durability, better reception and range.

The TH-UV-88 has 200 programmable channels, CTCSS / DCS, 1750 Hz calling tone, DTMF encoding and decoding as well as 2 and 5 tone (compatible ZVEI1 et ZVEI2), 2 simultaneous frequency standby function, an 88-108 Mhz FM radio, VOX function for hands-free use and a built-in flashlight.

Programmable from Windows PC (7, 8, 10) and firmware update via programming cable (optional). A programming file for VHF-UHF amateur radio frequencies in France, ready to use, is available in the download section below.

Comes complete with: 1 TYT TH-UV88, 1 220V desktop charger EU plug, belt clip, VHF-UHF dual-band antenna, 1400 mAh battery and English manual to donwload below. 2 years warranty by Passion Radio.

Compatible antennas to improve range: Choose an antenna with a SMA male connector such as Diamond SRH77CA (40cm), Nagoya NA-771 (39cm), Abbree tactical antenna (33cm or 48cm lenght only, SMA male).

Exposure SAR max. : Walkie-talkie back 2,790 (W/Kg) in 450 Mhz (narrow FM 12,5Khz)

More details

QuantityPriceYou Save
3 33,85 € Up to 3,14 €
5 33,16 € Up to 8,72 €
10 32,11 € Up to 27,92 €
20 31,41 € Up to 69,80 €

33,16 € tax incl.

27,63 € tax excl.

34,90 € tax incl.

In stock

Download

Manual TYT TH-UV88 (EN)

TYT TH-UV88 English manual. 3.77M

CPS software TYT-UV88 1.12

Windows programming software v1.17 CPS for TYT-UV88 3.42M

Firmware BQ1_44 (old)

Firmware version BQ1_44 (May 2021) with Windows update software for the old microprocessor version. 1.09M

TYT walkie talkie drivers

Drivers for Windows and analog FM walkie-talkie from TYT 1.18M

Manual TYT UV-88 (FR)

Manual in french with programming and firmware update instructions. 2.3M

Firmware BQ1_38 (old)

Firmware version BQ1_38 (February 2021) with Windows update software for the old microprocessor version. 278.16k

Firmware BSV1_55 (new)

Firmware version BSV1_55 (December 2021) with Windows update software for the new microprocessor version. (firmware in .ICF). 86.46k

Configure CANAL E ZVEI2 TH-UV88

Configuration of the mountain emergency frequency 161.300MHz Canal E ZVEI2 for TYT TH UV-88 390.92k

UV88 programming files

Programming for the TYT TH-UV88 with VHF-UHF amateur radio frequencies, for CHIRP and TYT CPS software. 697.15k

Data sheet

Dual-Band display, dual frequency watch
Frequencies amateur radio band: 144-146 Mhz and 430-440 Mhz
Output power: 0.5 W minimum, 4W in UHF and 5W in VHF maximum
Setting: 0.5-1W (L = Low), 2-2.5W (M = Medium) and 4-5W (H = High)
200 channels, 50 CTCSS and 104 CDCSS
VOX hands free
1750Hz tone and relay function (adjustable offset)
DTMF, 2-tone and 5-tone
Compatible ZVEI1 and ZVEI2
Antenna connector: SMA female
FM radio (87MHz-108MHz)
Led lamp
Large LCD display
Not switchable 25KHz / 12.5KHz
Emergency alert function
Headset jack: 2-pin (Kenwood K, Baofeng compatible)
Dual frequency monitoring (dual watch): VHF + VHF, VHF + UHF, UHF + VHF or UHF + UHF
No increment: 2.5 / 5 / 6.25 / 10 / 12.5 / 25KHz
Scan frequencies and memories
Scrambler, Roger beep
Battery: 1400 mAh
Autonomy : 8 to 10 hours
Weight: 223g (with antenna and battery)
Dimension: 11.6 x 5.3 x 3.6 cm (excluding antenna)
Operating temperature: -10°C to + 50°C
2 years warranty
CE, FCC and RoHS standards

Use of 1750 Hz tone

To activate the tone 1750hz and trigger the opening of an amateur radio relay, you have to stay pressed on the button on the left side: Site Key 1 (above the PTT button). The walkie-talkie then goes into transmission and transmits the tone 1750hz.

Changing the VFO / Memory mode

To switch from VFO mode or memory mode, briefly press the # key in the lower right corner of the keyboard.

To save a memory channel

In VFO mode, enter the frequency to be recorded from the keypad or select the frequency with the one keys by pressing 【▲】or 【▼】and then press and hold the F key.

The channel number will flash on the right side of the LCD, press 【▲】or 【▼】to select the desired number, then press the # (radio) key on the keypad to save it.

To delete a memory channel

1) In VFO mode, press and hold the F key, the number will flash on the right of the LCD
2) Press 【▲】or 【▼】buttons to select the number of the channel you want to delete, then press * (lock) button to confirm.

Turn ON/OFF the flashlight

To turn on the flashlight, briefly press the Site Key 1 above the PTT button.

Turn ON/OFF the FM 88-108 Mhz radio

To turn on the FM radio, press and hold down the # key in the lower right corner of the keypad. To turn it off, press and hold down the # key.

Microprocessor version and firmware update

Due to the worldwide shortage of electronic components, TYT has changed the microprocessor of the UV88. There are now 2 versions of firmwares according to the 2 versions of the microprocessor. The functionalities and performances are identical between the 2 versions.

However the firmware of the old chipset is not compatible with the new version of the chipset.

To recognize the new version, a sticker with a red dot is affixed to the back of the device on the chassis, by removing the battery.

The serial number of the new version of the microprocessor start from 2111A00031, the numbers ending with a number after 00031 has the new version.

Finally, to avoid any confusion in updating the firmware according to the 2 versions, a firmware file with an extension in .ICF concerns the new version, while a firmware file with an extension in .HEX concerns the old version. The firmware update software is specific to each version.

The programming software and the configuration files are compatible whatever the version.

Reminder: The use of the TYT TH-UV88 walkie-talkie is subject to the respect by the user of the frequencies, of the legislation in force in the country of use and requires a radio license to be able to be legally used in transmission.
