Car antenna 144-430Mhz Diamond AZ503 Diamond Antenna Mobile DIAMOND-AZ503-818 View larger
Diamond Antenna

DIAMOND-AZ503-818

New product

Japan

Car antenna 144-430Mhz Diamond AZ503

rating No review at the moment

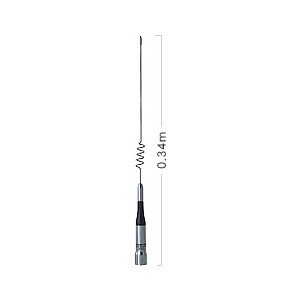

High quality screw whip antenna with PL259 for car, from Diamond Antennas & Slim Gainer and amateur radio bands 144/430MHz (2m/70cm), measures 34cm.

Supplied without cable and support available as an option. This antenna requires a ground plane to operate, either via a support connected to the body car, or via a magnetic base mount on the roof of the vehicle or on a metal plate of 1m² minimum.

More details

29,00 € tax incl.

24,17 €

tax excl.

In stock

   3 Items

Data sheet

Specifications Diamond Antenna AZ503

Type antenna: 1/4 wave (144MHz), 3/8 wave (430MHz)
Gain: 0dBi (144MHz), 1.69dBi (430MHz)
Max. power rating: 50W
Impedance: 50ohms
VSWR: Less than 1.5:1
Length: 34cm
Weight: 65g
Connector: PL-259
