Seeed Wio-SX1262 with XIAO ESP32S3 Development Kit: LoRa, Meshtastic, Meshcore, Wi-Fi, BLE

rating No review at the moment

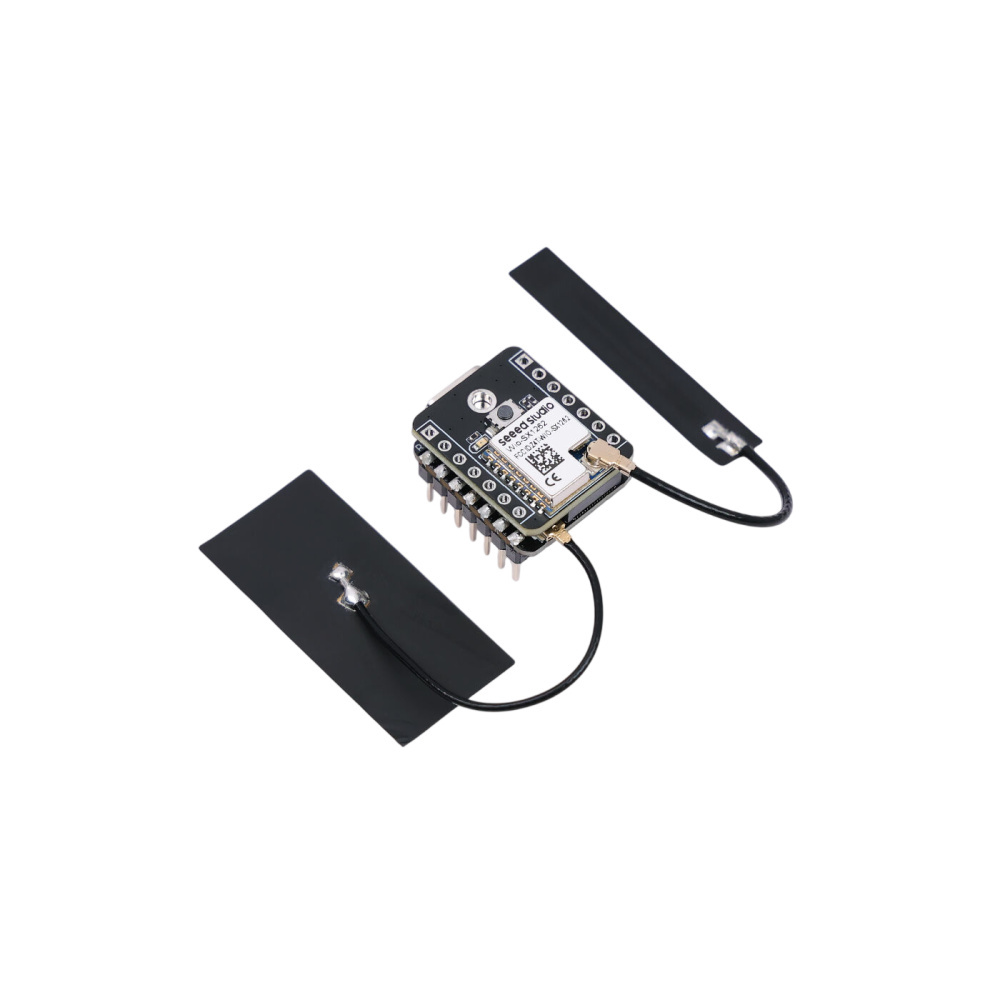

The Seeed Studio kit, combining the XIAO ESP32S3 microcontroller and the Wio-SX1262 module, is an ultra-compact LoRa development platform measuring just one inch. Designed for decentralised mesh networks and IoT applications, it enables the rapid creation of high-performance, autonomous Meshtastic or Meshcore nodes and LoRaWAN gateways.

  • Dual-core ESP32-S3 microcontroller with Wi-Fi and Bluetooth Low Energy (BLE) connectivity
  • High-sensitivity, low-power Semtech SX1262 LoRa transceiver
  • Miniature form factor ideal for portable projects, beacons and autonomous sensors
  • Integrated battery charge manager for LiPo/Li-Ion power supplies
  • Fully compatible with the open-source Meshtastic and Meshcore firmware and the Arduino ecosystem

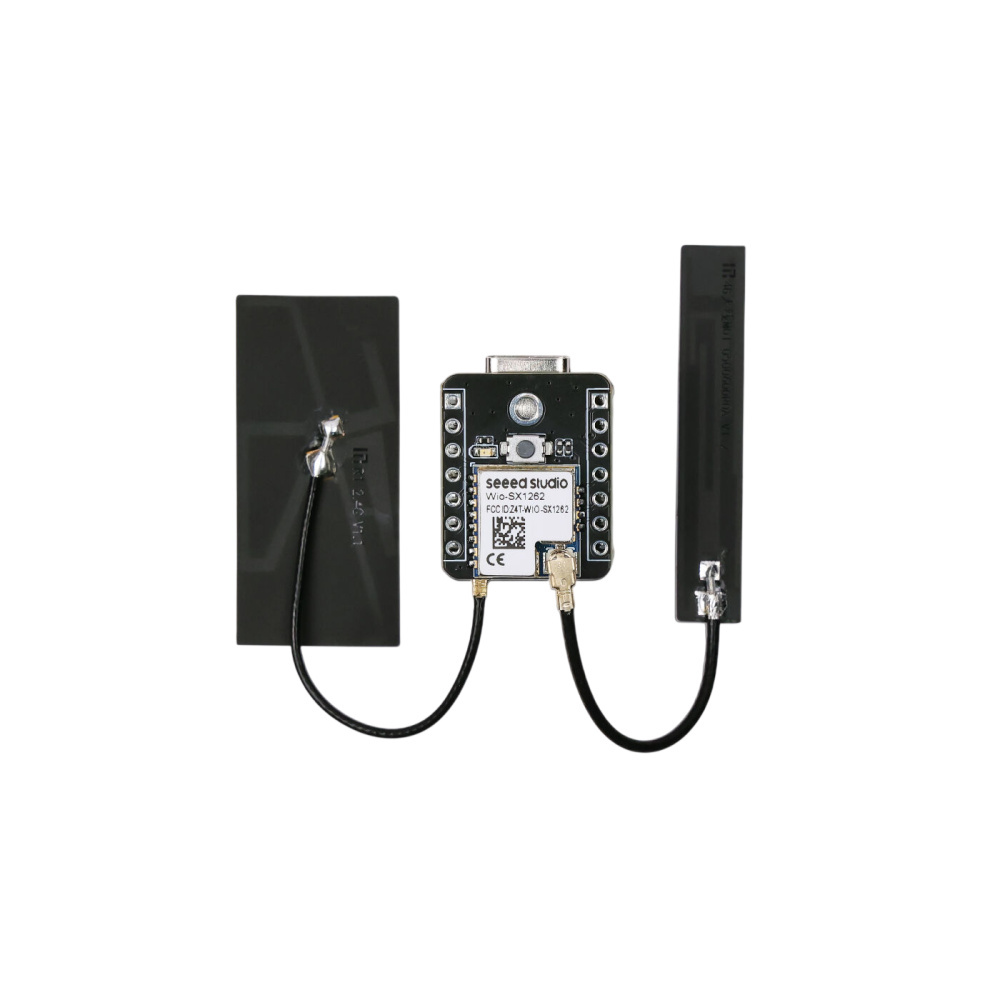

  • External antenna connector for optimised radio range

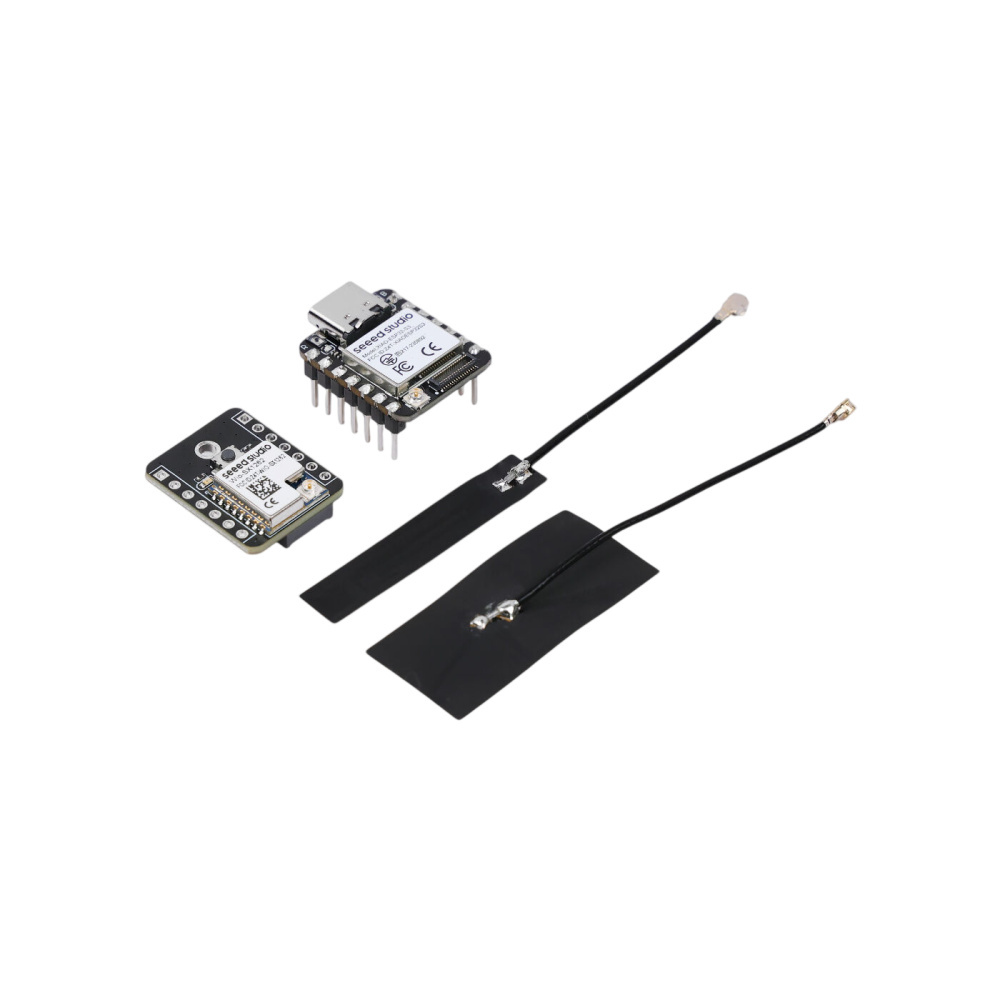

Includes: 1x Seeed Studio XIAO ESP32S3 board, 1x Wio-SX1262 LoRa module, 1x LoRa whip antenna, solder tabs.

More details

14,21 € tax excl.

Out of stock, available within 1 month

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

User manual Wio-SX1262 with (EN)

User guide for Wio-SX1262 with XIAO ESP32S3. 2.35M

Data sheet

  • Ultra-compact design: A one-inch-sized solution ideal for designing discreet and easily portable radio beacons or Meshtastic/Meshcore nodes.
  • Triple wireless connectivity: Natively integrates 2.4 GHz Wi-Fi, Bluetooth 5 (BLE) and long-range LoRa radio links.
  • Latest-generation SX1262 transceiver: Offers superior link performance and energy efficiency compared to the previous-generation SX1276/SX1278.
  • Integrated power management: Battery management circuit facilitating deployment on LiPo/Li-Ion batteries for fully autonomous operation.
  • Ready for Meshtastic or Meshcore: Can be easily flashed to integrate into an off-grid, encrypted mesh network.
  • Hardware expandability: GPIO, I2C and UART interfaces available for adding environmental sensors, GPS receivers or OLED displays.

Technical specifications

  • Microcontroller: Espressif ESP32-S3 Xtensa 32-bit LX7 dual-core up to 240 MHz
  • LoRa radio chip: Semtech SX1262
  • Wireless connectivity: Wi-Fi 802.11 b/g/n (2.4 GHz), Bluetooth Low Energy 5.0, LoRa
  • LoRa transmission power: Up to +22 dBm
  • LoRa sensitivity: Up to -148 dBm
  • Power management: Integrated battery charge management chip via USB-C

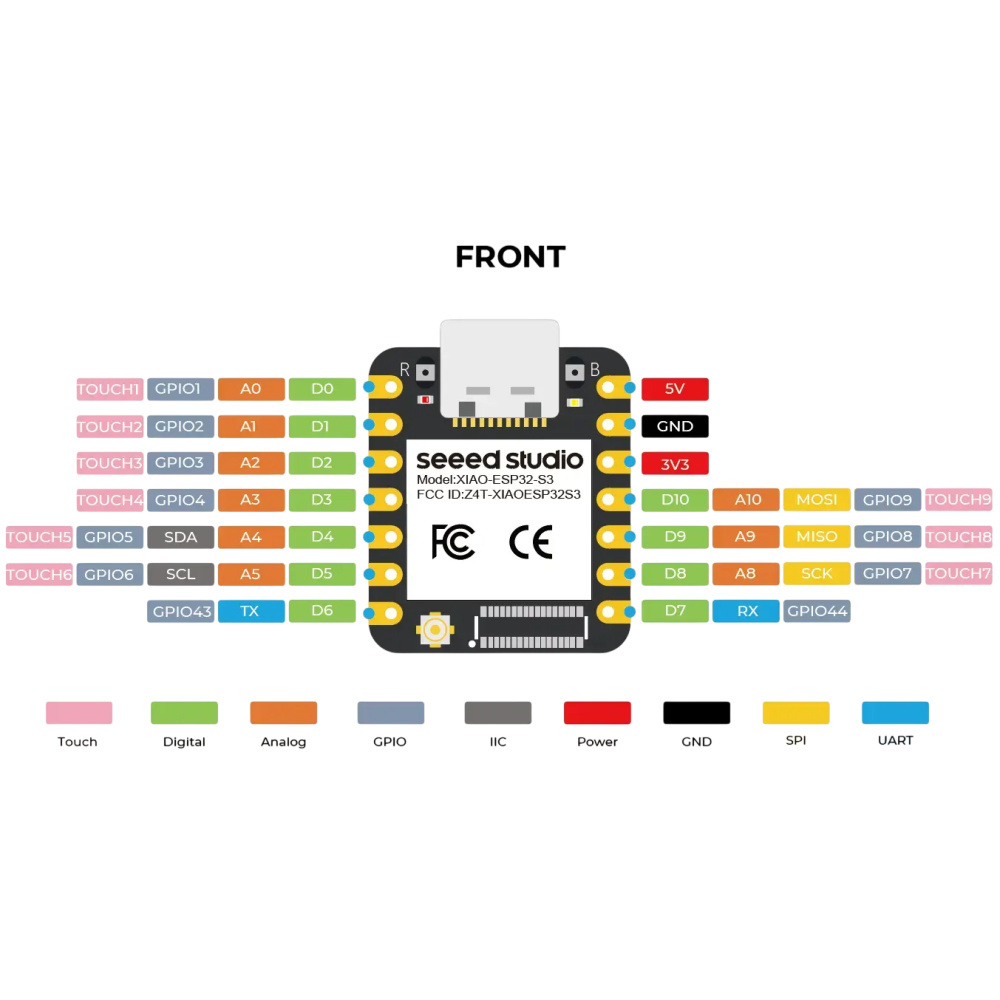

  • Expansion interfaces: I2C, UART, SPI, GPIO, ADC, PWM
  • RF connector: Micro-coaxial connector for external antenna
  • Programming environments: Arduino IDE, ESP-IDF, CircuitPython, PlatformIO
  • Supported firmware: Meshtastic, Meshcore, TinyGS, LoRaWAN / TTN (The Things Network)

Compatibility

  • Software and protocols: Meshtastic, Meshcore, LoRaWAN v1.0.3, TinyGS, RadioLib, Arduino IDE, ESP-IDF, PlatformIO
  • Wireless networks: 2.4 GHz Wi-Fi, Bluetooth LE (BLE), LoRa mesh networks (Meshtastic/Meshcore)
  • Sensors & extensions: OLED displays (SSD1306, SH1106 via I2C), GPS/GNSS modules (NMEA via UART), BME280/BMP280/SHT31 sensors
  • Power supply: 5V USB Type-C cable or 3.7V LiPo/Li-Ion battery

FAQ

Is the kit natively compatible with Meshtastic or Meshcore firmware?

Yes, the ESP32-S3 architecture combined with the SX1262 module is fully supported by the Meshtastic or Meshcore community. Flashing is easily carried out via the web flasher.

What is the maximum LoRa communication range?

In open terrain (line of sight) or at altitude, the range can extend from several kilometres to several tens of kilometres, depending on the configured data rate, the terrain topography and the gain of the antenna used.

Can a battery be connected directly to the module?

Yes, the circuit incorporates a management and charging system for lithium batteries (LiPo/Li-Ion 3.7V), enabling standalone operation in the field.

How do I add a display or a GPS module to this setup?

The I2C (SDA/SCL) and UART (TX/RX) pins available on the XIAO board allow you to solder or connect an OLED display or an external GPS module directly.
