Seeed XIAO nRF52840 & Wio-SX1262 Meshtastic Meshcore LoRa 868MHz Bluetooth BLE 5.0 Kit

rating No review at the moment

The Seeed Studio XIAO nRF52840 & Wio-SX1262 kit is an ultra-compact, ultra-low-power solution designed specifically for creating decentralised Meshtastic Meshcore communication nodes and long-range LoRa IoT sensor networks.

  • Architecture combining the powerful Nordic nRF52840 microcontroller (ARM Cortex-M4F) and the Semtech SX1262 radio module
  • Dual wireless connectivity: long-range LoRa (862–930 MHz) and Bluetooth 5.0 Low Energy (BLE)
  • Ideal for deploying autonomous Meshtastic Meshcore mesh nodes, asset tracking or LoRa telemetry
  • Ultra-low power consumption, suitable for battery-powered or solar-powered installations
  • Tiny form factor for easy integration into 3D-printed enclosures or portable projects
  • Native LiPo/Li-Ion battery charge management integrated into the XIAO

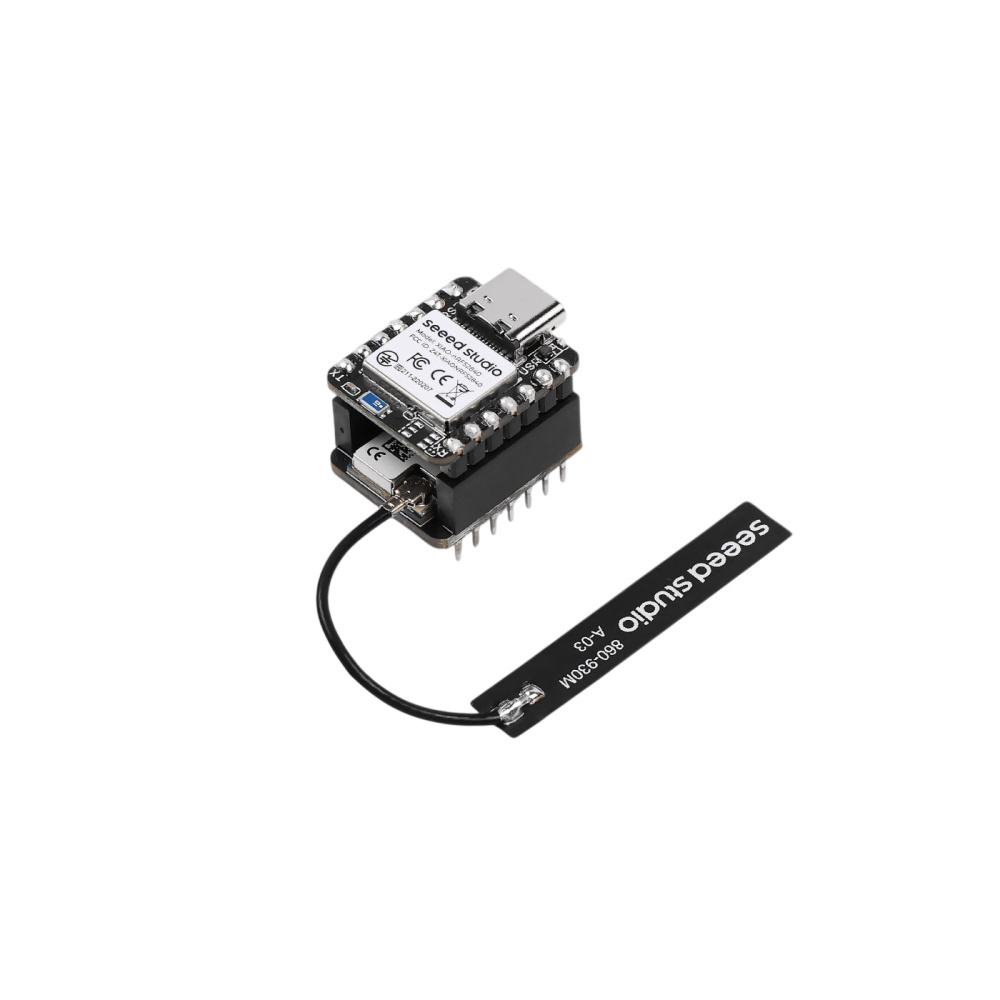

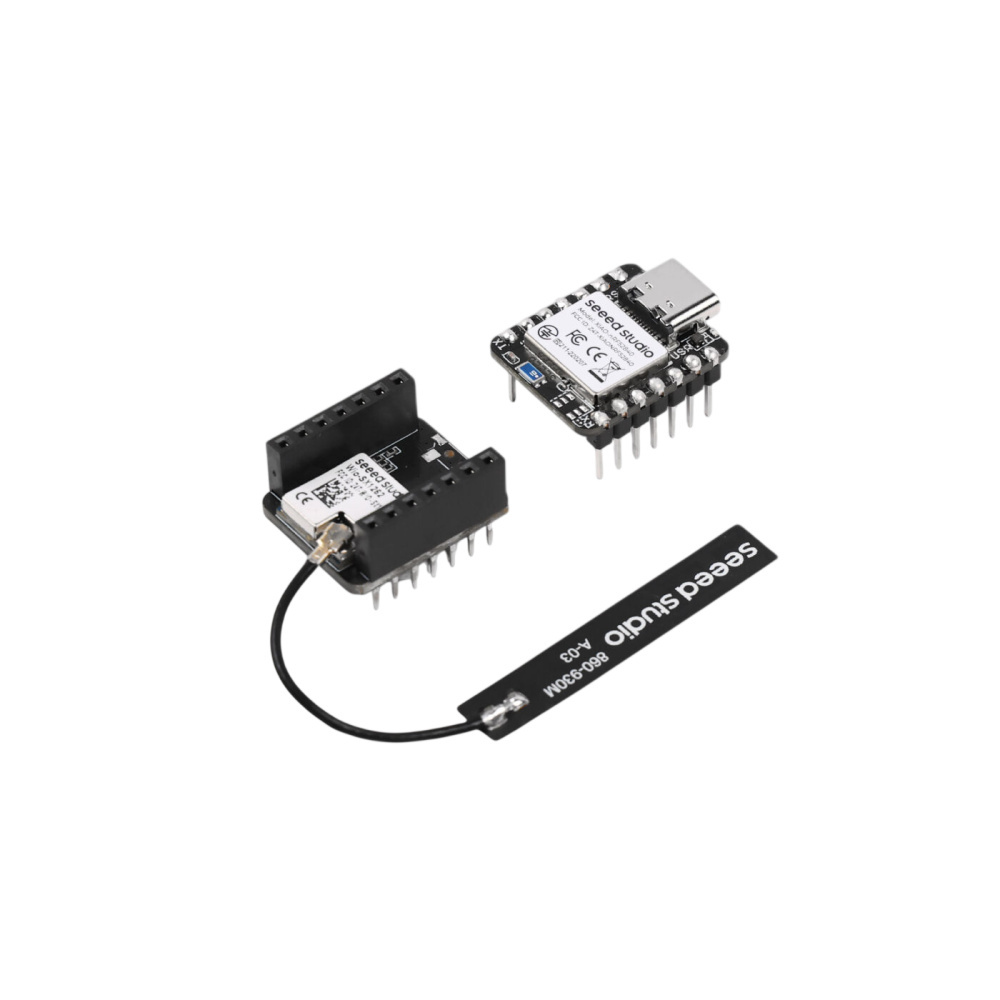

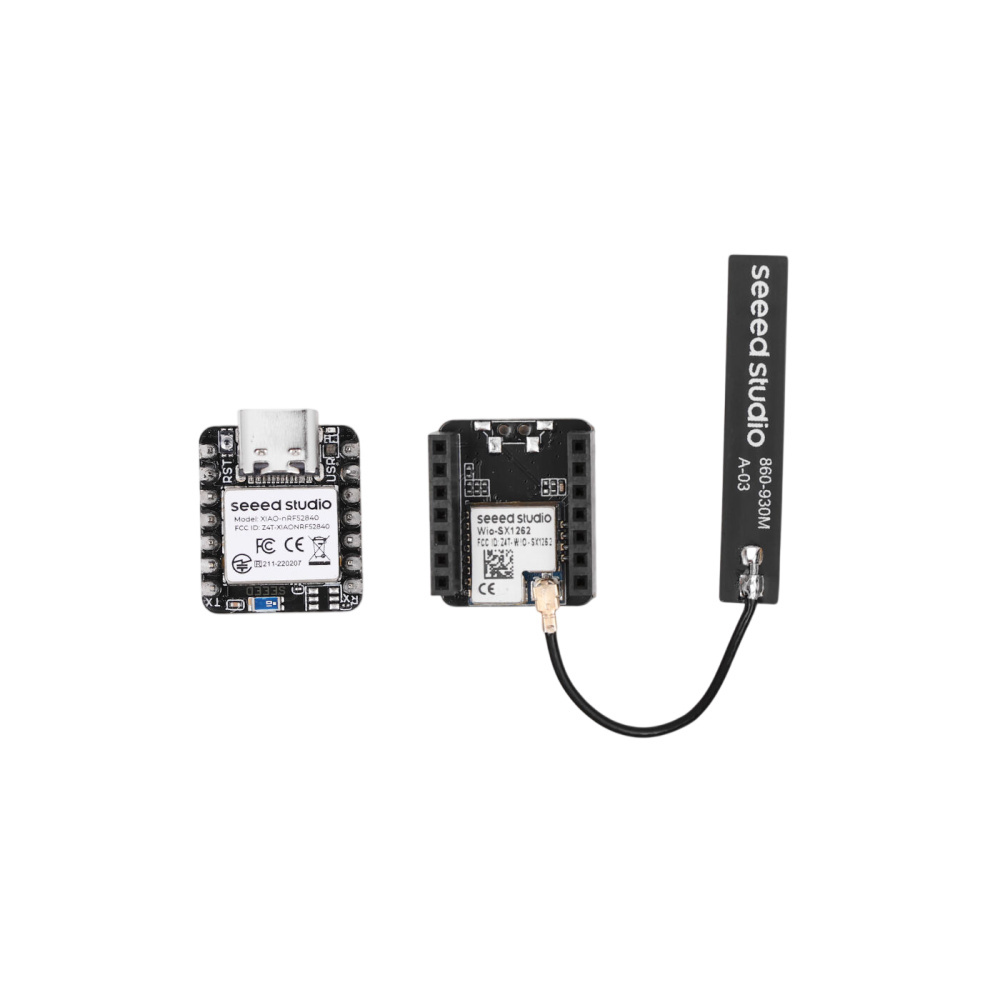

Includes: 1x Seeed Studio XIAO nRF52840 module, 1x Wio-SX1262 LoRa expansion board, 1x LoRa antenna, 1x BLE/NFC antenna, header connectors.

More details

17,96 € tax excl.

Out of stock, available in 1 month’s time

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

User manual XIAO nRF52840 & (EN)

User guide for XIAO nRF52840 & Wio-SX1262 Kit for Meshtastic. 2.32M

Data sheet

The Seeed Studio XIAO nRF52840 & Wio-SX1262 kit is the ultimate combination for enthusiasts of off-grid mesh networks and makers developing on Meshtastic.

Combining extreme compactness with remarkable energy efficiency, this kit offers exceptional radio range whilst minimising the footprint for your mobile projects or fixed relays.

Key features

  • Optimal energy efficiency: The Nordic nRF52840 core, combined with the Semtech SX1262 controller, ensures minimal standby power consumption, significantly extending battery life compared to ESP32 solutions.
  • Meshtastic-ready: Hardware fully supported by the Meshtastic community for the immediate creation of autonomous relay nodes, repeaters or tactical communicators.
  • Dual wireless connectivity: Features sub-GHz LoRa for long-range transmissions and Bluetooth 5.0 for easy configuration via smartphone (iOS and Android).
  • Miniature form factor: The XIAO board family is renowned for its postage-stamp-sized design, ideal for discreet devices, trackers or lightweight beacons.
  • Integrated battery management: A battery charging circuit is integrated onto the XIAO board, enabling direct power supply from a LiPo or Li-Ion cell.

Technical specifications

  • Microcontroller: Nordic Semiconductor nRF52840 (32-bit ARM Cortex-M4F clocked at 64 MHz with FPU)
  • Memory: 1 MB of Flash memory, 256 KB of RAM
  • LoRa RF chip: Semtech SX1262 (high sensitivity and low noise)
  • LoRa frequency range: 862 MHz to 930 MHz (ideally configured for the EU868 / 868 MHz band)
  • RF transmission power: Up to +22 dBm on the LoRa band
  • Receive sensitivity: Up to –148 dBm
  • Bluetooth connectivity: Bluetooth 5.0 / BLE and NFC support
  • Host interface: USB Type-C port for programming, firmware flashing and power supply
  • Inputs/Outputs: GPIO, I2C, SPI, UART, PWM, ADC
  • Power circuit: Integrated lithium battery charging circuit (standard XIAO charging current)
  • RF connectors: Miniature antenna connectors for LoRa and Bluetooth/NFC

Compatibility

  • Supported firmware: Meshtastic Meshcore (official XIAO BLE firmware), Arduino IDE, CircuitPython, MicroPython, Zephyr RTOS
  • Operating systems for Meshtastic configuration: Android, iOS, Windows, macOS, Linux, Web Flasher via Chrome/Edge browser
  • Regional frequencies: ISM bands 868 MHz (Europe / France – EU868) and 915 MHz (US915 / AS923)
  • Network protocols: LoRa, LoRaWAN, BLE Mesh, Bluetooth LE

FAQ

Why choose an nRF52840 board over an ESP32 model?

The nRF52840 microcontroller consumes significantly less power in standby and during normal operation than the ESP32 architecture. This enables the creation of self-powered solar nodes operating continuously with a solar panel and a very small-capacity battery, or pocket-sized nodes that can run for several days on a single charge.

How do you power the module when using it on the go?

The module has dedicated connection pins for directly connecting a 3.7V LiPo/Li-Ion battery. The on-board power management circuit manages charging when the USB-C port is connected to a power source.
