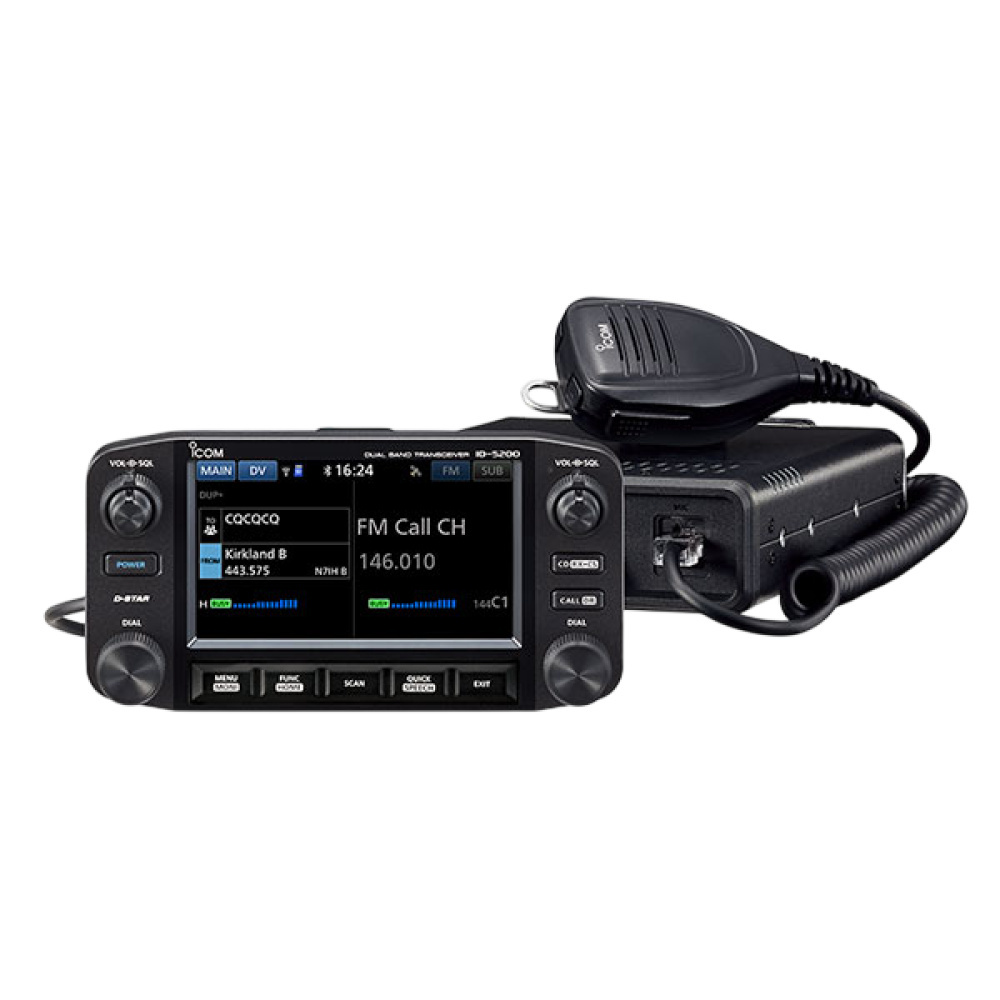

Icom ID-5200E 50W VHF/UHF Mobile Transceiver with D-STAR, Bluetooth, Wi-Fi, and GPS

The Icom ID-5200E is a high-end mobile transceiver designed for discerning amateur radio operators who want to operate both analog FM voice and D-STAR digital mode. Its true dual-receiver design offers maximum versatility both in the field and in the shack. It is an ideal choice for mobile use, the global D-STAR network, and simultaneous multiband reception.

Key Features

• Dual independent receivers enabling simultaneous dual-mode listening: DV/DV, FM/DV, or FM/FM.
• High-resolution color touchscreen combined with physical buttons for optimal ergonomics while driving.
• Built-in Wi-Fi and Bluetooth functionality for easy wireless connections and Internet mode operation.
• D-STAR Terminal and Access Point modes directly accessible via Wi-Fi without the need for a bulky external interface.
• Integrated GPS/GNSS receiver for DPRS functions and automatic relay location.
• Modern USB-C port for control and data management.

Technical Specifications

• Frequency ranges: VHF 144–146 MHz / UHF 430–440 MHz (Transmit); Wideband including the AM aviation band (Receive)
• RF power: 50W, 15W, 5W (adjustable)
• Transmission modes: F2D, F3E (FM), F1D/F3E (D-STAR Digital Voice)
• Number of channels: 1,000 memory channels, call channels, scan limits
• Connectivity: Bluetooth, Wi-Fi, USB-C, microSD card slot
• Positioning: Built-in GNSS (GPS) receiver
• Power supply: 13.8V DC ±15%
• Antenna connector: SO-239 (PL-259) connector, 50 ohms

Compatibility

• Compatible with the entire international D-STAR network
• Icom microphones with RJ-45 connector (HM-207S included)
• Bluetooth accessories (headsets, earbuds)
• microSD / microSDHC memory cards

FAQ

Why choose the Icom ID-5200E?

• Simultaneous dual reception without any technical compromises.
• The latest innovations from Icom, combining a touchscreen, Wi-Fi, Bluetooth, and USB-C.
• Seamless integration with the D-STAR digital ecosystem.
