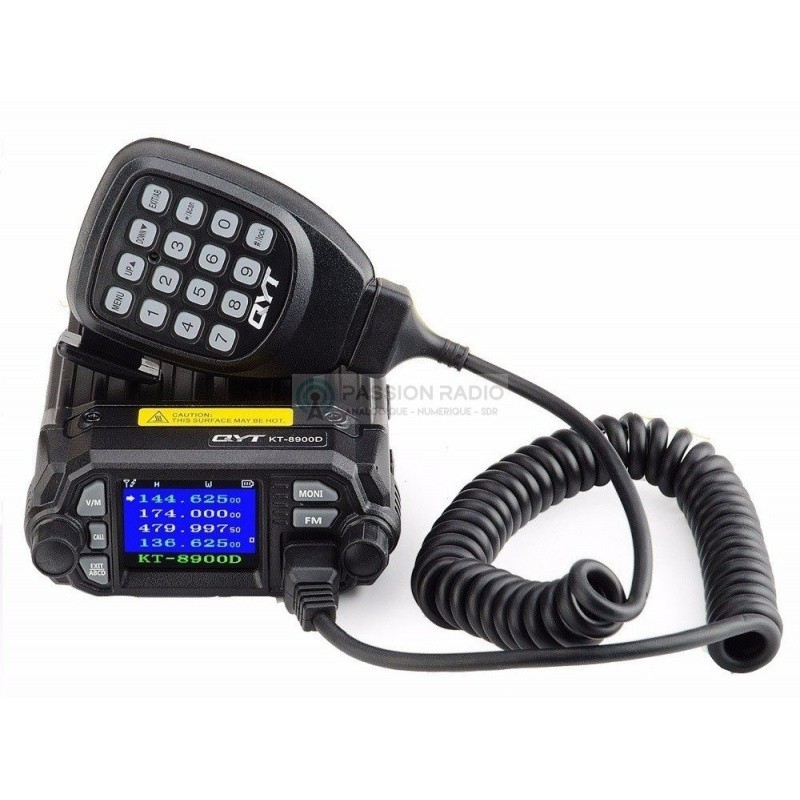

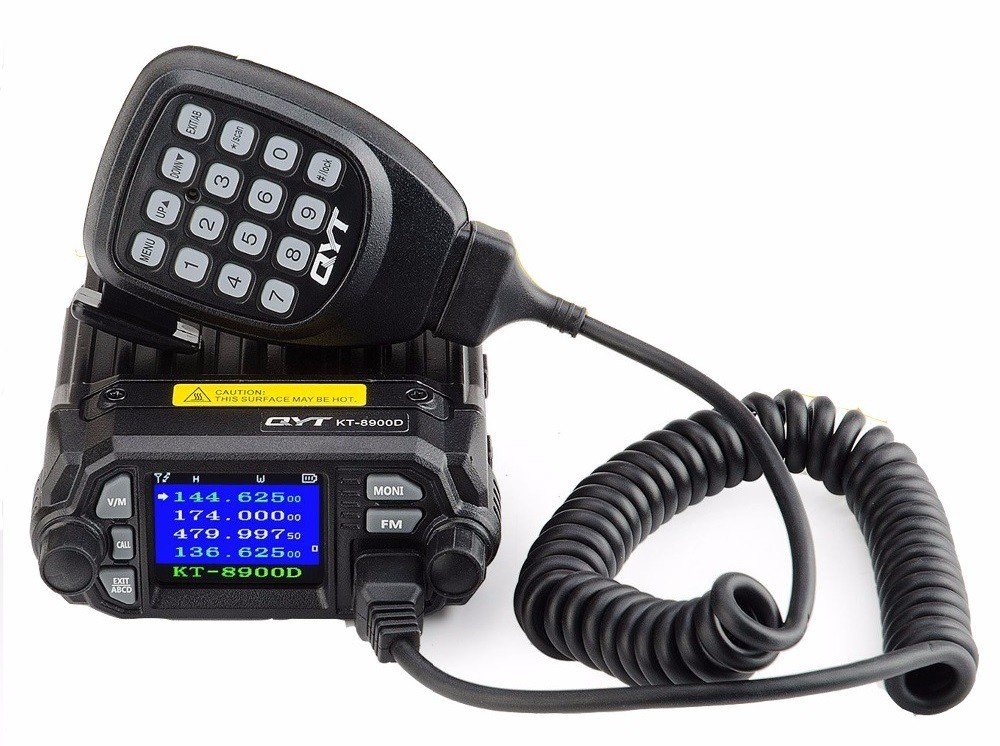

Mobile QYT KT-8900D 144-430Mhz Quad Watch QYT Mobile VHF UHF QYT-KT-8900D-520 View larger
QYT

QYT-KT-8900D-HAM-520

New product

China

Mobile QYT KT-8900D 144-430Mhz Quad Watch

rating Read the 3 reviews
Average rating: 4.5/5 Number of reviews: 3

The QYT KT-8900D covers RX and TX 144-146MHz and 430-440Mhz in analog FM mode with 25 watts (VHF) and 20 watts (UHF) and VFO button for channel or frequency change.

1750Hz tone, 200 channels, FM radio 88-108Mhz, quad channel display, frequencies step 5K, 6.25K, 10K, 12.5K and 25K and 3.5mm speaker / external earphone jack.

Programmable with Chirp programming software (free)

Come complete with: QYT KT8900D, microphone, USB programming cable, microphone clip, mounting bracket and screws, power cable with car cigarette lighter socket (12V), user manual.

More details

This material is no longer available

Download

Manual QYT KT-8900D (EN)

Manual in english QYT KT-8900D. 4.35M

Drivers QYT Windows

QYT drivers for QYT programming USB cable, for all Windows. 4.2M

CPS WIN software QYT KT8900D

Programming software for the QYT KT8900D for Windows. 2.3M

Manual QYT KT-8900D (FR)

Documentation and user manual in French for QYT KT-8900D, translated by Thierry from ON2CQ 1.65M

Data sheet

QYT mini KT-8900D Quadband specifications

Dual Band: VHF and UHF / 144 / 430Mhz
TX amateur band version: 144-146 MHz et 430-440 MHz
TX export version: 136-174 MHz and 400-480 MHz
RX: 87.5-108MHz, 136-174MHz, 400-480MHz, 220-260MHz and 350-390MHz
Quad-display, quad-watch
Antenna connector: SO-239 (UHF female)
Rear ventilator
External headphone / speaker jack
DTMF encoding and decoding
PTT ID (voice broadcasting PTT ID)
Scan mode
200 channels of memory
Power: 25W (HIGH) and 20W (LOW) in VHF - 20W (HIGH) and 10 watts (LOW) in UHF
TOT (Time-out timer)
FM Radio 88-108Mhz WFM Mode
Frequencies step: 5K 6.25K 10K 12.5K 25K
FM selection wide / narrow (25KHz, 12.5KHz)
Offset Repeater (Single / RPT + / RPT-)
Tone 1750Hz
Programmable via PC and Chirp software
Frequency stability: 2.5ppm.
Operating temperature: -20 to +60 degrees Celsius.
Operating voltage: 13.8V DC ± 15%.
Dimension (H x W x D): 98 mm (W) × 43 mm (H) × 126 mm (L).
Weight (without accessories): 448g.

CE Standards and 2 year warranty Passion Radio

This transceiver is usable with a radio license and under the sole responsibility of the user according to the laws applicable in the country. The QYT KT-8900D is delivered unprogramed.

Additional or similar equipment

  • Car gallery antenna support Diamond K44L

    Diamond K44L support for mounting a mobile antenna on a car's roof rack or a 1.5cm to 4cm tube.Support with adjustable tilt angle.Diameter accepted: 15mm to 40mm Coaxial cable with SO-239 socket (UHF

    40,18 € tax incl.

    33,48 €tax excl.

    Out of stock, available in 2 to 3 months
  • Nagoya RB-400 trunk lid universal antenna mount 4-door car

    Nagoya RB-400 antenna support for mounting a mobile antenna, to mount on trunk lid, 4-door car. 2 angle adjustable.Delivered: Nagoya support RB-100 genuine, without cable (optional below). Coaxial

    16,06 € tax incl.

    13,38 €tax excl.

    16,90 € -5%
    In stock
  • Anytone AT-779UV 25W FM 144/430Mhz Dual Band Mobile

    The Anytone AT-779UV is the latest addition to Anytone's ultra-compact and rugged dual band VHF and UHF range for the 144Mhz (2m) and 430Mhz (70cm) amateur radio bands, analogue FM mode with 25 watts

    103,66 € tax incl.

    86,38 €tax excl.

    In stock
  • Mobile FM 29/50/144/430Mhz 50W Wouxun KG-UV980P

    The mobile Wouxun KG-UV980P, with detachable facade, covers the 4 radio bands 29/50/144 Mhz with 50W and the band 430 Mhz with 40 watts maximum.Comes complete with: 1 Wouxun KG-UV980 P, 1 remote

    350,55 € tax incl.

    292,13 €tax excl.

    369,00 € -5%
    In stock
  • Mobile Anytone AT-D578UV V1 DMR FM 144-430MHz VFO

    The Anytone AT-D578UV V1 mobile is the first mobile DMR with a VFO, it covers the 144 and 430Mhz bands (VHF and UHF dual band), analog FM and digital DMR, Tier I & II compatible, Motorbro and

    359,00 € tax incl.

    299,17 €tax excl.

    In stock
  • Mobile Yaesu FTM-300DE VHF - UHF 50W FM C4FM GPS Bluetooth

    YAESU FTM-300DE mobile station, dual-band VHF 144 Mhz and UHF 430Mhz mobile station, 50W, dual-mode analog FM and digital C4FM, with integrated GPS (APRS) and Bluetooth 4.2, simultaneous reception on

    449,00 € tax incl.

    374,17 €tax excl.

    Out of stock, available within 1-2 months

Reviews

Click here to leave a review

rating 5
Compact et performant
Franchement je ne c'est pas quoi demander de plus il est petit (tient dans la main), il ne pèse pas grand chose, il est très performant, couplé avec un antenne x30 cela devient un véritable engin de guerre :)Il est possible de l'installer en relais grâce au Jack 4 broche qui ce trouve à l'arrière du poste
rating 3.5
KT 8900D

Appareil le moins convivial du marché tant sa notice est approximative et sa programmation fait appel à un cheminement compliqué. Pas cher, évidemment, mais on en a pour le prix. La notice s'adresse aux cruciverbistes de l'électronique.

MAJ du 9 avril 2021 par le client : Je conçois que la note est sévère et manque d’objectivité de ma part. Vous avez raison pour le prix c’est un appareil séduisant c’est pour cela que sa notice de prise en main déçois par son manque de convivialité. Je rectifie mon évaluation à 5/10 pour le manuel et 9/10 pour l’appareil en lui-même.

Answer:

Si nous comprenons tout à fait l'effort à fournir pour la documentation et qui gagnerait effectivement à être améliorée, la note de 1/10 nous parait très sévère pour un poste qui fonctionne parfaitement en émission et en réception et fait le travail qu'on lui demande pour moins de 100€ quand d'autres postes équivalents chez de grandes marques valent 4 à 5 fois plus cher, minimum.

rating 5
produit très satisfaisant
Facile à programmer. Joli pas cher. Que du bonheur.
