Window through SO-239 cable set Diamond MGC50 Diamond Antenna Mounting bracket DIAMOND-MGC50-144

View larger

Display all pictures

Manufacturer: Diamond Antenna

Reference: DIAMOND-MGC50-144

Condition: New product

Country of origin:

Japan

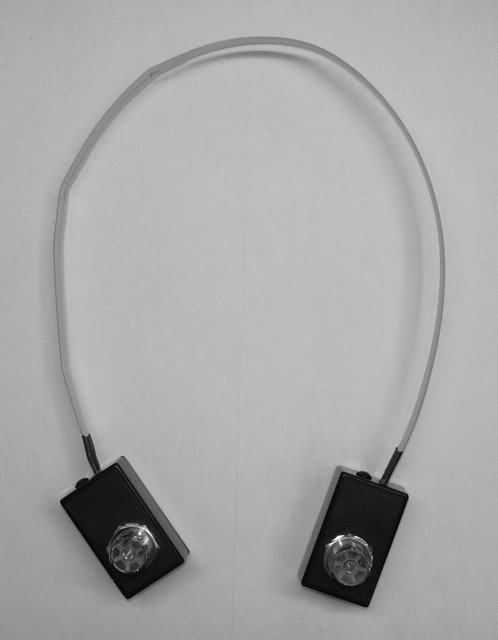

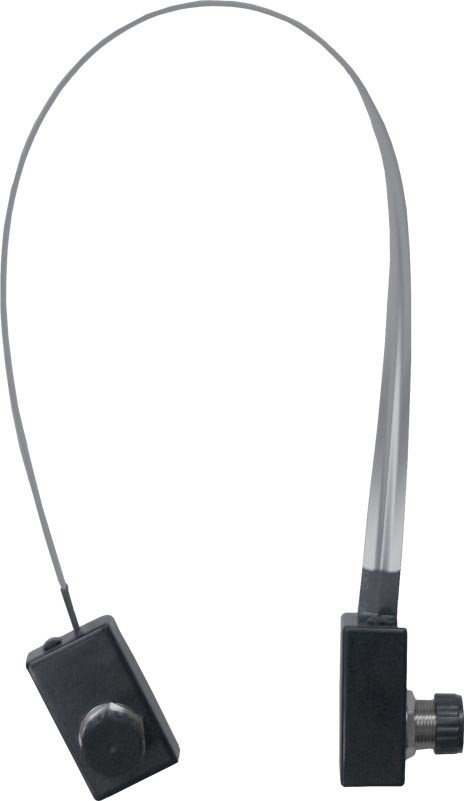

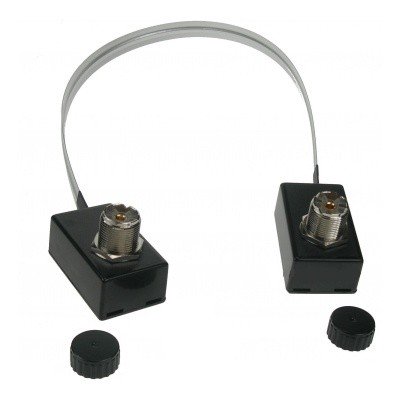

Window through SO-239 cable set Diamond MGC50

Read the 7 reviews

Average rating: 5/5 Number of reviews: 7

Diamond MGC50 is a window through SO-239 cable set.

Length:50cm (Between connectors)
Weight:102g
Freq.: 0 to 1500MHz

More details

Download

Manual MGC-50 Diamond (EN)

User manual and datasheet in english Diamond Antenna MGC-50 992.88k

Data sheet

Technical specifications

Max.power rating: HF to 50MHz:150W (SSB), 50W (FM/CW), 144MHz: 40W (FM), 430MHz: 30W (FM), 1200MHz: 10W (FM)
VSWR: HF to 500MHz: Less than 1.2, 500 to 1000MHz: Less than 1.3, Up to 1000MHz: Less than 2.0 (1200MHz: Less than 1.7)
Impedance:50ohms / Insertion Loss:144MHz:Less than 0.3dB,430MHz:Less than 0.6dB,1200MHz:Less than 1.6dB / Connector: SO-239

Customers also bought
- 9,90 €
  Reference: CABLE-COAXIAL-UHF-M-1M-876
  Low-loss coaxial cable extension UHF Male (PL-259) KSR195
  UHF Male - UHF Male coaxial cable extension with KSR195 low-loss 50 ohm coaxial cable for use from 0 to 6 GHz. Available lengths: 50cm, 1, 2, 3, 5 or 10, 15 and 20 metresConnector 1: UHF Male
  9,90 €
- 8,50 €
  Reference: CORDON-RG58-UHF-M-30CM-1114
  RG58 coaxial cable extension with UHF Male (PL-259)
  UHF Male - UHF Male (PL-259) coaxial cable with RG58 MIL-C-17 50 ohm connector for frequency use from 0 to 1000Mhz. Available in different lengths: 30cm, 50cm, 1m or 2 metres. Connector 1: UHF Male
  8,50 €
- 6,50 €
  Reference: ADAPT-UHF-F-UHF-F-294
  UHF Female Adapter
  RF adapter for UHF Female to UHF Female connector (PL-259). Impedance 50 ohms.
  6,50 €
- 50,50 €
  Reference: DIAMOND-CX210A-1742
  Diamond CX-210A 2-position antenna switch SO-239 (UHF female)
  Diamond CX-210A 2-position antenna switch with UHF female plug connector (SO-269), offering very low loss and high isolation, for frequency use from 0 to 1000 MHz (1 GHz). This rugged antenna switch
  50,50 €
We also recommend
- 5,00 €
  Reference: ADAPT-SMA-M-UHF-F-67
  SMA Male UHF Female Adapter (SO-239)
  SMA Male to UHF Female Adapter (SO-239).
  5,00 €
- 29,90 €
  Reference: DIAMOND-RG6MR-RG58U-269
  Coaxial cable RG58 6m with SO-239 socket (UHF female) Diamond RG-6MR
  The cable antenna RG6MR Diamond is a length of 6 meters and allows you to connect an antenna with base PL259 (male UHF) on the SO239 socket (UHF female). It is equipped with a SO239 and RG58U cable
  29,90 €
- 6,90 €
  Reference: ADAPT-UHF-M-UHF-M-293
  UHF Male adapter
  RF adapter for UHF Male to UHF Male connector (PL-259). Impedance 50 ohms.
  6,90 €
- 28,45 €
  Reference: DIAMOND-RG3MR-3M-362
  Coaxial cable RG58 3m with SO-239 socket (UHF female) Diamond RG-3MR
  The cable antenna RG3MR Diamond is a length of 3 meters and allows you to connect an antenna with base PL259 (male UHF) on the SO239 socket (UHF female). It is equipped with a SO239 and RG58U cable
  28,45 €

Reviews

Click here to leave a review

CHAVI

2024-12-15

Câble passe-fenêtre SO-239 Diamond MGC50

fait son travail à voir dans le temps fasse aux éléments?

Julien

2024-07-02

CÂBLE PASSE-FENÊTRE SO-239 DIAMOND MGC50

Matériel de très bonne facture, idéal pour les stations ne pouvant pas monter d\'antenne imposantes en zone urbaine.

F5LFE

2023-11-19

Passe fenêtre

Très pratique, installé sur une porte fen^tre dernière génération, ça passe sans problème. Je l\'utilise en décamétrique ainsi qu\'en VHF.
Je recommande ce produit.

Jacques Duménil

2023-11-06

Jacques Diménil

tres bon article

F-80823

2023-01-26

Intelligent

Le produit qu'il me fallait pour faire passer mes câbles HF / UHF/VHF sans faire de travaux de perçage. ( Attention toutefois si vous posséder un. raille pour la descente de vos volet roulant ) Pour les fenêtre de type coulissante ces juste parfait.

3.5

F-80823

2022-12-26

Pratique

il faut faire attention au sertissage des petits boîtier noir, car avec la contrainte mécanique des fiches qui ce branche dessus elle ont tendance à se déboîter. À plusieurs reprises, j'ai été obligé de remboité les clips. A voir dans le temps si cela persiste , et au pire un coup de colle qui va bien et hop ...... Pour l'aspect purement technique, en revanche rien à signaler, c'est absolument remarquable d'avoir inventé un système pareil qui est très pratique lorsque l'on a pas la possibilité de percer.

Bernard _ F5SVP

2019-09-20

Câble passe-fenêtre SO-239 Diamond

Très bonne alternative pour éviter les perçages. Très satisfait de l'utilisation de ce système.
