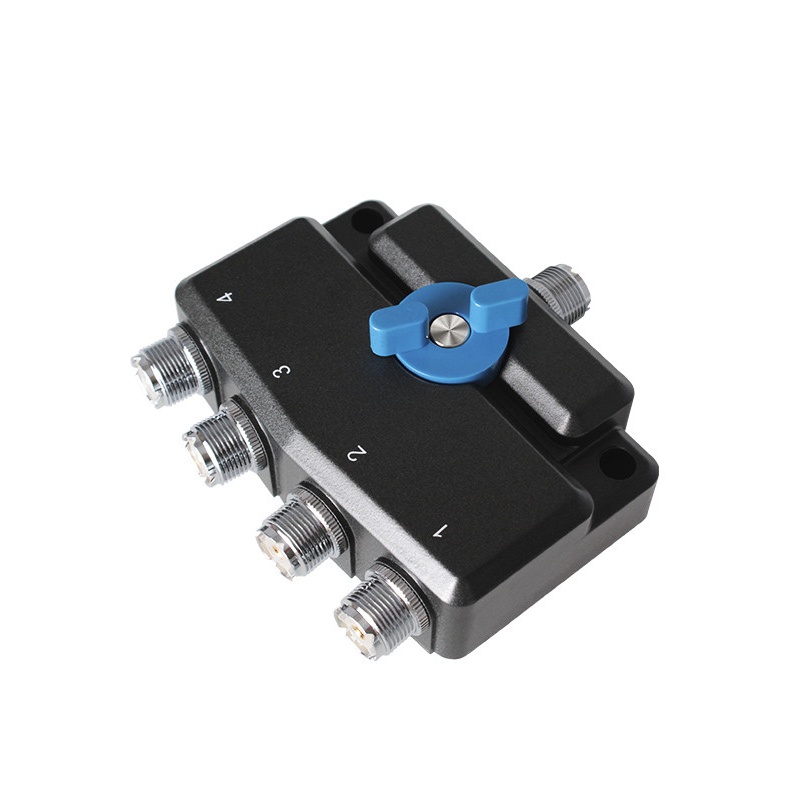

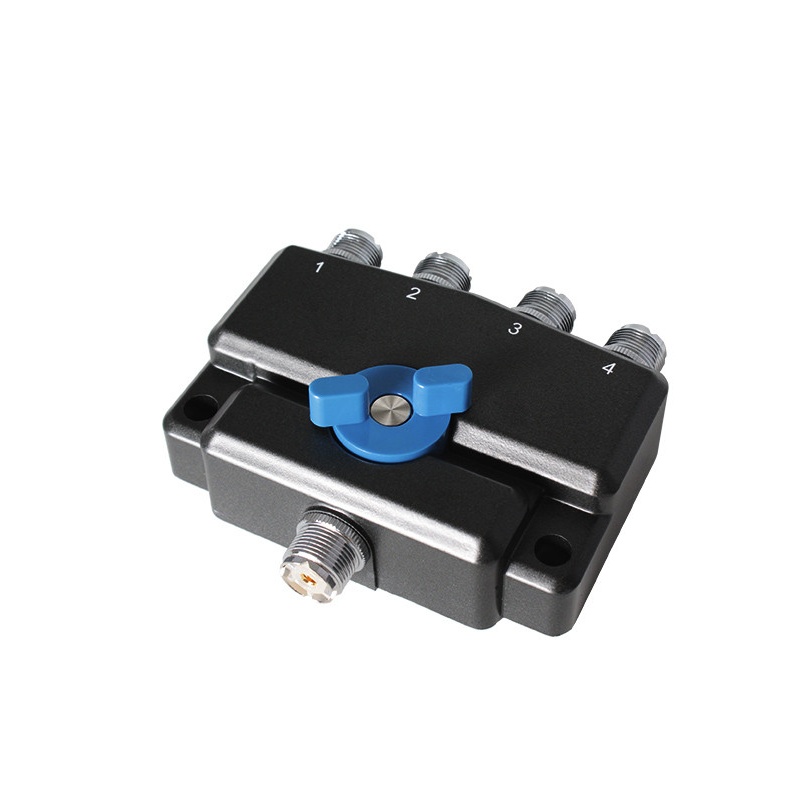

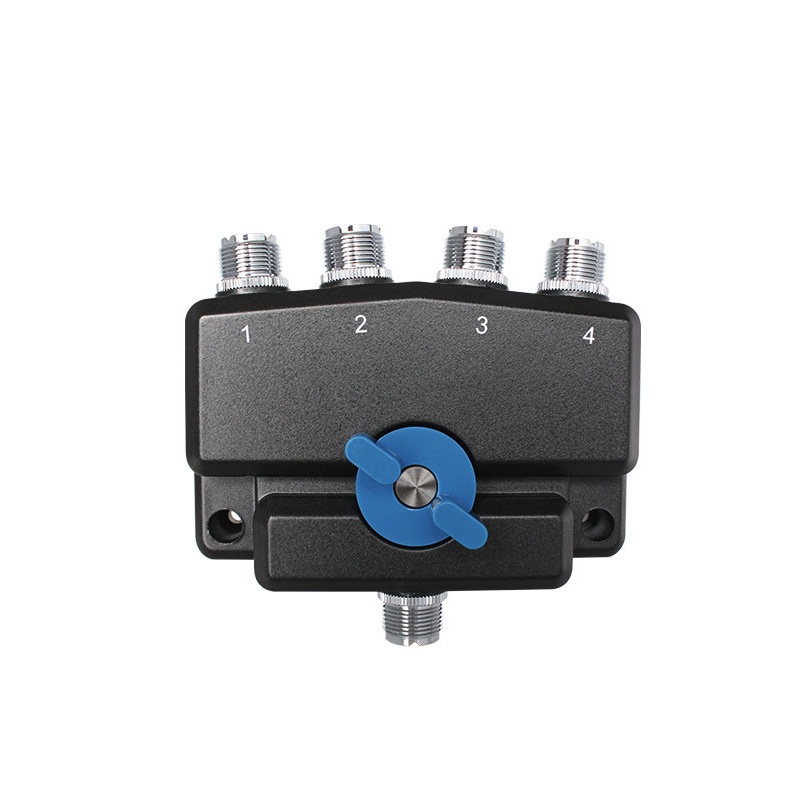

Komunica SW4M coaxial antenna switch, 4 positions UHF plug View larger

Komunica

KOM-PWR-SW4M-1750

New product

Spain

SO-239 Komunica SW4M 4-position coaxial antenna switch

rating Read the review
Average rating: 5/5 Number of reviews: 1

Komunica SW4M 4 position coaxial antenna switch with UHF female connector (SO-239).

For use in frequency from 0 to 900 Mhz.

Delivered with: 1 SW4M antenna switch.

More details

82,50 € tax excl.

In stock

   5 Items

Data sheet

  • Frequency range: DC~900MHz
  • Power range: DC~30MHz 1.5KW, 30MHz~200MHz 1.0KW, 200MHz~500MHz 500W, 500MHz~1GHz 150W
  • Insertion loss: Dc~500MHz <=0.10dB, 500MH~1GHz <=0.20dB
  • Output port isolation 1/2: Dc~500MHz >=60dB, 500MH~1GHz >=55dB
  • SWR: Dc~500MHz <=1.10, 500MH~1GHz <=1.25
  • Connector type: Input port 1x SO-239, Output port 4x SO-239

  • RG58 coaxial cable with UHF Male (PL-259)
    6,25 €

    Reference: CORDON-RG58-UHF-M-30CM-1114

    RG58 coaxial cable extension with UHF Male (PL-259)

    UHF Male - UHF Male (PL-259) coaxial cable with RG58 MIL-C-17 50 ohm connector for frequency use from 0 to 1000Mhz. Available in different lengths: 30cm, 50cm, 1m or 2 metres. Connector 1: UHF Male

    6,25 €
  • RSP1A SDRPlay receiver 1 kHz to 2 GHz 14-bit + LNA
    106,50 € 112,50 € tax excl. In stock

    -6,00 €

    Reference: SDRPLAY-RSP1-356

    RSP1A SDRPlay receiver 1 kHz to 2 GHz 14-bit + LNA

    New version of the SDRPlay wideband receiver, the RSP1A now covers all frequencies from 1 kHz to 2 GHz without hole, all modes, with up to 10 MHz bandwidth on the screen and 14-bit sampling. In

    106,50 €

    112,50 €

    Online only Reduced price!
  • Komunica SX-201 SWR and Watt Meter 1.8-200 MHz
    99,17 €

    Reference: KOMUNICA-SX201-1662

    Komunica SX-201 Power Meter and Tosmeter 1.8 to 200 MHz 400W

    The Komunica SX-201 VSWR Meter allows the measurement of VSWR for frequencies from 1.8 to 200 MHz with a power up to 200 Watts (HF). Supplied with: 1 SX-201, 1 12V power cable.

    99,17 €
  • Komunica SW3M coaxial antenna switch, 3 positions UHF plug
    66,58 €

    Reference: KOM-PWR-SW3M-1749

    SO-239 Komunica SW3M 3-position antenna switch

    Komunica SW3M coaxial antenna switch, 3 positions with female UHF plug connector (SO-239). For use on frequencies from 0 to 800 Mhz. Delivered with: 1 SW3M antenna switch.

    66,58 €
