> Ham & radio equipment>PC radio interface>Signalink-SLUSB-8PD pack for ICOM with 8-pin mini-din DATA socket
Signalink-8PD pack for ICOM, Ten-Tec 8-pin mini-din DATA socket View larger
Tigertronics

SIGNALINK-PACK-SLUSB8PD-1516

New product

U.S.A

Signalink-SLUSB-8PD pack for ICOM with 8-pin mini-din DATA socket

rating Read the review
Average rating: 5/5 Number of reviews: 1

The Signalink-SLUSB-8PD interface pack is compatible with practically all ICOM and Ten-Tec radios equipped with an 8-pin mini-DIN data port (DATA socket) such as: ICOM IC-756, IC-7600 , IC-7610, IC-7700, IC-7800, IC-9700 (list below).

  • Low noise USB sound card
  • Quick and easy installation with the jumper
  • RX and TX setting from the front panel
  • Support ALL digital and digital modes such as SSTV, RTTY, Packet, PSK, ROS, FT8, FT4, JS8, ACARS, etc.
  • Complete RF isolation between computer and radio
  • Transmit Audio output and external speaker jack

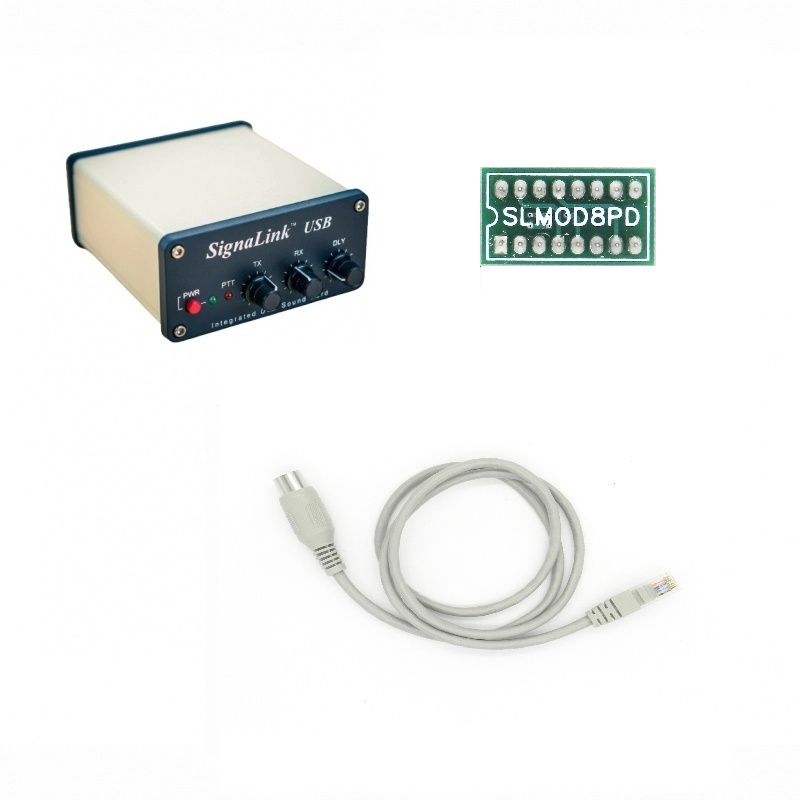

The pack includes: The Tigertronics Signalink USB interface, the SLCAB8PD cable to connect the radio to the interface and the SLMOD8PD jumper to be installed inside the box, 1 USB cable 2.5m, 1 mono jack cable, 6 pre-cut and stripped 24 AWG wires, 1 Allen key - 3/32 "size, rubber feet, 1 English manual.

Note: This interface does not allow frequency control (CAT control) on the radio station used, it allows switching to PTT and sending a signal to the radio station and receiving it, thanks to the USB peripherals created.

More details

157,50 € tax excl.

Instead of 160,67 €

Out of stock, available within 1-2 months

Pack content

Download

Manual Signalink USB (FR)

French manual and user guide Signalink USB 1.48M

Manual Signalink USB (EN)

English manual and user guide Signalink USB. 745.98k

Réglages Signalink (FR)

1.2M

Data sheet

  • Power supply: USB port compatible with USB 1.1 / 2.0 / 3.0, Male B connector
  • Consumption: ~ 140mA in transmission, ~ 80mA nominal
  • Operating temperature: -30 ° C to + 60 ° C
  • Audio frequency response: 200 Hz - 4000 Hz at 600 ohms
  • Sampling rate: 16 Bits, up to 48Khz
  • Operating System: Windows 98SE, ME, 2000, XP, Vista, Windows 7, 8.x and Windows 10
  • MAC OS 9.1, MAC OS X 10.00
  • Z radio input / output: 600 Ohm
  • Auto-PTT ™ delay: 30 ms to 3 seconds
  • PTT circuit: Relay, rated value - 1A @ 24VDC (max), 0.5A @ 120VAC (max)
  • Radio connection: Audio TX, Audio RX, PTT, GND and RJ-45 female
  • RX audio / speaker: 3.5mm mono jack mono
  • Housing: Extruded aluminum, powder coated
  • Dimensions: 40 x 81 x 91 mm
  • Weight: 187g

Compatible positions

This Signalink pack is compatible with the radios below and the European (E / DE), or American (R / DR) versions.

IcomIC-275A
IC-575A
IC-575H
IC-707
IC-725
IC-726
IC-728
IC-729
IC-735
IC-736
IC-737
IC-738
IC-756
IC-756PRO
IC-756PROII
IC-756PROIII
IC-761
IC-765
IC-775
IC-775DSP
IC-781
IC-820H
IC-821H
IC-910H
IC-970 **
IC-7400
IC-7600
IC-7610
IC-7700
IC-7800
IC-9700
IC-M600
IC-M700PRO
IC-M710
IC-M802

Ten-Tec:

Argonaut VI

Eagle

Orion / Orion II

The SignaLink USB supports virtually ALL digital modes that are available for sound card interfaces including but not limited to, PSK31, MT-63, WSJT/WSJT-X  modes (FT8, JT4, JT9, JT65, QRA64, ISCAT, MSK144, WSPR, JTMS, FSK441, FSK315, ISCAT, and JT6M.), SSTV, APRS ®, Packet (300 and 1200 baud), VARA HF, VARA Narrow, and VARA Wide.

The SignaLink USB also supports virtually ALL Voice modes (VOIP, RoIP, etc.), such as EchoLink®, and Zello.

About the only modes that you can't operate with the SignaLink USB, or any other sound card interface, are Pactor, G-TOR and Clover.
