Signalink SLUSB-6PM pack for ICOM YAESU Kenwood 6-pin mini-din DATA socket

rating Read the 3 reviews
Average rating: 5/5 Number of reviews: 3

The Signalink SLUSB-6PM V2 interface pack is compatible with virtually all ICOM, Kenwood and Yaesu radios equipped with a 6-pin mini-DIN data port (DATA socket) such as: IC-706MKIIG, IC-9100, IC -7100, FT-100, FT-817, FT-450, FT-857, FT-891, FT-897, FT-950, FT-991, FT-DX1200, FT-DX3000, FT-7800R, FT-7900R , FT-8800R, FT-8900R and TM-V708, TM-733A, TM-V7, TM-V7A, TM-V71A, TS-480SAT (list below).

  • Low noise USB sound card
  • Quick and easy installation with the jumper
  • RX and TX setting from the front panel
  • Support ALL digital and digital modes such as SSTV, RTTY, Packet, PSK, ROS, FT8, FT4, JS8, ACARS, etc.
  • Complete RF isolation between computer and radio
  • Transmit Audio output and external speaker jack

The V2 is 9600 baud compatible and for VARA mode for example. A jumper allows you to select 1200 or 9600 baud.

Position on 12 = 1200 bauds
Position on 96 = 9600 bauds

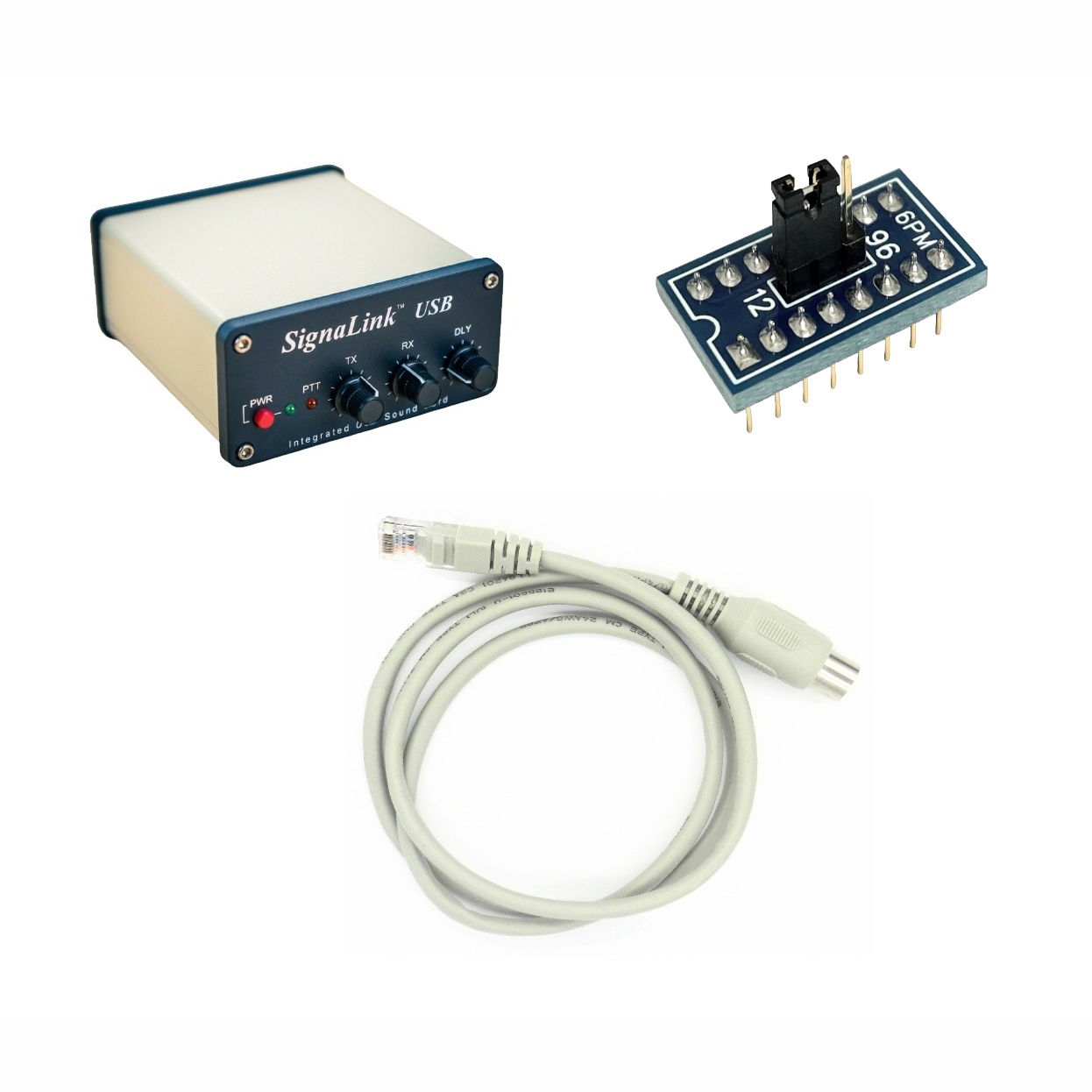

The pack includes: The Tigertronics Signalink USB interface, the SLCAB6PM cable to connect the radio to the interface and the SLMOD6PM jumper (jumper) to be installed inside the box, 1 USB cable 2.5m, 1 mono jack cable, 6 pre-cut and stripped 24 AWG wires, 1 Allen key - 3/32 "size, rubber feet, 1 English manual.

Note: This interface does not allow frequency control (CAT control) on the radio station used, it allows switching to PTT and sending a signal to the radio station and receiving it, thanks to the USB peripherals created.

More details

157,50 € tax excl.

Instead of 160,67 €

Out of stock, available within 1-2 months

Pack content

Download

Signalink cable jumper guide FR

Guide in French to choose the right radio cable and jumper according to the brand and model of the radio used. 177.6k

Signalink cable jumper guide EN

Guide in English to choose the right radio cable and jumper according to the brand and model of the radio used. 666.13k

Manual Signalink USB (FR)

French manual and user guide Signalink USB 1.48M

Manual Signalink USB (EN)

English manual and user guide Signalink USB. 745.98k

Support Signalink (EN)

Documentation, support and help in English, in case of problem of installation, configuration or use of the Signalink interface with the radio or the software. 1.63M

Support Signalink (FR)

Documentation, support and help for Signalink in French. 1.44M

Data sheet

  • Power supply: USB port compatible with USB 1.1 / 2.0 / 3.0, Male B connector
  • Consumption: ~ 140mA in transmission, ~ 80mA nominal
  • Operating temperature: -30 ° C to + 60 ° C
  • Audio frequency response: 200 Hz - 4000 Hz at 600 ohms
  • Sampling rate: 16 Bits, up to 48Khz
  • 1200 or 9600 baud compatible
  • Operating System: Windows 98SE, ME, 2000, XP, Vista, Windows 7, 8.x and Windows 10
  • MAC OS 9.1, MAC OS X 10.00
  • Z radio input / output: 600 Ohm
  • Auto-PTT ™ delay: 30 ms to 3 seconds
  • PTT circuit: Relay, rated value - 1A @ 24VDC (max), 0.5A @ 120VAC (max)
  • Radio connection: Audio TX, Audio RX, PTT, GND and RJ-45 female
  • RX audio / speaker: 3.5mm mono jack mono
  • Housing: Extruded aluminum, powder coated
  • Dimensions: 40 x 81 x 91 mm
  • Weight: 187g

Compatible trasnceiver

This Signalink pack is compatible with the radios below and the European (E / DE), or American (R / DR) versions.

ICOM
IC-207H, IC-208H
IC-2720H
IC-2800, IC-2820
IC-703
IC-706MKIIG
IC-746PRO
IC-7000
IC-7100
IC-7400
IC-910H
ID-880
IC-9100

KENWOOD
TM-251/255
TM-271 **, TM-271A **
TM-451/455
TM-D700, TM-D700A
TM-D710, TM-D710A, TM-D710E
TM-G707
TM-V708
TM-733A
TM-V7, TM-V7A, TM-V71A
TS-480HX, TS-480SAT

** European models TM-271 / 271A only

YAESU
FT-100, FT-100D
FT-817, FT-817ND
FT-450
FT-840 **
FT-847 **
FT-857
FT-891
FT-897
FT-950
FT-991
FT-DX1200
FT-DX3000
FT-1500M
FT-7100
FT-7800R
FT-7900R
FT-8100
FT-8500
FT-8800R, FT-8900R
FTM-100DR ##
FTM-350 **
FTM-400DR ##
VX-1700

** Data port supports VHF and UHF packets only.

** The FTM-350 requires Yaesu's CT-141 adapter to switch from its 8-pin mini-DIN connector to a standard 6-pin mini-DIN.

## The FTM-100DR and FTM-400DR require Yaesu's CT-164 adapter to convert a 10-pin mini-DIN connector to a standard 6-pin mini-DIN.

The new SLMOD6PM module is set to 1200 baud by default, which is the configuration of the original SLMOD6PM module and is what most users need.

For those using the new VARA Wide mode with a radio that has a 6-pin mini-DIN data port at 9600 baud, you will need to move the jumper from position 12 (1200 baud) to position 96 (9600 baud).

  • Yaesu CT-164 Mini DIN10 to Mini DIN6 Data Cable for FTM-400XDE
    18,83 €

    Reference: YAESU-CT-164-1304

    DATA cable Yaesu CT-164 Mini DIN10 - Mini DIN6 FTM100 FTM300 FTM400

    Yaesu CT-164 data cable with Mini DIN10 to Mini DIN6 connectors compatible with FTM-400XDE, FT-400DR, FT-100DR, and FTM-300DR, FTM-400DE, FT-100DE, FTM-300DE, FTM-6000E and FTM-6000R.

    18,83 €
  • Jumper Signalink SLMOD-6PM V2 for Icom Yaesu Kenwood Mini DIN Data 6-pin
    10,75 €

    Reference: SIGNALINK-JUMPER-SLMOD6PM-1479

    Jumper Signalink SLMOD-6PM V2 for Icom Yaesu Kenwood Mini DIN Data 6-pin

    The Signalink SLMOD6PM V2 Jumper module is compatible for use with the Signalink USB sound card and with virtually all ICOM, Kenwood and Yaesu radios that have a 6-pin mini-DIN data port. This

    10,75 €
