Signalink-SLUSB-RJ1 pack for TYT and Yaesu radio with RJ11 microphone socket

The Signalink-SLUSB-RJ1 interface pack is compatible with TYT and Yaesu radios equipped with an RJ11 microphone socket, for example: TYT TH-9800, TH-7800, Yaesu FT-2900R, FT-7900R, FT-8900R ( list below).

  • Low noise USB sound card
  • Quick and easy installation with the jumper
  • RX and TX setting from the front panel
  • Support ALL digital and digital modes such as SSTV, RTTY, Packet, PSK, ROS, FT8, FT4, JS8, ACARS, etc.
  • Complete RF isolation between computer and radio
  • Transmit Audio output and external speaker jack

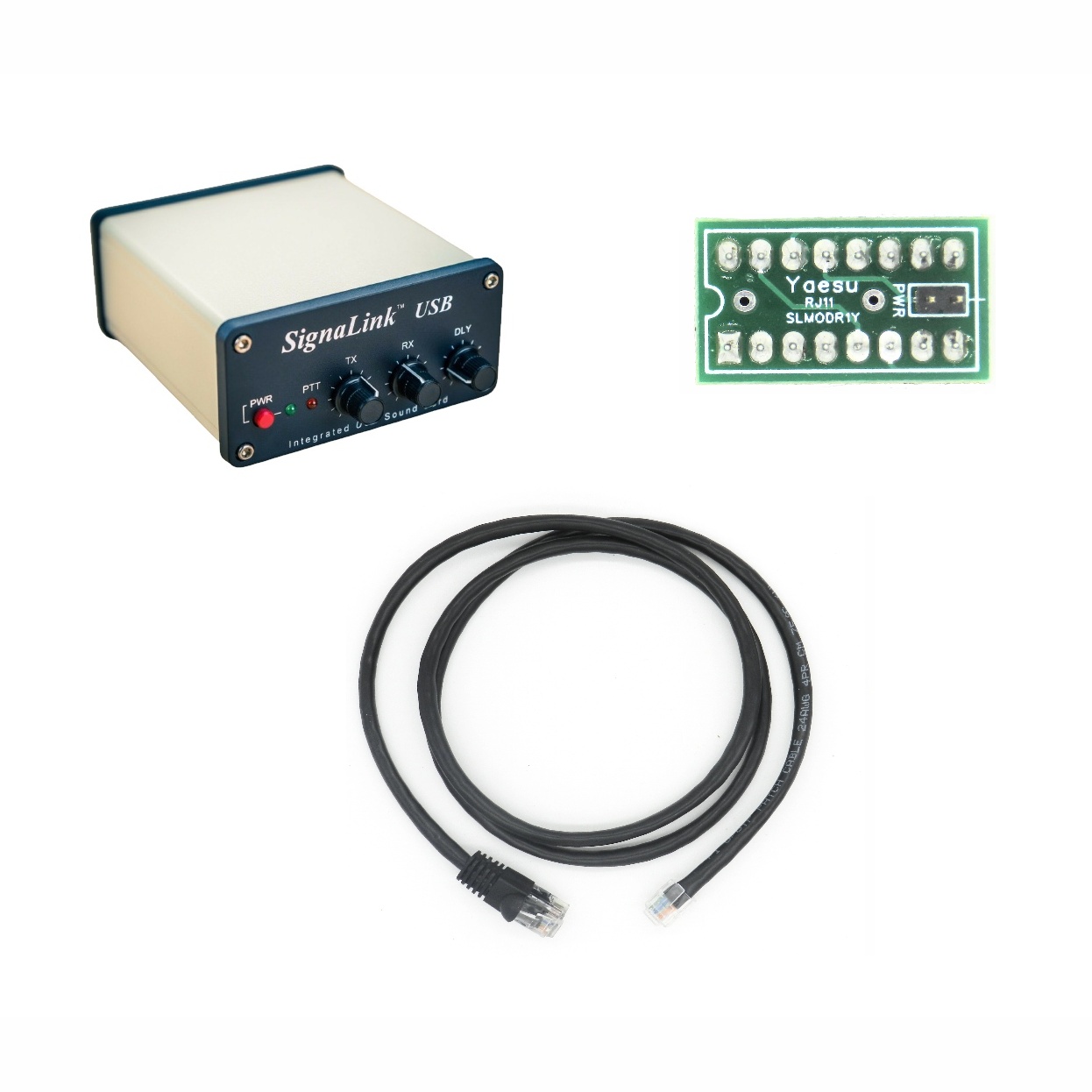

The pack includes: The Signalink interface, the SLCABRJ1 cable to connect the radio to the interface and the SLMODR1Y jumper (jumper) to be installed inside the box, 1 USB cable 2.5m, 1 mono jack cable, 6 pre-cut wires and stripped 24 AWG, 1 Allen key - size 3/32 ", rubber feet, 1 English manual.

Note: This interface does not allow frequency control (CAT control) on the radio station used, it allows switching to PTT and sending a signal to the radio station and receiving it, thanks to the USB peripherals created.

More details

179,00 € tax incl.

149,17 € tax excl.

Instead of 181,80 €

In stock

Order it before 10:00 of aujourd'hui and receive it between on Wednesday 28th September and Thursday 29th September with DHL Express 12

To know the shipping costs and available carriers, add this material to the cart and indicate your country & zip code on the cart page.

Pack content

  • Tigertronics Signalink USB radio interface and sound card
    145,00 € tax incl.

    Reference: TIGER-SIGNALINK-BOITIER-1455

    1 x Tigertronics Signalink USB radio interface and sound card

    The Signalink USB radio interface from Tigertronics is a USB sound card that allows you to receive and transmit from a computer to practice digital modes such as SSTV, RTTY, Packet, PSK, ROS, FT8,

    145,00 € tax incl.
  • Signalink SLUSB-RJ1 cable for Icom Yaesu Kenwood Mini DIN Data 6-pin
    23,90 € tax incl.

    Reference: SIGNALINK-CABLE-SLCABRJ1-1480

    1 x Signalink SLCAB-RJ1 radio cable for RJ11 TYT and Yaesu microphone socket

    The Signalink SLCABRJ1 radio interface cable can be used with the Signalink USB sound card and with practically all TYT and Yaesu radios which have an RJ11 microphone socket . This includes, but is

    23,90 € tax incl.
  • Jumper Signalink SLMOD-RJ1 for Icom Yaesu Kenwood Mini DIN Data 6-pin
    12,90 € tax incl.

    Reference: SIGNALINK-JUMPER-SLMODR1Y-1481

    1 x Jumper Signalink SLMOD-R1Y for Yaesu and TYT with RJ11 microphone socket

    The Signalink SLMODR1Y Jumper module is compatible for use with the Signalink USB sound card and with TYT TH-9800 and Yaesu FT-8900 radios with an RJ11 microphone socket. This includes, but is not

    12,90 € tax incl.

Download

Signalink cable jumper guide FR

Guide in French to choose the right radio cable and jumper according to the brand and model of the radio used. 177.6k

Signalink cable jumper guide EN

Guide in English to choose the right radio cable and jumper according to the brand and model of the radio used. 666.13k

Manual Signalink USB (FR)

French manual and user guide Signalink USB 1.48M

Manual Signalink USB (EN)

English manual and user guide Signalink USB. 745.98k

Support Signalink (EN)

Documentation, support and help in English, in case of problem of installation, configuration or use of the Signalink interface with the radio or the software. 1.63M

Support Signalink (FR)

Documentation, support and help for Signalink in French. 1.44M

Data sheet

  • Power supply: USB port (Male B connector)
  • Consumption: ~ 140mA in transmission, ~ 80mA nominal
  • Operating temperature: -30 ° C to + 60 ° C
  • Audio frequency response: 200 Hz - 4000 Hz at 600 ohms
  • Sampling rate: 16 Bits, up to 48Khz
  • Operating System: Windows 98SE, ME, 2000, XP, Vista, Windows 7, 8.x and Windows 10
  • MAC OS 9.1, MAC OS X 10.00
  • Z radio input / output: 600 Ohm
  • Auto-PTT ™ delay: 30 ms to 3 seconds
  • PTT circuit: Relay, rated value - 1A @ 24VDC (max), 0.5A @ 120VAC (max)
  • Radio connection: Audio TX, Audio RX, PTT, GND and RJ-45 female
  • RX audio / speaker: 3.5mm mono jack mono
  • Housing: Extruded aluminum, powder coated
  • Dimensions: 40 x 81 x 91 mm
  • Weight: 187g

Compatible positions

This pack is compatible with the radios below and the European (E / DE), or American (R / DR) versions.

TYT TH-9800
TH-7800
Yaesu FT-90
FT-90R
FT-100 **
FT-100D
FT-1500M
FT-1802
FT-1900R
FT-2600
FT-2800M
FT-2900R
FT-2980R
FT-7800R
FT-7900R
FT-8800R
FT-8900R
FTM-351
FTM-350R
FTM-350AR
FTM-3100R
FTM-3200DR
FTM-7250DR


** NOTE: The Mic jack on the FT-100 has a special PTT requirement and cannot use this jumper module unless it is modified. The modification is fairly straightforward, but if possible we recommend using the 6 pin Data Port socket on this radio instead.

If your radio is not in the above list, check out our other listings or contact us. We have a number of SignaLink references to fit most radios on the market.
