CAT control interface Yaesu SCU-17 for FT-DX1200 FT-950 FT-450D

View larger

Display all pictures

Manufacturer: YAESU

Reference: YAESU-CAT-SCU17-1085

Condition: New product

Country of origin:

Japan

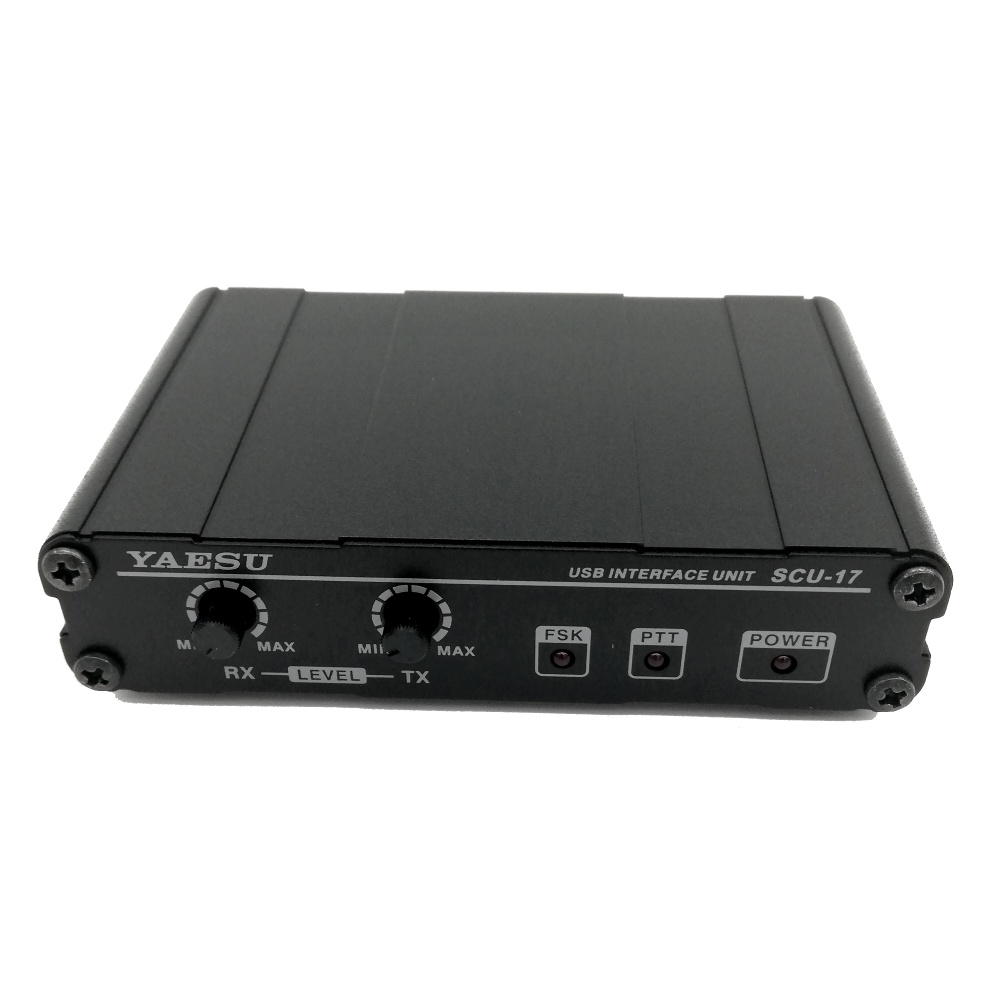

CAT control interface Yaesu SCU-17 for FT-DX1200 FT-950 FT-450D

Read the 2 reviews

Average rating: 5/5 Number of reviews: 2

The Yaesu SCU-17 interface is a CAT control system that allows you to control a Yaesu transceiver from a computer and to be able to practice digital communication modes, also called digimodes such as SSTV, RTTY, PSK, ROS, FT8, FT4, etc.

The SCU-17 module works as a sound card, only one USB cable is needed between the interface and the computer to supply power and recover RX and TX audio.

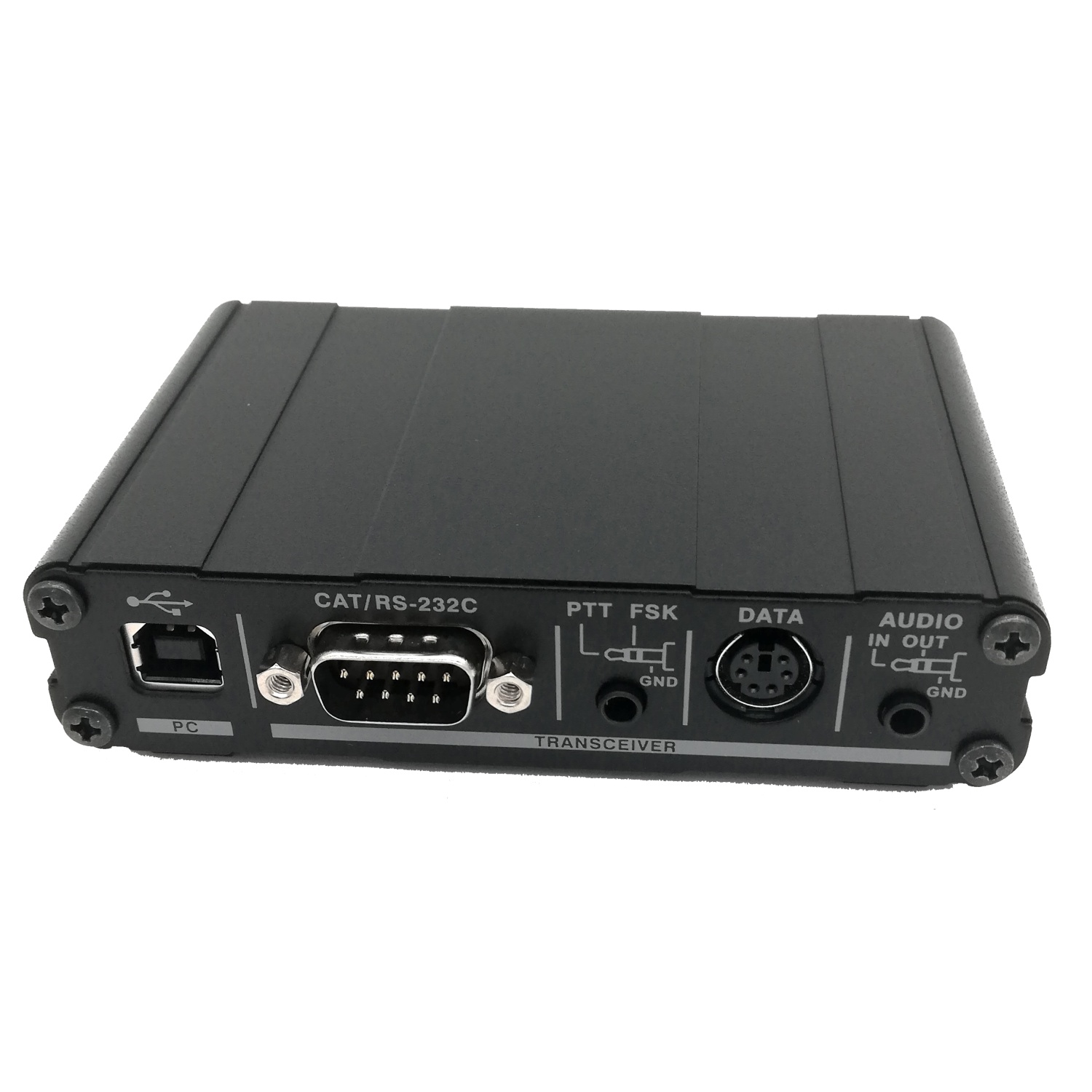

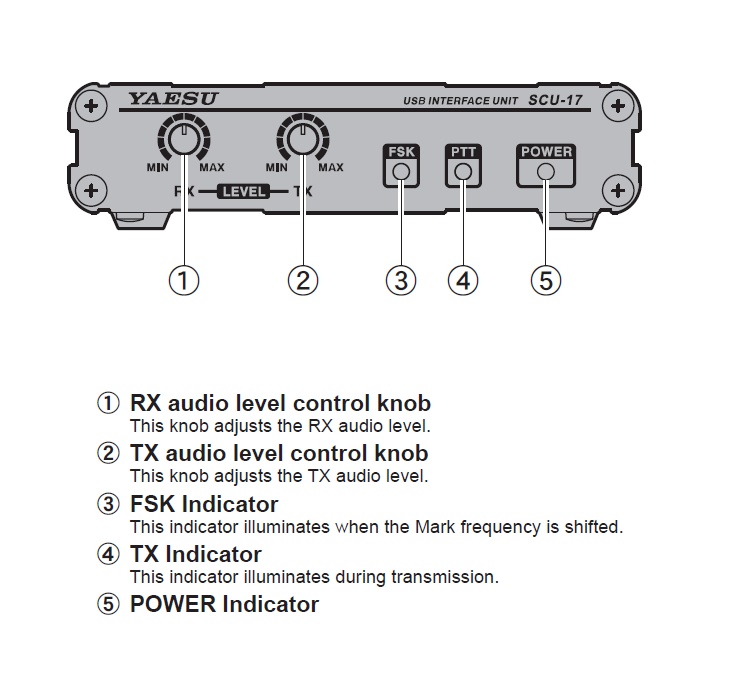

Front panel LEDs allow monitoring of PTT, FSK, and adjustment of RX and TX audio input levels directly from the front panel interface.

The drivers and virtual COM port driver for Windows can be downloaded below and installed BEFORE connecting the USB cable.

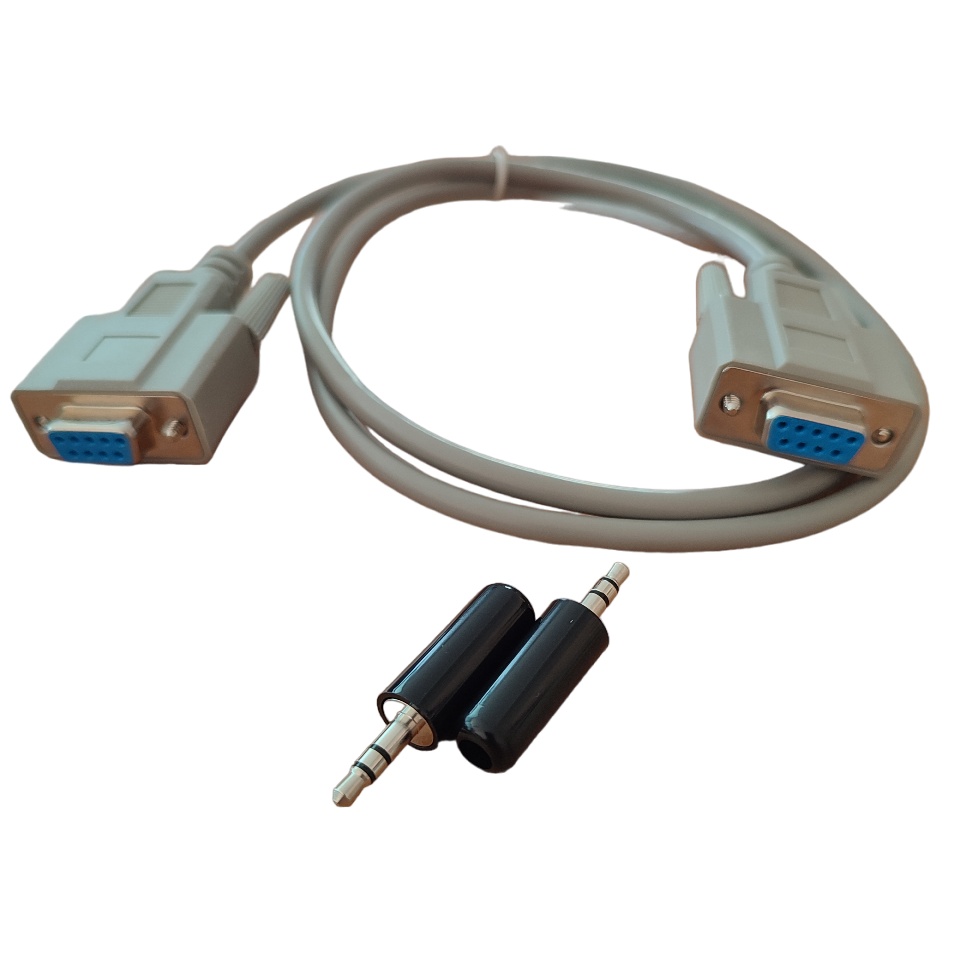

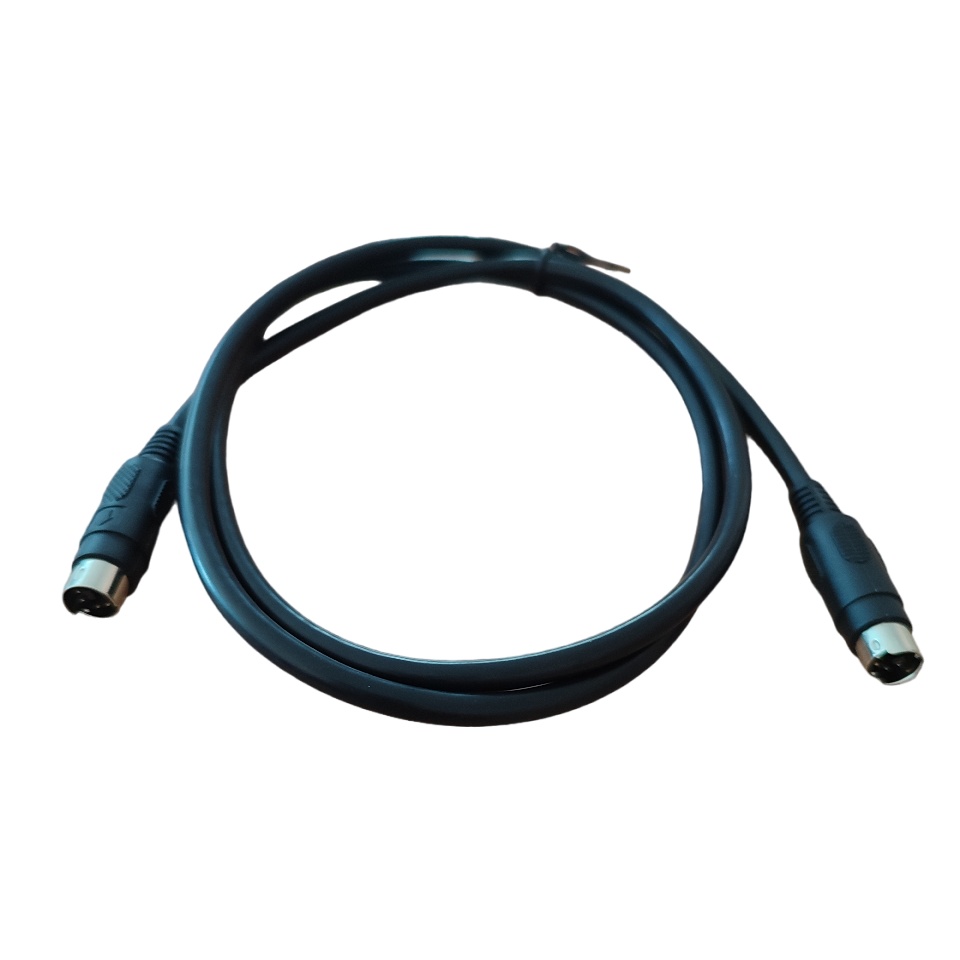

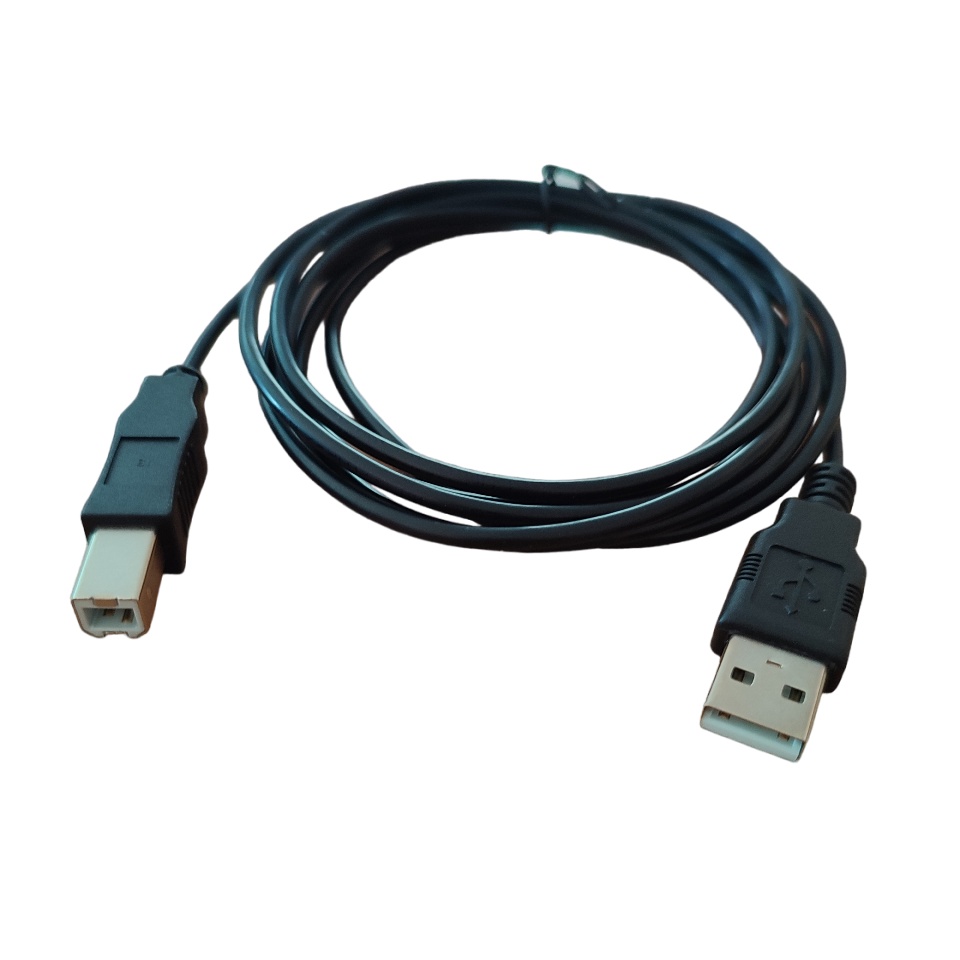

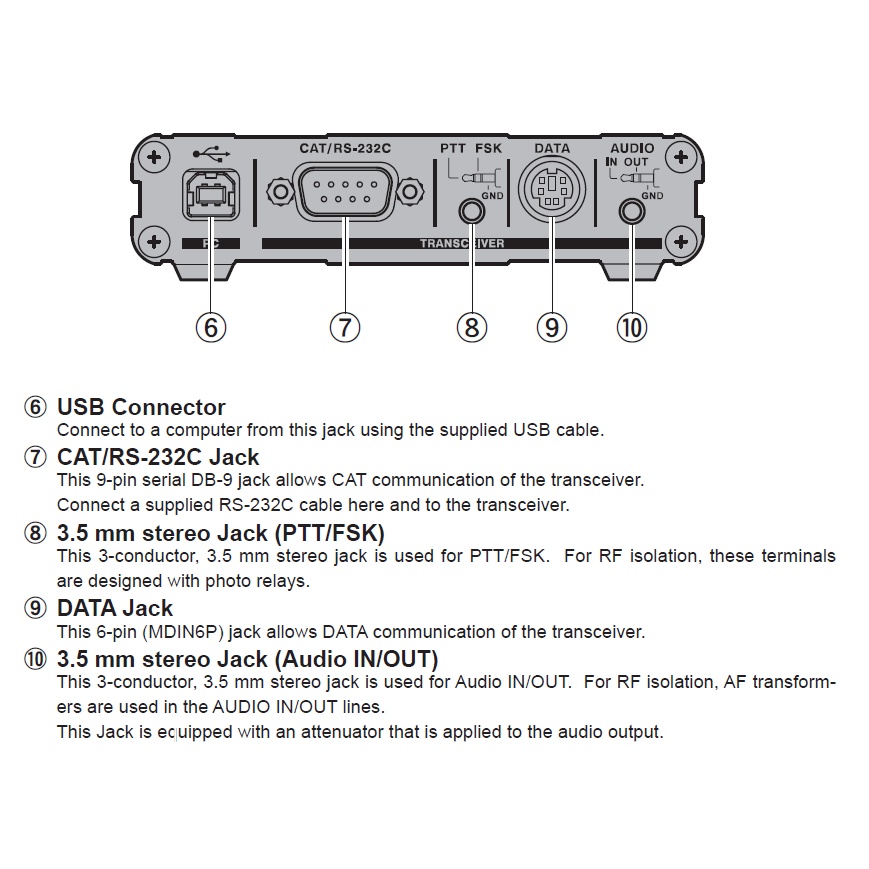

Supplied with: 1 Yaesu CAT SCU-17 interface, 1 USB A / B cable, 1 6-pin Mini-Din cable (MDIN6P), 1 9-pin RS232 DB9 serial cable, 2 3.5mm Jak stereo connectors, English manual.

More details

Download

Drivers Windows CP210x SCU17

Windows USB CP210x Drivers for Yaesu SCU17. 3.68M

Manual Yaesu SCU-17 (EN)

Yaesu SCU17 CAT Interface English Manual. 3.11M

Data sheet

Datasheet SCU17 Yaesu

Power supply: DC 5V +/-5% (by USB cable included)
Consumption: 130mA
CAT interface socket: RS232C and USB (1.1 or USB 2.0)
Case Size: 111 x 25.4 x 74.0mm
Weight: 230g
CE standards
5 years Yaesu / Passion Radio warranty

This Yaesu CAT interface is delivered ready to use, with cables, for the Yaesu FT-DX1200, FT-950, FT-450D transceivers.

For the FT-818ND, FT-817ND, FT-857D and FT-897D, the optional CT-62 cable is required.
For FTDX5000MP, FT-1000MP or similar, the optional SCU-21 cable is required.
For the FTDX9000D/MP, the SCU-22 cable is required.

The FT-991A or FT-DX3000 do not need a CAT interface, as they integrate it with CAT control functions, audio input / output, with a single USB Male A / Male B cable.
