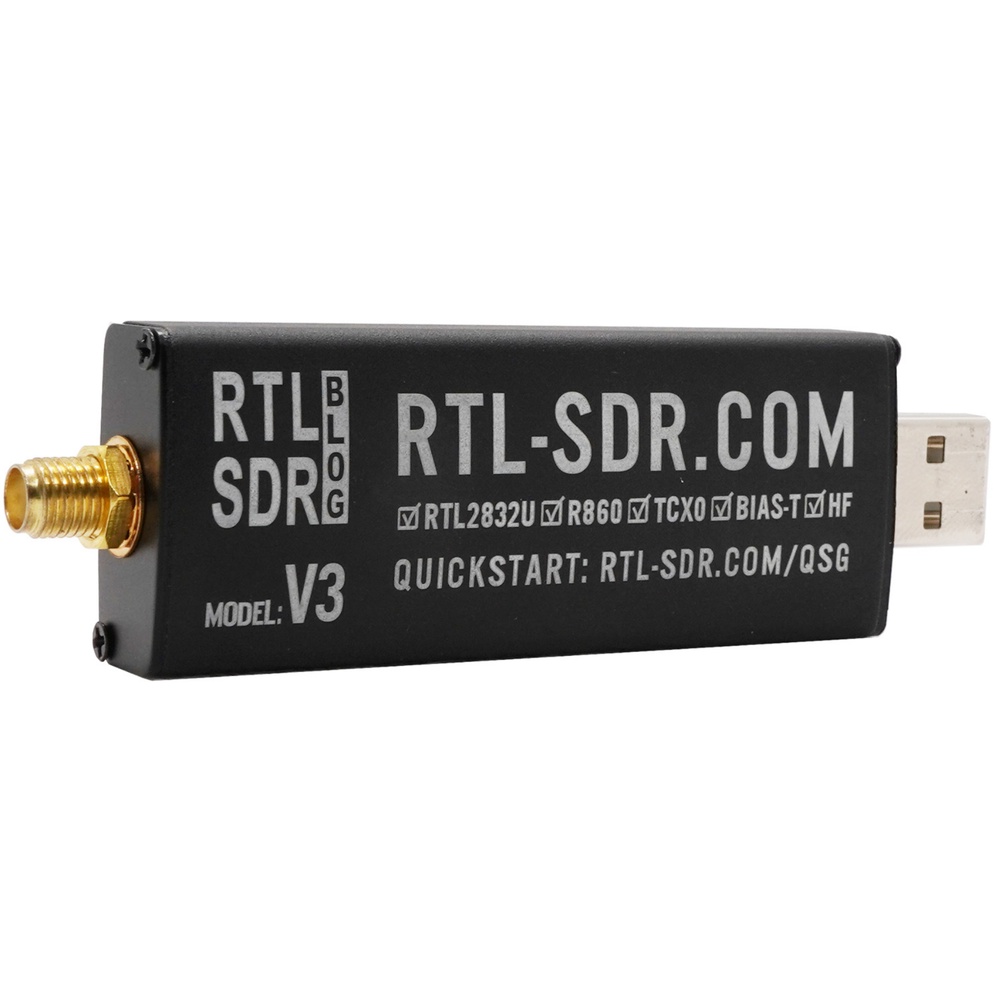

Dongle RTL-SDR.com V3 TCXO + SMA + Bias-T USB stick with R860 tuner

rating Read the 46 reviews
Average rating: 5/5 Number of reviews: 46

This USB stick is the optimized V3 version of RTL-SDR.com, with the R860 tuner chip (exactly the same as R820T2*) for reception from 24 to 1766 MHz.

The characteristics of the dongle RTL-SDR.com v3:

- TCXO at 1 PPM (better stability and precision in frequencies)
- SMA female antenna connector
- Realtek RTL2832U Chipset + R860 Tuner (ex. R820T2)
- Power supply Bias-T 4.5V via SMA, allows to power an LNA or an active antenna by coaxial cable
- Aluminum case with passive cooling
- Experimental: HF Direct Sampling mode for listening to strong signals from 500 kHz to 24 MHz

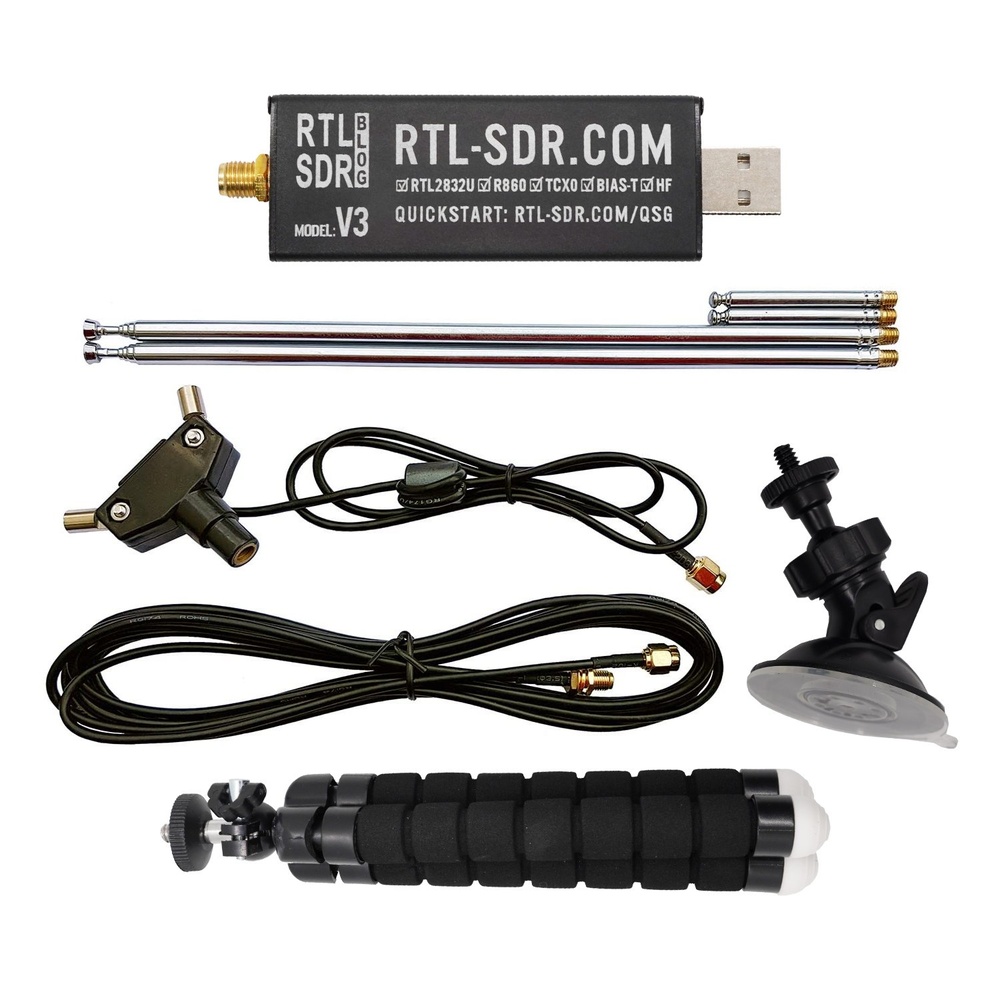

Antenna kit (option): 1 dipole antenna support with 60cm of RG174 cable, 2 telescopic antennas (23cm to 1m), 2 telescopic antennas (5 to 13cm), a 3m extension RG174, a flexible tripod and a suction cup.

Comes with: 1 Dongle RTL-SDR.com V3 (without antenna or CD) and antenna kit in option.

Add all HF bands with converter Ham It Up to listen anywhere from 0.5 to 50Mhz

Other similar SDR stick model: Nooelec NESDR SMART

* New black case version: The dongle is now equipped with a black case instead of the grey case, and with R860 tuner which is the new name of the R820T2 chip. There is no other difference, neither in performances, nor in functions between the 2 versions of boxes (grey and black) and the 2 tuners chipset.

More details

45,91 € tax excl.

Out of stock, available within 1 month

  • With antenna
  • Without antenna

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

Guide RTL-SDR.com V3 (EN)

RTL-SDR V3 dongle configuration manual. 964.76k

.DLL ExtIO RTL2832

DLL file to be placed at the SDR software root - December 2016 121.98k

Guide RTL-SDR.com V3 (FR)

RTL-SDR V3 dongle configuration manual. 363.07k

Data sheet

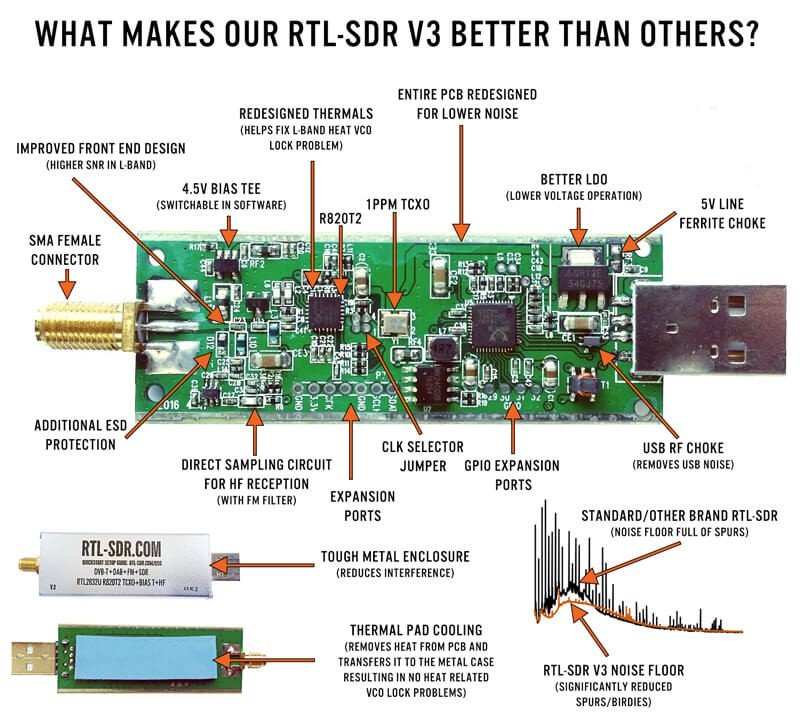

RTL-SDR.com V3 dongle features

- TCXO 1 PPM (temperature compensated oscillator)
- Female SMA antenna connector, instead of the usual MCX connector
- Chipset Realtek RTL2832U + Tuner R860 (former R820T2), more sensitive than the old version R820T
- 100% compatible with all SDR software
- Improved tolerance of components
- Power supply Bias-T 4.5V via SMA (see user guide V3), this allows to power an LNA or an active antenna via the coaxial cable
- Aluminum housing with passive cooling via a thermal buffer
- Experimental: HF Direct Sampling mode for listening to very strong signals from 500 kHz to 24 MHz via direct sampling

Choice of antenna for SDR reception

To get the most out of the RTL-SDR.com dongle in scanner mode, it is necessary to adapt the antenna to the listening frequencies (VHF / UHF) and place it outside on the edge of a window At minima and ideally the highest and unobstructed possible on a mat and a roof of house or car.

Find our range of wide-band and discone antennas, and mounting brackets available and accessories for SDR use.

Configuration and Guide RTL-SDR.com V3

The RTL-SDR V3 dongle installation and configuration is the same way as for any RTL2832 dongle, by installing the drivers with the Zadig software and then installing the SDR software of your choice : SDRUno, HDSDR, SDRSharp, CubicSDR, GNUradio, GQRX.

The V3 version offers 3 additional functions: HF Direct Sampling Mode, Bias-T and software-adjustable clock, see the guide RTL-SDR V3 below to download.
