2.4 Ghz variable gain pre-amplifier SG LAB

rating No review at the moment

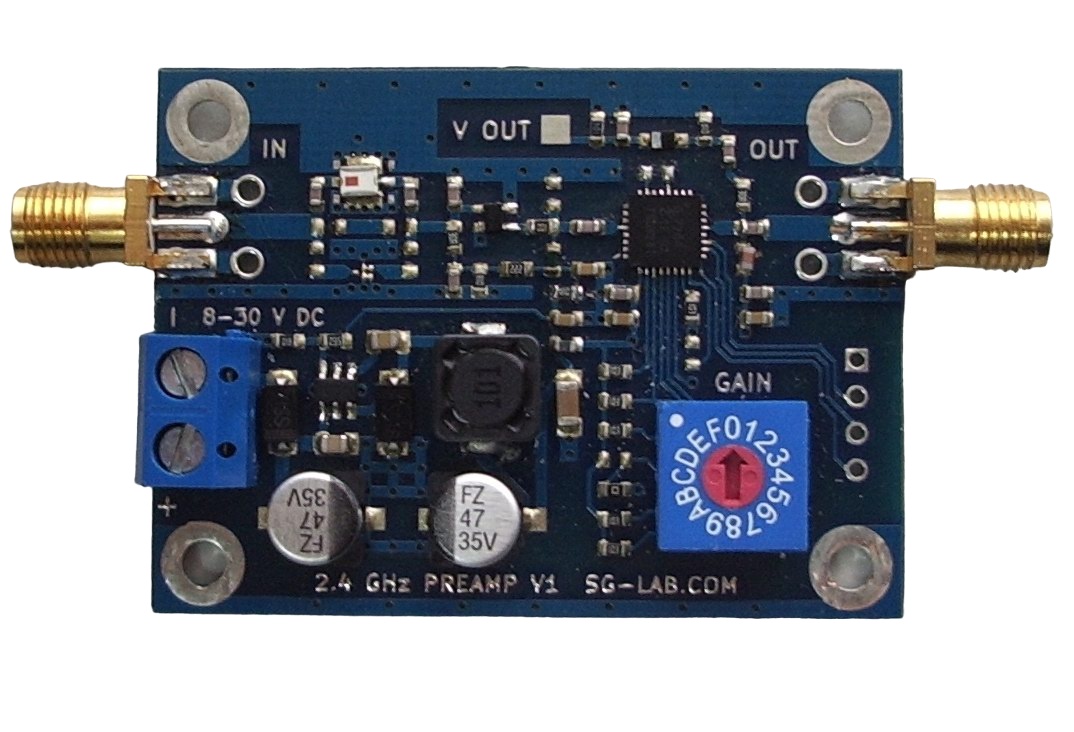

Variable gain pre-amplifier with 15dB
Gain control in 1 dB steps
Additional filtering for the 2.4 GHz band
Power supply 8-30 V DC
Output detector

This equipment is intended for amateur radio use only on the 13cm band.

Supplied with: 1 SG LAB PREAMP 2.4 Ghz assembled PCB with SMA male to SMA male adapter included.

More details

This material is no longer available

Download

Data sheet

13cm F1OPA Amplifier Specification for QO100

Frequency range: 2.3 to 2.6 GHz (13cm band, typical 2.4 Ghz)
Gain: 15dB @ 2400 MHz
Output power: +18dBm Max. (63 mW)
Maximum input power: +10 dBm (recommended -20dBm)
Impedance: 50 Ohms
Power supply voltage: 3-20V
Dimension: 53x39x13mm
Power consumption: 80mA @ 12V
Connector: SMA female
Amateur radio design: LZ5HP - SG LAB
Warranty 2 years*

The warranty does not cover PA and power loss, which may result from incorrect mounting, incorrect antenna adjustment (VSWR), maximum input power not respected, short circuit in the power supply or coaxial line and damage due to electrostatic discharge.
