Kit RX SDR 10 Ghz Satellite Oscar-100

No review at the moment

This pack includes the main elements for the 10 Ghz reception of the Oscar-100 satellite in SDR mode on the 739 Mhz frequency with the RTL-R820T2 key and with the Goobay LNB PLL head.

Also available in DELUXE version with ultra-stable LNB head and RTL-SDR.com V3 key with TCXO.

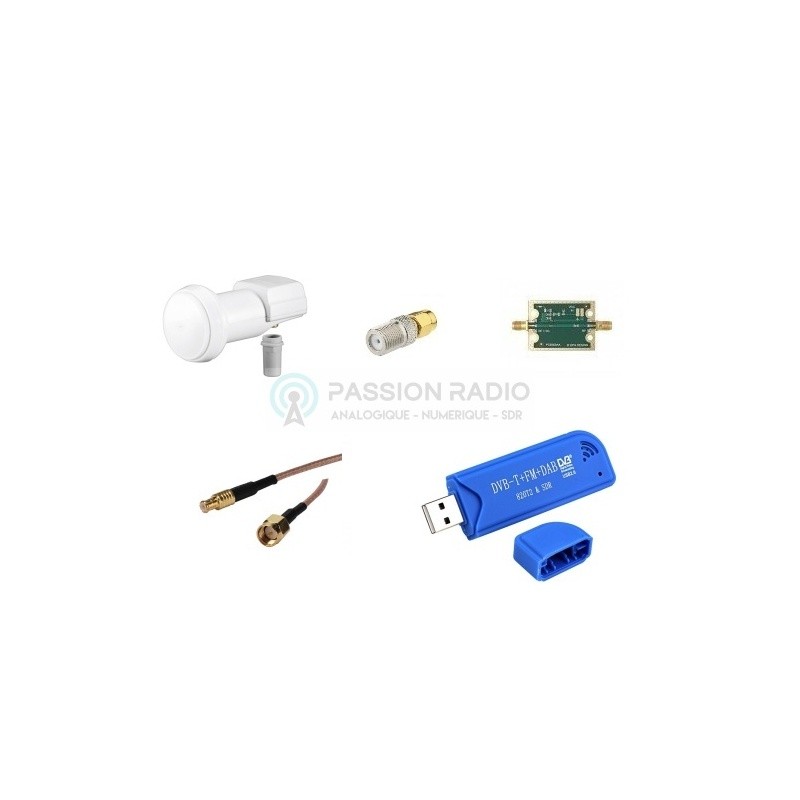

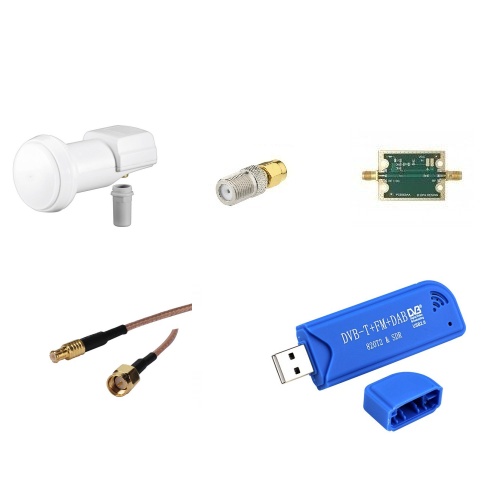

Supplied with: 1 Goobay LNB PLL head, 1 SDR R820T2 key, 1 Bias-Tee to supply the LNB head with 12V (NB SSB) or 18V (WB DATV), 1 SMA Male - MCX Male pigtail of 15cm to connect the input Bias-T on the SDR key and 1 SMA Male - F female adapter to connect a 75 ohm TV coaxial cable between the LNB head and the RTLSDR key.

More details

Pack content

5,42 €
Reference: PIGTAIL-MCX-M-SMA-M-52
1 x Pigtail MCX Male to SMA Male
MCX Male to SMA Male pigtail adapter. Perfect for connecting the DTT dongle RTL3832 to the Ham it Up Ham it Up converter.
5,42 €
21,58 €
Reference: DONGLE-R820T2-TNT2-SEUL-248
1 x RTL2832 USB key with R860 tuner (new version of the R820T2)
This model of RTL-SDR key is equipped with the Realtek RTL2832U chipset and the new R860 tuner, which is identical to the R820T2 tuner and has been specially designed for SDR mode. The antenna
21,58 €
21,58 €
3,75 €
Reference: ADAPT-F-F-SMA-M-729
1 x Adapter F Female SMA Male
This RF adapter converts an F female connector to an SMA male connector. The F connector is particularly used for satellite equipment.
3,75 €
14,58 €
Reference: QO100-OPA-BIAS-T1-760
1 x BIAS-TEE for QO-100 or LNA 30MHz to 4GHz F1OPA
This BT4G-based BIAS-TEE with SMA female connector is used to power a LNA or a 10Ghz PLL LNB to receive the QO-100 / Es'Hail2 satellite.The BT4G covers the frequency bands from 30 MHz to 4 GHz. The
14,58 €
14,58 €
Online only
4,92 €
Reference: QO100-LNB-GOOBAY-67269-1S-1154
1 x GOOBAY universal Single/Twin LNB PLL for Oscar 100 satellite and KU band LNB-Single 1 output
Universal PLL LNB head for reception of the Oscar 100 amateur radio satellite (QO-100) and all HD TV satellites DVB-S2, DVB-S, 4K, HDTV, in KU band.With 1 or 2 Type-F connector outputs, this head has
4,92 €

Data sheet

To add to have an operational Oscar 100 receiving station

- 1 TV satellite dish of 40cm minimum (like our parabolic antenna camping), 60cm (recommended) or 80cm
- 1 TV 75 ohm TV cable and 2 F Male connectors to connect the LNB head to the bias-T output

The cable length should match the distance between the location of the RTL-SDR key and the location of the satellite dish.

In reception, the impedance of 75 ohms (instead of 50 ohms), is not a problem for the coaxial cable used and which can also be of a considerable length (10, 20 or 30 meters), without losses should be noted because the LNB head amplifies the output signal (+ 50-60dB).

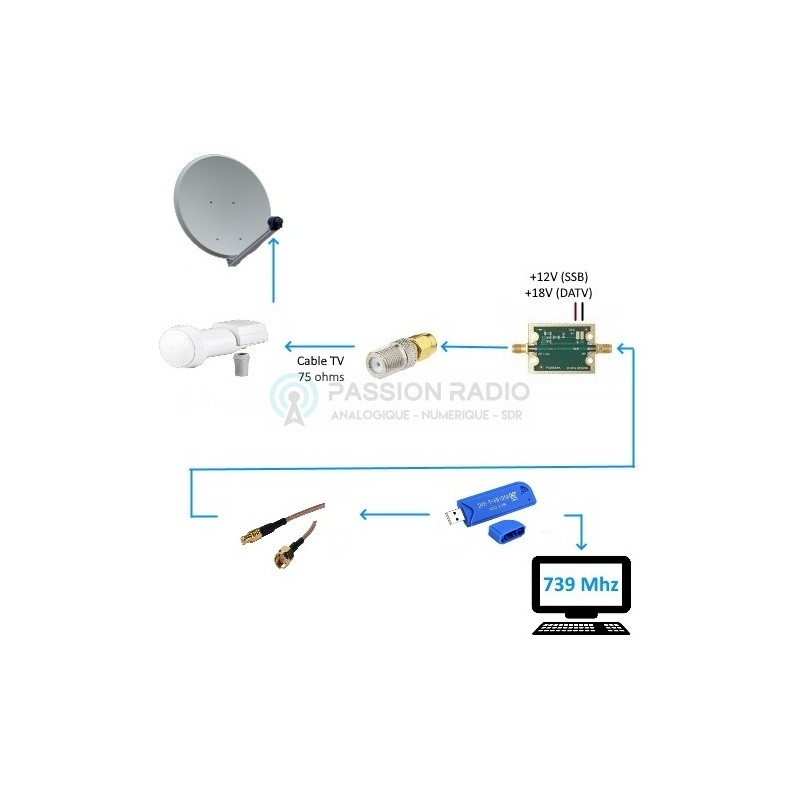

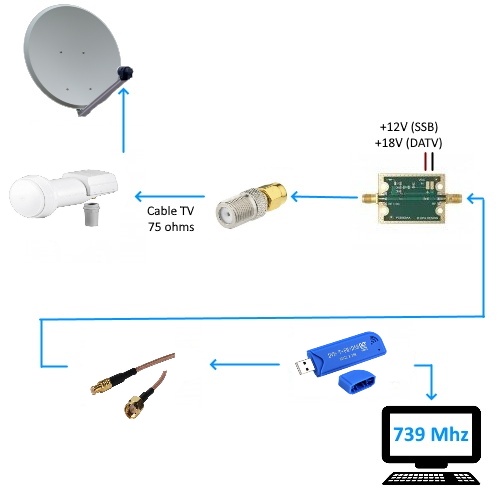

How to assemble/use the RX pack QO-100

How to assemble use the reception QO-100 pack oscar 100

The SDR software recommended to receive the QO-100 satellite is SDR-Console, this software incorporates an automatic frequency drift correction function by locking on the transponder beacon for a stable signal whatever the weather conditions, day or day. of the night.
