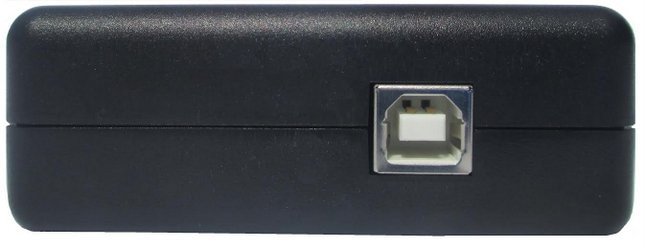

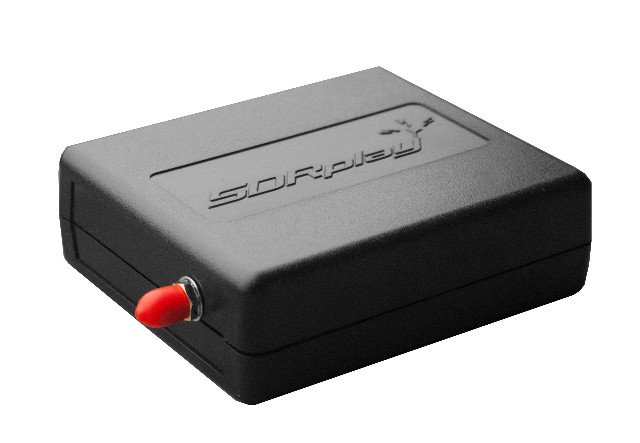

RSP1A SDRPlay receiver 1 kHz to 2 GHz 14-bit + LNA SDRPlay SDR receivers SDRPLAY-RSP1-356

View larger

Display all pictures

Manufacturer: SDRPlay

Reference: SDRPLAY-RSP1-356

Condition: New product

Country of origin:

United Kingdom

Online only

RSP1A SDRPlay receiver 1 kHz to 2 GHz 14-bit + LNA

New version of the SDRPlay wideband receiver, the RSP1A now covers all frequencies from 1 kHz to 2 GHz without hole, all modes, with up to 10 MHz bandwidth on the screen and 14-bit sampling.

In addition, the new SDRPlay RSP1A features 11 band filters that switch automatically according to the frequency used, an adjustable gain LNA preamp, a 0.5 PPM TCXO and a 4.7V BIAS-T power supply.

The RSP1A works with SDR software on Windows, Mac and Linux such as: SDRUno (official software recommended), SDR Console, HDSDR and CubicSDR.

All you need to run the SDRPlay is a computer or a Raspberry, a USB cable and an antenna to have a receiver-scanner broadband, powerful, all modes.

Supplied with: SDRPlay RSP1A assembled in plastic case (without power cable).

See below the recommendations for use, installation and support request SDRplay.

More details

Download

SDRUno 1.4 software Windows

SDRuno v1.4 for Windows, check last update at www.sdrplay.com/windl2.php 37.93M

Fiche technique RSP1A (EN)

1.36M

RSP1A Datasheet

711.94k

CookBook SDRuno FR

Cookbook in French. 3.62M

CookBook SDRuno 1.4 (EN)

SDRuno Software User Guide by Paul NN4F and Mike KD2KOG v1.4 7.93M

Technical measures of RSP1A

1.36M

Manual SDRuno 1.4 (FR)

Manual SDRuno 1.40.1 in French (translation by Claude de F0ELA). 8M

Plugin SDRuno Shuttle

Plugin for SDRuno software and support for USB Shuttle Xpress and PRO V2 479.51k

RSP SDRplay Comparison (FR)

Comparison in French of SDRPlay, RSP1A, RSPdx and RSPduo receivers 279.41k

RSP SDRplay Comparison (EN)

Comparison in English of SDRPlay, RSP1A, RSPdx and RSPduo receivers 259.02k

HDSDR software with SDRPlay (FR)

User guide SDRPlay receiver with Windows HDSDR software 1.49M

RSP1A with GNU radio

120.63k

Data sheet

Technical specifications SDRPlay RSP1-A

Receive 1kHz to 2GHz
Up to 10 Mhz bandwidth on the screen
14-bit sampling
Adjustable LNA gain
AM / FM / DAB bandstop filters
RF shielding in the plastic housing
Antenna connector: SMA female
Open API allows developers to create new applications around the receiver.
Compatible with SDR software on Windows, Mac, Linux: SDRUno (recommended), HDSDR, SDR Console, CubicSDR (Mac / Linux)
Consumption: 120-175mA (without BIAS-T enabled)
Minimum recommended Windows PC requirements: Intel Core i3, 4GB memory

Equipped with 11 band filters:

Low pass
2MHz

Pass
2 - 12MHz
12 - 30 Mhz
30 - 60MHz
60 - 120MHz
120 - 250MHz
250 - 300MHz
300 - 380Mhz
380 - 420Mhz
420 - 1000MHz

High pass
1000MHz

3 notch filters

FM: 85 - 100Mhz (> 50dB)
MW: 600 - 1550Mhz (> 30dB)
DAB: 165 - 230 Mhz (> 30dB)

Weight: 110g
Dimension: 95x80x30mm
2 years warranty
CE Standards

Installing SDRPlay online

You will find an online tutorial for quick installation of the RSP1-A: http://www.sdrplay.com/start-here/

To download the latest SDRPlay drivers and software for Windows, Mac, Linux and Android: http://www.sdrplay.com/downloads/

Compatibility with Android smartphone or tablet: To date only the first generation RSP1 version is compatible with an Android smartphone or tablet and the SDRTouch software, with the installation of the android driver SDRPlay for SDR Touch. The Android version 7.0 is not yet supported by this driver that works for Android versions 3.1 to 6. The new version RSP1A and the RSP2 and RSP2PRO are not compatible with Android and SDRTouch currently.

Recommendations and support

1 - Do not connect the RSP1A directly to the same antenna as your transmitter, or to an antenna in the near field of a transmitting antenna as this may cause irreversible damage.

2 - The RSP1A is sensitive to electrostatic discharge which can damage the receiver if not protected or used correctly. It is recommended to disconnect the antenna in case of severe weather and to ensure an earthing of the antenna. Before reconnecting the coaxial cable after a thunderstorm, it is imperative the unloader (braid and core) to the ground.

In these 2 cases of loss of reception and RF damage, the warranty will not apply and the equipment neither repaired, exchanged or refunded. The signs of RF damage are characterized by signs of hot on or around components near the signal input, a burning smell is also an indication of RF damage.

For any support request, SDRPlay offers an online platform to get in touch directly with the technical support team for our customers : Request for official support SDRPlay.

Demo video of SDRplay RSP1A
