DELUXE receiver QO-100 SDR 10 Ghz - 739 Mhz for Oscar 100 satellite

This DELUXE QO-100 receiver pack includes the elements necessary for the 10 Ghz reception of the Oscar-100 satellite (QO-100) in SDR mode on the 739 Mhz frequency with the RTL-SDR V3 dongle equipped with a TCXO, and with the ultra-stable Bullseye LNB PLL with TCXO.

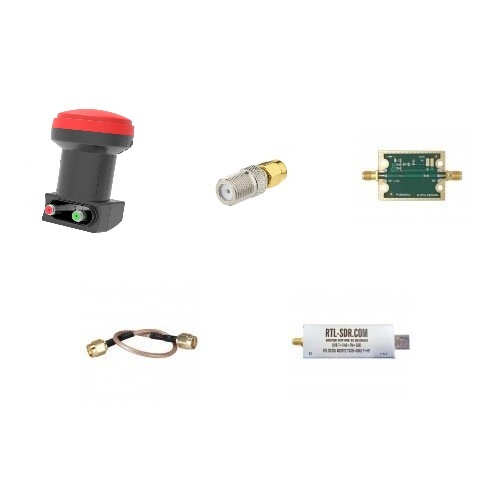

Comes with: 1 LNB PLL Bullseye 10 Ghz, 1 RTL-SDR USB stick TCXO, 1 Bias-Tee to supply the LNB head with 12V (SSB transponder) or 18V (DATV transponder) and 1 SMA Male - SMA Male pigtail of 15cm for connect the input of the Bias-T on the RTL-SDR key and 1 SMA Male - F female adapter to connect the 75 ohm TV coaxial cable between the LNB head and the RTL-SDR key (SMA female connector input).

More details

Pack content

5,00 € In stock
Reference: PIGTAIL-SMA-M-SMA-M-81
1 x Pigtail SMA Male - SMA Male 15/30/50/100cm RG316 Length-15cm
Pigtail RF adapter SMA Male to SMA Male to connect for example a converter Ham it up to a HackRF One, or SDRPlay, and any device with a SMA female connector. Coaxial cable RG 316 50 ohms. Available in
5,00 €
36,90 € Out of stock, available 7-10 days
Reference: CLE-RTLSDR-V3-472
1 x Dongle RTL-SDR.com V3 TCXO + SMA + Bias-T Antenna-Without antenna
Optimized version of RTL-SDR.com, with R820T2 tuner for reception from 24 to 1766 MHz. The characteristics of the dongle RTL-SDR.com v3:- TCXO at 1 PPM (better stability and precision in frequencies)-
36,90 €
Online only
4,50 € In stock
Reference: ADAPT-F-F-SMA-M-729
1 x Adapter F Female SMA Male
This RF adapter converts a F Female connector to a SMA Male connector. Suits for WIFI devices and application. The F connector is particularly used for satellite equipment.
4,50 €
16,50 € In stock
Reference: QO100-OPA-BIAS-T1-760
1 x BIAS-TEE for QO-100 or LNA 30MHz to 4GHz F1OPA
This BT4G-based BIAS-TEE is used to power a LNA or a 10Ghz PLL LNB to receive the QO-100 / Es'Hail2 satellite.The BT4G covers the frequency bands from 30 MHz to 4 GHz. The +/- supply leads are
16,50 €
Online only
24,90 € In stock
Reference: QO100-LNB-BULLSEYE-978
1 x Othernet Bullseye LNB TCXO ultra stable for Oscar 100 & KU band satellite
The Othernet Bullseye LNB is a down-converter for reception of the Oscar 100 amateur radio and those in the Ku band. The Bullseye is one of the most stable and precise LNB to date. It does not need to
24,90 €
Online only

Data sheet

To add to have an operational Oscar 100 receiving station

- 1 TV satellite dish of 40cm minimum (like our parabolic antenna camping), 60cm (recommended) or 80cm
- 1 TV 75 ohm TV cable and 2 F Male connectors to connect the LNB head to the bias-T output

The cable length should match the distance between the location of the RTL-SDR key and the location of the satellite dish.

In reception, the impedance of 75 ohms (instead of 50 ohms), is not a problem for the coaxial cable used and which can also be of a considerable length (10, 20 or 30 meters), without losses should be noted because the LNB head amplifies the output signal (+ 50-60dB).

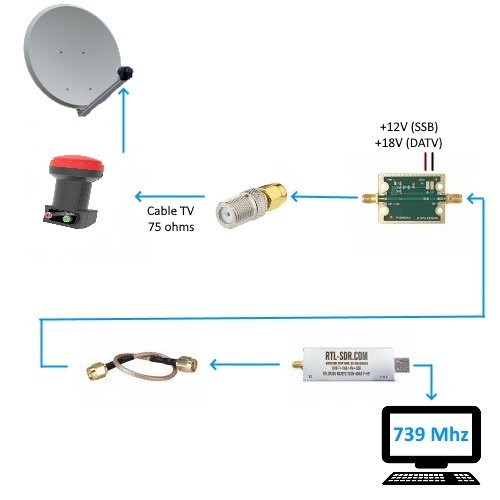

How to assemble/use the RX pack QO-100

How to assemble use the reception QO-100 pack oscar 100

The SDR software recommended to receive the QO-100 satellite is SDR-Console, this software incorporates an automatic frequency drift correction function by locking on the transponder beacon for a stable signal whatever the weather conditions, day or day. of the night.
