Pack LNB PLL TCXO + BIAS-T for RX SDR or 432Mhz QO100

The RemoteQTH Pack includes a LNB PLL head modified with TCXO and 25Mhz quartz, as well as a bias-T power supply with adjustable attenuation and available in 2 versions: With a SDR stick on 739Mhz and a computer, or with a traditional radio 432Mhz, for use without a PC.

This pack allows the reception of the narrow signal in SSB of the Oscar-100 satellite by feeding the bias-tee between 12 and 14v, as well as the reception of the DATV signal in wide band of QO-100 by feeding the bias-t between 15 and 18v.

Available as an option (not included) : Adapter ring to install the POTY antenna on this LNB.

Delivered with: 1 Pack RemoteQTH with 1 LNB PLL TCXO head and 1 bias-T, SDR version or 432Mhz (to choose below).

More details

69,00 € tax incl.

In stock

  • 432Mhz
  • 739Mhz (SDR)

Data sheet

RX 10 Ghz - 739 / 432Mhz Remote QTH

LNB head modified Ku band
Very low noise 0.1
Integrated TCXO: 1 ppm
Quartz frequency: 25Mhz
OL frequency: 9,750 Mhz (SDR version)
OL frequency: 10 057 Mhz (432Mhz version)

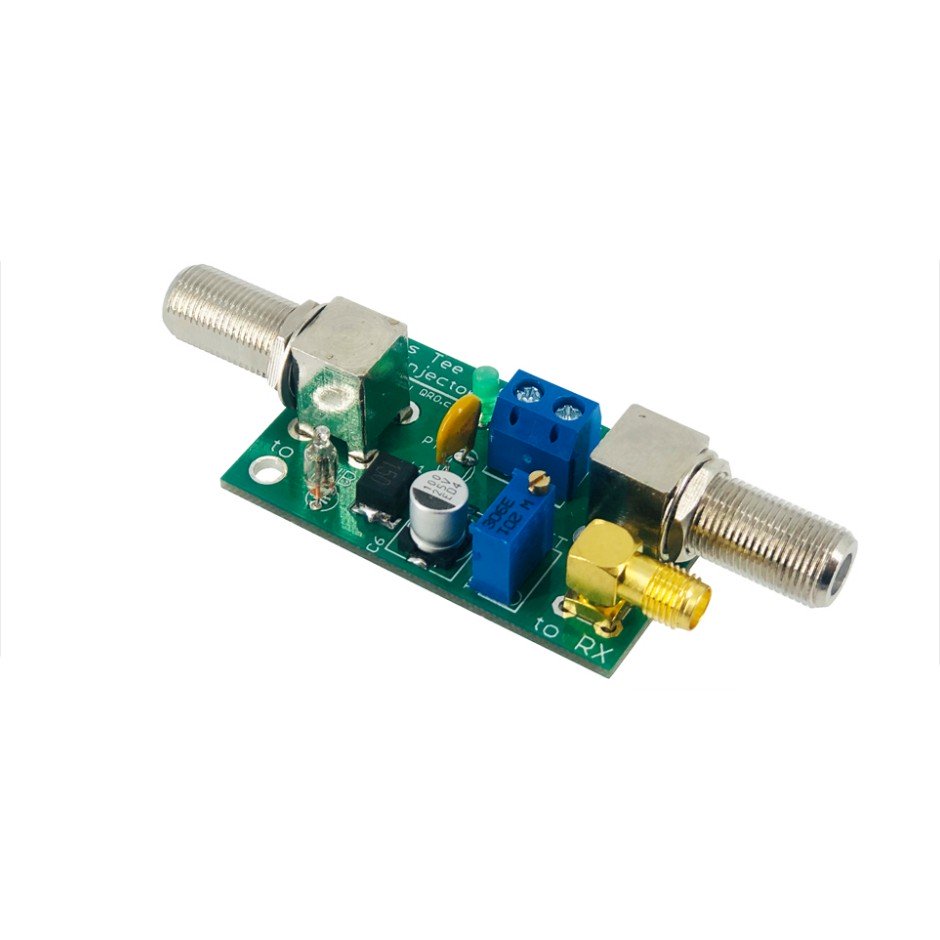

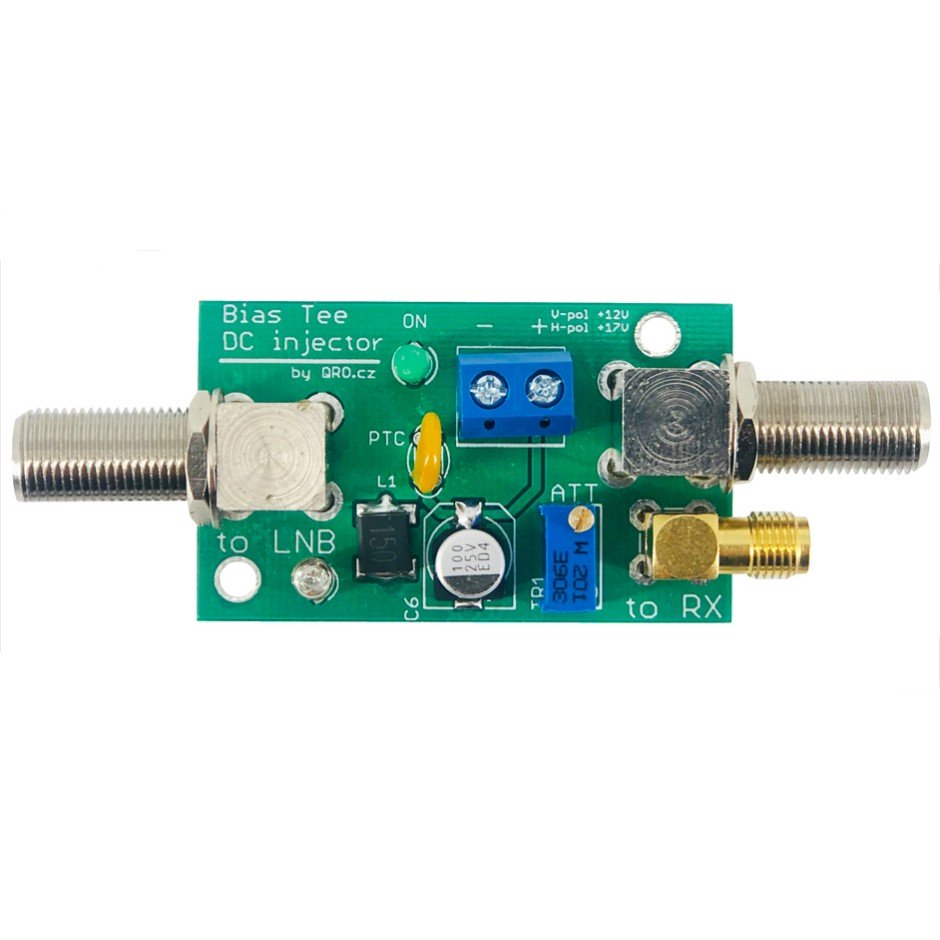

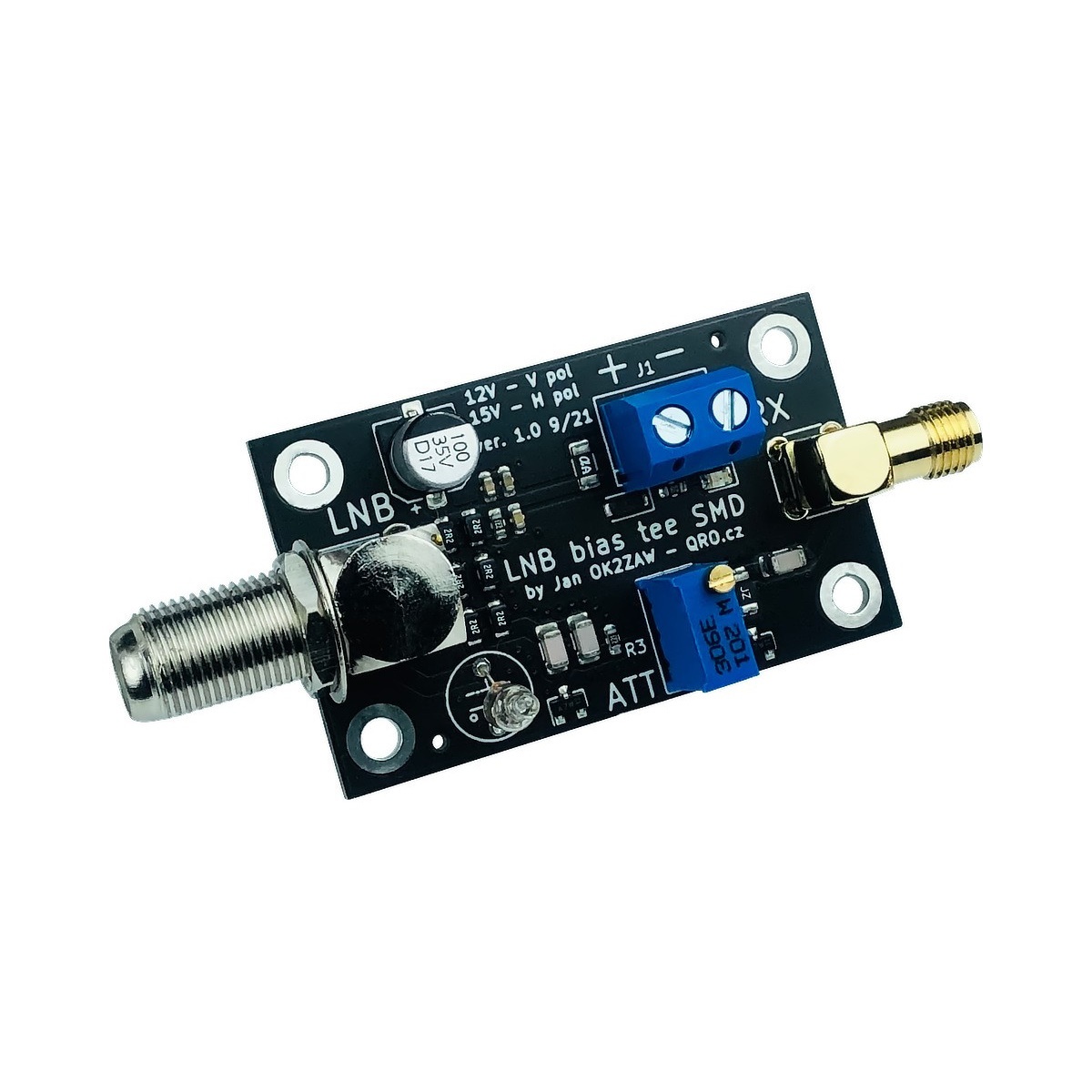

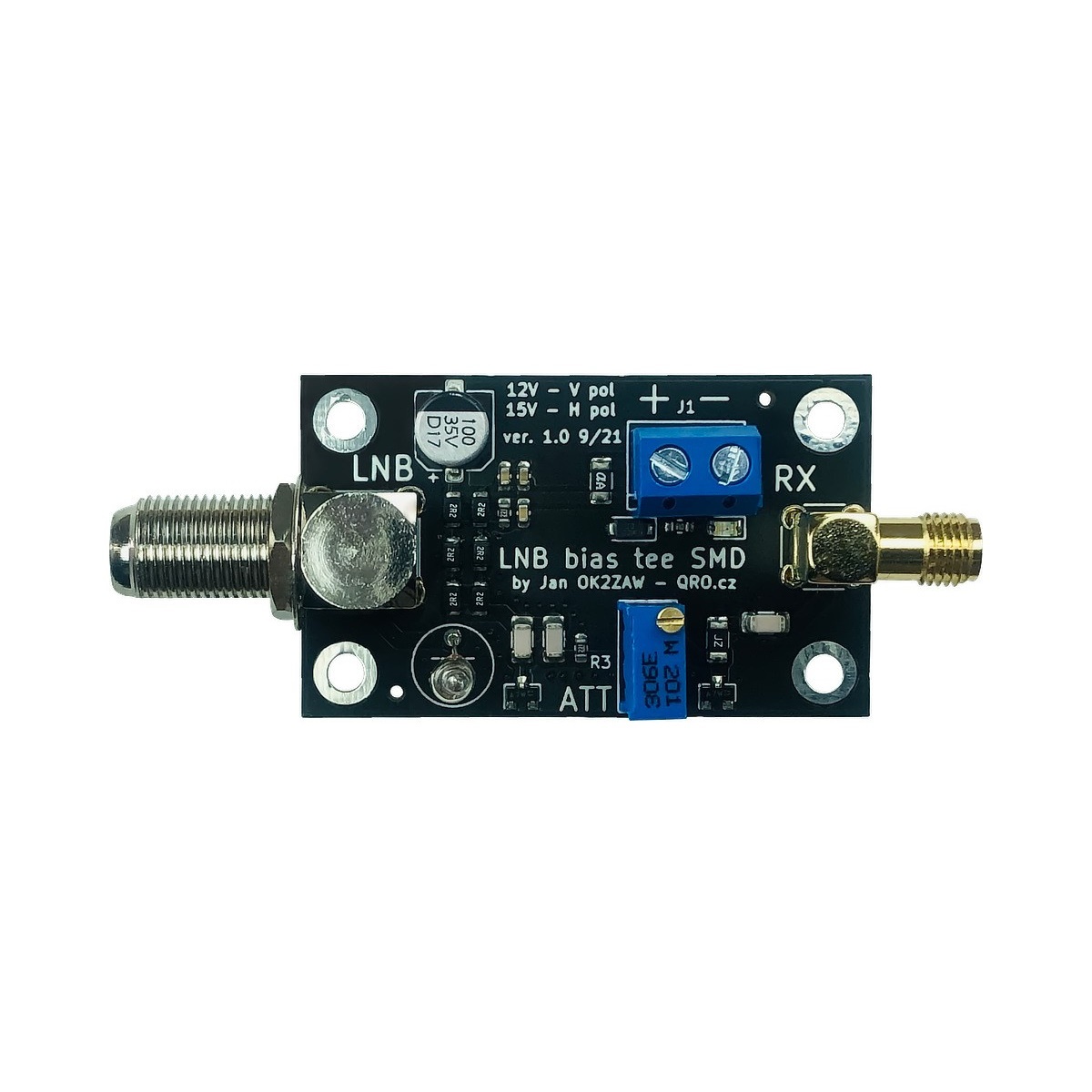

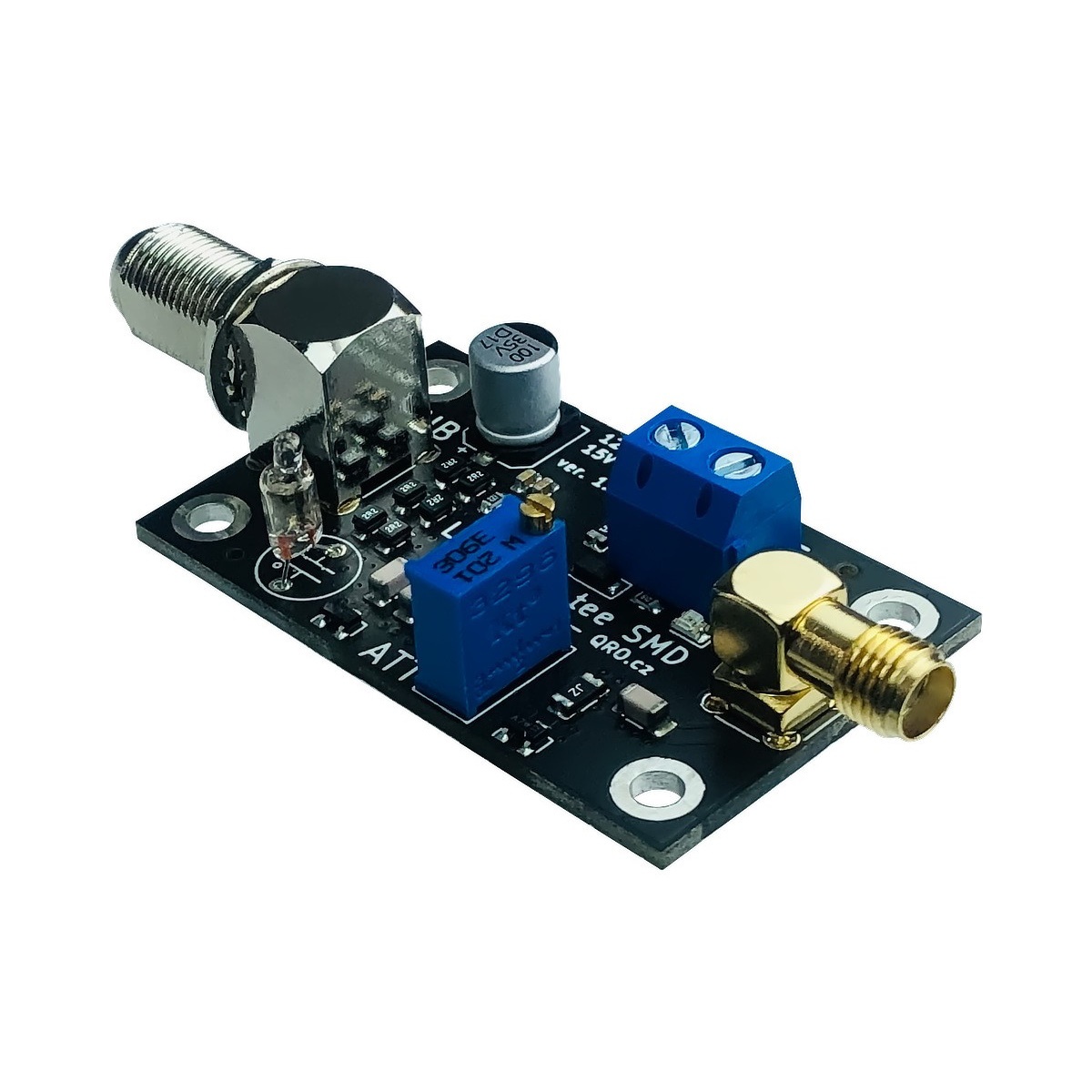

Bias-T
V + H polarization
Variable attenuation from the bias tee
Protection against overvoltage
Power supply: + 12V for Vertical polarization (SSB) and + 17V for horizontal polarization (DATV)
LNB input connector: F female (IN)
LNB output connector: F female (OUT)
IF output connector: Sma female (IF)
FI on the SDR version: 739Mhz
FI on version 432: 432Mhz

Example of mounting with the POTY antenna and the adapter ring, by F1MNQ :

POTY LNB F1MNQ

Instructions for mounting the POTY on this LNB:

- Drill the LNB cover at 21.5 (hot enter the POTY tube)
- The tube of the POTY is inserted by 10 mm in the LNB
- The ring enters the LNB while hot
- Apply silicone to seal the LNB, clip on the LNB cover
