POTY dual band feed antenna 2.4 Ghz & 10 Ghz for QO100 SMA or N connector

rating Read the 2 reviews
Average rating: 5/5 Number of reviews: 2

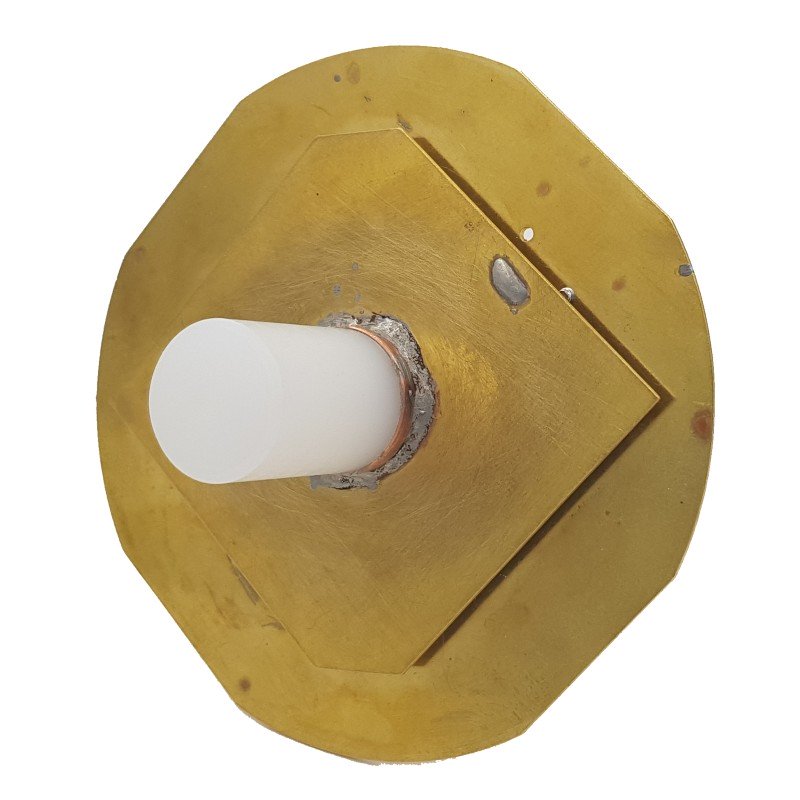

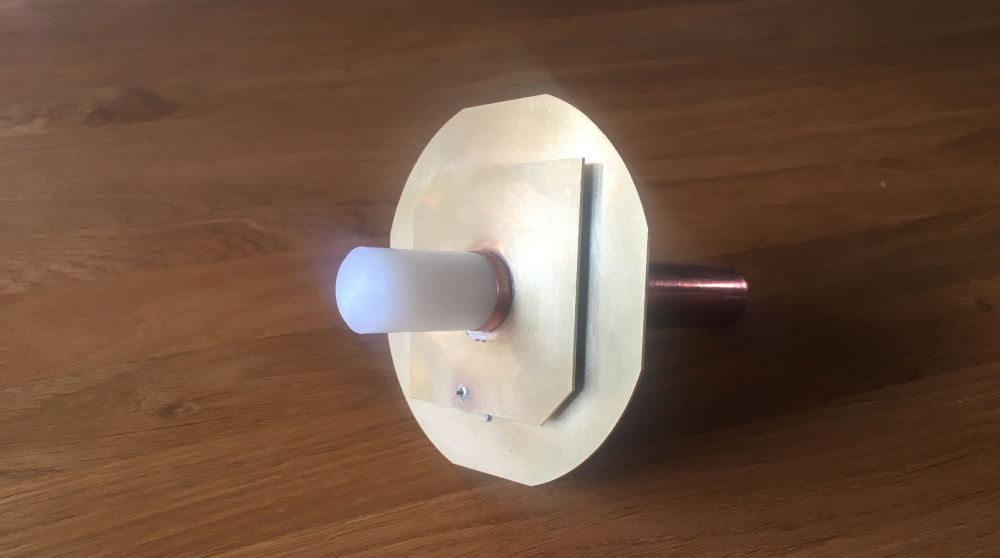

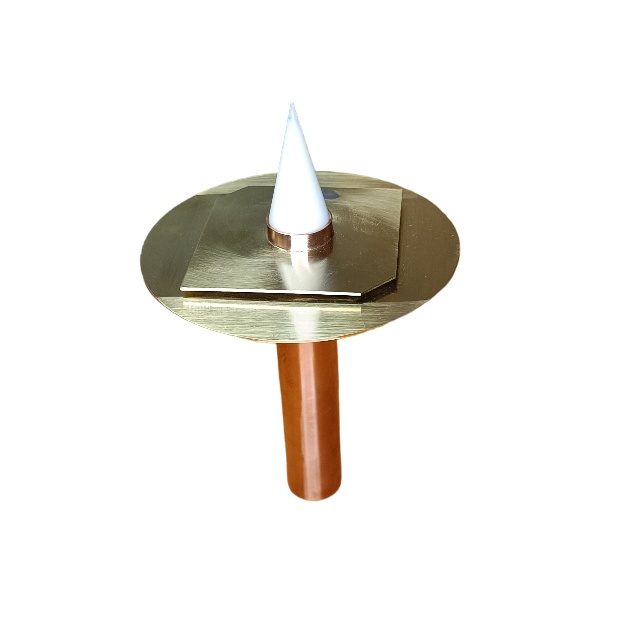

The POTY (Patch Of The Year) antenna is a dual-band 2.4 GHz /10 GHz antenna, with left-hand circular polarization LHCP for 2400 MHz transmission and a linear horn antenna for 10500 MHz reception with dielectric lens (new cylindrical version for offset dish f/D 0.6) for satellite QO-100 / Es'hail2. Maximum power 100W with SMA connector and 500W with N plug.

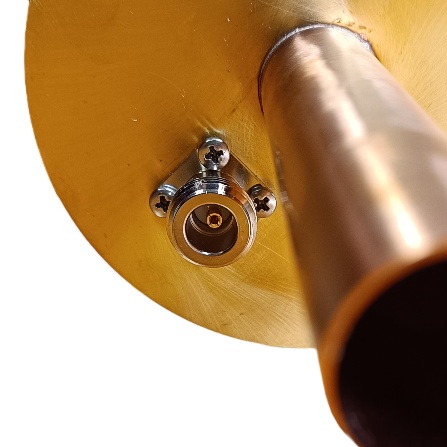

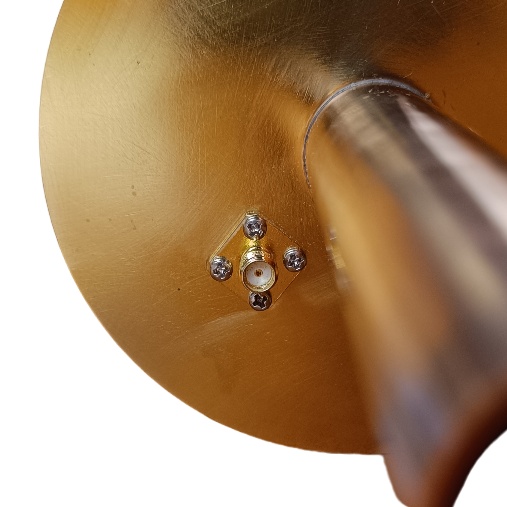

Available in 2 versions: With SMA female or N female connector, antenna mounted and tuned.

Design: G0MJW, PA3FYM and M0EYT

Optional: 40/22mm reduction ring for mounting on LNB support arm.

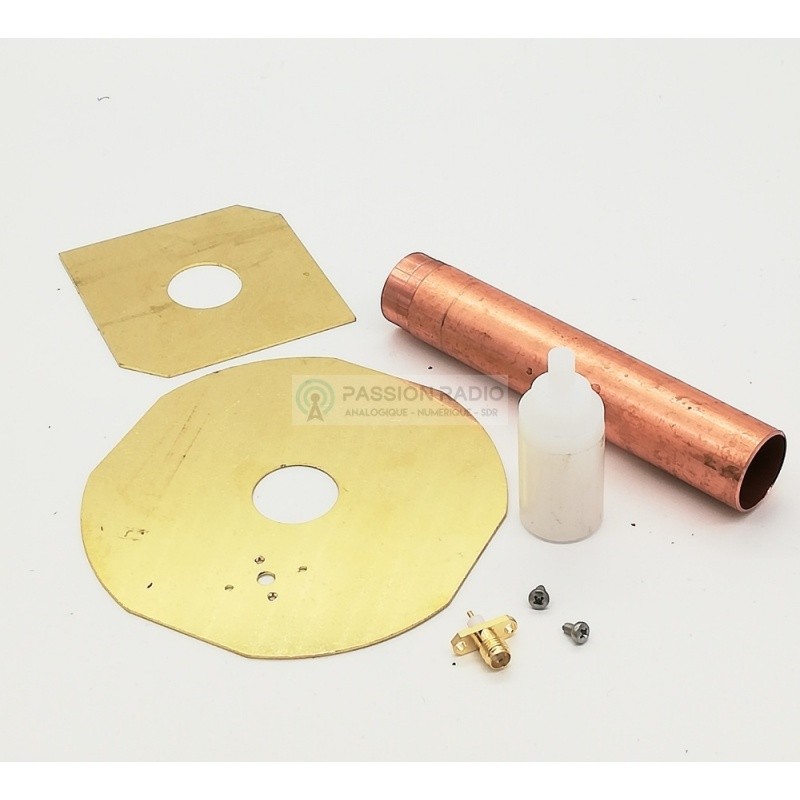

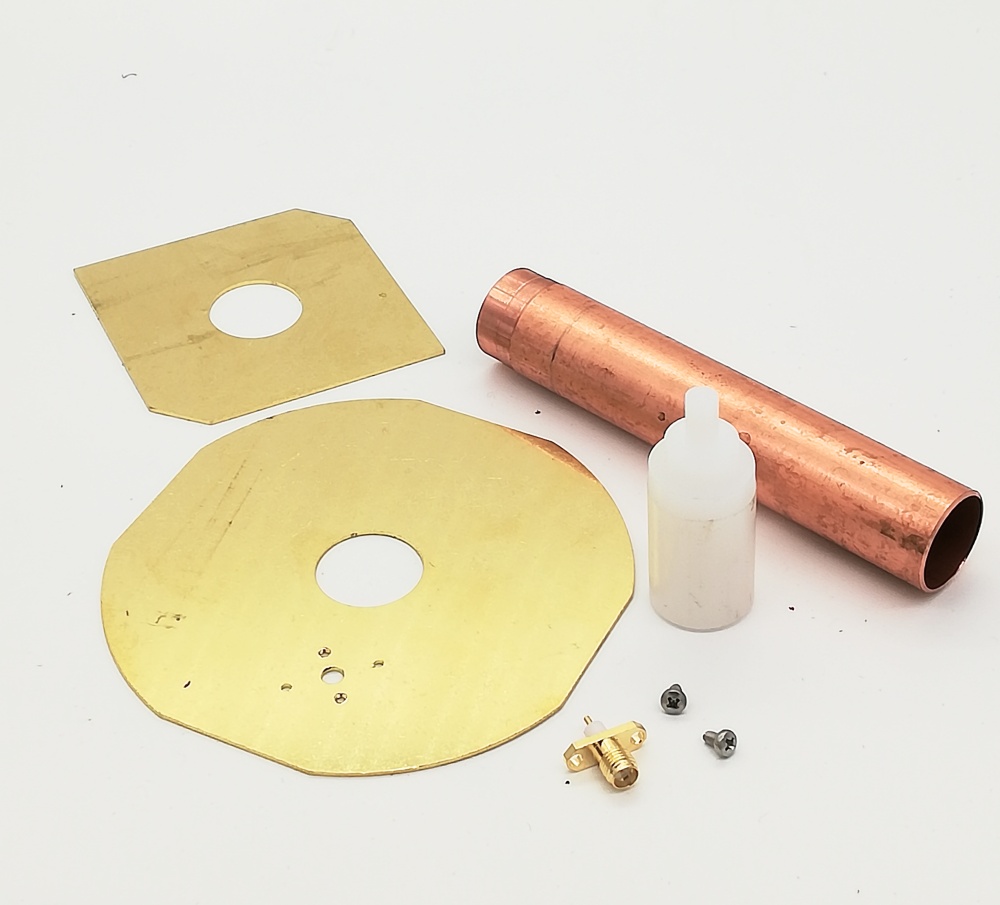

Supplied with: 1 assembled and tested POTY antenna with SMA or N connector to choose below.

Supplied without LNB PLL head (optional below), compatible models: Avenger, Inverto, RemoteQTH, DX Patrol and Octagon.

More details

57,50 € tax excl.

In stock

   More than 10 Items

  • SMA Female

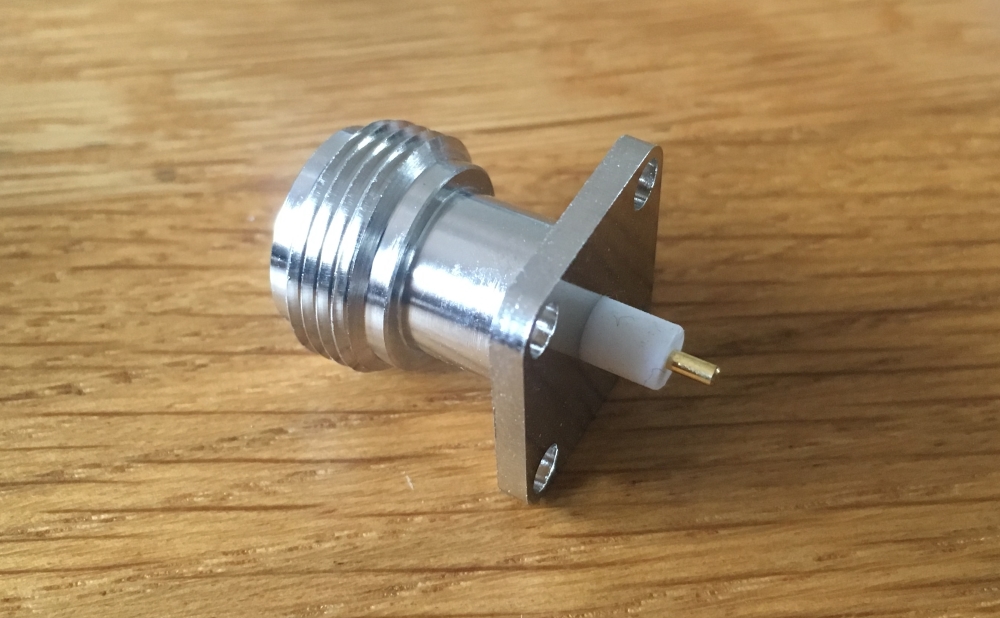

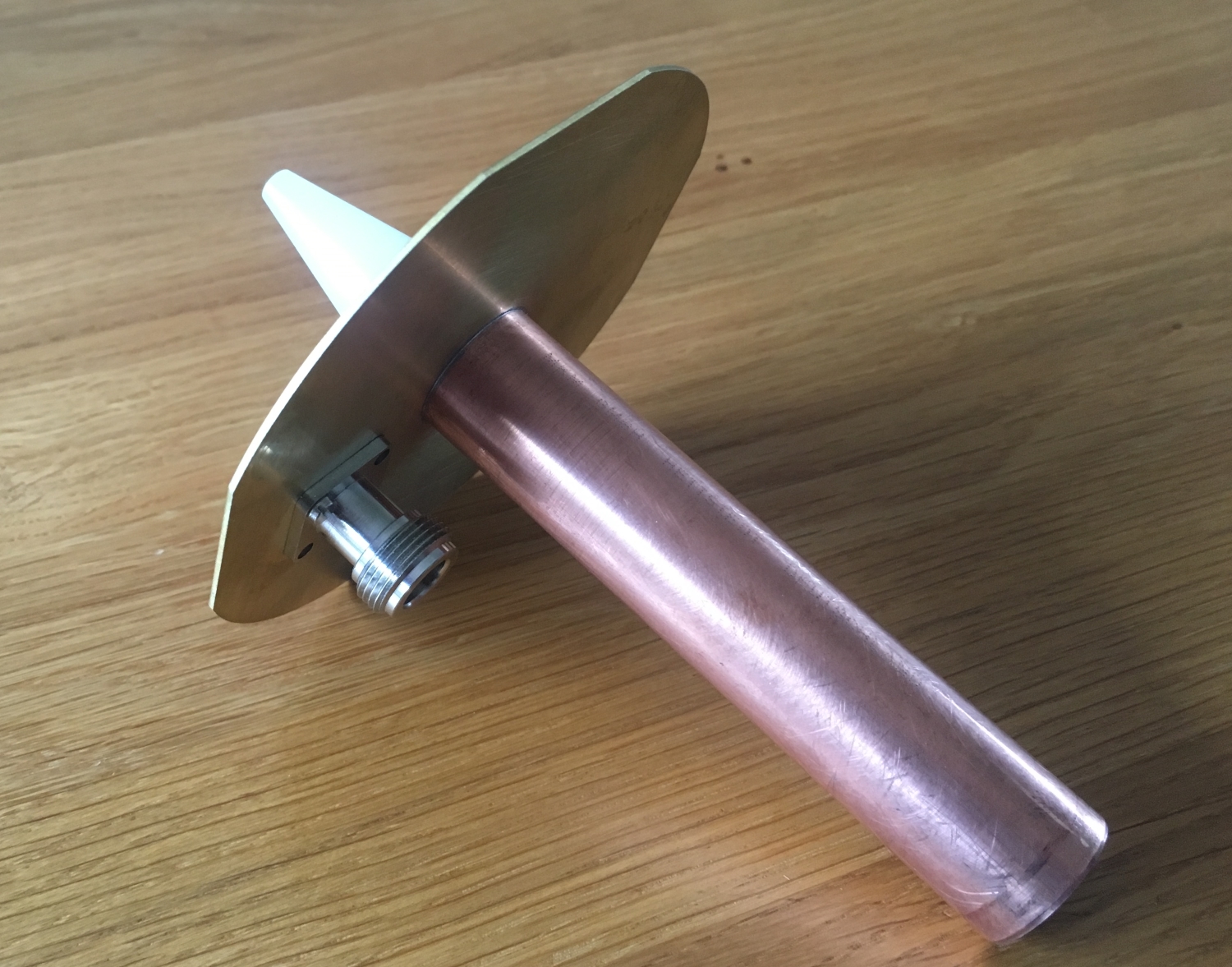

  • N Female

Download

POTY antenna doc

Documentation of dual band antenna for QO-100 Es'Hail2 1.81M

POTY assembly manual

211.8k

POTY assembly manual (FR)

In french. 180.42k

POTY antenna VNA

VNA measurement of the POTY antenna 2.4Ghz uplink by F4ASS 15.57k

Radiation pattern POTY

Radiation pattern, aperture angle of the POTY antenna. 345.67k

Assembly instructions POTY (FR)

POTY antenna mounting manual for the Oscar 100 satellite (QO-100) by F4EGG. 1.55M

Data sheet

LNB assembly of antenna POTY

The quickest and easiest way to mount the POTY antenna on the LNB is to drill a 22mm hole in the plastic cap in front of the LNB and push the POTY waveguide inside.

drill lnb poty 2.4Ghz 10Ghz

For a good insertion of the waveguide in the LNB, we recommend according to the LNB model, to weld a reducer 22/16mm in copper, at the end of the tube of the POTY to come to wedge in the bottom of the waveguide.

With silicone sealant, the LNB head will be fixed and waterproof at the cap.

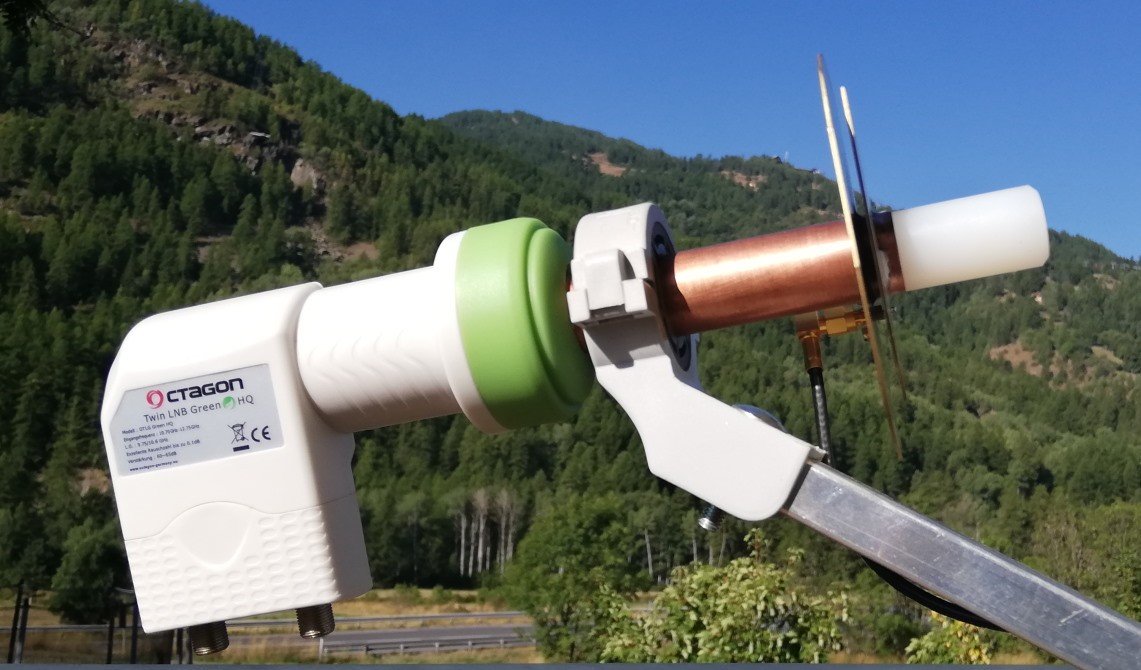

The mounting on the support of the dish is to be done just before the reflective patch, via the tube of the POTY and not via the LNB. A 40/22mm reduction ring is recommended for the proper support of the POTY by the LNB arm.

assembling poty lnb 22mm

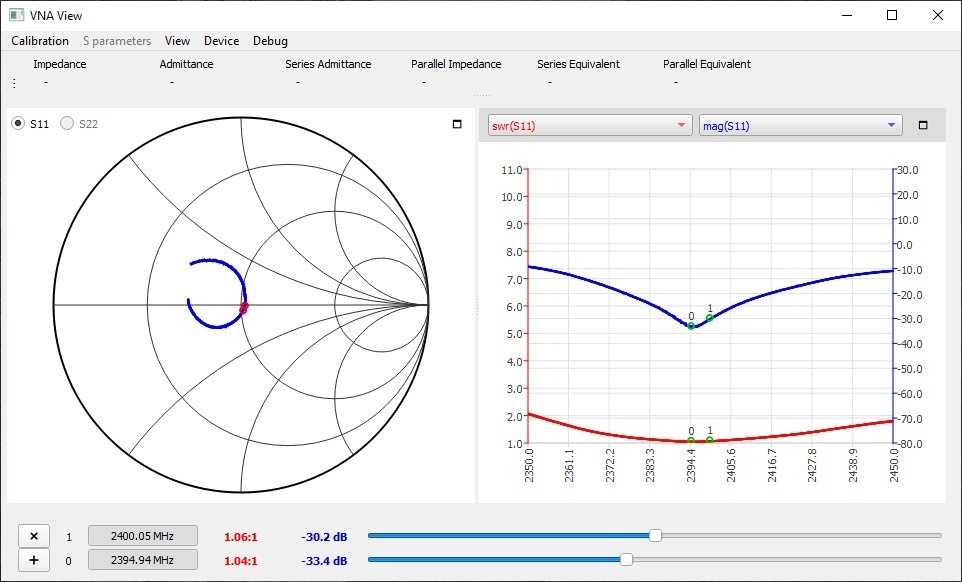

SWR measurement by F4EGG

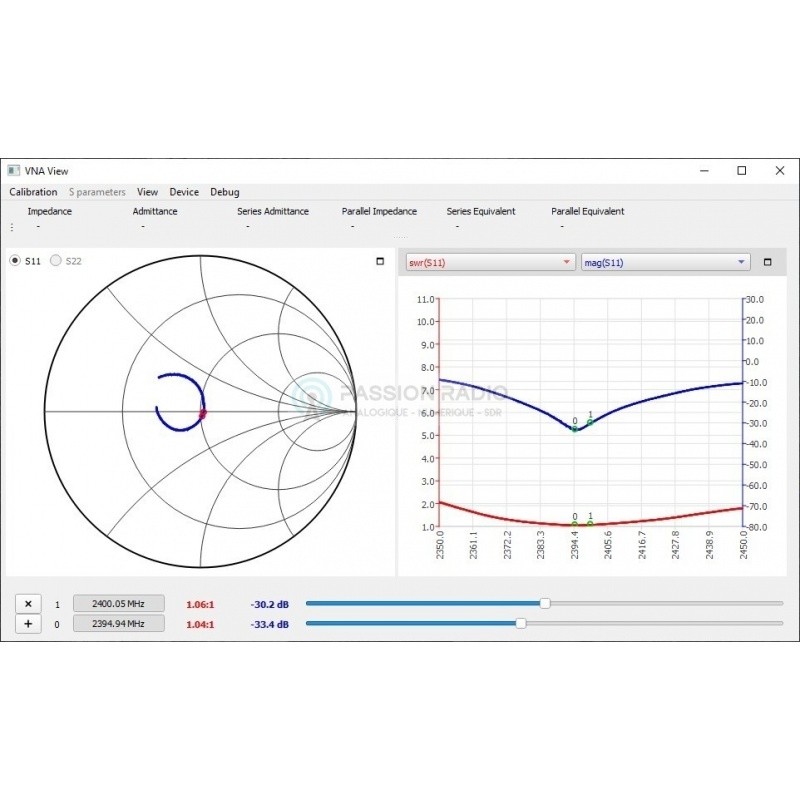

POTY antenna SWR curve on 2.4 Ghz and measured with the Nanovna V2 SAA2N, at Thierry F4EGG station.

ROS SWR POTY
