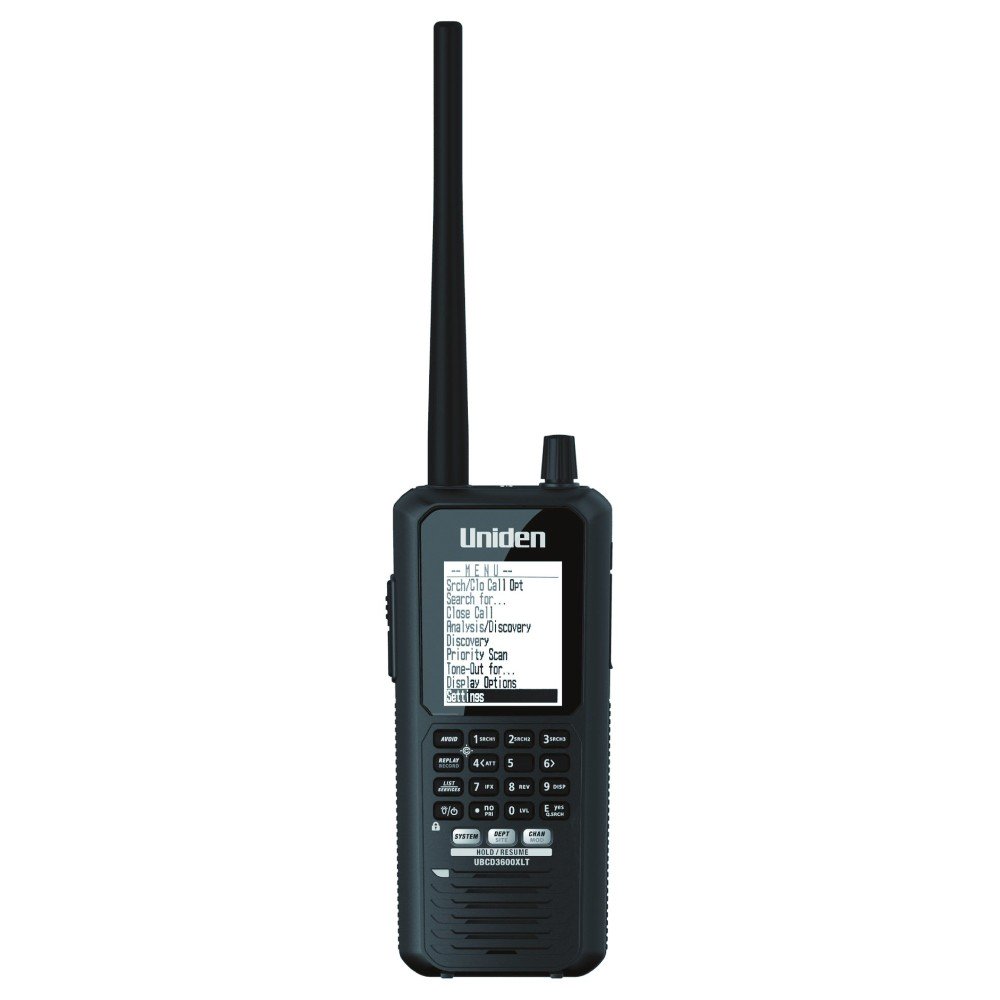

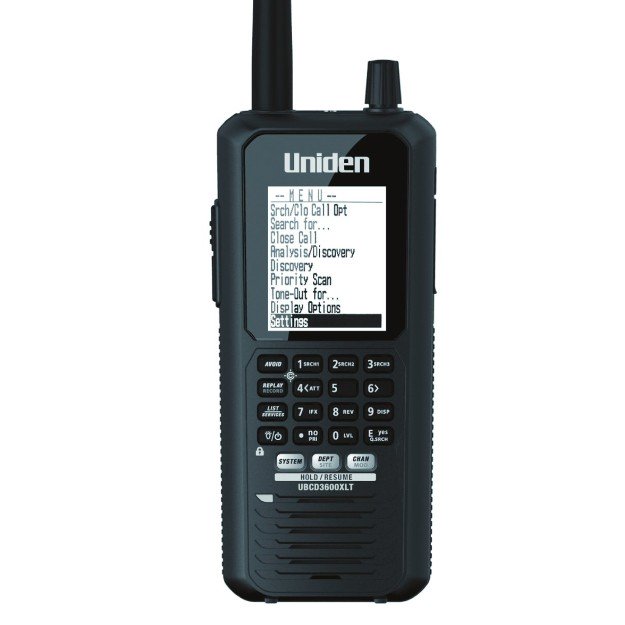

Digital Scanner Uniden UBCD3600XLT 25-1300Mhz DMR P25 NXDN

The new Uniden portable receiver UBCD-3600-XLT is a scanner to listen to digital modes DMR, P25, NXDN and analog AM / FM, it covers from 25Mhz to 1300Mhz.

4GB SD card provided for audio recording, "Close Call" function to quickly find the strongest signals nearby.

Pager and listen to P25 and DMR Tier II digital modes, with KENWOOD NXDN digital mode, all activated.

Programming and firmware update via USB cable included.

Comes with: 1 Uniden Bearcat UBCD3600XLT, 1 USB cable, 3 NiMH rechargeable AA batteries, 1 microSD card (4GB mounted), 1 belt clip, 1 SMA-BNC antenna adapter, 1 BNC antenna, 1 EU 220V power adapter. English manual.

Last model available, this scanner is no longer manufactured by Uniden which replaced it with the SDS100.

More details

Download

Manual UBCD-3600XLT (FR)

Manual Uniden UBCD-3600XLT in french 6.67M

Data sheet

Features bearcat UBCD-3600XLT

Frequency range: 25 to 512 Mhz, 806 to 960 MHz and 1240 to 1300 MHz
No frequencies: 5, 6.25, 7.5, 8.33 (aviation VHF AM), 10, 12.5, 15, 20, 25, 50 or 100 kHz
Scan speed: 85 channels per second, up to 250 / s
Short-range "Close Call" function "Mini-transmitter search"
Analog mode AM / FM and digital P25, DMR and NXDN activated
Keypad and backlit LCD screen
FM radio reception
Micro SD card slot (4GB card included)
Connector for GPS receiver (optional)
Trunk Tracker V
APCO25 Tier I and II, DMR Tier II, Motorola, EDACS, P25
Multi-site trunking
Record the last 240 seconds received
Recorder function
Alarm function when a signal is received
Programmable via software (optional)
Analogue and digital AGC
Priority channel scan
USB Cavern firmware update (includes) with Uniden Sentinel software
S-meter on the screen
Battery status indicator
Keyboard lock
CTCSS / DCS Scan
Antenna connector: BNC female

Weight: 350g with battery and antenna
Size: 7.1 x 3.7 x 16.1cm
CE Standards
