DAIWA CN-501H VSWR Meter / Wattmeter crossed needles 1.8-150 MHz 1500W

View larger

Display all pictures

Manufacturer: Daiwa France

Reference: DAIWA-CN501H-3072

Condition: New product

Country of origin: Japan

Safety Information +

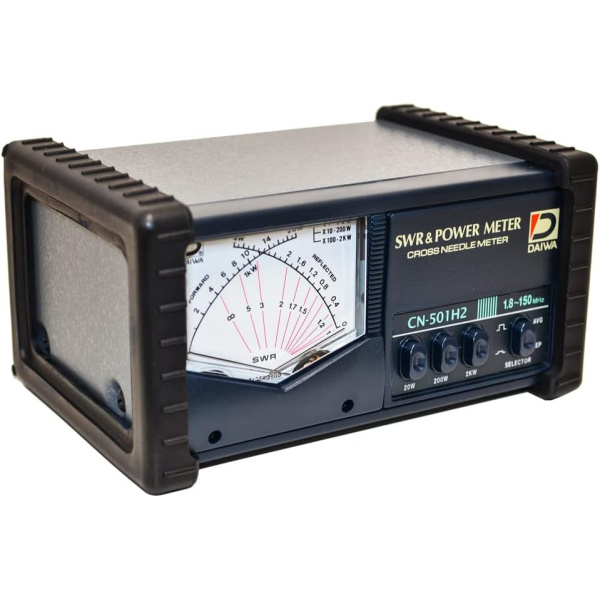

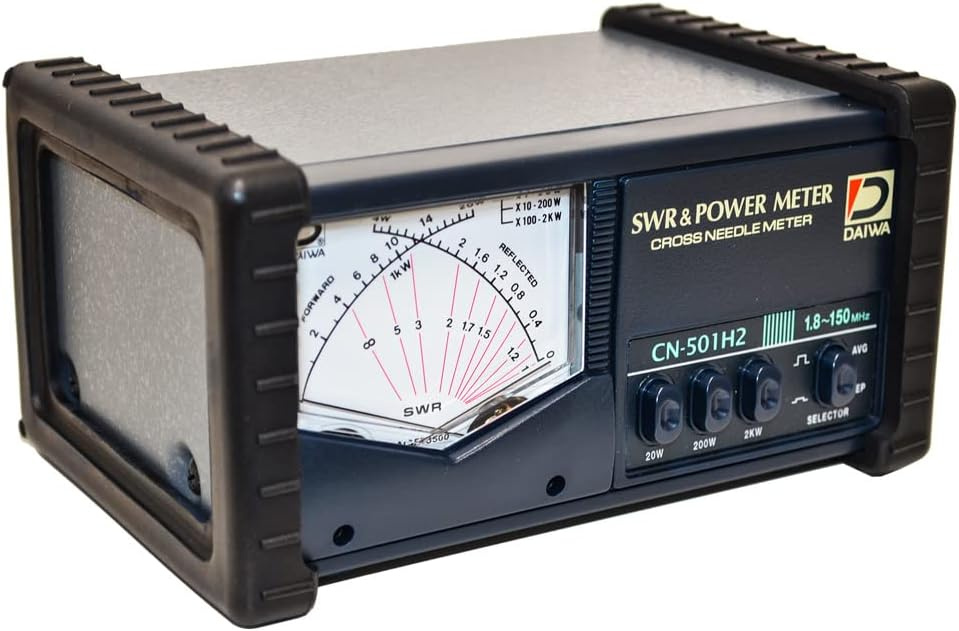

DAIWA CN-501H VSWR Meter / Wattmeter crossed needles 1.8-150 MHz 1500W

No review at the moment

VSWR / Wattmeter DAIWA CN-501H - Professional measuring instrument for frequencies 1.8-150 MHz with 3 switchable power ranges.

This compact and accurate VSWR meter is ideal for antenna tuning and VSWR monitoring. It allows simultaneous SWR and power measurement with high accuracy.

- Simultaneous SWR and power measurement
- 3 switchable ranges: 15/150/1500W
- Extended frequency range 1.8-150 MHz
- Minimum SWR power only 4W

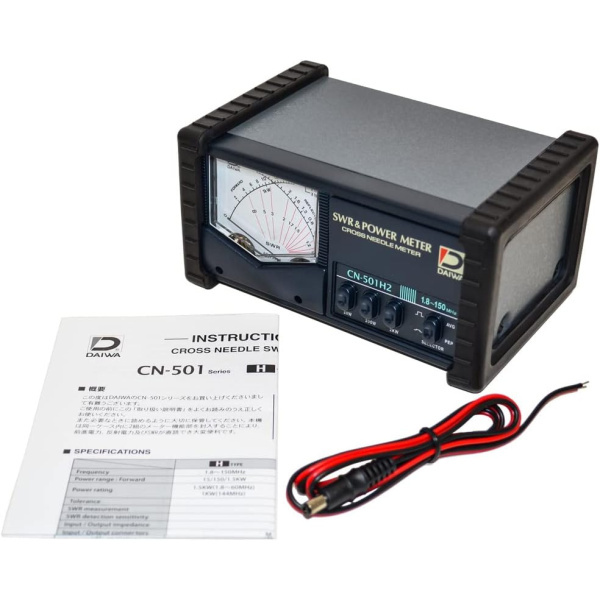

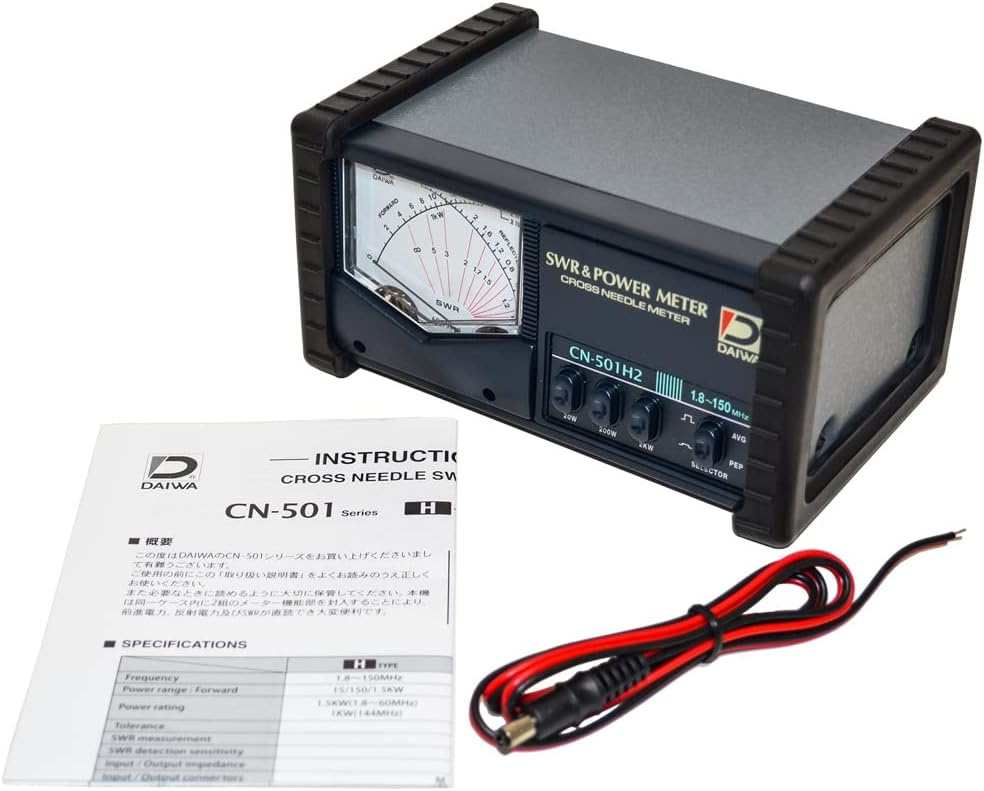

Supplied with : CN-501H SWR meter, 12V power cord, user manual.

More details

Data sheet

Full technical specifications

Frequency range: 1.8-150 MHz
Type: VSWR / Wattmeter
Impedance: 50 Ohms
Power: 15/150/1500W (switchable)
Minimum SWR power: 4 Watts
Supply voltage: 12 Volts

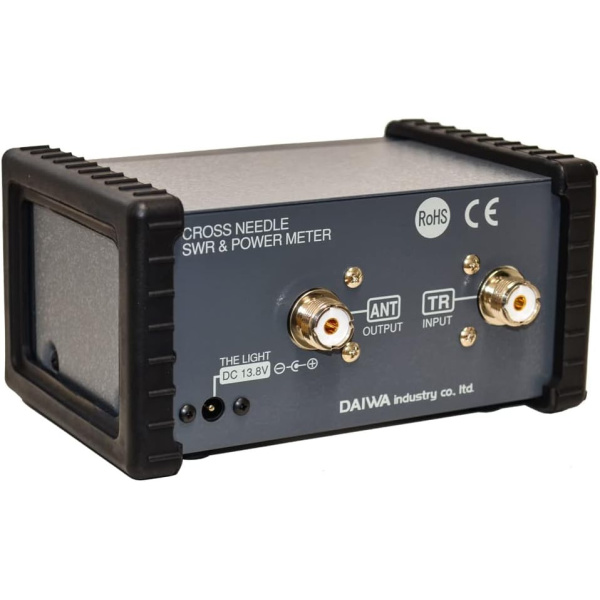

Connectors: 2 x PL female (SO-239)
Dimensions: 155 x 80 x 100 mm
Weight: 752 grams

Features

3 power range switching
Precise VSWR measurement
Direct reading on dial
Robust construction
Stable calibration

FAQ

Q: What is the minimum power required to measure VSWR?
A: Only 4 Watts are required for accurate VSWR measurement.

Q: How do I change the power range?
A: Use the switch to select 15W, 150W or 1500W.

Q: Is a 12V power supply required?
A: Yes, a 12V power supply is required for operation.
