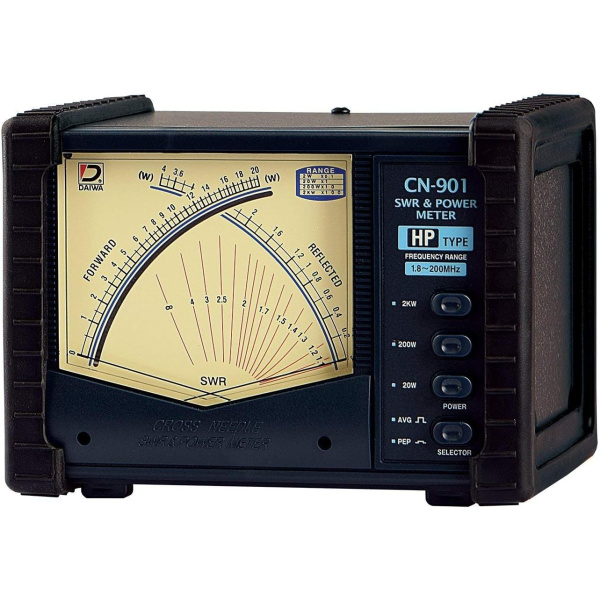

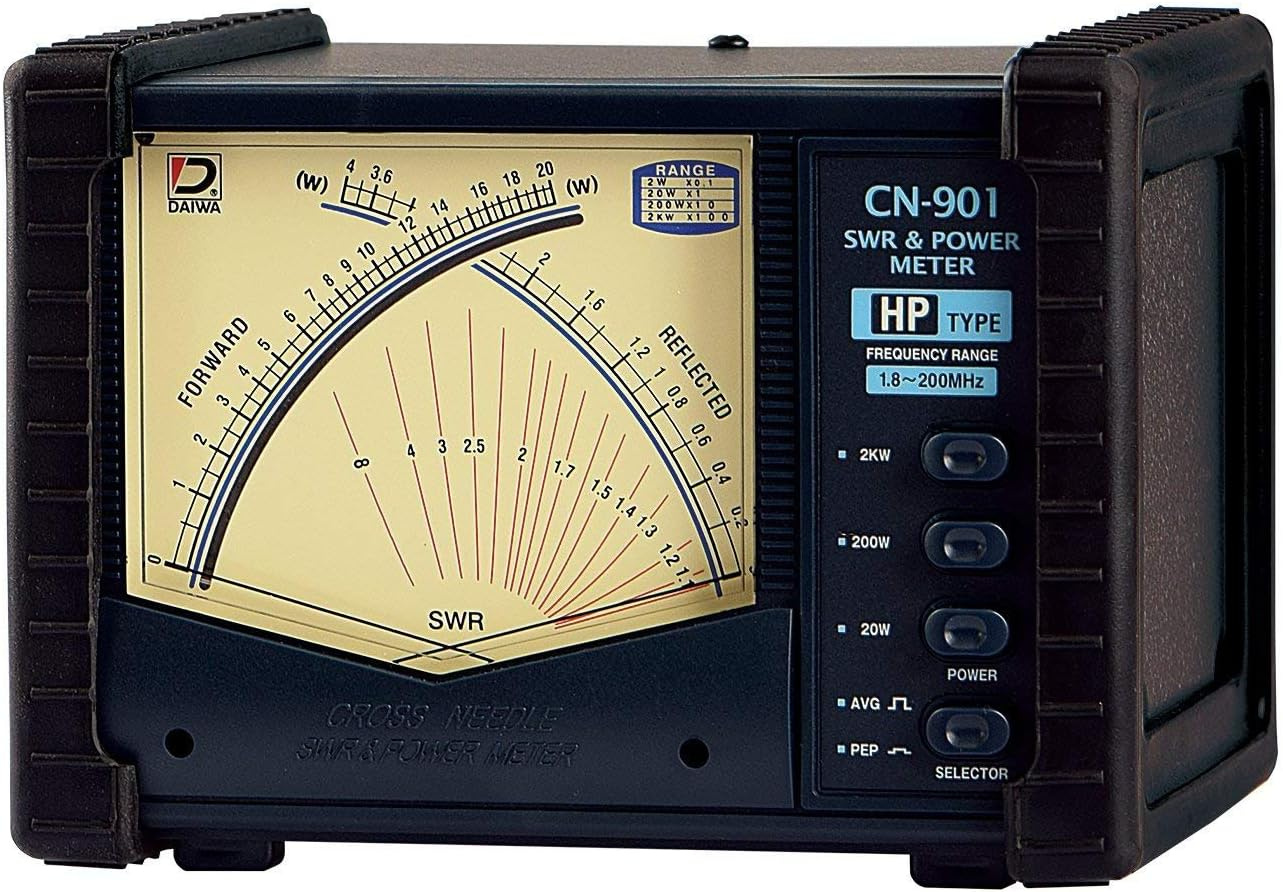

DAIWA CN-901HP VSWR Meter / Wattmeter 1.8-200 MHz crossed needles 2000W

View larger

Display all pictures

Manufacturer: Daiwa France

Reference: DAIWA-CN901HP-3073

Condition: New product

Country of origin: Japan

Safety Information +

DAIWA CN-901HP VSWR Meter / Wattmeter 1.8-200 MHz crossed needles 2000W

No review at the moment

DAIWA CN-901HPSWR / Wattmeter - Professional, large-format cross-needle meter for frequencies 1.8-200 MHz.

This top-of-the-range SWR meter offers fast, accurate reading thanks to its large cross-needle dial. Ideal for tuning antennas and monitoring demanding amateur radio stations.

- Large dial with crossed needles
- 3 ranges: 20/200/2000W switchable
- Average and peak power measurement (PEP Hold)
- Integrated backlight with anti-parallax mirror
- Removable shock protection
- Simultaneous power/ROS reading

Supplied with : CN-901HP VSWR meter, 13.8V power cord, shock protectors, user manual.

More details

Data sheet

Frequency range: 1.8-200 MHz (HF + VHF)
Type: VSWR / Wattmeter with crossed needles
Impedance: 50 Ohms
Power: 20/200/2000 Watts (3 ranges)
Tolerance: ±10% of scale
Minimum SWR power: 5 Watts
Supply voltage: 13.8V (lighting + PEP)

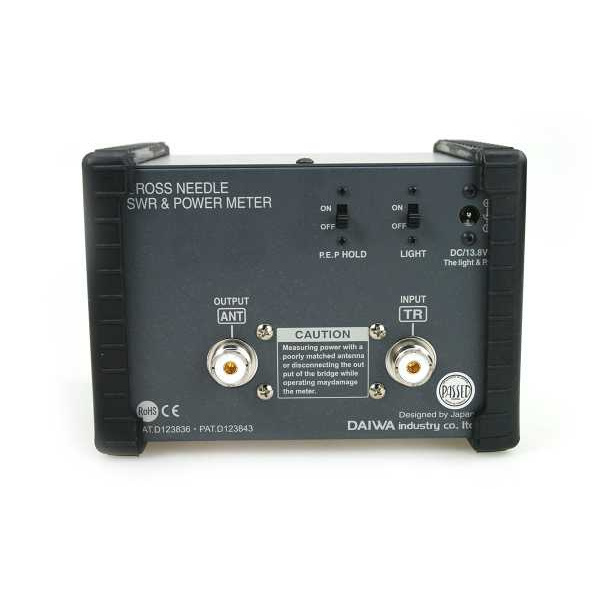

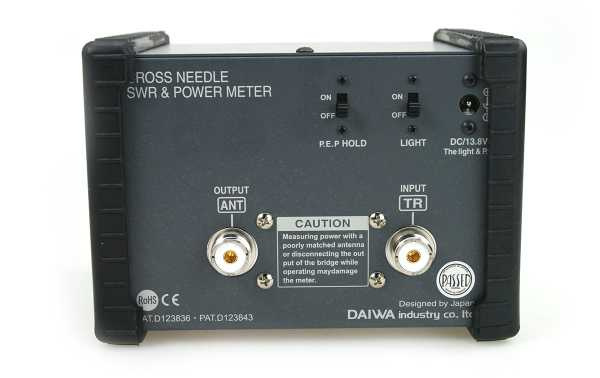

Connectors: 2 x SO-239
Dimensions: 157 x 117 x 117 mm
Weight : 1 kg

Features

Cross-needle system for fast reading
Average and peak power measurement (PEP Hold)
Large backlit dial
Anti-parallax mirror
4 buttons: 3 ranges + AVG/PEP
Removable shock-proof covers
No calibration required

FAQ

Q: What is the difference between average and peak measurement?
A: Average measurement (AVG) gives continuous power, peak measurement (PEP) peak power.

Q: Is the 13.8V power supply compulsory?
A: Yes, necessary for lighting and the PEP Hold function.

Q: How do I quickly read the SWR?
A: The crossed needles allow direct reading without prior calibration.
