View larger

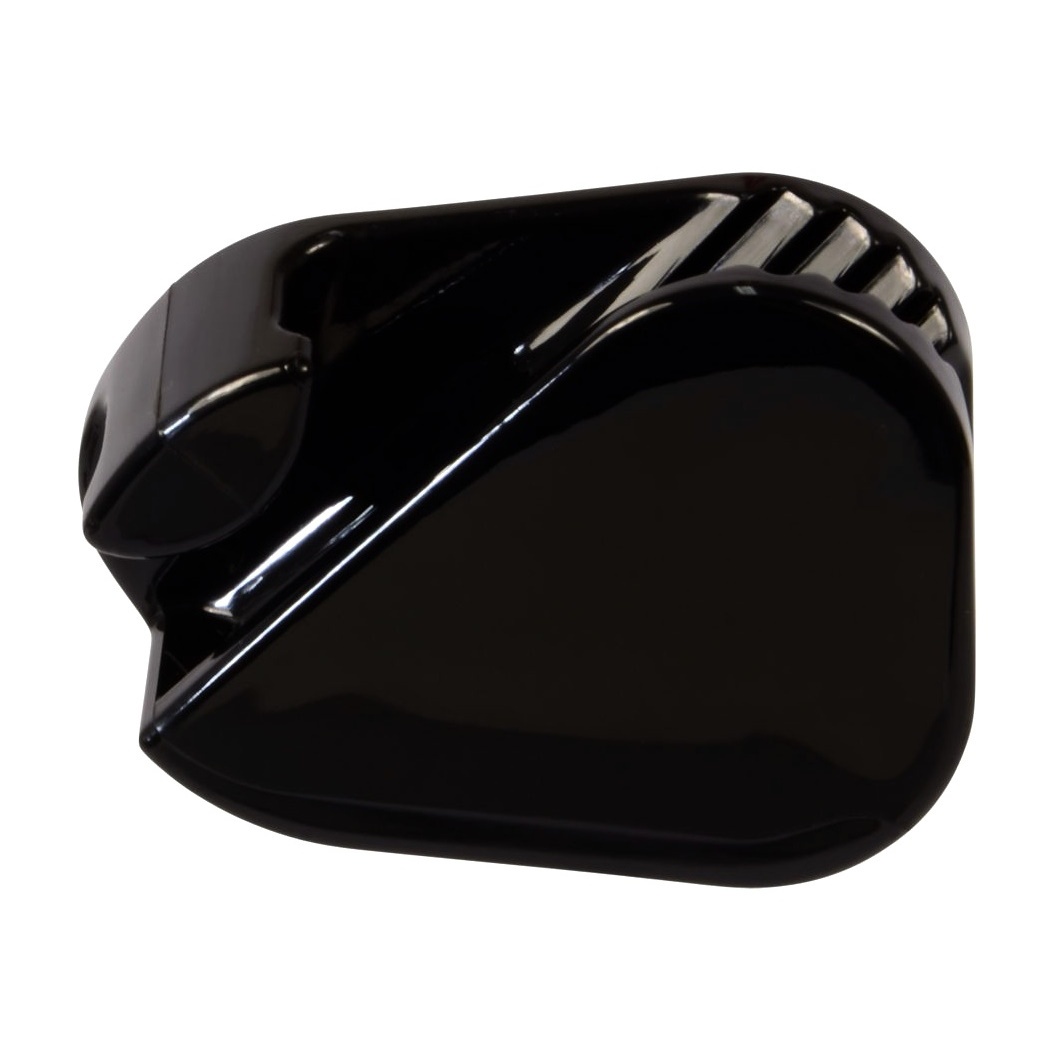

Loop tensioner black cleat for 3 to 6 mm rope
Read the 2 reviewsClamcleat loop tensioner for rope diameters from 3 mm (1/8") to 6 mm (1/4"). Black colour. UV stabilised nylon.

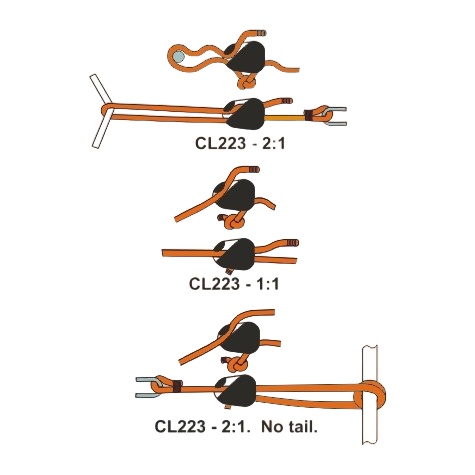

Attached to a rope, the CL223 is quick to tension, easy to adjust and easy to release. Used for tensioning guy wires on antenna masts, wire antennas, tents and canvas structures or boat sails.
Dimensions: 52 x 16 x 39 m
Strength: 300 daN, ~kg
Download
Guide in French to choose your Mastrant guying antenna system and accessories. 994.98k
Guide in English to choose your Mastrant guying antenna system and accessories. 1.02M
Data sheet
The service life depends on how the cleats are used. When used for light loads on control lines, cleats can last 10 years.
However, stretching a rope by pulling it back through the teeth will burn out a nylon cleat more quickly. This is why alloy cleats were originally developed.
Alloy cleats can withstand this type of use, provided the rope is clean. A dirty, sandy rope will wear out any binding.
Hard anodised cleats have a slightly higher wear resistance than silver cleats. Nylon cleats are completely resistant to corrosion in salt water. They are also resistant to many acids and chemicals. Alloy cleats have excellent corrosion resistance. Anodised cleats have slightly better corrosion resistance than silver cleats.

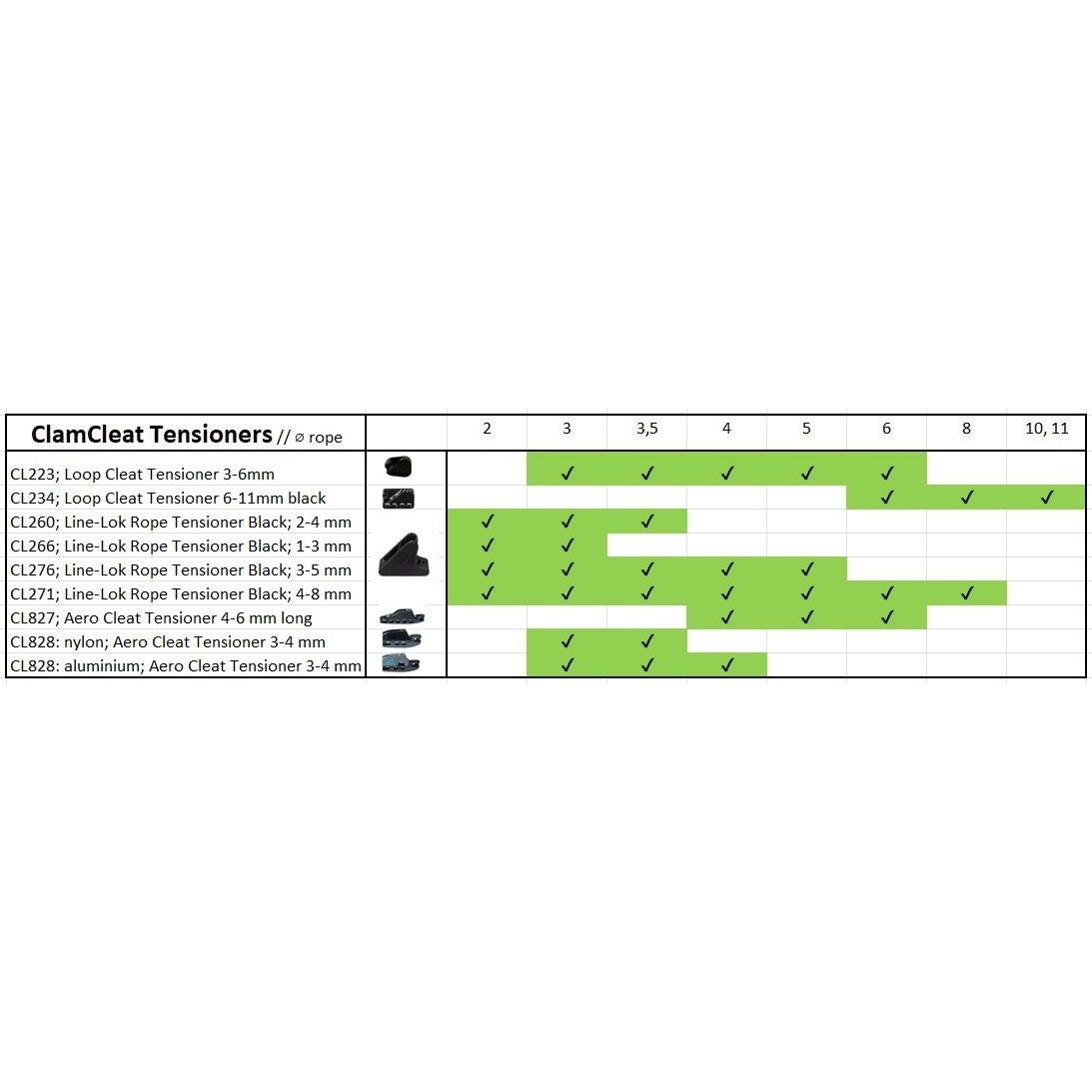

To help you choose the correct guy ropes and the necessary and compatible accessories, see the installation diagrams and tables in the Mastrant guide, available in the"Download" section.
