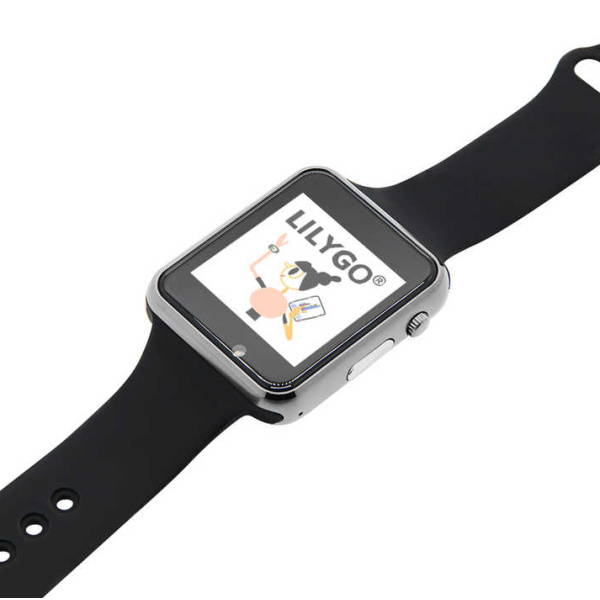

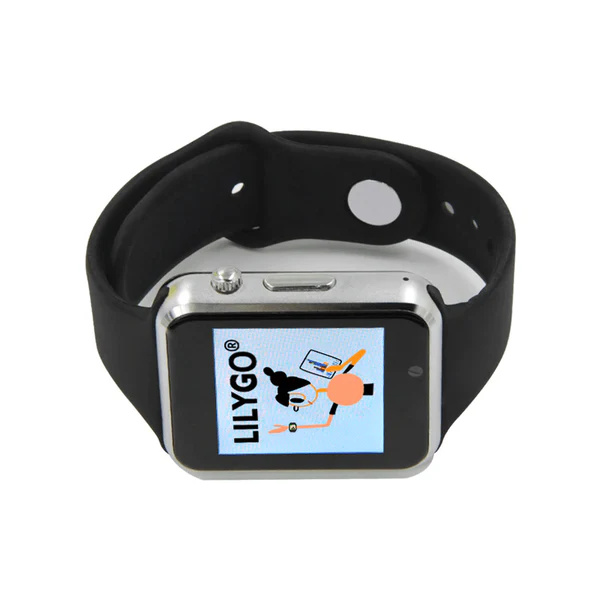

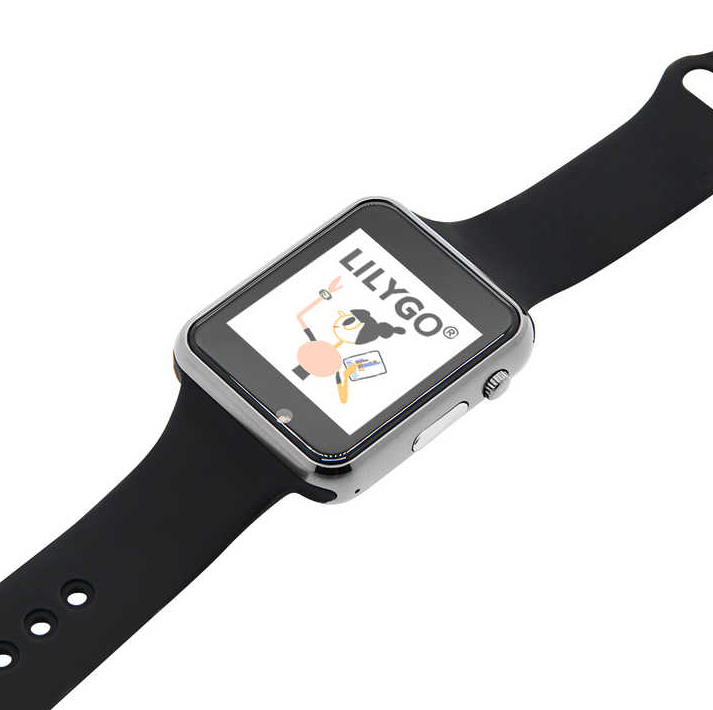

LILYGO T-Watch S3 LoRa 868MHz Meshtastic Watch

rating No review at the moment

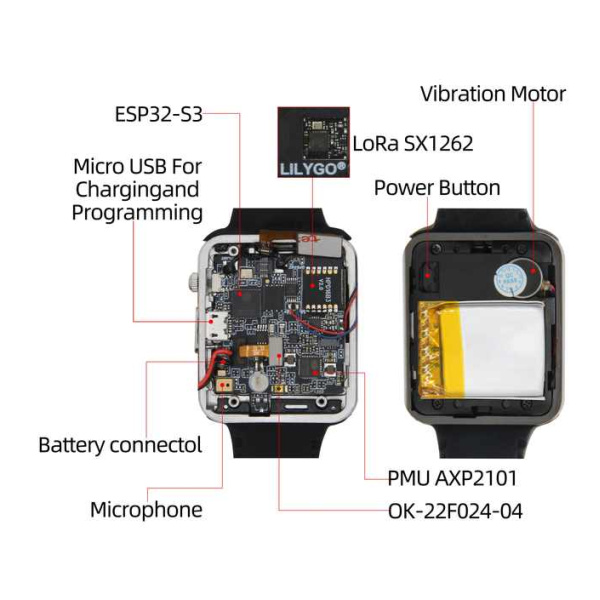

Connected watch with ESP32-S3 and LoRa SX1262 868MHz module. Perfect for portable mesh communications and geolocation applications.

  • 1.54-inch colour touchscreen
  • Dual-core ESP32-S3 processor
  • LoRa SX1262 868MHz module
  • Accelerometer and gyroscope sensors
  • Meshtastic firmware pre-installed
  • Adjustable silicone strap

Supplied with: magnetic charging cable, silicone wrist strap, 868MHz antenna, user manual.

More details

58,92 € tax excl.

In stock

   More than 10 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

Technical specifications

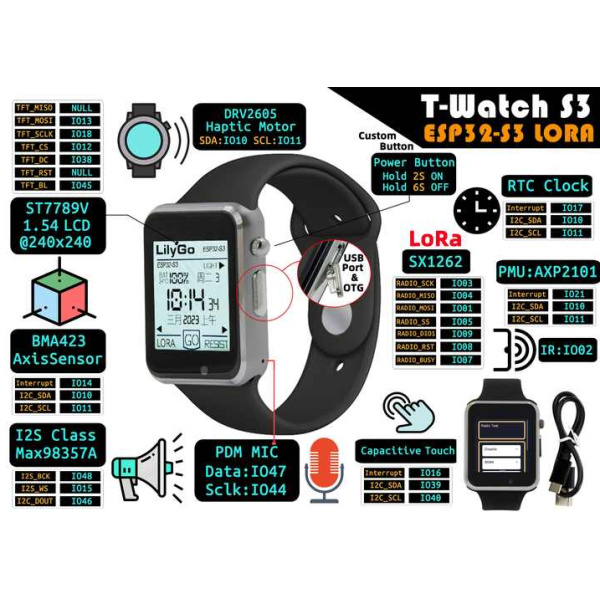

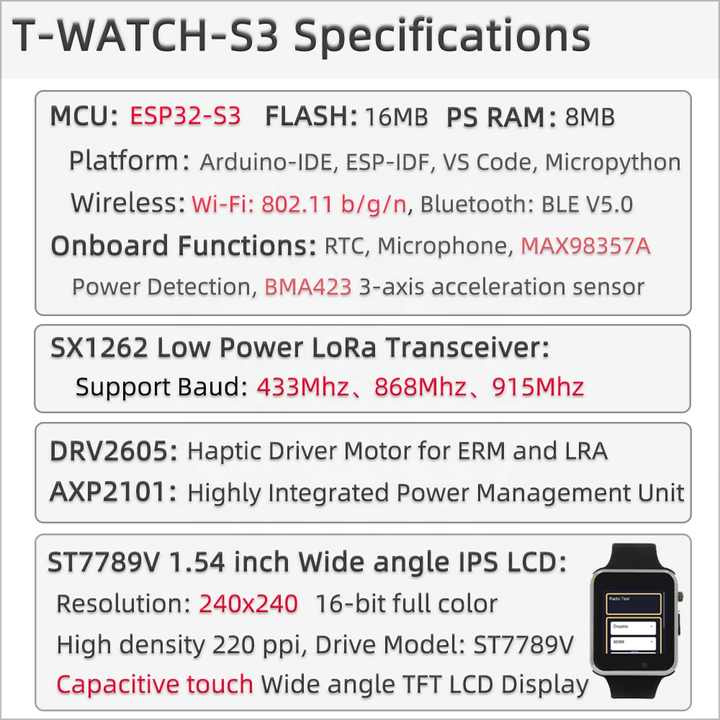

  • Processor: ESP32-S3 dual-core Xtensa LX7 up to 240MHz
  • Screen: 1.54-inch 240x240px colour TFT touchscreen
  • LoRa module: SX1262 868MHz
  • Transmit power: Up to +22dBm
  • Battery: 500mAh Li-Po rechargeable battery
  • Sensors : Accelerometer, gyroscope
  • Connectivity : WiFi 802.11 b/g/n, Bluetooth 5.0
  • Charging: Magnetic
  • Water resistance: IP54
  • Dimensions: 45 x 38 x 12 mm

Features

  • Connected watch with LoRa communication
  • High-resolution colour touchscreen
  • Meshtastic firmware pre-installed
  • Activity tracking and notifications
  • Geolocation and location sharing
  • Comfortable silicone wristband
  • Splash-proof

FAQ

Q: What is the battery life of the watch?
A: The battery life is approximately 1-2 days, depending on the use of LoRa and the screen.

Q: Is it waterproof?
A: It has IP54 protection against splashes, but is not submersible.

Q: Can I receive notifications?
A: Yes, you can receive notifications from your smartphone via Bluetooth.

Q: Is GPS integrated?
A: No, but geolocation can be done via a connected smartphone or mesh triangulation.
