Universal automatic tuner mAT-1500PRO MAT-TUNER for YAESU ICOM KENWOOD View larger

MAT-TUNER

MTUNER-MAT-1500PRO-V1-2741

New product

China

Safety Information +

QRO V1 mAT-1500PRO universal automatic tuner MAT-TUNER 1500W

rating No review at the moment

The mAT-1500Pro V1 is a high-power, multi-function automatic antenna tuner, capable of adapting to almost any transmitter and amplifier. It is specifically designed to support a maximum RF power of 1500 watts in SSB mode.

This model allows two antennas to be connected simultaneously, maximising flexibility and efficiency of use. Compatible with a wide range of devices, specifically transmitters and power amplifiers of different brands depending on their connectivity (cable optional).

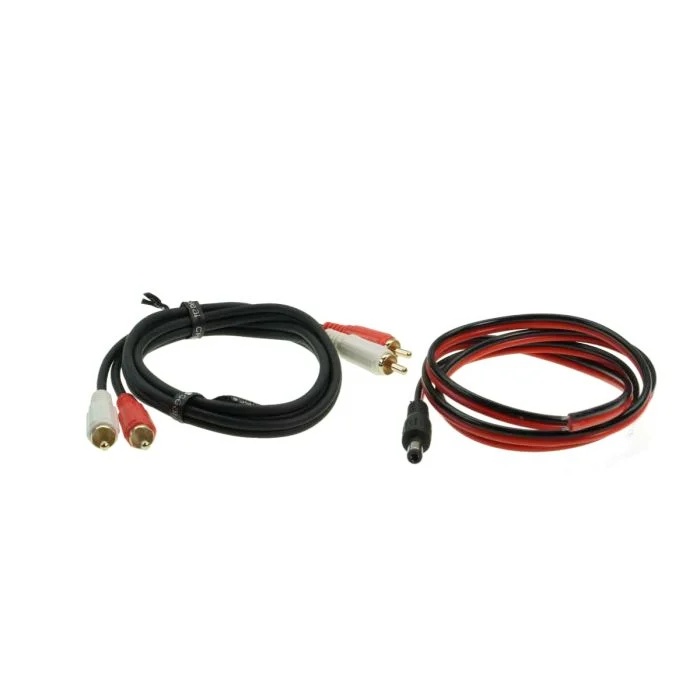

Supplied with: 1 mAT-1500PRO V1 tuner, 2 RCA control cables, 1 DC 12V connection cable and 1 manual.

Not included: The interface cable between the tuner box and the set, available as an option depending on the brand of transceiver:

mAT-CK: For Kenwood
mAT-CI: For ICOM
mAT-CY: For YAESU

More details

699,00 € tax excl.

Out of stock, available in 7-10 days

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

Data sheet

  • Maximum RF power: 1500 watts in SSB mode / 500W in FT8/AM/RTTY/PSK mode
  • Number of antennas connectable: 2 simultaneously
  • Operating modes: YAESU, ICOM, KENWOOD, and GENERAL
  • PTT line loopback: Enables the power amplifier to be looped back behind the tuner to avoid high-power settings that could damage the tuner's relays.
  • Tuning impedance range: Approx. 6 to 1000 ohms
  • VSWR range: Up to 10:1
  • Antenna types supported: Includes coaxial antennas, such as G5RV antennas with balun and wideband vertical antennas.

The mAT-1500Pro is designed to minimise manual operations and maximise automation, improving the convenience and efficiency of the wireless communication system. It offers a robust and adaptable solution for any antenna system in the shortwave range.

Important note: When used in FT8/FT4 digital mode, or in AM, RTTY, PSK carrier mode, the maximum power must be reduced by at least half (500-800W max recommended), and when tuning the transmitter power must be at a minimum (20W max), otherwise the tuner will burn out and this will not be taken into account in the warranty in the event of excessive power.
