New MAT-TUNER MAT-1500PROII V2 automatic universal 1500W SSB 1.8-30MHz + screen View larger

MAT-TUNER

MTUNER-MAT-1500PROII-V2-3075

New product

China

Safety Information +

MAT-TUNER MAT-1500PROII V2 automatic universal 1500W SSB 1.8-30MHz + screen

rating No review at the moment

The MAT TUNER mAT-1500ProII V2 is a versatile, high-power 1500 watt (SSB) automatic antenna tuner that can be adapted to almost any transmitter and linear amplifier in the 1.8 to 30 MHz frequency range and allows 2 antennas to be connected at the same time.

The tuner has three modes: YAESU, ICOM and GENERAL, and can automatically determine and adapt the type of transmitters connected to minimise manual operations.

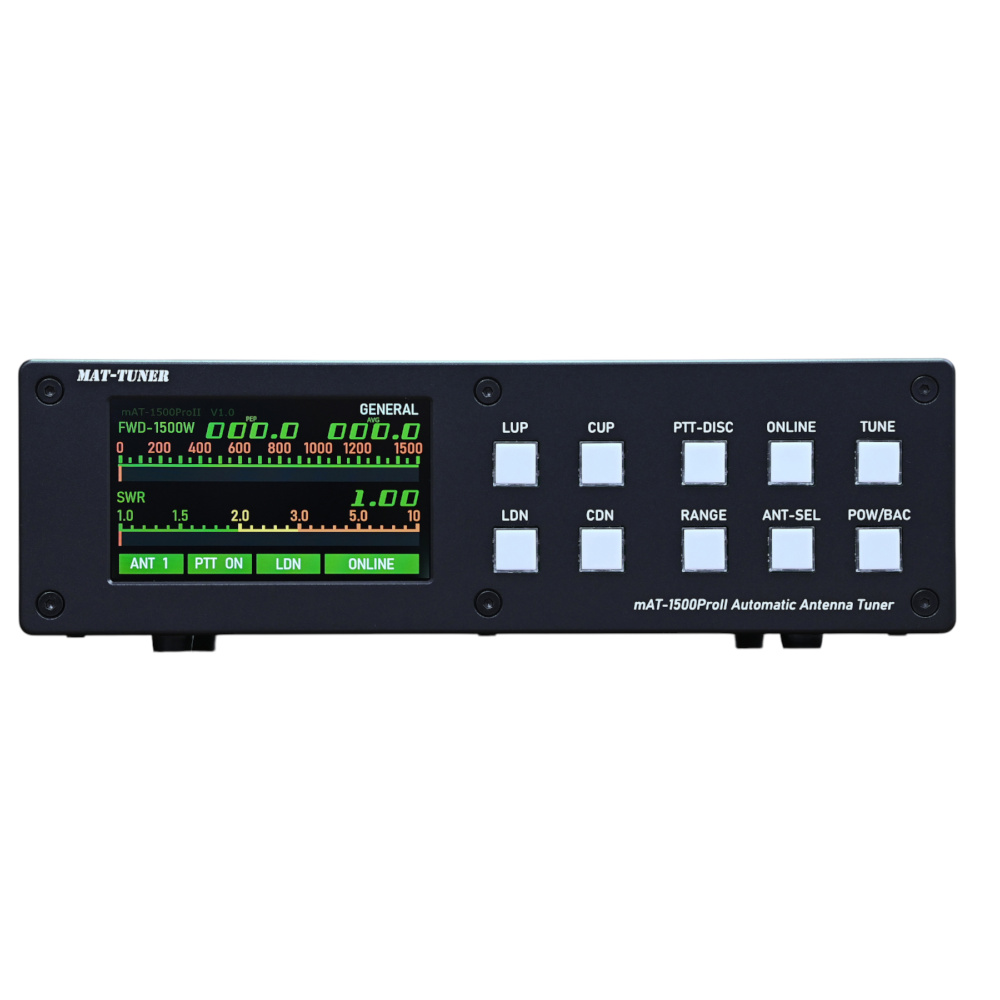

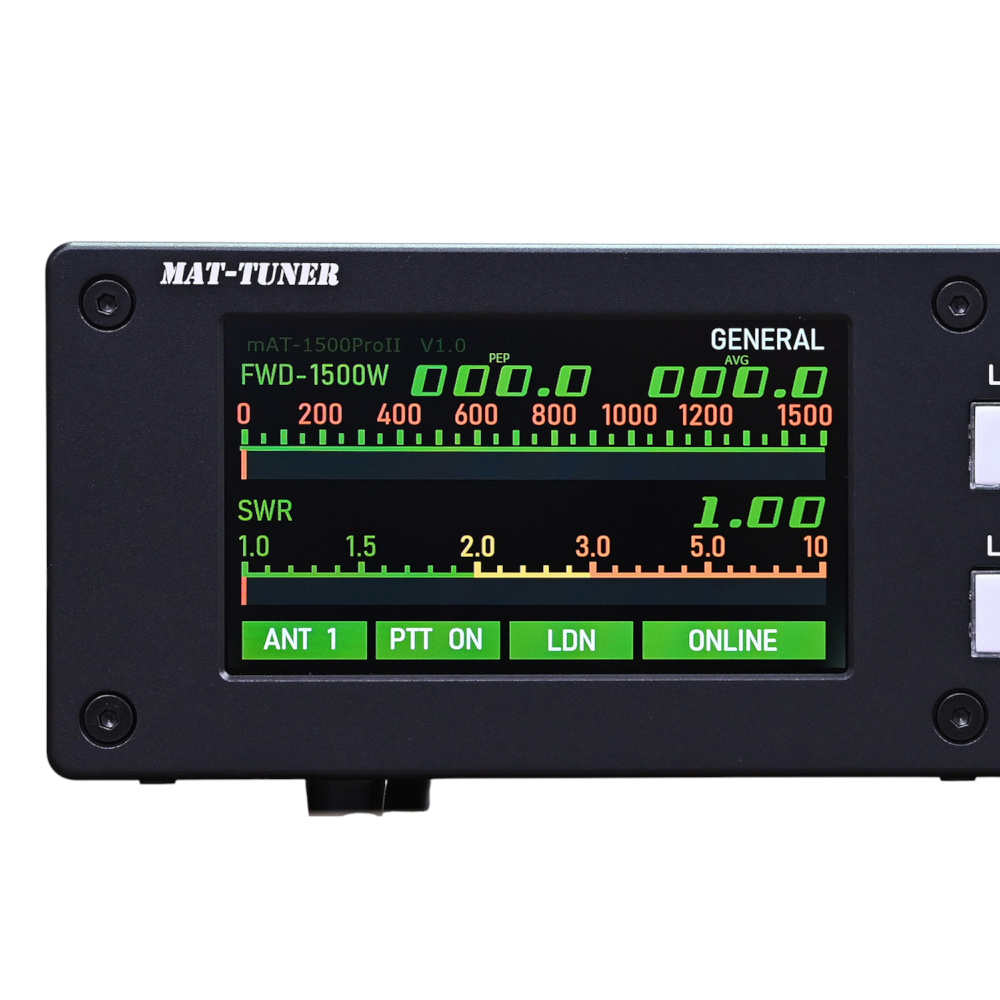

The mAT-1500ProII V2 can accurately measure current RF power and SWR, and display them on a high-resolution 4.3-inch screen.

The display can also show information such as tuner operating status. When set to BYPASS mode, it can be used as an accurate RF power and SWR analyser in QRO mode.

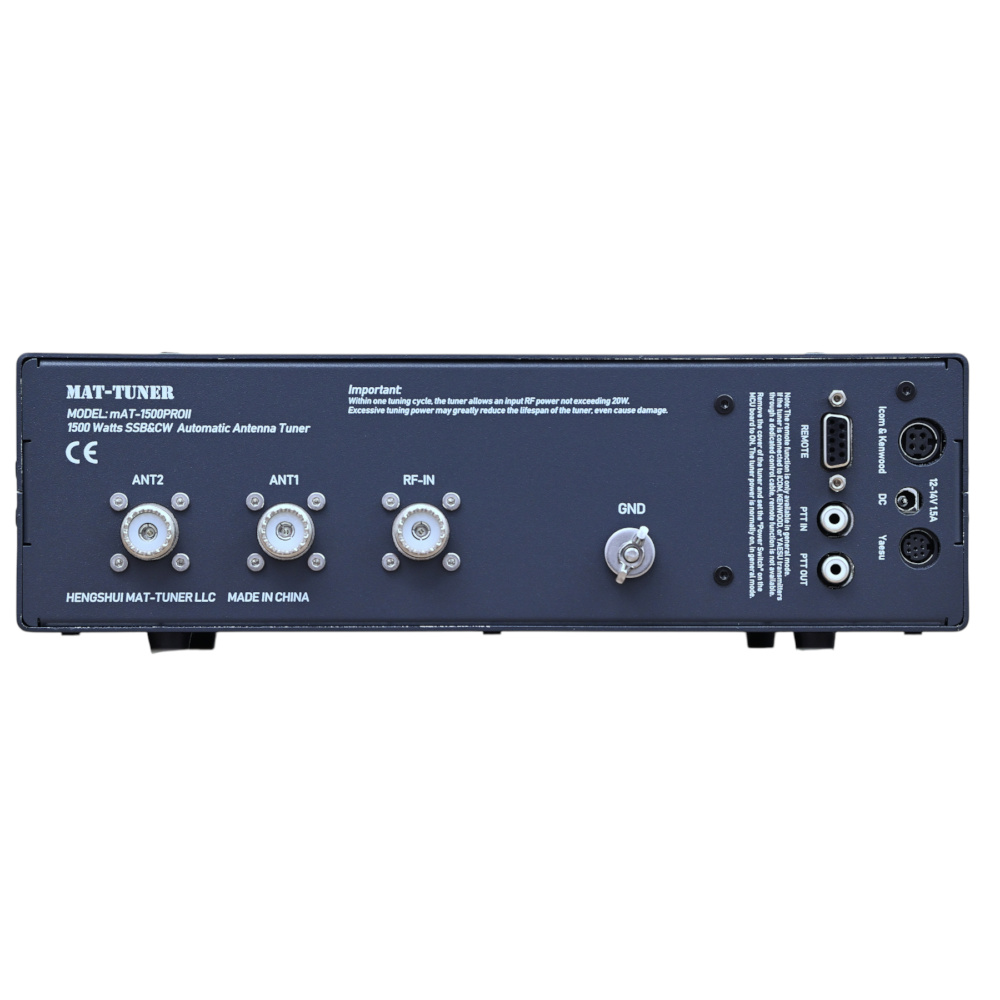

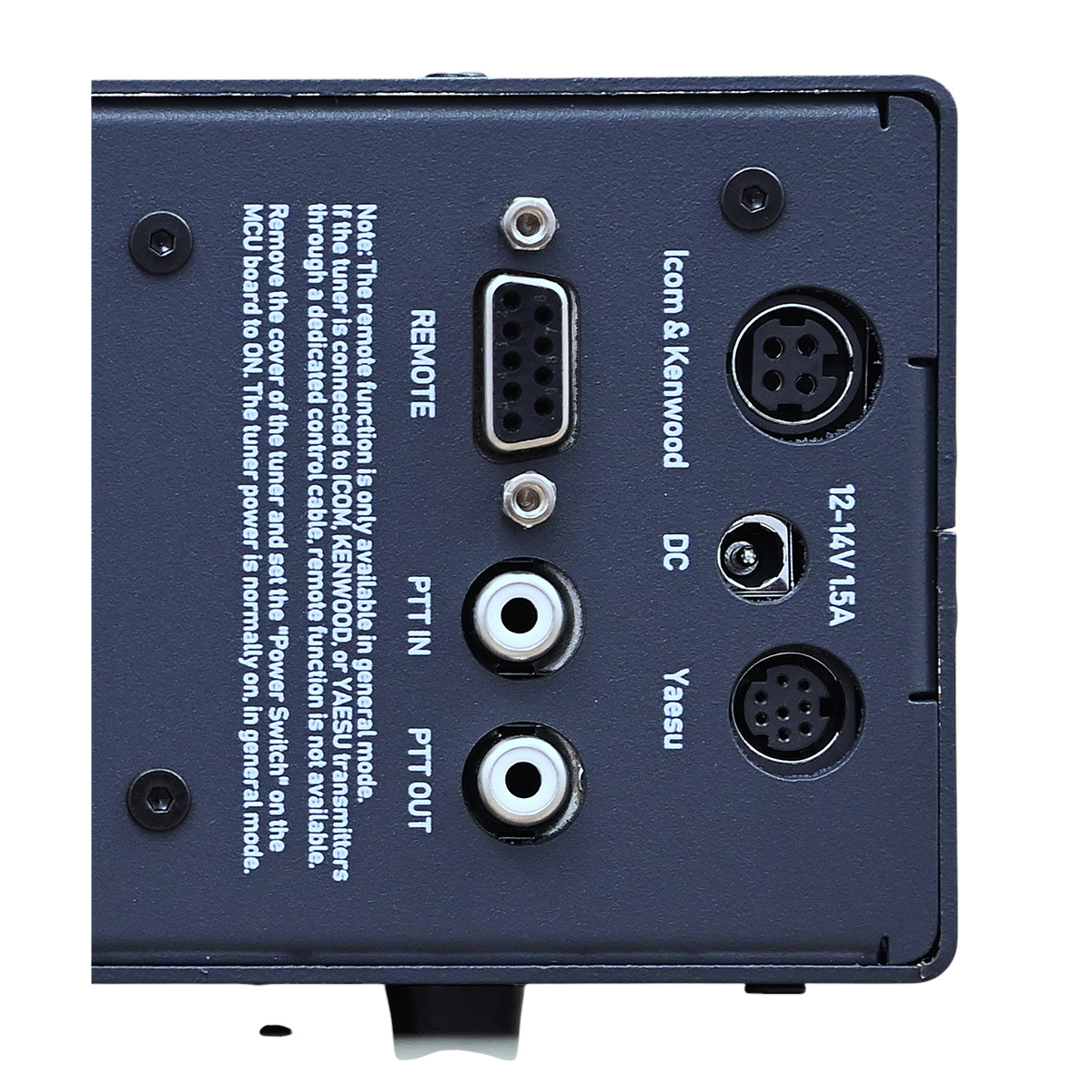

It can also be remotely controlled via the RS232 control interface on the rear panel, allowing easy control from a computer or other terminal.

Supplied with: 1 mAT-1500PROII V2 tuner, 2 RCA control cables, 1 DC connection cable and 1 manual.

Not included: The interface cable between the tuner box and the set-top box, available as an option depending on the brand of transceiver:

mAT-CK: For Kenwood
mAT-CI: For ICOM
mAT-CY: For YAESU

More details

849,00 € tax excl.

Out of stock, available in 7-10 days

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

  • Maximum RF power: 1500 watts in SSB mode / 500W in FT8/AM/RTTY/PSK mode
  • Number of antennas connectable: 2 simultaneously
  • Operating modes: YAESU, ICOM, KENWOOD, and GENERAL
  • PTT line loopback: Enables the power amplifier to be looped back behind the tuner to avoid high-power settings that could damage the tuner's relays.
  • Tuning impedance range: Approximately 6 to 1000 ohms
  • VSWR range: Up to 10:1
  • Antenna types supported: Includes coaxial antennas, such as G5RV antennas with balun and broadband vertical antennas.
  • With VSWR and power measurement - new in V2
  • Display screen new V2

Important note: When using in FT8/FT4 digital mode, or in AM, RTTY, PSK carrier mode, the maximum power must be reduced by at least half (500-800W max recommended), and when tuning the transmitter power must be at a minimum (20W max.), otherwise the tuner will burn out and this will not be taken into account in the warranty in the event of excessive power.
