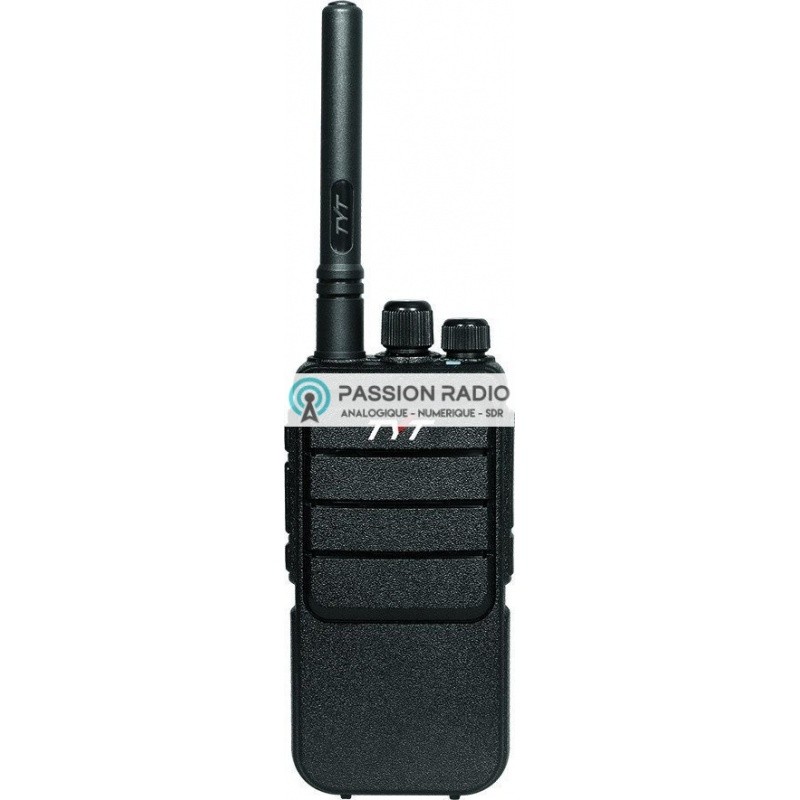

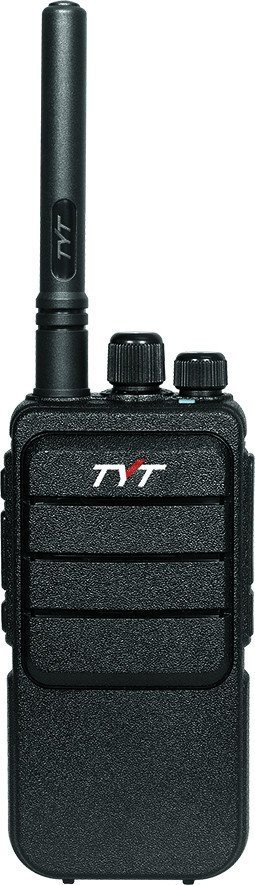

DMR & FM Handheld TYT MD-280 VHF 136-174Mhz

Talkie-Walkie, genuine TYT MD-280 analog FM and digital DMR, single-band VHF in reception and transmitting from 136 to 174MHz with 5 watts. Compatible with Mototrbo, Tier I and Tier II, and TDMA (2 TimeSlot). Similar to TYT MD-380 except without keypad or display.

Comes complete with: 1 TYT MD-280 DMR VHF, 1 desktop charger 110V-220V (price EU), 1 battery (Li-ion 7.2V 1700mAh), 1 antenna 36cm, 1 antenna 17cm, manual in english. 2 years warranty by Passion Radio Shop.

The TYT MD-280 features a 2-pin Kenwood standard microphone or headset connector.

The antenna connection on the handheld is SMA female.

This radio is sold non-programmed, neither in frequencies and without codeplug. Programming is to be done by the user. Passion Radio no longer provides support for amateur radio DMR programming given too many DMR networks which some are incompatible with each other. It is the responsibility of the administrators of the DMR networks to provide ready-to-use codeplugs for the users of their networks.

More details

Download

CPS software 1.12 MD-380UV/390UV

TYT codeplug CPS editor for Windows and MD-380UV and MD-390UV, dual-band only. 1.81M

Software CPS TYT 1.41 MD-380/390

Windows TYT 1.41 CPS programming software and codeplug editor for MD-380 and MD-390 single-band. 1.74M

Data sheet

Specifications TYT MD280

- Digital Walkie DMR and analog FM
- Single-band VHF 136-174Mhz RX and TX
- Compatible with Mototrbo Tier I & II
- TDMA (2 TimeSlot)
- Private call, group call, all calls
- Battery 2000 mAh
- CTCSS / DCS
- 32 programmable channels
- Power: Low 1W, High 4W
- Encryption mode

2 year warranty by Passion Radio Shop and CE / FCC.

Technical Data

- Power: 4W maximum and 1 watt minimum
- Vocoder: AMBE + 2TM
- Firmware version: D013.030 (new vocoder)
- Frequency: Single-band VHF 136-174Mhz
- Frequency stability: +/- 2.5 PPM
- Antenna impedance: 50Ω
- Operating temperature: -30 ° C ~ + 60 ° C
- Speaker Audio Power: 1W
- Antenna Connection: SMA Female
- Dimension: 128mm x 61mm x 38mm
- Weight: 208g

Firmware and software CPS TYT

Download software and firmware in the "Download" tab.

If you have exotic characters with the CPS TYT software, you must choose the English language in the menu as shown below:

Reminder: The use of the TYT MD-280 handheld requiert in transmit mode (not in reception), to have a licence radio, and is the sole responsibility of the user to comply with the assigned frequencies and applicable legislation In the country where the handheld is used.

This radio is sold non-programmed, neither in frequencies and without codeplug. Programming is to be done by the user.

Passion Radio no longer provides support for amateur radio DMR programming given too many DMR networks which some are incompatible with each other.

It is the responsibility of the administrators of the DMR networks to provide ready-to-use codeplugs for the users of their networks.
