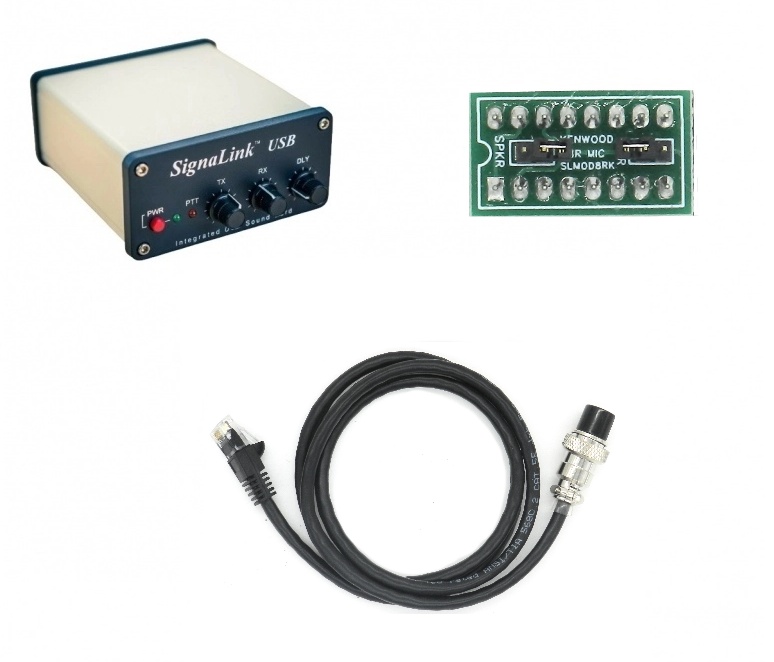

New Signalink-SLUSB-8R pack for Kenwood & Alinco with 8-pin mic jack View larger
Tigertronics

SIGNALINK-PACK-SLUSB8R2-1707

New product

U.S.A

Signalink-SLUSB-8R + SLMOD8RY pack for YAESU with 8-pin mic jack

The Signalink SLUSB-8R + SLMOD-8RY interface pack is compatible with YAESU radios equipped with an 8-pin micro such as: FT-747, FT-757, FT-840, FT-847, FT-890, FT-920, FT-950, FT-980, FT-990, FT-1000/1000D, FT-1000MP, FT-DX1200, FT-DX5000, FT-2000, TS-680, TS-690, TS-780, TS-790, TS-850, TS-940, TS-950.

  • Low noise USB sound card
  • Quick and easy installation with the jumper
  • RX and TX setting from the front panel
  • Support ALL digital and digital modes such as SSTV, RTTY, Packet, PSK, ROS, FT8, FT4, JS8, ACARS, etc.
  • Complete RF isolation between computer and radio
  • Transmit Audio output and external speaker jack

The pack includes: 1 Tigertronics Signalink USB interface, 1 SLCAB8R cable to connect the radio to the interface and the SLMOD8RY jumper to be installed inside the interface, 1 USB cable 2.5m, 1 mono jack cable, 6 pre-cut and stripped 24 AWG wires, 1 Allen key - 3/32 "size, rubber feet, 1 English manual.

Note: This interface does not allow frequency control (CAT control) on the radio station used, it allows switching to PTT and sending a signal to the radio station and receiving it, thanks to the USB peripherals created.

More details

179,00 € tax incl.

149,17 € tax excl.

Instead of 192,80 €

In stock

Order it before 10:00 of aujourd'hui and receive it between on Wednesday 28th September and Thursday 29th September with DHL Express 12

To know the shipping costs and available carriers, add this material to the cart and indicate your country & zip code on the cart page.

Pack content

  • Tigertronics Signalink USB radio interface and sound card
    145,00 € tax incl.

    Reference: TIGER-SIGNALINK-BOITIER-1455

    1 x Tigertronics Signalink USB radio interface and sound card

    The Signalink USB radio interface from Tigertronics is a USB sound card that allows you to receive and transmit from a computer to practice digital modes such as SSTV, RTTY, Packet, PSK, ROS, FT8,

    145,00 € tax incl.
  • Signalink SLUSB-8R Mini-DIN 8-pin radio cord for Alinco Elecraft Icom Kenwood and Yaesu
    34,90 € tax incl.

    Reference: SIGNALINK-CABLE-SLCAB8R-1493

    1 x Signalink SLCAB-8R micro 8-pin radio cord Alinco Elecraft Icom Kenwood Yaesu

    The Signalink SLCAB8R radio interface cable can be used with the Signalink USB sound card and with virtually all Alinco, Elecraft, ICOM, Kenwood and Yaesu radios that have an 8-pin micro plug . This

    34,90 € tax incl.
  • Jumper Signalink SLMOD-8RY 8 Pin Round Type Mic Socket for Yaesu
    12,90 € tax incl.

    Reference: SIGNALINK-JUMPER-SLMOD8RY-1499

    1 x Jumper Signalink SLMOD-8RY for 8-pin microphone socket for Yaesu

    This jumper module is compatible with virtually all Yaesu radios that use an 8 pin round type mic jack. This includes but is not limited to the radios listed below. The radio cable compatible with

    12,90 € tax incl.

Data sheet

  • Power supply: USB port compatible with USB 1.1 / 2.0 / 3.0, Male B connector
  • Consumption: ~ 140mA in transmission, ~ 80mA nominal
  • Operating temperature: -30 ° C to + 60 ° C
  • Audio frequency response: 200 Hz - 4000 Hz at 600 ohms
  • Sampling rate: 16 Bits, up to 48Khz
  • Operating System: Windows 98SE, ME, 2000, XP, Vista, Windows 7, 8.x and Windows 10
  • MAC OS 9.1, MAC OS X 10.00
  • Z radio input / output: 600 Ohm
  • Auto-PTT ™ delay: 30 ms to 3 seconds
  • PTT circuit: Relay, rated value - 1A @ 24VDC (max), 0.5A @ 120VAC (max)
  • Radio connection: Audio TX, Audio RX, PTT, GND and RJ-45 female
  • RX audio / speaker: 3.5mm mono jack mono
  • Housing: Extruded aluminum, powder coated
  • Dimensions: 40 x 81 x 91 mm
  • Weight: 187g

Compatible radio

This Signalink pack is compatible with the radios below and the European or American versions.

YAESU

FT-107/107M
FT-726R
FT-736/736R
FT-747/757
FT-757GX/767GX
FT-840
FT-847
FT-890
FT-920
FT-950
FT-980
FT-990
FT-1000/1000D
FT-1000MP
FT-DX1200
FT-DX5000
FT-2000
FT-5100

G1 / G2 Jumper Settings - To maintain compatibility with as many radios as possible, this jumper module has two small jumpers that can be set to provide additional ground ("G") connections needed for certain radios (see below).  These two jumpers should be installed as follows for the following radios only.  Do *NOT* install either jumper if your radio is not listed below:

- Both jumpers "G1" and "G2" must be installed for the FT-890, FT-980, FT-990, FT-1000, and the FT-1000D.
- Only jumper "G1" must be installed for the FT-847, FT-920, FT-950, FT-1000MP, FT-DX1200, and FT-DX5000.
