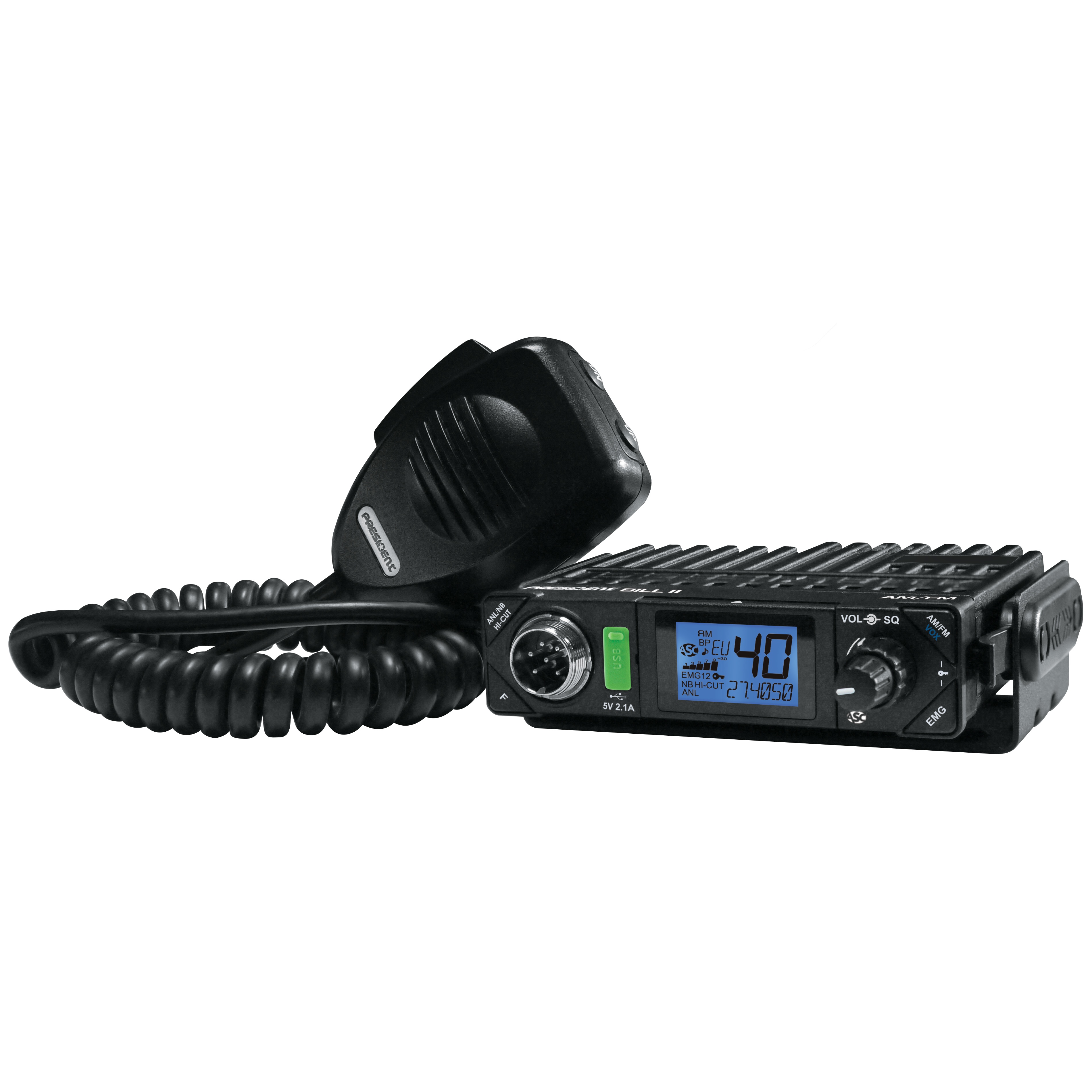

Radio CB President Bill 40 Channels AM / FM 4 Watts

Radio CB Mobile President Bill ASC, 40 channels (26.965 - 27.405 MHz).

4 Watt AM / FM output power
12 V power supply
With Electret type microphone, 6 pins with Speaker wiring.

Comes with: 1 President Bill transceiver, 1 microphone, 1 mounting bracket with fixing screws, 1 microphone holder with screws, 1 user manual in English and French.

More details

Download

Manual President Bill ASC

1.29M

Data sheet

Number of Channels: 40
Modulation modes: AM / FM
Frequency ranges: from 26.965 MHz to 27.405 MHz
Antenna Impedance: 50 Ohms
Power supply: 12 Volts
Size: 102 (W) x 100 (D) x 25 (H) mm
Weight: 430 grams

Transmission

Frequency accuracy: +/- 200 Hz
Power: 4 Watts AM / FM
Audio response: 300 Hz to 3 KHz
Consumption: 1.7 A at 13.2 Volts

Reception

Maximum sensitivity at 20 dB sinad: 0.5 µV - 113 dBm AM / 0.35 µV - 116 dBm FM
Frequency response: 300 Hz to 3 kHz
Adjacent channel selectivity: 60 dB
Maximum audio power: 2 Watt
Consumption: 180 to 500 mA (@ 13.2V)
