Super Discone Antenna 25Mhz - 3Ghz Diamond D3000N

rating Read the 12 reviews
Average rating: 5/5 Number of reviews: 12

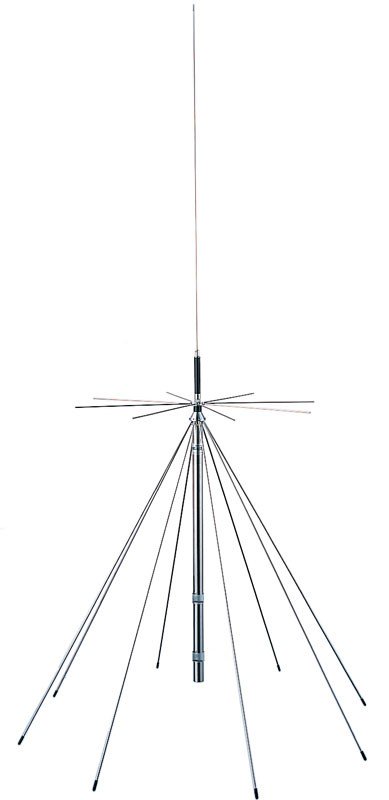

Diamond D3000N discone antenna, ultra wide band covering in reception all frequencies 25Mhz to 3GHz, compact with only 1.7 meters high.

  • Reception 25 to 3000 MHz
  • Transmit 50/144/430/904/1200 MHz
  • Compact and light antenna can be installed on a balcony
  • Ideal for amateur bands VHF and UHF RX and TX: 6m, 2m, 70cm and 23cm
  • Perfect for use in SDR mode with HackRF One
  • Can be shortened to be even more compact by removing the last element, if the reception 25-50 MHz is not useful

* Surprisingly, although the manufacturer does not indicate this antenna for reception on low HF bands, it is possible to use this discone for reception on HF bands from 7MHz to 25MHz, with acceptable performance, especially on 7MHz and 14MHz (RX only).

More details

144,90 € tax excl.

160,87 €

Out of stock, available in 2 to 3 months

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

Manuel Diamond D3000N

484.5k

Manual D-3000N Diamond (EN)

User manual and datasheet in english Diamond Antenna D-3000N 889.25k

Data sheet

Datasheet discone Diamond D3000N

Length: 170 cm
Weight: 1kg
Gain: 2dBi
Impedance: 50 ohms
Connector: N (Female)
Maximum power: 25W or 50W PEP on FM 50Mhz, 200W above 144MHz
SWR: Less than 2
Mast diameter accepted: 25mm to 55mm

Reviews

Click here to leave a review

rating 5
Jouanneau
2026-09-09
Antenne
Bonjour. L\'antenne fonctionne très bien aussi.facile a posé. Merci
rating 5
F4LLS
2026-02-07
Antenne
Bonjour, Je verrai dans l\'avenir. Bonne journée.
rating 5
F4LCU / Jean-Bernard
2025-10-14
Très bien
Très belle qualité des matériaux et finition, je l\'ai acheté suite aux avis trouvés çà et là et ne regrette vraiment pas cette décision.La réputation du sérieux de cette entreprise n\'est pas surfaite, c\'est vraiment le \"Top\"
rating 5
Axel
2025-05-28
superbe antenne
Antenne monter et poser au sol sous mail terrasse pour l’instant ,fréquences aériennes et marine passent canon(Réunion) même la tour de contrôle de mada à 800km avec signal très fort
rating 5
F4JLF
2024-05-14
La qualité Diamond
Très bonne antenne. Fabrication impeccable et solide. Excellente réception sur les bandes indiquées. Je l'utilise également en émission sur le 2 m ( 144 - 146 Mhz , et le 70cm ( 430 - 440 Mhz ) avec de remarquables résultats. Je pense que je vais en commander une seconde pour utilisation en déplacements. La qualité DIAMOND est une valeur sûre.
rating 5
OBI
2024-03-30
Bonne antenne
Antenne de bonne facture. Je confirme la bonne réception sur 7 et 14 MHz.
rating 5
F1UAZ
2023-04-11
RAS
RAS
rating 5
F-80823
2023-01-26
Ultras performante
Une antenne très surprenante en réception qui couvre des fréquence quel n'était pas sensé couvrir , notamment le 7Mhz. Une antenne de très bonne qualité de fabrication , ainsi qu'au niveau technique. Utiliser uniquement en réception.
rating 5
HAMELIN Christian
2022-12-15
Super
Le matériel correspond à mon attente et est de très bonne qualité
rating 5
F-80823
2022-12-13
Parfait
Excellente antenne pour faire de l'écoute. Sa construction et solide et les filetages des radians sont très bon. La qualité globale de fabrication de ce modèle et clairement présent.
rating 5
Baeyens garageandre@hotmail.com
2022-11-08
Satisfaction
Très bien reçu et fonctionne très super service à recommander merci
rating 5
Serge SWL
2021-09-08
Bon produit pour débuter
Testé en réception seulement et bien pour les débutants pour les premiers tests. Pour les fréquences de reception des IoT parfait pour un SDR et Hacker Radio pour les audits de sécurité. Cable en RG58 fait maison car sinon câble en supplément. Réception sur les fréquences DMR et PMR parfait. Achetez chez nos fournisseurs Français ;)
