Anytone DMR AT-D878UVII (V2) PLUS 144-430Mhz APRS GPS BLUETOOTH

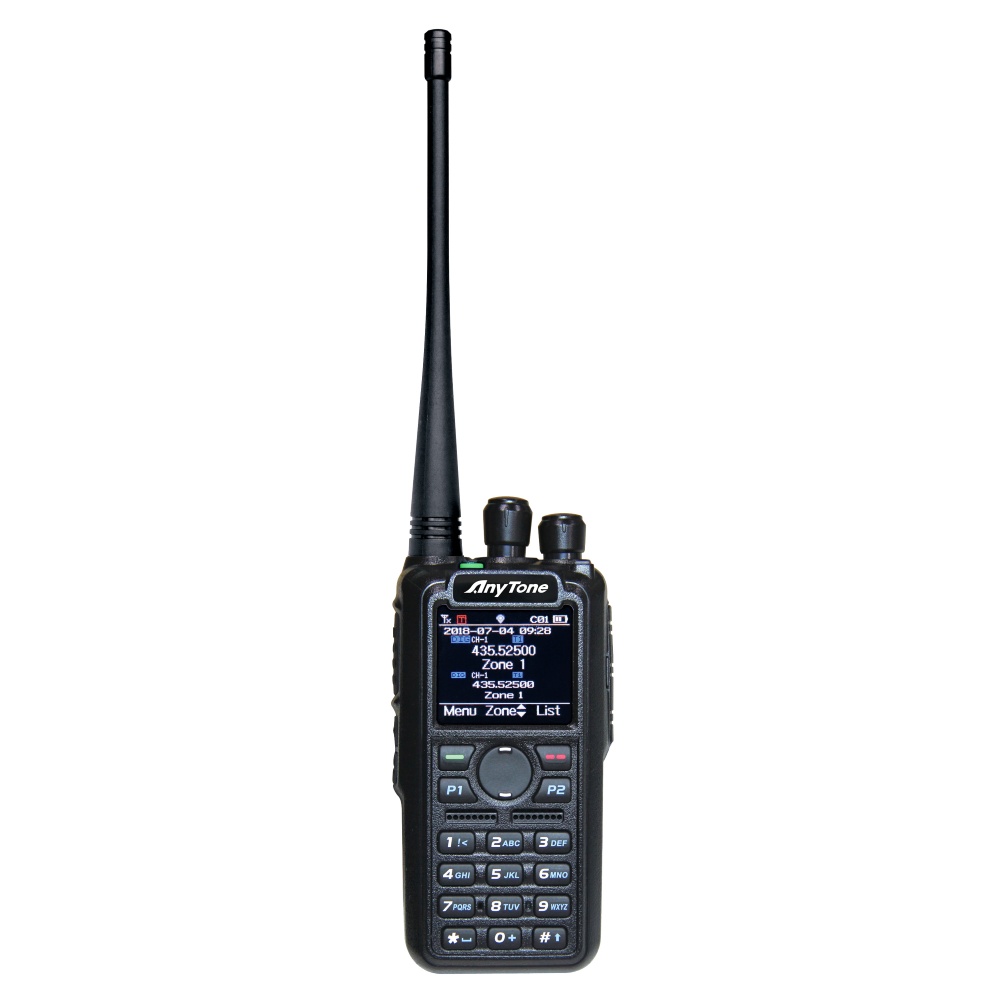

The new Anytone AT-D878UV II Plus is a dual-band 144 / 430Mhz (VHF and UHF) , analog FM and digital DMR walkie-talkie, Tier I & II, Motorbro and Hytera compatible, TDMA (2 TimeSlot), with VFO function , Bluetooth, GPS with APRS FM and DMR, Roaming / Roaming function, 3100mAh very long battery life and Bluetooth.

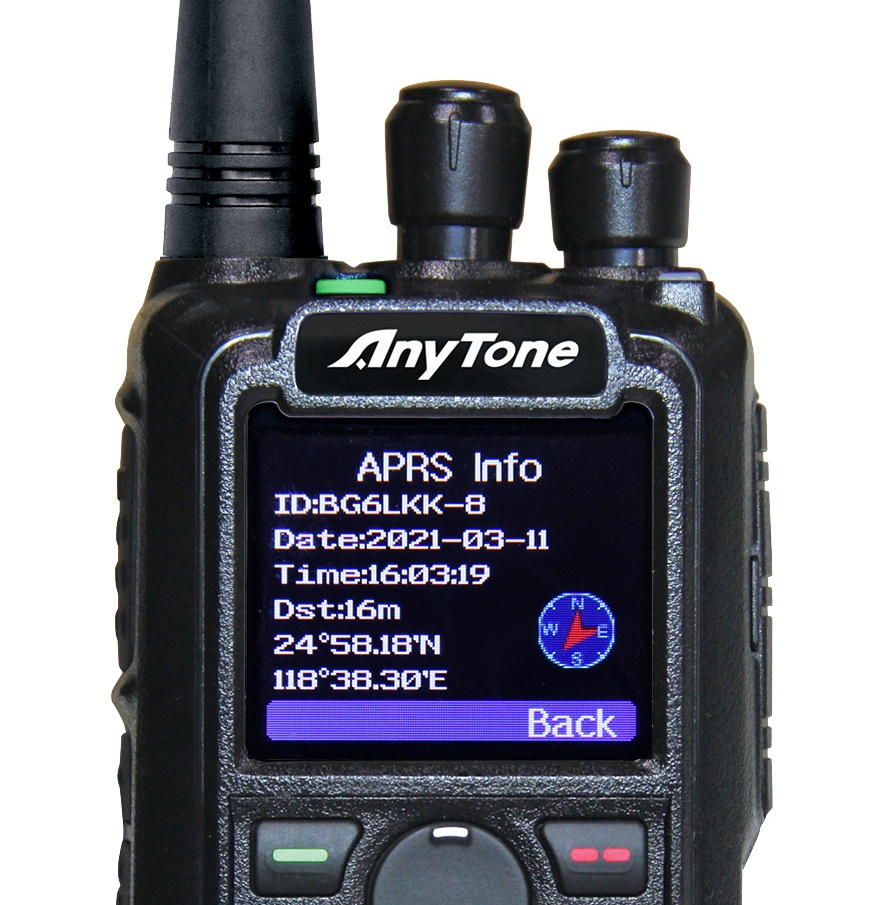

Difference between version I and II: New PCB, internal memory of 2GB instead of 1GB, 500,000 contacts instead of 200,000, display function when receiving APRS info in FM , codeplug and firmware specific to version II.

Comes complete with: 1 ANYTONE AT-D878UVII Plus Dual-band with GPS and Bluetooth, 1 desktop charger 120V-240V (EU plug), 1 waterproof battery (Li-ion 7.2V 3100mAh), 1 dual-band VHF / UHF antenna, 1 bouton PTT Bluetooth, 1 belt clip, English manual. 2 year warranty and programming cable included.

Compatible antenna: With SMA female connector such as Diamond Antenna SRJ77CA or Nagoya NA-771 for example.

This station is sold non-programmed, neither in frequencies and without codeplug. The programming is to be carried out by the user (see more below).

More details

239,00 € tax incl.

In stock

Download

Programming guide D868/D878 FR

KD0PNC programming guide 1.26 in french for the Anytone AT-868UV and AT-D878UV, translated by VE2RI. 1.33M

Programming guide D868/D878 EN

KD0PNQ programming guide v1.33 for the Anytone AT-868UV and AT-D878UV. 3.99M

Bluetooth D878UV PLUS

Operating instructions for the PTT Bluetooth button included on the D878UV PLUS version 419.53k

CPS + FW AT-878UVII PLUS

Only compatible for the AT-878UVII Plus version. 9.21M

Firmware AT-878UVII PLUS V2.02N

Firmware version V2.02N (June 2021) for AT878UVII V2 only. 9.25M

Manual AT-878UV (FR)

French manual for the Anytone AT-878UV, translated by ON2CQ 1.79M

Data sheet

2 Timeslot, TDMA, MOTOTRBO Tier I & II compatible
Power: 5-6W / 2.5W / 0.5W
RX and TX frequency (amateur radio bands): 144-146 Mhz and 430-440 MHz
Auto-detection digital or analog mode
4,000 channels, 10,000 talkgroups, 500,000 contacts
Internal memory: 2GB

VFO button function to change frequencies
RX and TX APRS function in FM or DMR
TFT color LCD display, dual display, dual standby
Bandwidth: 12.5K / 25K (analog); 12.5K (DMR)
Frequency step: 5Khz, 6.25Khz, 10khz, 12.5Khz, 20K, 25K, 30K, 50K
CTCSS / DCS encoding and decoding
DTMF / 2TONE / 5TONE
Up to 5 different DMR IDs
Indicator icon or voice prompt when connecting with a relay
Roaming / Roaming function (selection of a relay accessible from a predefined list)
Bluetooth
Encryption function (scrambler)
SMS function via keypad
Recording function
GPS function
ANI function, PTT ID, VOX
SMA male antenna connector
Emergency alarm (with GPS data transmission)
2-pin KENWOOD type microphone / headphone jack
Antenna connector: SMA Male (Antenna compatible in SMA female)
Waterproof: IP54
Battery: 3100mAh battery
CE and FCC certified
2 year warranty by Passion Radio

How to activate VFO mode and additional menus

To activate the VFO mode via the P2 key as well as the additional menus, here is how to proceed:

Go to the "Optional Settings" menu, then in the "Other" menu then in the "choose working mode" drop-down menu, select the "amateur mode" mode , so that the modifications are taken into account, rewrite the codeplug on the radio.

configuration ode VFO P2 anytone AT D878

Anytone programming, codeplug and firmware update

The latest versions of the Anytone AT D878UV programming and firmware update software are available in the "Download" area.

This station is sold non-programmed, neither in frequencies and without codeplug. The programming is to be carried out by the user.

Passion Radio no longer provides support for amateur radio DMR programming given too many DMR networks in France (4 in total) which are incompatible with each other.

It is the responsibility of the administrators of the DMR networks in France to provide ready-to-use codeplugs for the users of their networks.

Reminder: The use of the Anytone AT-D878UVII Plus walkie-talkie is subject to license and compliance by the user with the frequencies and the legislation in force in his country.
