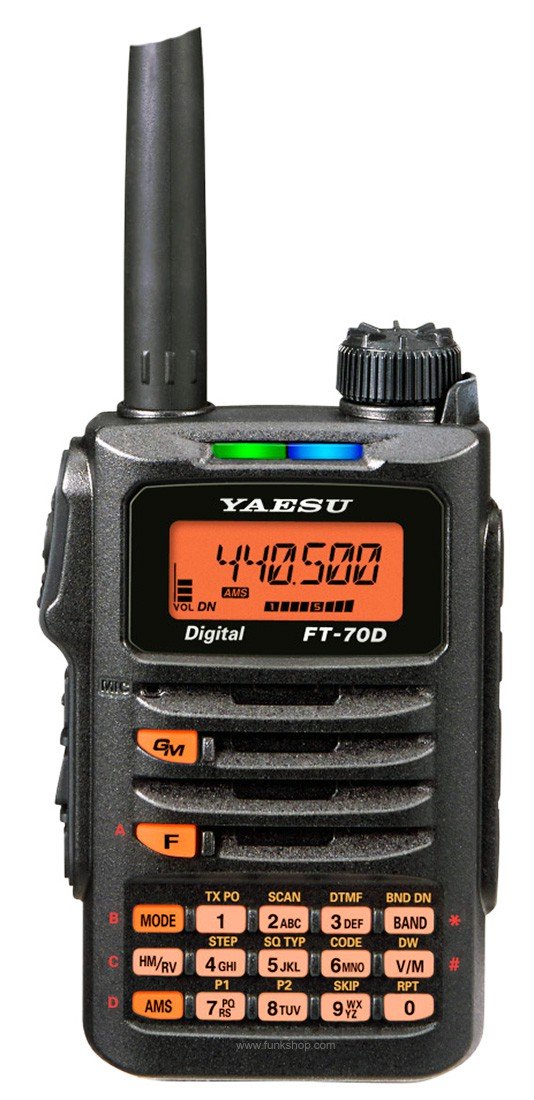

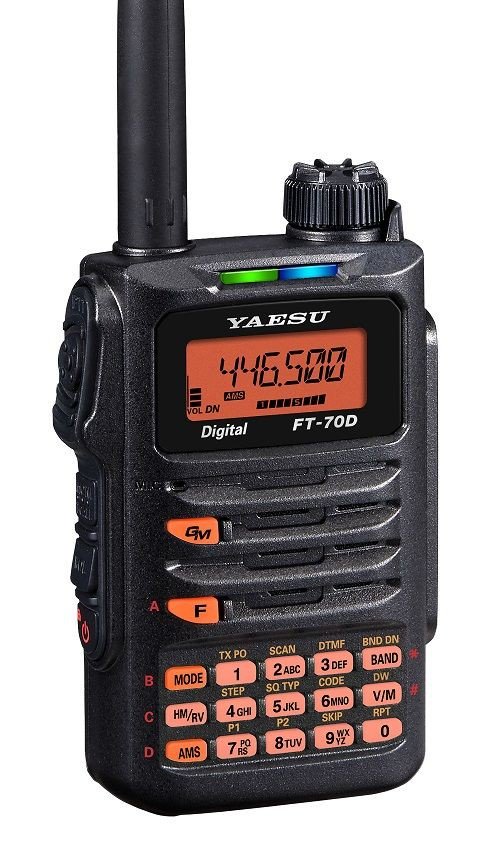

YAESU FT-70DE 144/430 MHz FM + C4FM 5W

The Yaesu FT-70DE, robust walkie-talkie and IP54, VHF-UHF 144/430 MHz 5 watts, dual-mode analogue FM and digital C4FM compatible WIRES-X, 108-580Mhz wideband scanner with aviation band AM with new step 8.33kHz.

- No frequencies: 5, 6.25, 8.33 (AM aviation), 10, 12.5, 15, 20, 25, 50, 100 KHz
- Battery of 1800 mAh
- Antenna connector in female SMA
- Encoder, CTCSS decoder and DCS
- Compatible WIRES-X
- 1105 memories
- Micro-USB connector for programming and firmware update
- 2 year warranty Yaesu

Comes with: Yaesu FT-70D / E Walkie Talkie, battery, dual band antenna, charger, belt clip, user manual in French or englsih.

Antenna compatible for the Yaesu FT-70D: SMA male, like the antenna Diamond SRH771.

More details

Download

Yaesu FT-70D Simple Manual FR

Yaesu FT-70D Simple Manual in French 11.03M

Manuel avancé FT-70DE/DR FR

Manuel d'utilisation avancé pour le Yaesu FT-70DE/DR en français 6.59M

Yaesu FT-70D Simple Manual EN

Simple User Manual for Yaesu FT-70D in English 11.63M

FT-70D Advanced Manual EN

Advanced User Manual for Yaesu FT-70DE/DR in English 5.95M

FT-70D Simple Manual DE

Simple User Manual for Yaesu FT-70 in German 11.06M

FT-70D Advanced Manual DE

Advanced User Manual for Yaesu FT-70 in German 6.59M

FT-70D Simple Manual ES

Simple User Manual for Yaesu FT-70 in Spanish 11.03M

FT-70D Advanced Manual ES

Advanced User Manual for Yaesu FT-70D in Spanish 6.58M

Data sheet

The FT-70D / E offers VHF-UHF FM reception coverage, from 108 to 580Mhz, including the VHF AM band with the new 8.33kHz pitch.

Main features of the FT-70DE

• 1105 memories
• Power: 5 Watts max. On 144 and 430MHz (5/2 / 0.5W)
• Long battery life (7.2 V / 1800 mAh) and charger included
• DTMF, CTCSS and DCS Encode / Decode, with Split Tone and DCS
• Access for WIRES ™
• Robust construction, waterproof molded housing IP54
• Transmission Timer (TOT) and Automatic Shutdown (APO)
• Dimensions: 60x98x33 mm
- Weight: 255gwith battery and antenna
- CE and FCC standards

Technical Specifications of FT-70D

Receiving cover (RX):
- 108-137 MHz (AM Aviation Band)
- 137-174 MHz (FM and C4FM)
- 174-420 MHz (FM)
- 420-470 MHz (FM and C4FM)
- 470-580 MHz (FM)

Covers in transmission (TX):
- Europe version: 144-146Mhz and 430-440Mhz / FM and C4FM

- No frequencies: 5, 6.25, 8.33 (AM aviation), 10, 12.5, 15, 20, 25, 50, 100 KHz
- Backlit LCD display and keypad
- Battery of 1800 mAh
- Antenna connector in female SMA
- Encoder, CTCSS decoder and DCS
- 1105 memories
- 700mW speaker

Plug a headset

You can plug a headset (jack 3.5mm) to this radio, but the output will be only on one headphone. In order to get the sound on both headphones, it is recommended to use a mono plug on the headset.
