DIAMOND-MX72A HF VHF UHF Duplexer View larger
Diamond Antenna

DIAMOND-MX72A-1740

New product

Japan

DIAMOND-MX72A HF VHF UHF Duplexer

rating Read the 3 reviews
Average rating: 5/5 Number of reviews: 3

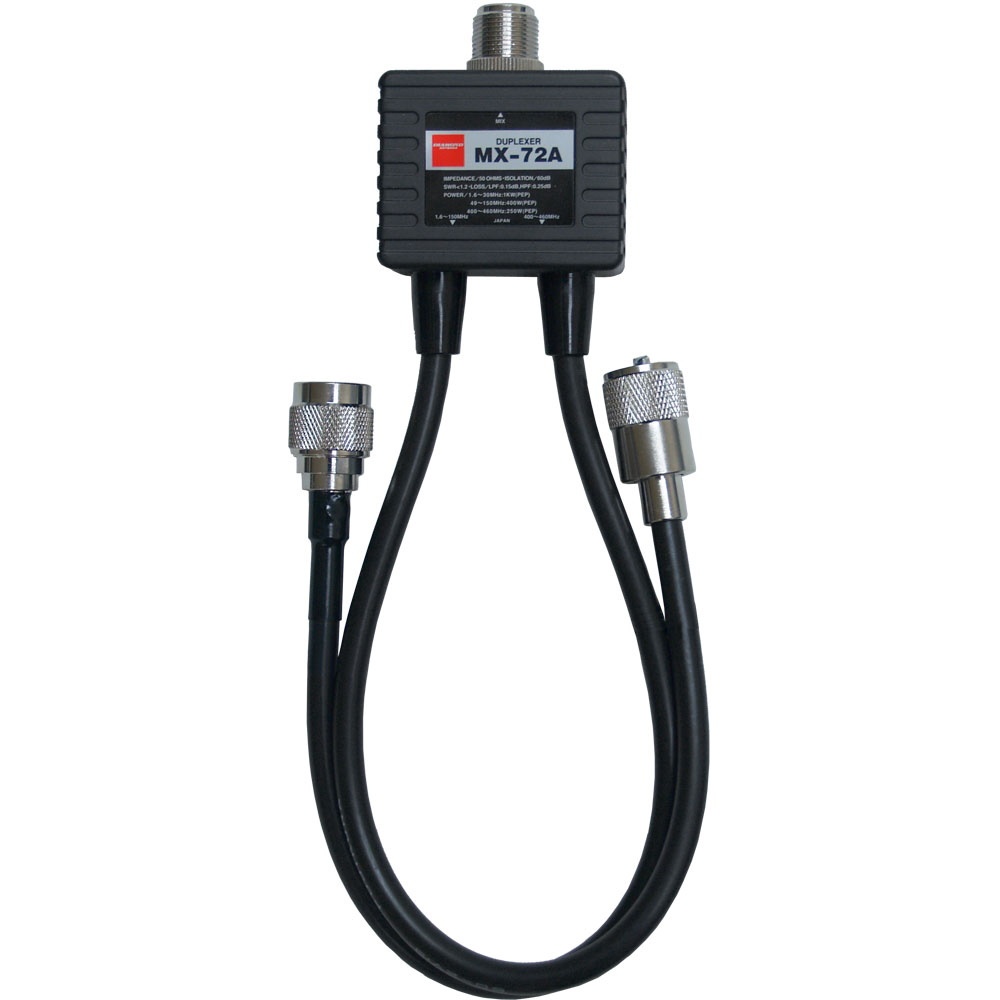

The MX-72A is an HF VHF UHF duplexer with one N-type plug used as an input and two outputs, one being a PL-259 and the other an N-type plug.

The coaxial cables to which they are connected are 35 cm long. The Diamond MX-72A duplexer is used to connect two different radios in the short wave and UHF frequency range directly to the antenna output with one cable.

Supplied with: 1 Diamond MX-72A duplexer, original warranty.

More details

49,50 € tax excl.

In stock

   1 Item

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

Manuel MX-72A (EN)

51.06k

Data sheet

  • Low-pass frequency coverage: 1.6-30 MHz + 140-150 MHz
  • High-pass frequency coverage: 400-460 MHz.
  • Low-pass loss: 0.1 dB.
  • Average pass loss: 0.1 dB.
  • High-pass loss: 0.1 dB.
  • Low Pass PEP: 1000 watts.
  • Mid Pass PEP: 400 watts.
  • High Pass PEP: 250 watts.
  • Isolation: 60 dB.
  • Mix connector: N-type, female.
  • Low Pass Connector Type: UHF male, PL-259.
  • High-pass port connector type: N-type, male.
