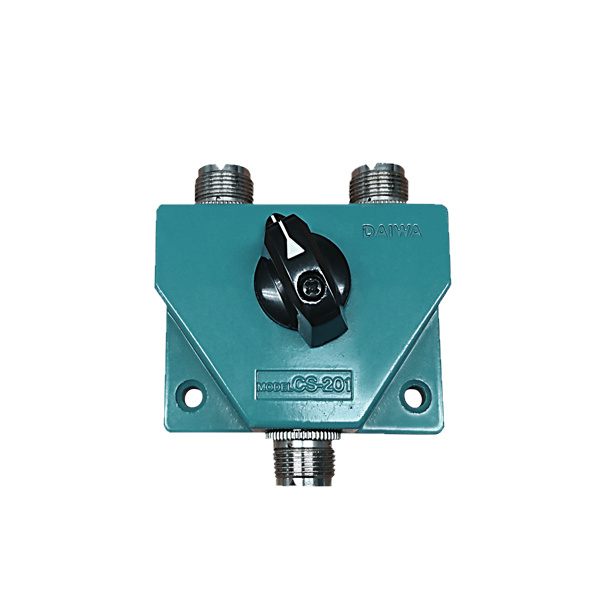

DAIWA CS-201A 2-position coaxial switch UHF female 1500W

rating No review at the moment

DAIWA CS201Acoaxial switch - 2-position switch with female UHF connectors (SO-239) for frequencies up to 1.5 GHz and 500W.

This professional coaxial switch enables you to switch quickly between two antennas or RF equipment.

- Fast, reliable 2-position switching
- Operation up to 600 MHz
- Low insertion loss < 0.15 dB
- Excellent isolation > 60 dB
- Robust all-metal construction

Supplied with : Daiwa CS201A switch.

More details

44,18 € tax excl.

Out of stock, available within 1 month

Notify me when available

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

  • Frequency: DC to 1.5 GHz
  • Type: 2-position coaxial switch
  • Impedance: 50 Ohms
  • Connectors: 3 x UHF female (SO-239)
  • Max power : 1500 Watts (0-30 MHz), 1000 Watts (30-150 MHz), 500 Watts (150-600 MHz)
  • Insertion loss: < 0.2 dB @ 600 MHz
  • Isolation: > 60 dB
  • VSWR: < 1.15:1
  • Dimensions: 82 x 82 x 35 mm
  • Weight: 280g
  • Materials: Machined aluminium case

Features

  • Manual lever switch
  • Position clearly indicated
  • Fully shielded case
  • Silver-plated contacts
  • Low losses throughout the frequency range

FAQ

Q: What is the maximum power?
A: 500W maximum continuous power up to 1.5 GHz.

Q: Is there a neutral position?
A: No, the switch toggles between positions 1 and 2.
